• Model NO.：FLC1626C
• Laser Technology：Laser Control Fault Cutting
• Working Area：1600*2600mm or Customsized
• Laser Power：100-300W
• Feeding Way：Automatic
• Delivery Time：in 15 Days
• Transport Package：Plywood
• Specification：1626
• Trademark：flying
• Origin：China
• HS Code：8456110090
• Production Capacity：60PCS,Month

Basic Info.

Model NO. FLC1626C Laser Technology Laser Control Fault Cutting Working Area 1600*2600mm or Customsized Laser Power 100-300W Feeding Way Automatic Delivery Time in 15 Days Transport Package Plywood Specification 1626 Trademark flying Origin China HS Code 8456110090 Production Capacity 60PCS/Month

Product Description

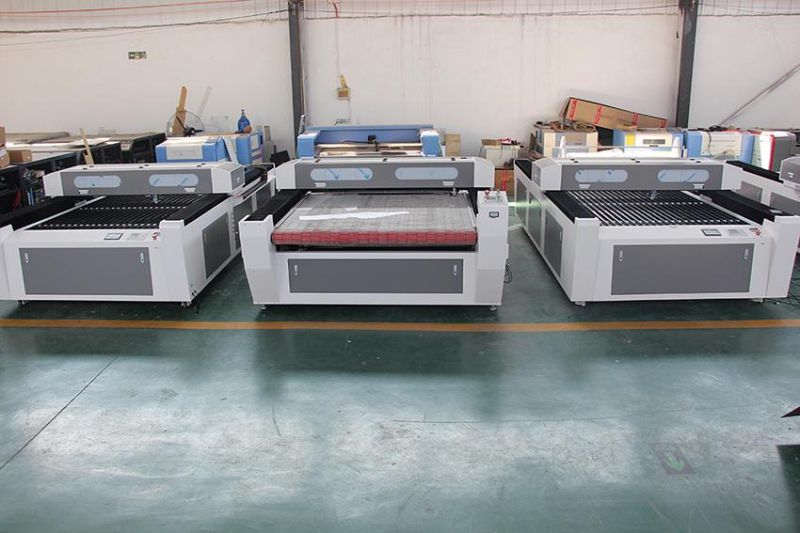

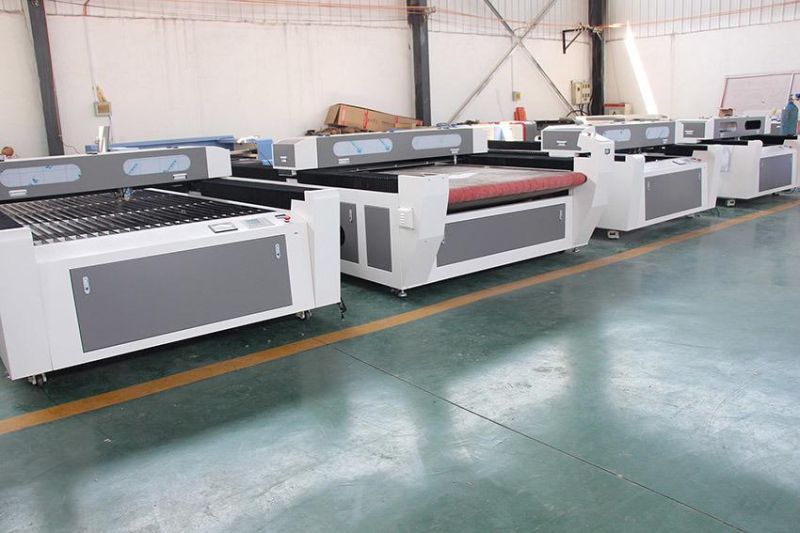

Auto Feeding Laser cutting machine for fabric cloth leather garments

Features:

    The auto-feeding laser cutting machine is designed for cutting fabric, leather,cloth,paper and other soft materials in rolls, which largely enhances the working efficiency and saves time.    It can be equipped with one, two or four cutting heads and auto feeding system, two or four cutting heads working at the same time. The feeding system can load materials by itself which can save the labor force and cut the cost.    This machine is especially suitable for the mass processing of textile and garment.The machine can cut any curve fast and consecutively. DSP control system makes users can complete the mass production without the connection to the computer.    We can make other sizes according to your requirements.

Specifications:

Model	Auto Feeding Laser Cutting Machine FLC1626C
Working Travel Area	1600*2600mm, 1600mm width with infinity material-feeding
Laser-type	co2 laser tube with water cooling protection
Laser-power	80W/100W/130W
Cooling Mode	Circulating-water-cooling
Power Adjustment	0-100% controlling, no segment and adjusting by software
Machine Control and Drive	Stepper motor
Engraving Speed	0-6000mm/min
Cutting Speed	0-30000mm/min
Repeating Location	0.01mm
Minimum Character	English 1mm*1mm
Max Power	<2500W
Adjustable Up-down Distance of Laser head	30mm
Working Voltage	AC110-220V 50-60Hz
Working Environment	Temperature: 0-45, Humidity: 5%-95%, and congeal-water removed
Controlling Software Language	English
Dictate Format	*.plt,*.dst,*.dxf,*.bmp,*.dwg,*.al,*las,
Packaging	Wooden box
Machine Color	Red and gray or custom made
Max Diameter of roller	1.6m or custom made

Application Industry:

    Engraving and cutting of fabric and leather in garment, embroidery, toy, handbag, glove precision cutting of decoration board and non-mental board, like acrylic and MDF board in ads, upholstery, electrical appliance and plastic industry, cardboard box industry, rubber printing plate engraving. Ultra-thick material surface carving.
