Industrial High Frequency Commercial Vegetable Food Tomato Fruit Drying Machine

Taizhou Weienbo Valve Co., Ltd.
  • After-sales Service：1 Year
  • Warranty：1 Year
  • Type：Dryer
  • Voltage：380V
  • Power：5.5kw
  • Customized：Customized

Base Info

  • Model NO.：HGX
  • Drying Area：4sqm
  • Material：Stainless Steel 304
  • Function：Drying Fruit Vegetable
  • Air Flow：11000m3,H
  • Transport Package：by Sea,Train,Plane
  • Specification：3600x2000x1590mm
  • Trademark：Walley
  • Origin：Shaoxing City, Zhejiang Province, China
  • HS Code：8419310000
  • Production Capacity：50 Sets,Month

Description

   Model  Dimension (mm) Blastvolume (m3/h)   Blast pressure (pa)   Power      (kw)   Drying area
         (m2)   Steam consumption
      (kg/h,peak value)  HGX-Z 3600x2000x1590              11000                 548     5.5            4                  <300

Main technical parameters of HGX-Q Gas-fired box dryer   Model    Dimension (mm)Blast volume (m3/h)   Blast pressure (pa)   Power       (kw) Drying area
       (m2)    Gas consumption
    (m3/h,peak value)   HGX-Q 5200x2000x1300                     11000                548       5.5            4                  <10

Detailed Images

Name:Heat Exchanger
Radiator shell is made of stainless steel 304,inner is seamless steel tube with aluminum fins.Ensure 100% close contact,achieving high effective of heat exchanging.               Industrial High Frequency Commercial Vegetable Food Tomato Fruit Drying Machine

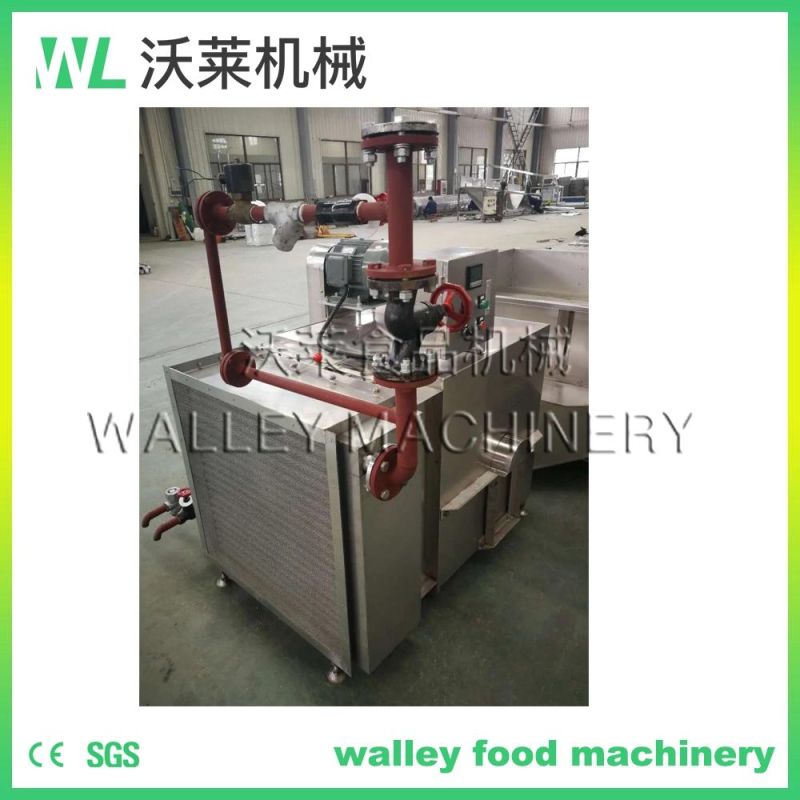

Name: Steam Control System
Two controlling ways.It can be controlled both automatically and manually.While the automatical valves are off working,the manual valve will play an indispensable role.

               Industrial High Frequency Commercial Vegetable Food Tomato Fruit Drying Machine

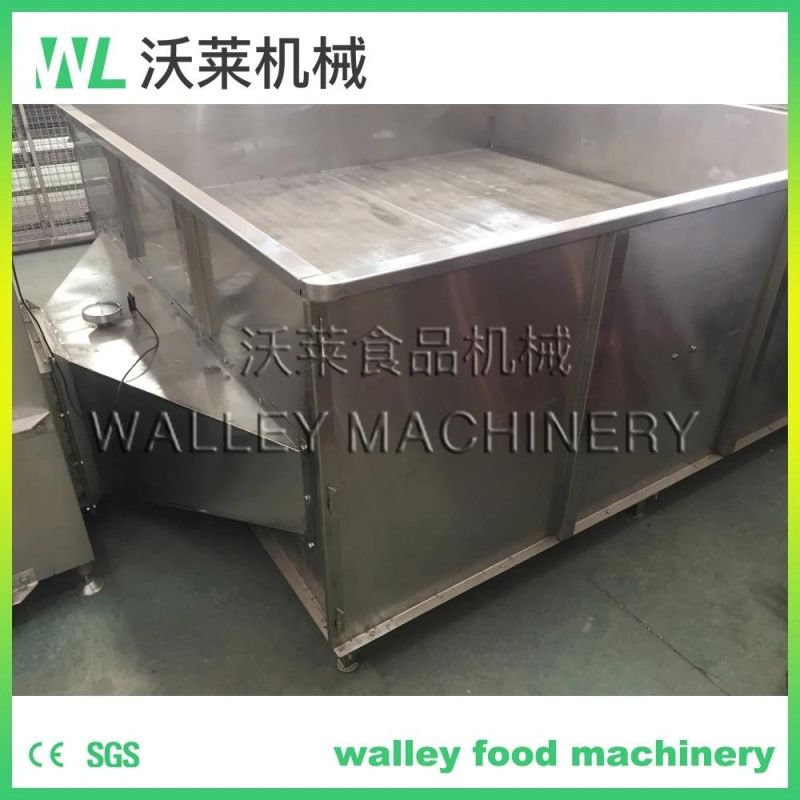

Name: Box Dryer Body
Main body is made of stainless steel 304.There is air room under the plate,making sure hot air blowing from bottom uniformly.Side latch design can open the box side plate more easier,convenient for clean.

               Industrial High Frequency Commercial Vegetable Food Tomato Fruit Drying Machine


Our Customers

Industrial High Frequency Commercial Vegetable Food Tomato Fruit Drying Machine

                            Welcome to send inquiry,thank you very much in advance!
