• Model NO.：PEDB-450
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Power：20W. 30W and 50W
• Marking Area：110*110mm
• Consumbles：No Any Consumbles
• Certification：Ce
• Marking Speed：7000mm,S
• Graphic Format：Plt, Dxf, Ai
• Frequency Range：1-1000
• Control Software：Ezcad V2.14 Version
• Impulse Width (Ns)：4-200
• Gurantee：3 Years
• Transport Package：Wood Crafcase
• Specification：75kg
• Trademark：Perfect Laser
• Origin：Hubei
• HS Code：84561000
• Production Capacity：1000 Units Per Month

Basic Info.

Model NO. PEDB-450 Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Power 20W. 30W and 50W Marking Area 110*110mm Consumbles No Any Consumbles Certification Ce Marking Speed 7000mm/S Graphic Format Plt, Dxf, Ai Frequency Range 1-1000 Control Software Ezcad V2.14 Version Impulse Width (Ns) 4-200 Gurantee 3 Years Transport Package Wood Crafcase Specification 75kg Trademark Perfect Laser Origin Hubei HS Code 84561000 Production Capacity 1000 Units Per Month

Product Description

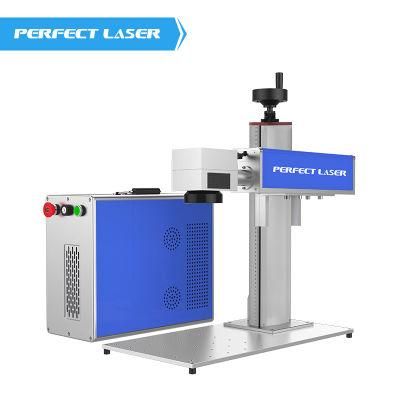

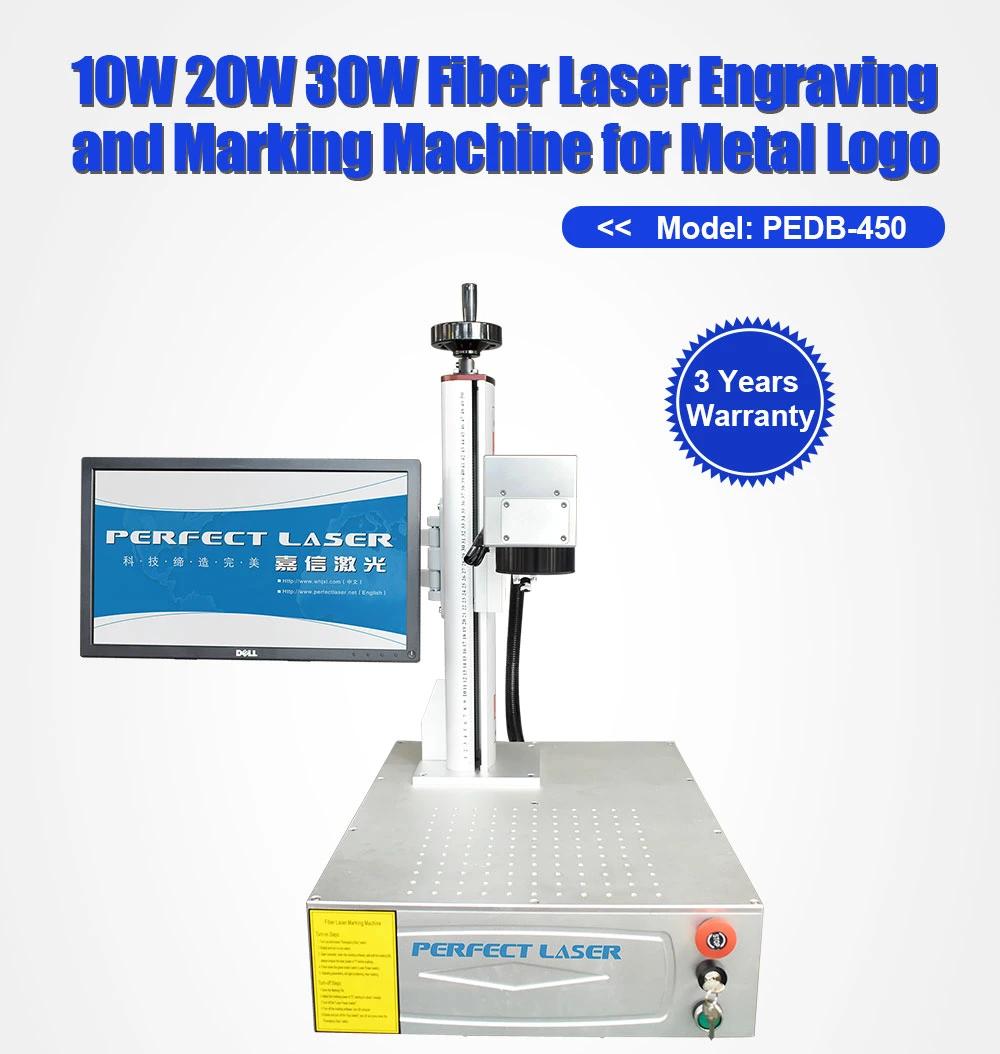

20W 30W 50W Metal Fiber Laser Marking Machine
(Model: PEDB-450)
Contact: Emily


Product Description:
Perfect Laser is the world's leading brand in the production of metal fiber laser marking machine. The latest launched an 20W 30W 50W Metal Fiber Laser Marking Machine combines the laser source, work table, and power supply into one part, which greatly makes the machine compact. This metal fiber laser marking machine appearance is fine and compact, easy to carry, fine intricate patterns can be marked on very tiny surfaces, high-rate of electrical-optical conversion, for the tinny surface.

Product Features:1.Perfect Marking Results. This laser engraver for metal can meet user requirements of the various elaborate patterns on a tiny surface.

2.High-Rate of Electrical-Optical Conversion. No power coupling loss, saving operating costs, the laser device of this laser engraver for metal has 100,000 hours lifetime, maintenance-free, and no consumables.

3. The laser marking machine for metal significantly improves the marking quantity at the same time, accelerate the user's return of the investment.

4.Integrated Structure.Compact, Small, Desktop, Easy delivery.Small size, only 0.5 M2, this laser engraver for metal can be put on the desk and easy to install.

5. Imported laser scanning system makes the marking speed up to 7000mm/s.

6.High precision, re-position precision of the laser marking machine for metal is 0.002mm.

7. Fiber laser device of the laser marking machine for metal adopts Germany IPG technology, 100000 hours lifetime.

8. This laser engraving machine for metal adopts air cooling, has an excellent cooling effect than the other cooling method.

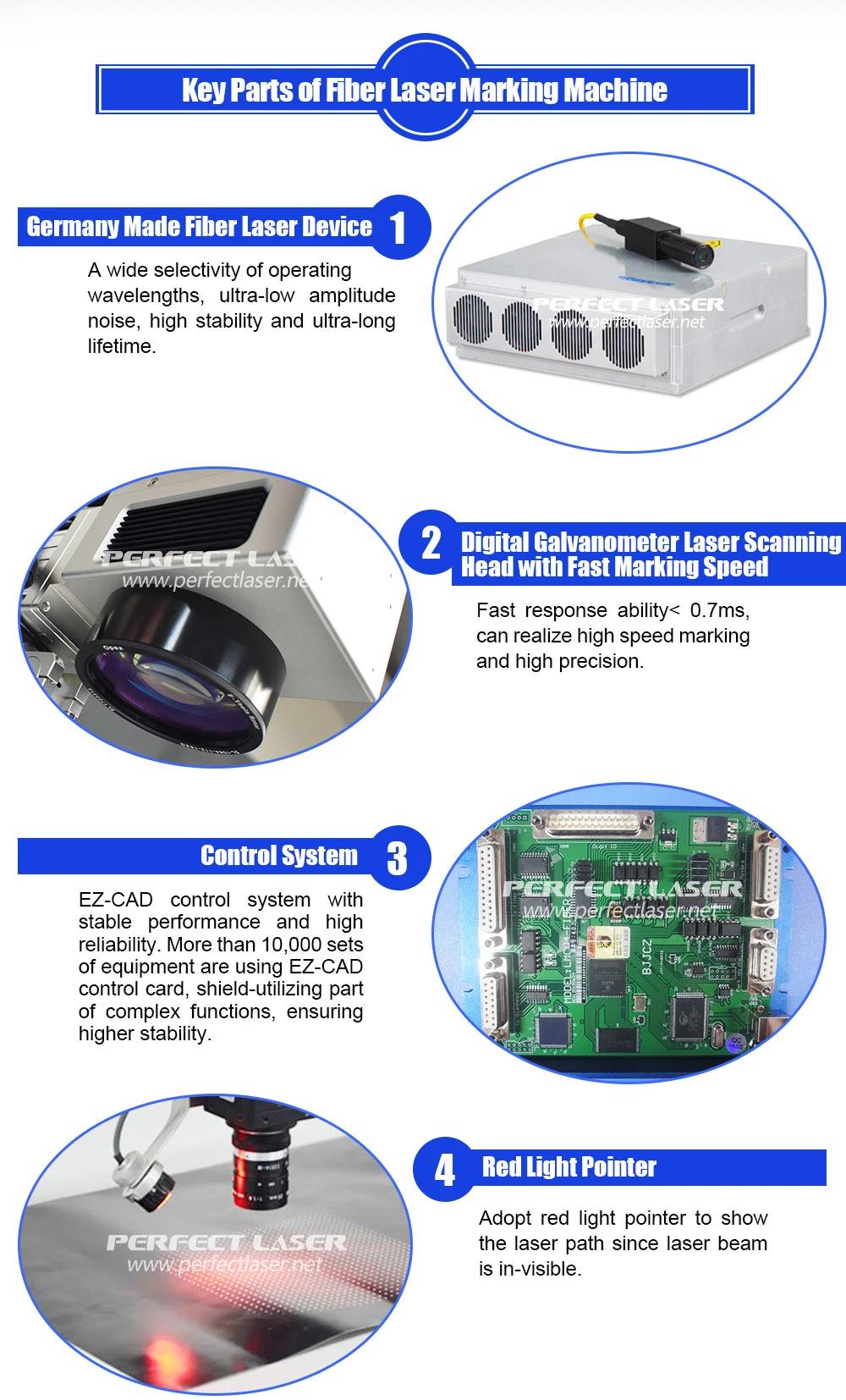

9.Germany Made Fiber Laser Device. A wide selectivity of operating wavelengths, ultra-low amplitude noise, high stability and ultra-long lifetime.

10.Digital Galvanometer Laser Scanning Head with Fast Marking Speed. Fast response ability< 0.7ms, the laser etcher machine can realize high speed marking and high precision.

11.Control System.EZ-CAD control system with stable performance and high reliability. More than 10,000 sets of equipment are using the EZ-CAD control card, shield-utilizing part of complex functions, ensuring higher stability of the laser engraving machine for metal.

12.Red Light Pointer. This jewelry laser engraving machine adopts red light pointer to show the laser path since the laser beam is invisible.

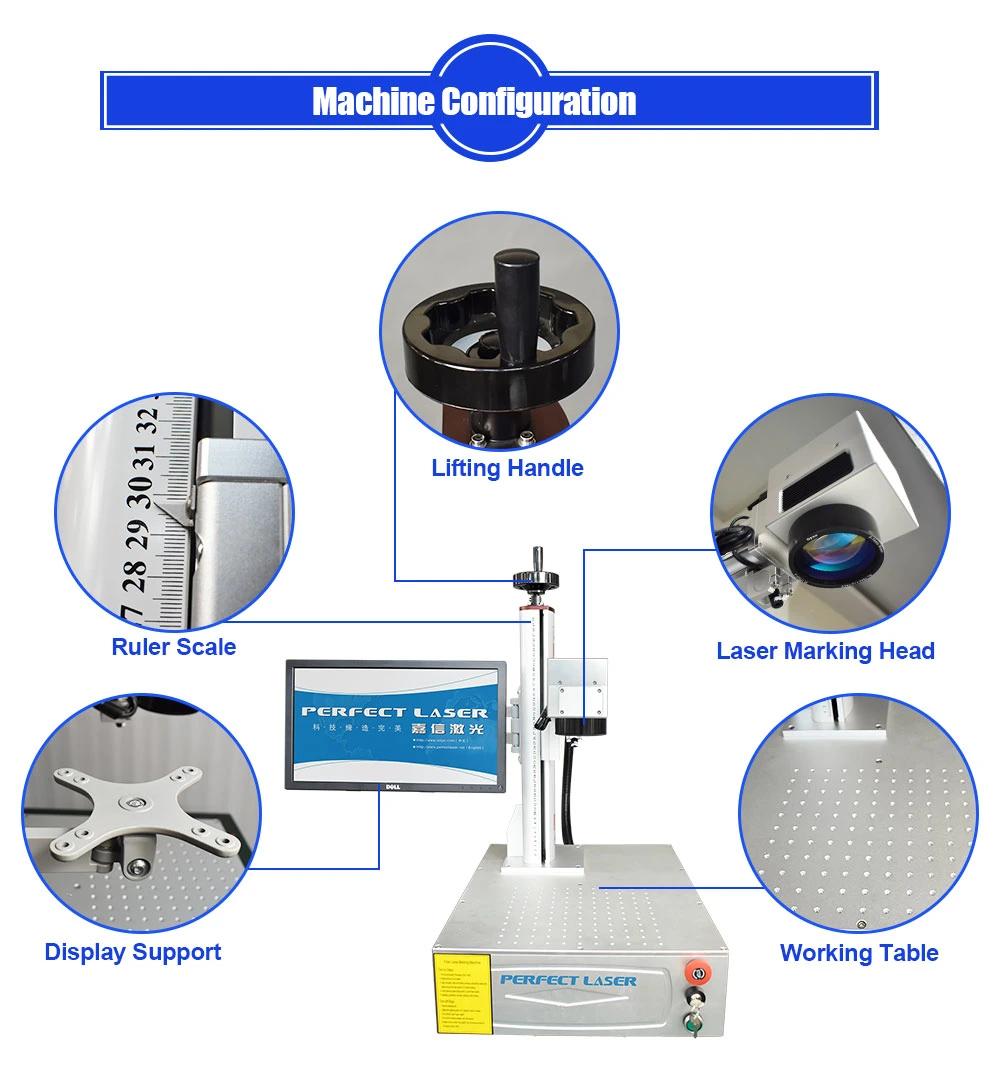

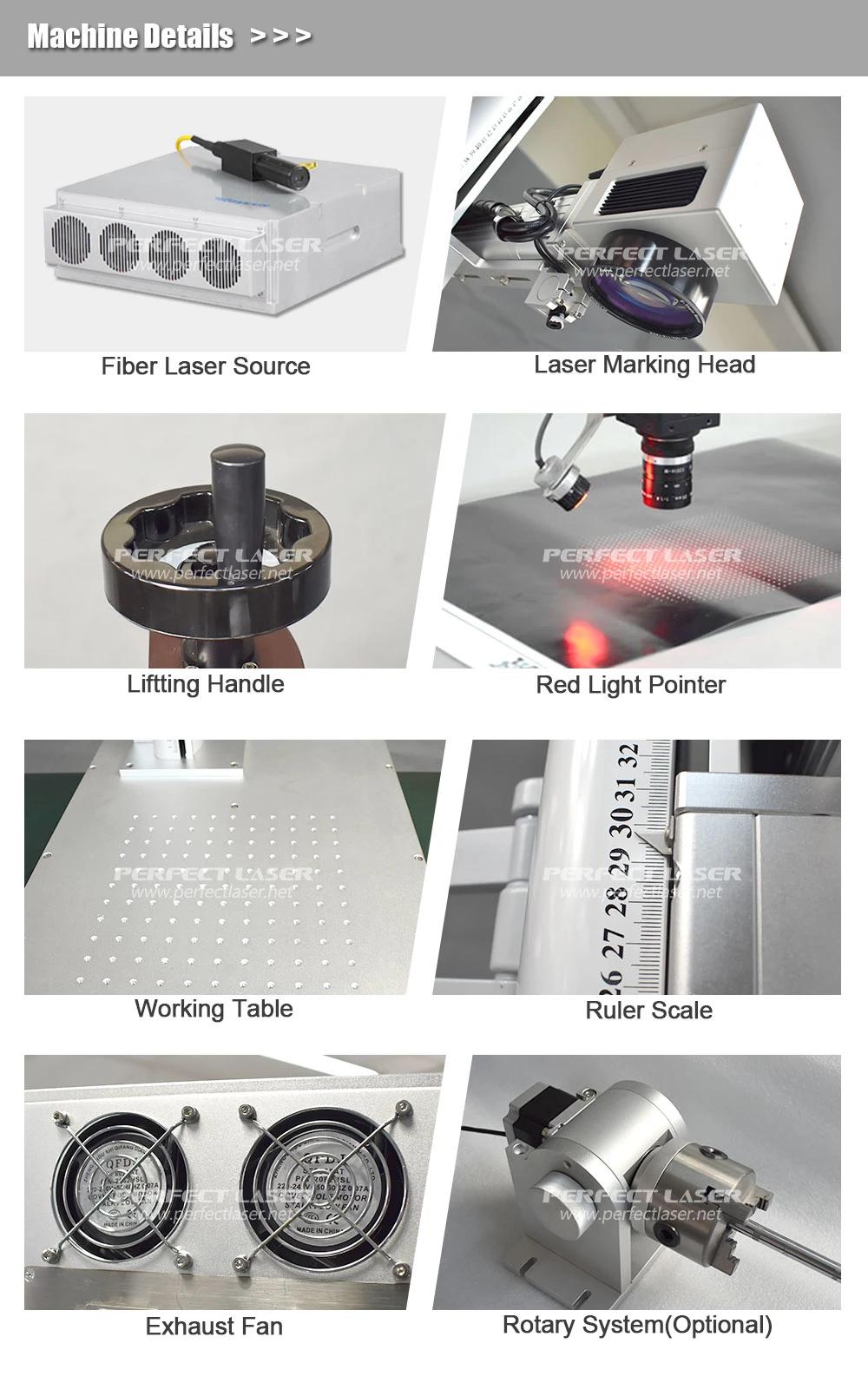

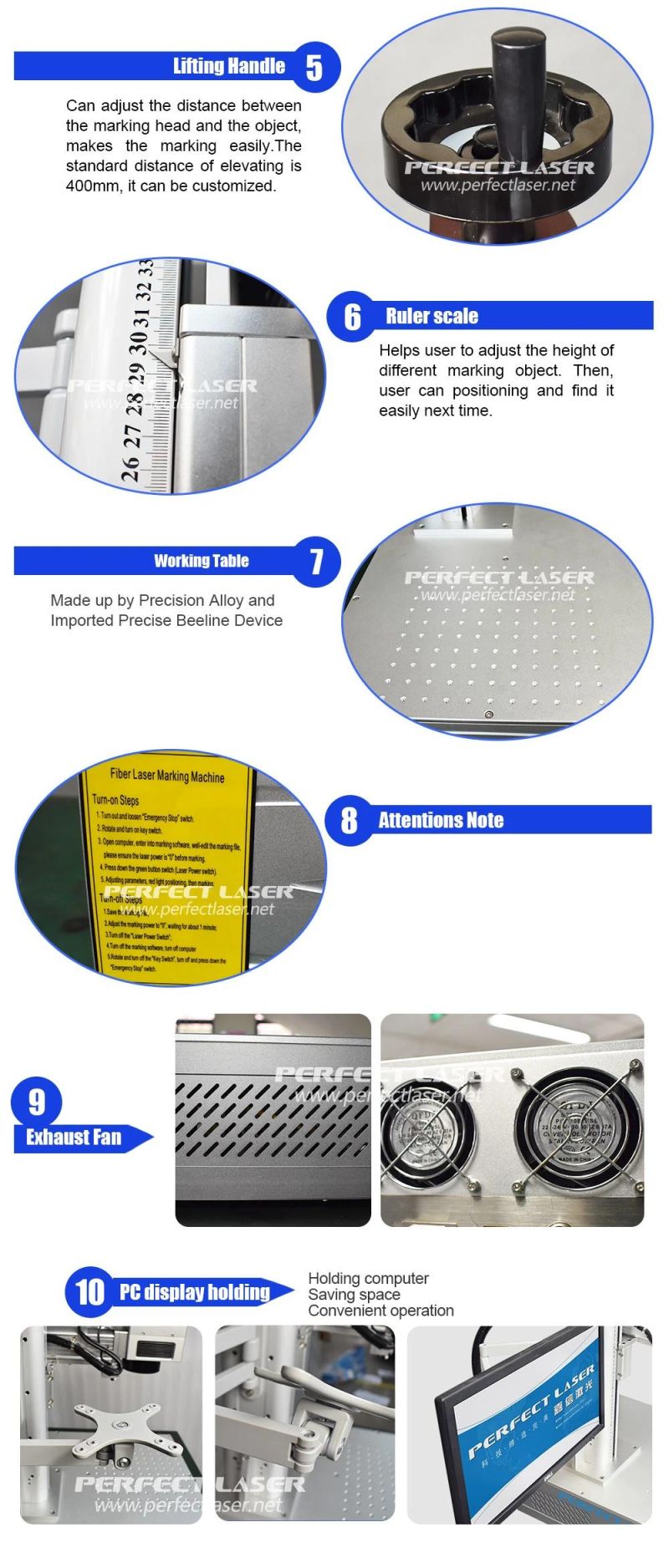

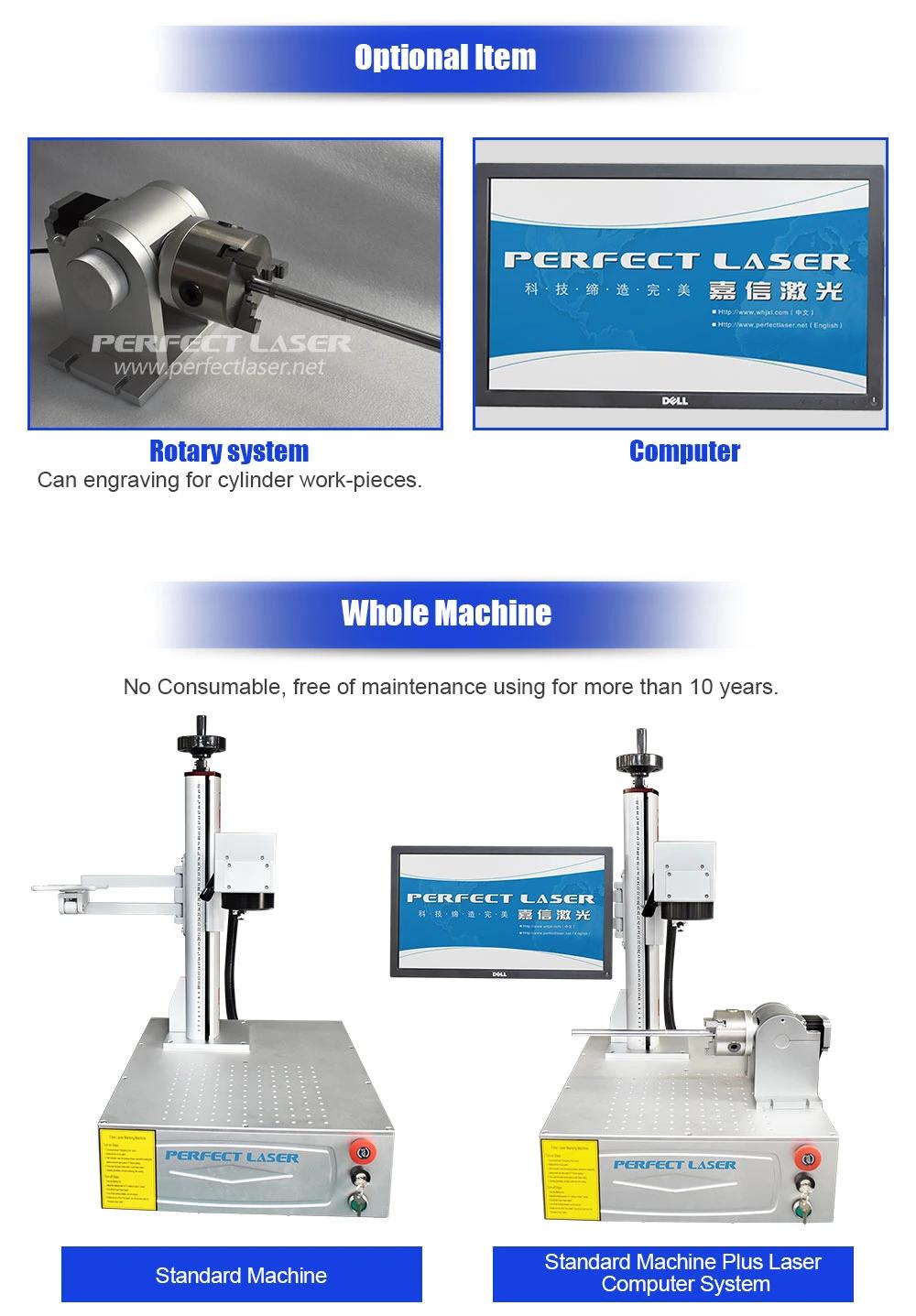

Machine Details:






 Machine Application:20W 30W 50W Metal Fiber Laser Marking Machine can be carved both on metal materials and some non-metallic materials, mainly marked in areas for smoothness, finesse demanding, such as electronic products, metalware, watches, jewelry, IC, plastic buttons and other graphics surface. The effect on Bitmap marking is particularly outstanding.




 Technical Data:

Model	PEDB-450 Laser Etcher Machine
Marking speed	7000mm/s
re-position precision	0.002mm
Cooling method	Air cooling
Frequency Range (kHz)	1-1000
Impulse Width (ns)	4-200
Light Off Time (μS)	1μS
Light Leak	No
Time of Light off (μS)	2
Power Stability for Long Time	<3%
Diameter Of Laser Beam(mm)	6-9
Fault Rate	< 2%

Company information:
We, Perfect Laser, As a 21 years history industrial equipment manufacture in laser field, 10 year Golden Supplier in Alibaba, with CE/ISO/FDA, we aim to make high-quality products, and also our products have been exported to more than 180 different countries and areas.


Perfect Laser Co., Ltd. (China)
Contact: Emily / Sales Department
Add: Heng Ruichuangzhi Technology Park, No.13 YangQiaohu Road, Jiangxia District, Optical Village, Hubei, China(430200).
