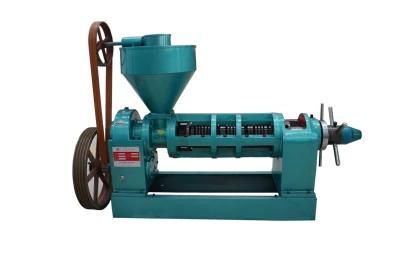

• Model NO.：YZLXQ120
• Condition：New
• Customized：Non-Customized
• Power：15 Kw
• Certification：ISO, BV, SGS
• Daily Processing Capacity：6.5 Tons,Day
• Dimension(L*W*H)：1948*1522*1915mm
• Weight：1115 Kg
• Automatic Grade：Automatic
• Selling Point：Multi-Function, Durability, Strong Compatibility
• Color：Can Be Customized
• After-Sales Service Provided：Engineers Available to Service Machinery Overseas
• Oil Content of Dry Cakes：7.6%
• Temperature Control Power：3.2 Kw
• Advantages：Simple Operation
• Spiral Axes Rotate Speed：32-40 Rpm
• Transport Package：Fumigated Wooden Packing, or as Customers′ Request
• Specification：YZLXQ120
• Trademark：GUANGXIN
• Origin：Sichuan, China
• HS Code：8479200
• Production Capacity：400 PCS,Month

Product Name

Model

YZLXQ120

Processing capacity (t/24h)

>6.5

Oil content of dry cakes (%)

<6.5

   Main electromotor power (KW)

11

Pump electromotor power(KW)

1.5

Temperature control power(KW)

4

Measurement (mm)

1948*1522*1915

Spiral axes rotate speed (r/min)

32~40

Weight (KG)

1200

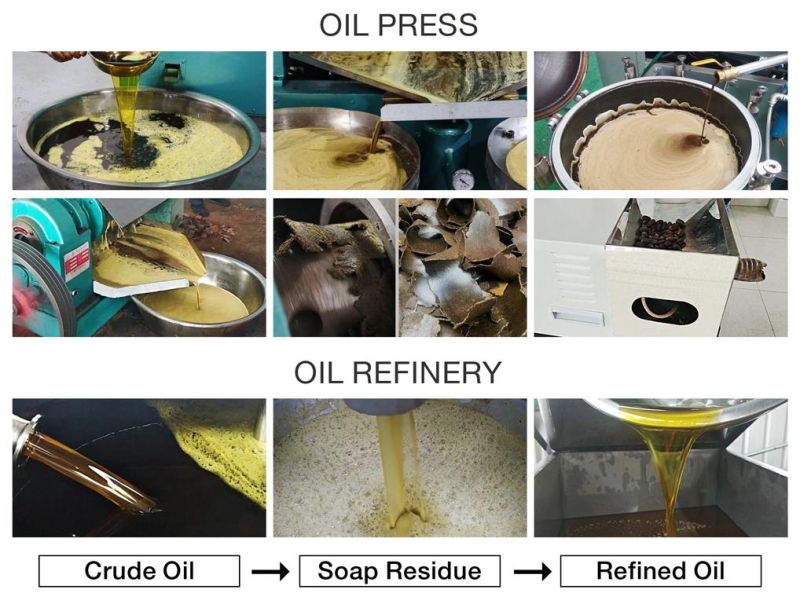

Oil production process

Our advantages

1. widely for all kind of oil plant,  such as peanut ,rapeseeds, cotton seeds, soybean, shelled peanut, flax seeds, sunflower seeds and palm kernel, etc.

2. Intergrated oil press with air pressure filter , it clean oil out of oil press.

3. The hearter can automaticly warm up the press cage,save labour ,and increase the work efficiency.
4. Longer life time than similar products on the market.

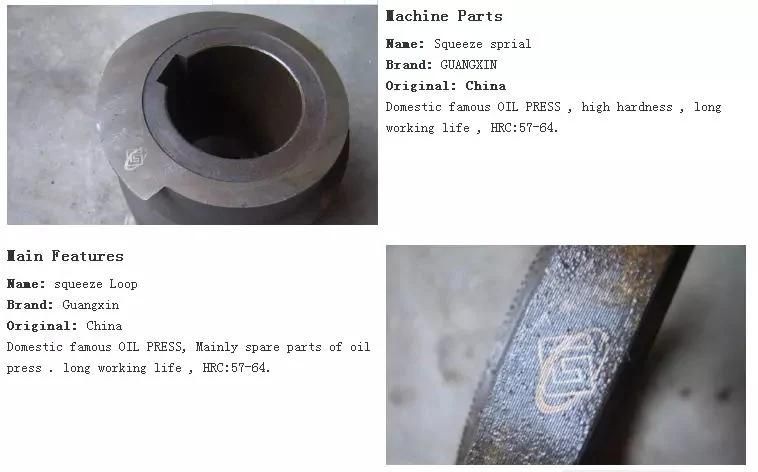

The wearing parts are easy to move and reassemble.

Spare parts are always supplied with reasonable price and large in stocks.

Guangxin factory is focus on oil press , we believe we will be your good partner in china

Our Services

1. 1 year warranty

2. Supplying wearing parts all year around

3. Supplying technical solutions at any time

4. Helping design and plan the oil plant's construction

5. Providing installation video

6. Tried orders are available

Q1 :Do you have inspection procedures for oil press ?

A:100% self-inspection before packing

Q2:Can we mix the 20ft container?
A:Yes,if the items are meet our min order qty.

Q3:Can I have a visit to your factory before the order?

A:  Sure,welcome to visit our factory.

      Here is our factory address:MianYang City,China.

        Hotel booking service is available .


                     30years factory ------your honest partner
