Hydraulic Borehole Water Well Drilling Rig

Kunshan Hexin Precise Machinery Co., Ltd.

Base Info

Description

 Model  HQY100HQY200 Weight (kg)  18006000Dimension (mm) 3000*1200*2000  5300*2100*2500Walking Speed (km/h)  0-2  0-2 Engine Model  YN27  4102GBZEngine parameter(kW/ rpm)  37/2400 76/2400distance from ground (mm) 250250DTH hammerDHD360  DHD360  Climbing angle 20  20  Drilling depth (m) 120 200Air pressure (MPa)1.05-2. 46  1.05-2. 46Air consumption (m3/min)  16 -30 16 -30  Drill pipe (mm)  φ76/φ89/φ102φ76/φ89/φ102pipe length (mm)  15003000Drill bit (mm) φ115 -φ254 φ115 -φ254 feeding force (kN)  27  35 lifting force (kN)  40  75Rotary speed (rpm) slow speed 2222                                fast speed177177 Torque (N*m)  35005500Hydraulic Borehole Water Well Drilling Rig

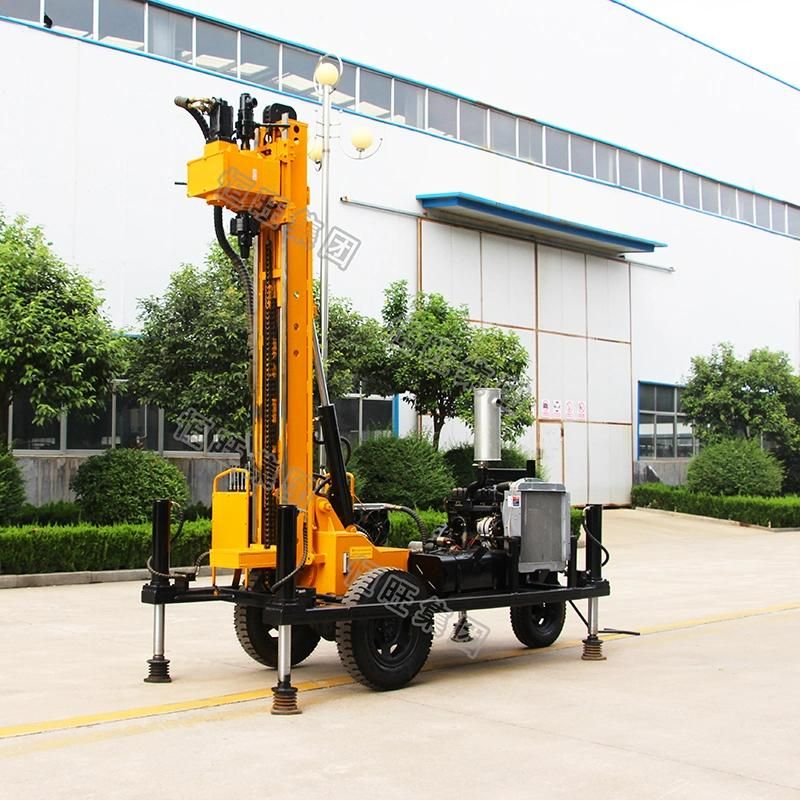

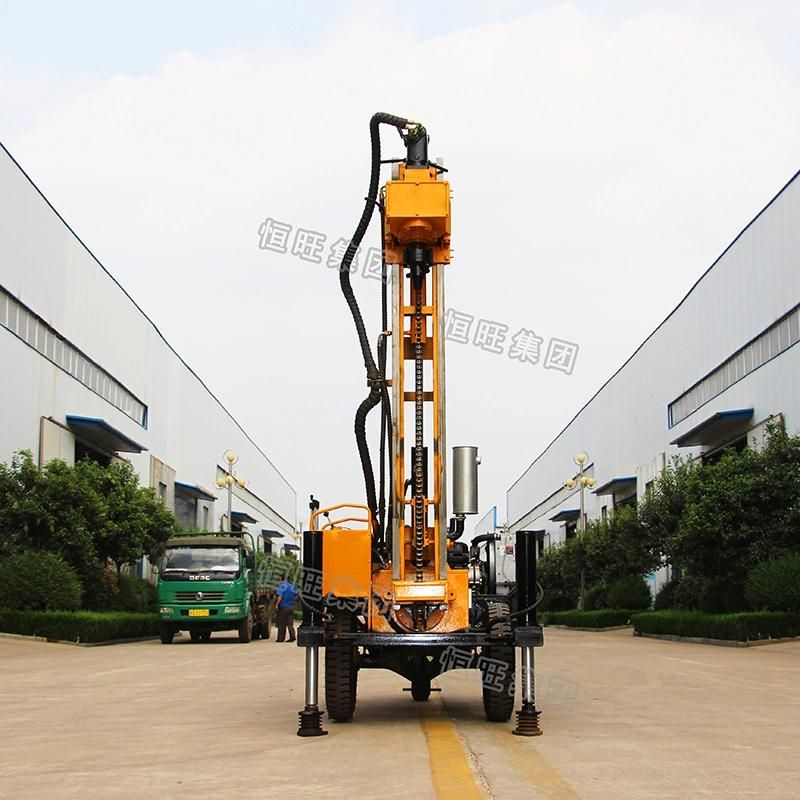

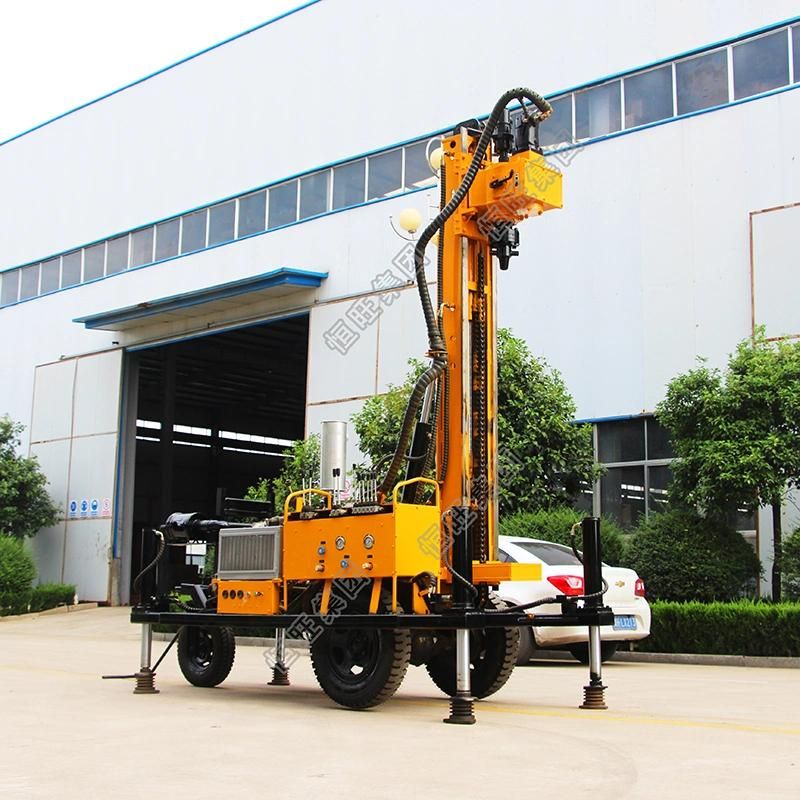

Full Hydraulic Water Well Drilling Rig Photos Hydraulic Borehole Water Well Drilling Rig


Hydraulic Borehole Water Well Drilling Rig
Hydraulic Borehole Water Well Drilling Rig
Hydraulic Borehole Water Well Drilling Rig
Hydraulic Borehole Water Well Drilling Rig


If you have any further questions, please don't hesitate to drop us an email - we're here to help!
