• Model NO.：RR-40048
• Piston Diameter(mm)：190.5
• Certificate：Ce, ISO9001:2008
• Weight(Kg)：980
• Saddle Diameter(mm)：190
• Usage：Automation and Control
• Power：Hydraulic
• Standard：Standard
• Pressure Direction：Double-Acting Cylinder
• Double-Acting Cylinder Type：Common Cylinder
• Special Cylinder Type：Number of Cylinders
• Combination Cylinder Type：Pressurized Cylinder
• Transport Package：Standard Export Wooden Box
• Specification：CE, ISO, SGS
• Trademark：SOV
• Origin：Shanghai, China
• HS Code：8412210000
• Production Capacity：5000sets Per Month

Model
Number

Cylinder
Capacity

Stroke

Maximum
Cylinder
Capacity

Cylinder
Effective
Area

Oil
Capacity

Collapsed
Height

Extended
Height

Outside
Diameter

Weight



(tons)

(in)

(ton)

(in²)

(in³)



Push

Pull

Push

Pull

Push

Pull

(in)

(in)

(in)

(lbs)

SOV-RR-1010*

10

10.00

11.1

4.0

2.23

0.80

22.33

8.00

16.13

26.13

2.88

28

SOV-RR-1012*

12.00

11.1

4.0

2.23

0.80

26.80

9.00

18.00

30.00

2.88

31

SOV-RR-308*

30

8.25

32.5

6.0

6.51

3.00

53.67

25.00

15.25

23.50

4.00

40

SOV-RR-3014*

14.50

32.5

6.0

6.51

3.00

92.70

43.00

21.63

36.13

4.00

64

SOV-RR-506

50

6.13

55.3

11.8

11.06

3.40

67.77

21.00

13.06

19.19

5.00

67

SOV-RR-5013

13.13

55.3

11.8

11.06

3.40

145.17

44.00

20.06

33.19

5.00

115

SOV-RR-5020

20.13

55.3

11.8

11.06

3.40

222.56

68.00

28.88

49.00

5.00

150

SOV-RR-756

75

6.13

79.6

17.6

15.92

4.90

97.58

29.00

13.69

19.81

5.75

92

SOV-RR-7513

13.13

79.6

17.6

15.92

4.90

209.00

64.00

20.69

33.81

5.75

150

SOV-RR-1006

100

6.63

103.2

48.0

20.65

9.60

136.93

63.00

14.06

20.69

7.00

135

SOV-RR-10013

13.13

103.2

48.0

20.65

9.60

271.17

126.00

20.63

33.75

7.00

205

SOV-RR-10018

18.13

103.2

48.0

20.65

9.60

374.44

174.00

27.06

45.19

7.00

260

SOV-RR-1502

150

2.25

153.5

74.0

30.71

14.80

69.11

33.00

7.72

9.44

8.00

110

SOV-RR-1506

6.13

153.5

74.0

30.71

14.80

188.28

91.00

15.19

21.31

8.00

205

SOV-RR-15013

13.13

153.5

74.0

30.71

14.80

403.27

194.00

22.20

35.31

8.00

275

SOV-RR-15032

32.13

153.5

74.0

30.71

14.80

986.84

475.00

43.94

76.06

8.00

525

SOV-RR-2006

200

6.00

221.0

112.5

44.21

22.50

265.28

135.00

16.94

22.94

9.75

325

SOV-RR-20013

13.00

221.0

112.5

44.21

22.50

574.78

293.00

23.94

36.94

9.75

440

SOV-RR-20018

18.00

221.0

112.5

44.21

22.50

795.85

396.00

30.13

48.13

9.75

450

SOV-RR-20024

24.00

221.0

112.5

44.21

22.50

1061.00

528.00

36.13

60.13

9.75

616

SOV-RR-20036

36.00

221.0

112.5

44.21

22.50

1592.00

792.00

48.13

84.13

9.75

845

SOV-RR-20048

48.00

221.0

112.5

44.21

22.50

2122.00

1056.00

60.13

108.13

9.75

1065

SOV-RR-3006

300

6.00

354.6

190.0

70.93

38.00

425.56

228.00

19.13

25.13

12.25

441

SOV-RR-30012

12.00

354.6

190.0

70.93

38.00

851.12

456.00

25.13

37.13

12.25

608

SOV-RR-30018

18.00

354.6

190.0

70.93

38.00

1277.00

684.00

31.13

49.13

12.25

776

SOV-RR-30024

24.00

354.6

190.0

70.93

38.00

1702.00

912.00

37.13

61.13

12.25

1034

SOV-RR-30036

36.00

354.6

190.0

70.93

38.00

2553.00

1368.00

49.13

85.13

12.25

1385

SOV-RR-30048

48.00

354.6

190.0

70.93

38.00

3405.00

1824.00

61.13

109.13

12.25

1720

SOV-RR-4006

400

6.00

475.4

255.0

95.09

51.00

570.51

306.00

21.19

27.19

14.13

670

SOV-RR-40012

12.00

475.4

255.0

95.09

51.00

1141.00

612.00

27.19

39.19

14.13

880

SOV-RR-40018

18.00

475.4

255.0

95.09

51.00

1712.00

918.00

33.19

51.19

14.13

1000

SOV-RR-40024

24.00

475.4

255.0

95.09

51.00

2282.00

1224.00

39.19

63.19

14.13

1317

SOV-RR-40036

36.00

475.4

255.0

95.09

51.00

3423.00

1836.00

51.19

87.19

14.13

1746

SOV-RR-40048

48.00

475.4

255.0

95.09

51.00

4564.00

2448.00

63.19

111.19

14.13

2162

SOV-RR-5006

500

6.00

565.7

315.0

113.15

63.00

678.00

378.00

22.75

28.75

15.63

953

SOV-RR-50012

12.00

565.7

315.0

113.15

63.00

1358.00

756.00

28.75

40.75

15.63

1300

SOV-RR-50018

18.00

565.7

315.0

113.15

63.00

2037.00

1134.00

34.75

52.75

15.63

1500

SOV-RR-50024

24.00

565.7

315.0

113.15

63.00

2716.00

1512.00

40.75

64.75

15.63

1800

SOV-RR-50036

36.00

565.7

315.0

113.15

63.00

4074.00

2268.00

52.75

88.75

15.63

2210

SOV-RR-50048

48.00

565.7

315.0

113.15

63.00

5431.00

3024.00

64.75

112.75

15.63

2700

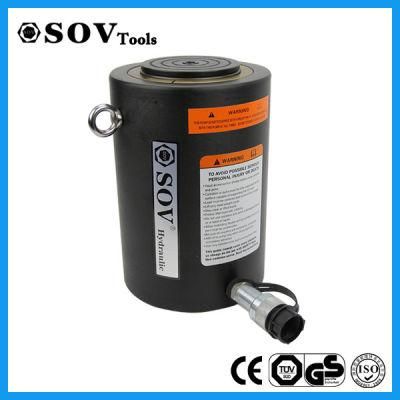

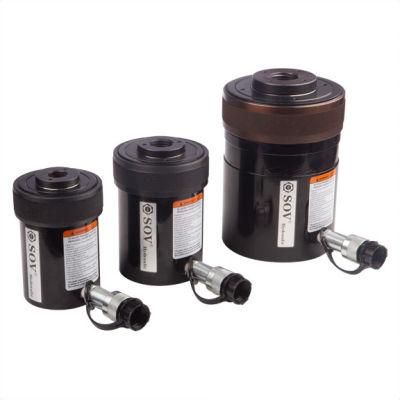

Photos:

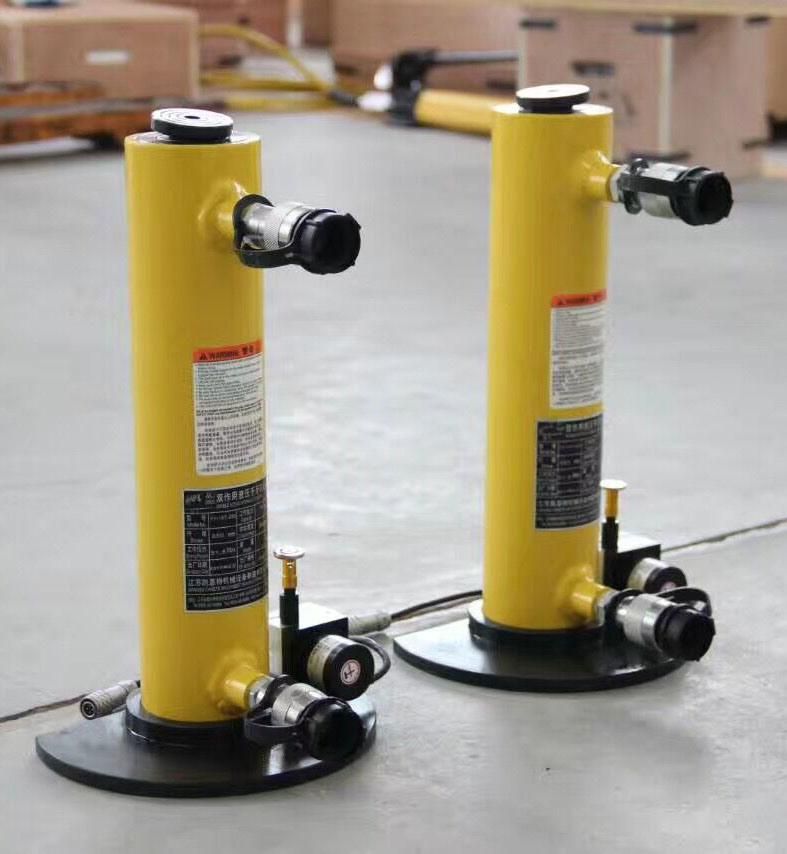

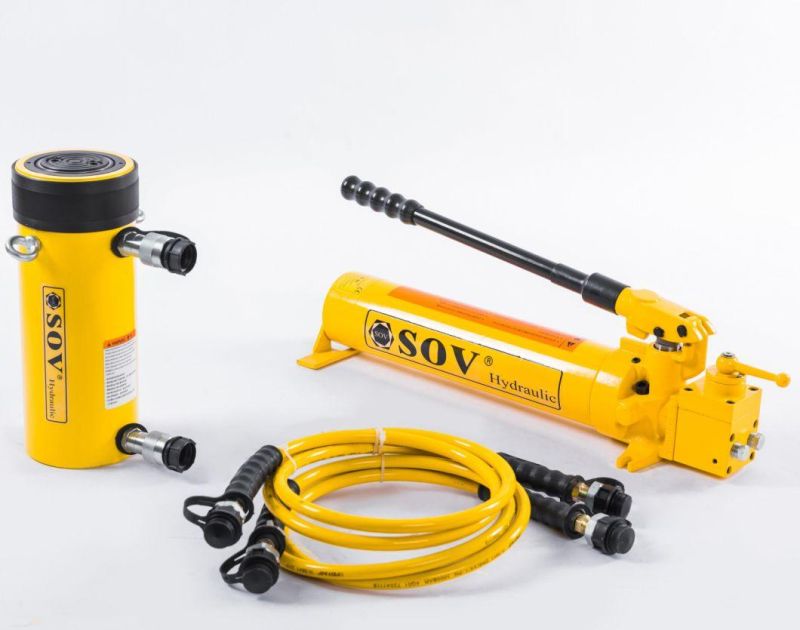

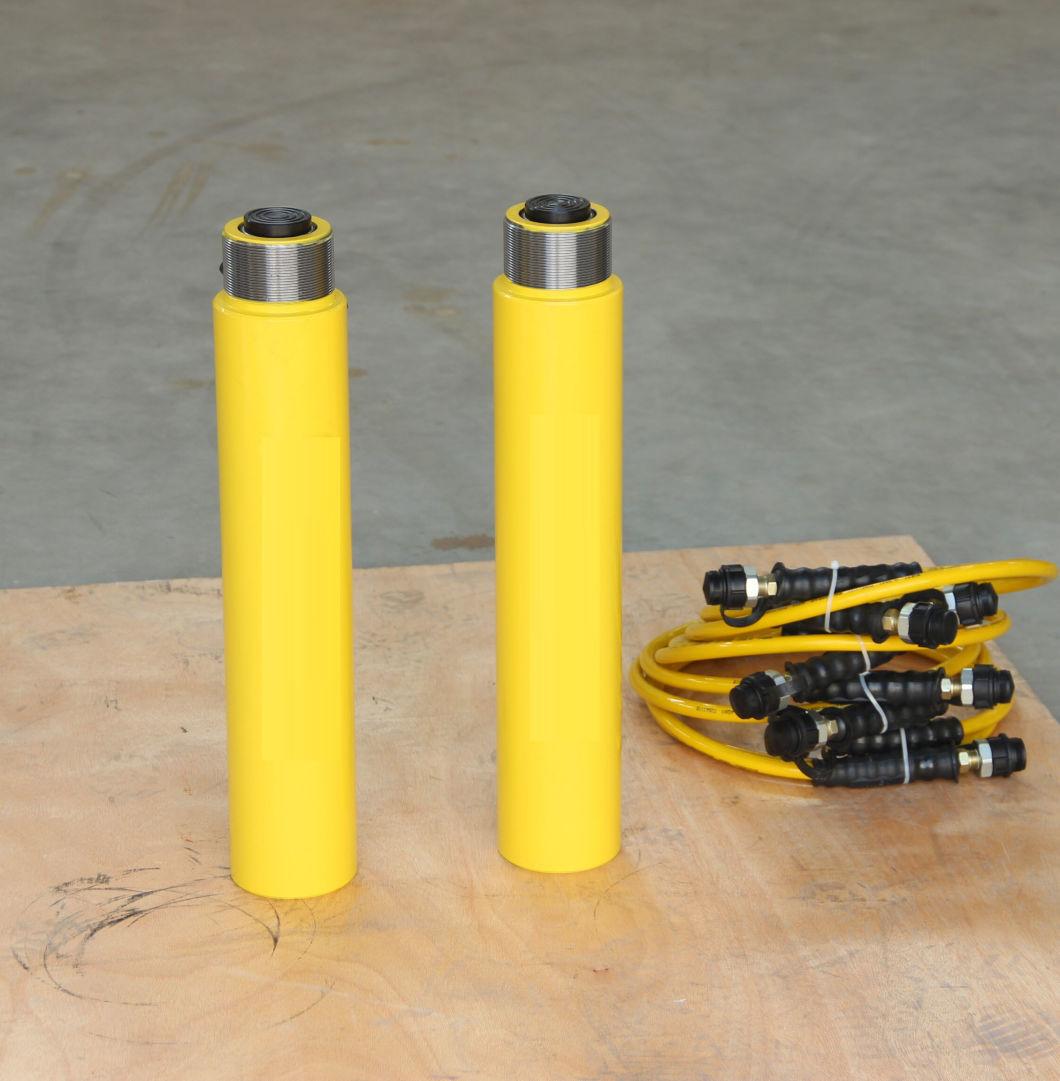

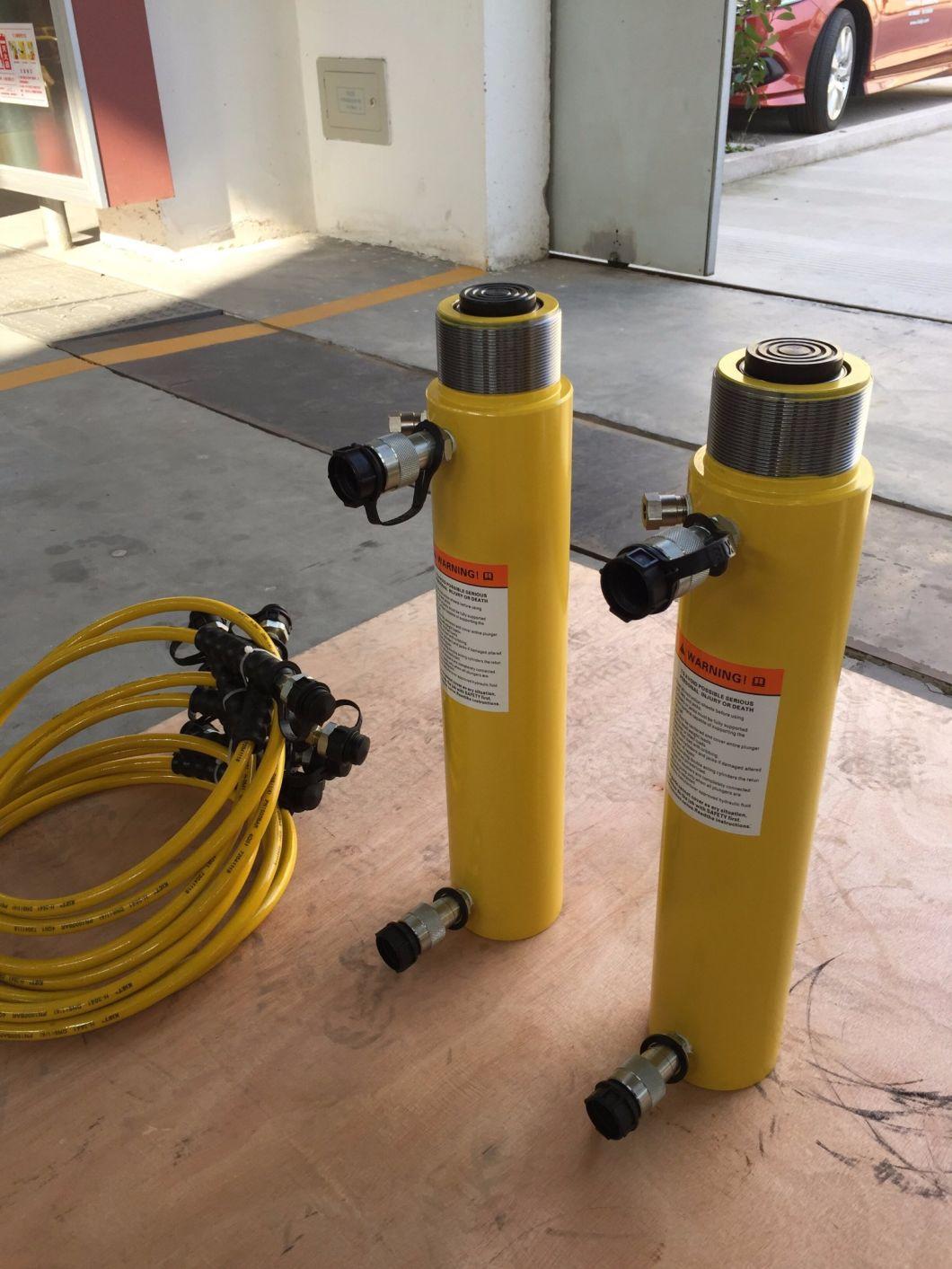

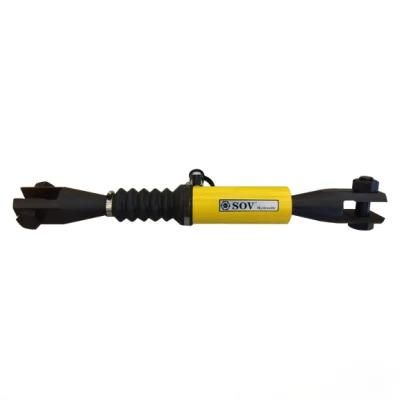

customized type

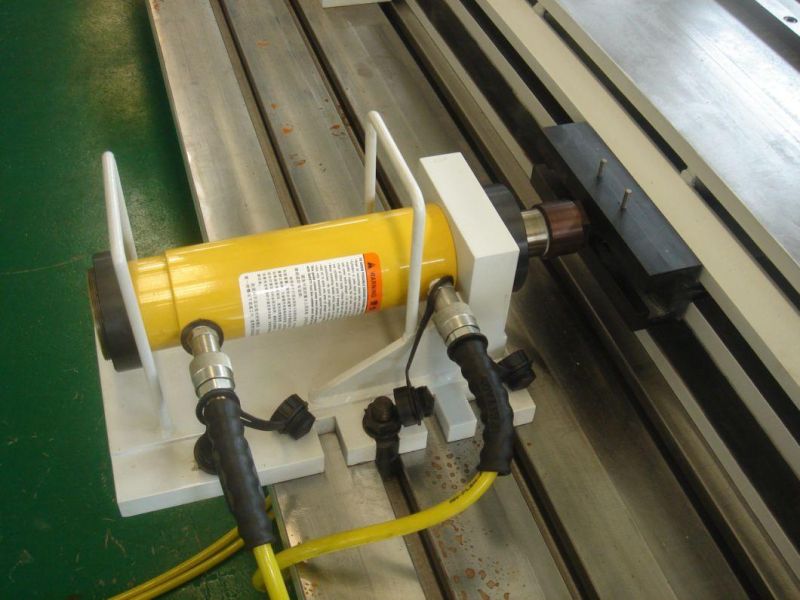

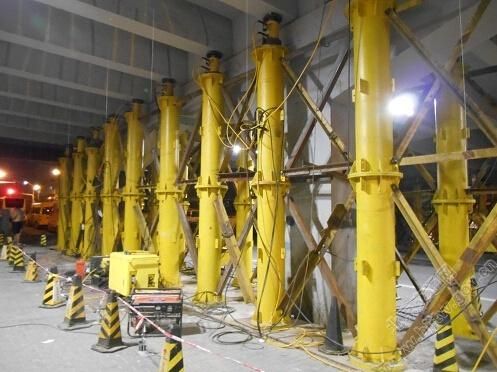

Working site pictures:

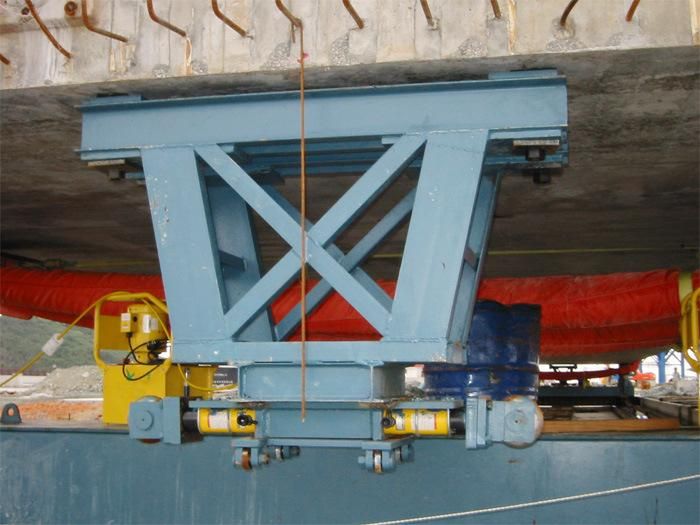

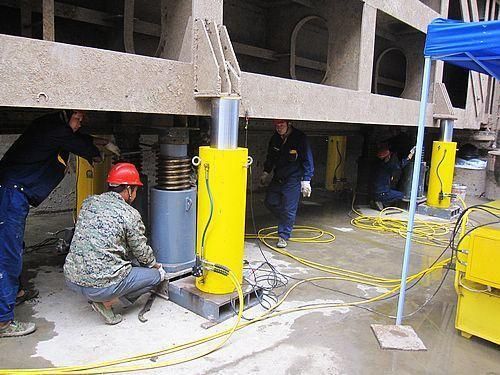

Double Acting Hydraulic Cylinders ( synchronous lifting for the repairing work of bridge )

Double Acting Hydraulic Cylinders ( synchronous lifting for the repairing work of navigation lock
in the hydropower station )

Double Acting Hydraulic Cylinders ( transporting of highway bridge )



Package and Delivery
1. Outer packing: standard export wooden case
2.  Lead time: 1~3workdays when products in stock, 7~15workdays when out of stock
3. Delivery time: Prompt delivery

Shipping Methods
1. Light Weight: by international air express, within 3-7days arriving
2. Heavy Weight: by ocean cargo, arriving time depends on your destination port

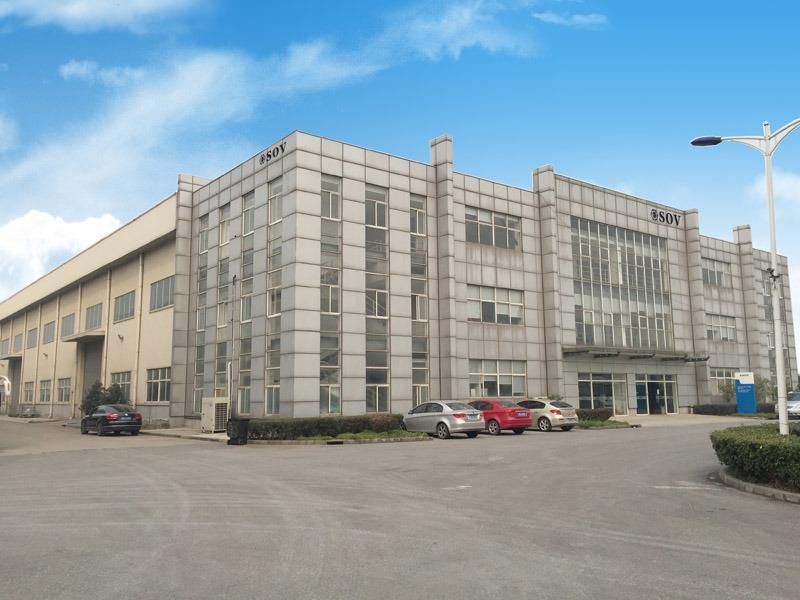

Company information


SOV Hydraulic Technology(Shanghai )Co., Ltd is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 10- 1000 tons), synchronous PLC hydraulic system, hydraulic bumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.

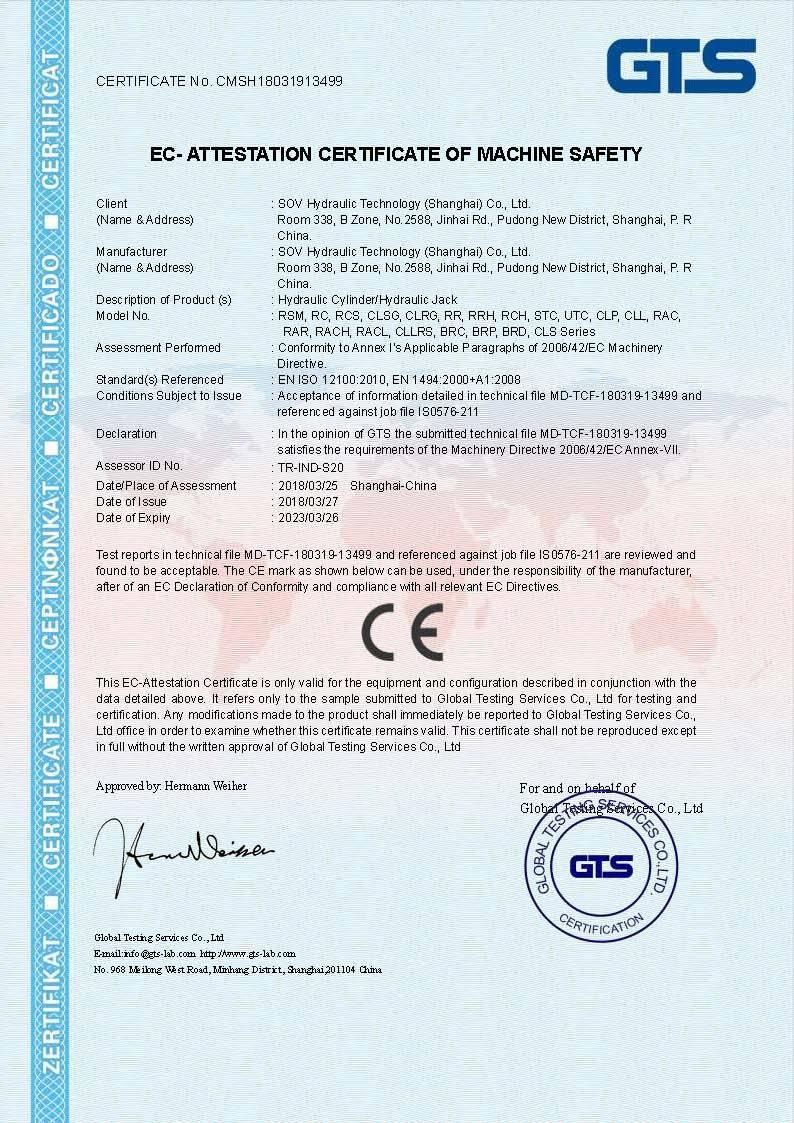

Certificate


Since the establishment in 1995, we successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand SOV, and our factory has been approved by CE, ISO9001:2008 consecutively.

Clients
Our customers includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.

Main Products
We are a manufacturer in tools, such as:
•Hydraulic cylinders, jacks (5-3000ton), single acting and double acting, hollow plunger; low height, ultra pressure, lock nut
•Hydraulic torque wrench, electric torque wrench, pneumatic torque wrench (100-160000Nm);
•Hydraulic bolt tensioner (M24-M600); Hydraulic pullers;
•Hydraulic pumps, manual and electric type (max up to 4000bar);
•Integrated hydraulic lifting system solutions ( 4-99 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
•Hydraulic nut and couplings. (M50-Tr1000), hydraulic hose
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.

Competitive Advantages
1. High quality in competitive price;
2. Low minimum order quantity;
3. Wide range of products for your reference;
4. Good customer service: Customer satisfaction is our primary goal. Prompt, professional service offered by passionate and patient international salespeople.
5. OEM services: Customer's LOGO engraving, customized packaging, and produces the products according to customers' design, etc.

WHY DO YOU NEED SOV?
Q1: What's the brand name of your products?
A: Own brand "SOV", WE ARE GERMANY OWNED FACTORY. OEM is also available as required.
Q2: Hydraulic cylinder internal leakage?
A: There are 3 main reasons causing internal leakage: Overload, polishing is not well controlled, bad seal kits. As is known to all, vehicles in China are often overload, our products all designed to bear the overload power. We have numerical control machine to assure the polish processing .And we use the imported seals to meet customers' demands.
Q3: Does your piston rod get ruptured easily?
A: Hard chrome plating quenched and tempered 45# steel for piston rod to assure sufficient hardness and toughness.
Q4: Is your design reasonable? What about your product safe coefficient?
A: We have R&D team with abundant design experience. We also established production, education, and research cooperation with universities. Rest assured.
Q5: How about the delivery time?
A: Over 1000 sets advanced equipments to meet customer's large demand in short delivery time. Generally, it's 7-20 days.
Q6: What's the after-service?
A: If the quality can't meet your requirement, we will pay all your lost and offer technical support to solve your problem.
