• Model NO.：CNMANLASER-30
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Warranty：3 Years
• Certification：Ce FDA ISO
• Minimum Character：0.2mm
• Marking Line Width：0.01 mm -0.1mm
• Modulation Frequency：20 kHz -180 kHz
• Scanning Speed：7000mm,S
• Transport Package：Wooden Case
• Specification：Fiber Laser Marking Machine
• Trademark：CNMANLASER
• Origin：Shandong
• HS Code：8456110090
• Production Capacity：5000 Sets,Year

Basic Info.

Model NO. CNMANLASER-30 Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Warranty 3 Years Certification Ce FDA ISO Minimum Character 0.2mm Marking Line Width 0.01 mm -0.1mm Modulation Frequency 20 kHz -180 kHz Scanning Speed 7000mm/S Transport Package Wooden Case Specification Fiber Laser Marking Machine Trademark CNMANLASER Origin Shandong HS Code 8456110090 Production Capacity 5000 Sets/Year

Product Description

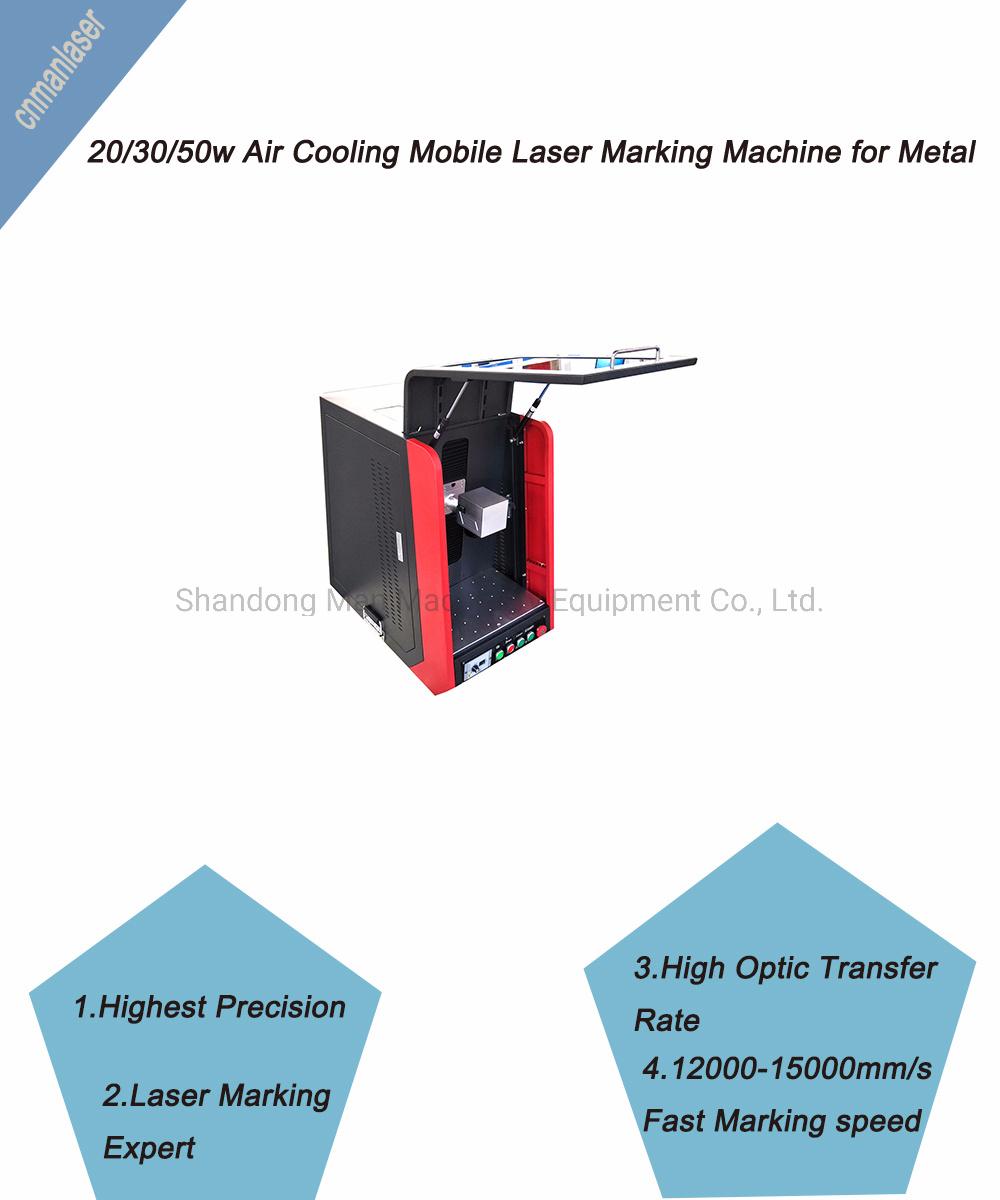

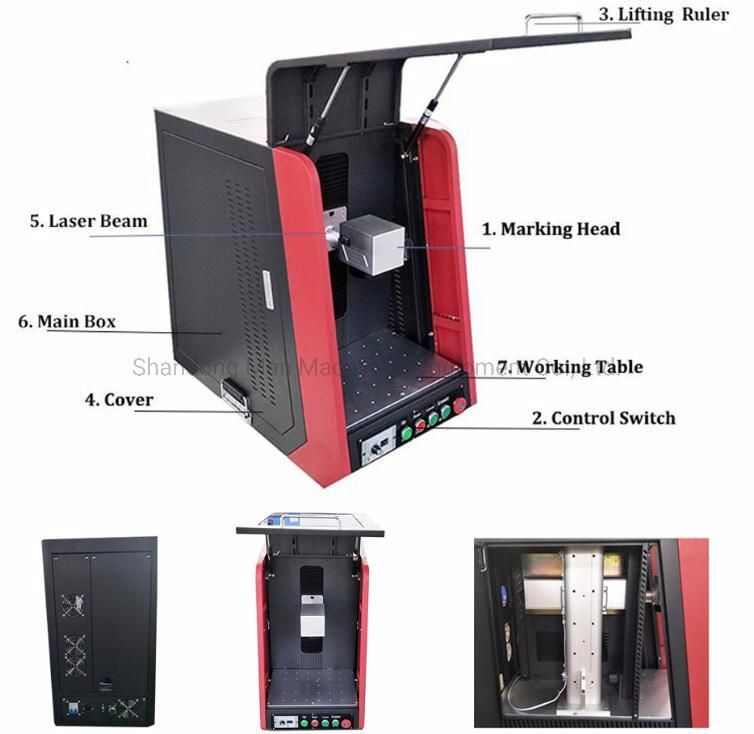

Brief Introduction of Mobile Laser Marking Machine:

The full-closed type 30w fiber laser marking machine adopts the portable design and is easy to move and work in different place. It has no consumables, so the depreciation cost of the product is greatly reduced. It has the advantages of high efficiency, long service life and maintenance free, which the traditional laser doesn't have. It is suitable to mark on hardware tools, kitchen knives, plastic products, integrated circuit, bottles, glasses frame, cleaner taps and so on.





Technical Parameters of Mobile Laser Marking Machine:


Average output power	30W (CW or pulse)
Wavelength	1064nm
Power Modulation Range	10-100%
Pulse Repetition Frequency	20-100KHz
Output Beam Quality	<1.5M²
Marking Depth	≤1.2mm
Min. Focusing Spot	0.005mm
Min. Character Height	0.15mm
Max. Marking Speed	12000mm/s
Format Supported	Graphics, text, bar code, two-dimensional code, date, frequency, batch number, serial number, file link.
Operating System	It can work with win7,win8 and XP. It support PLT, PCX, DXF, BMP and so on. It can use directly SHX and TTF font.
Re-precision	±0.001mm
Overall Power	≤160W
Power Supply	220V±10%/50Hz/4A
Cooling	Air Cooling
Control Interface	USB
Laser Module Life	>100000h

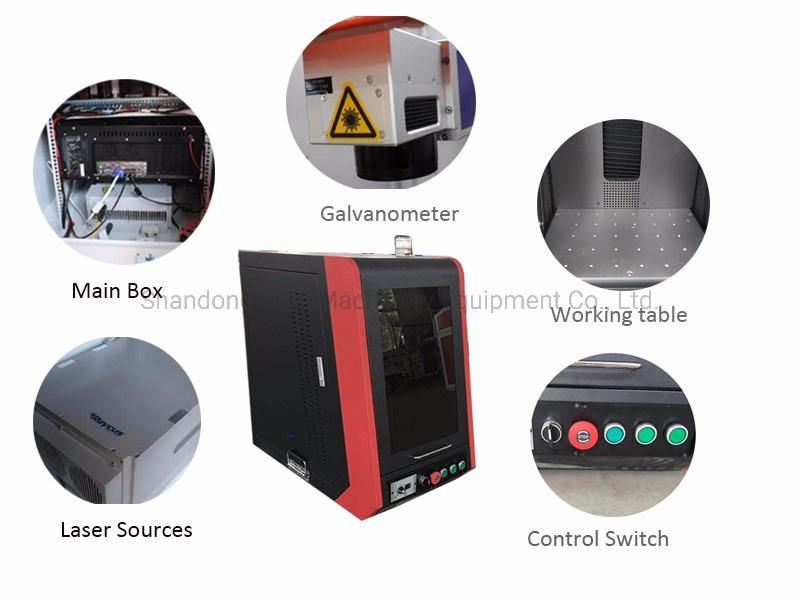

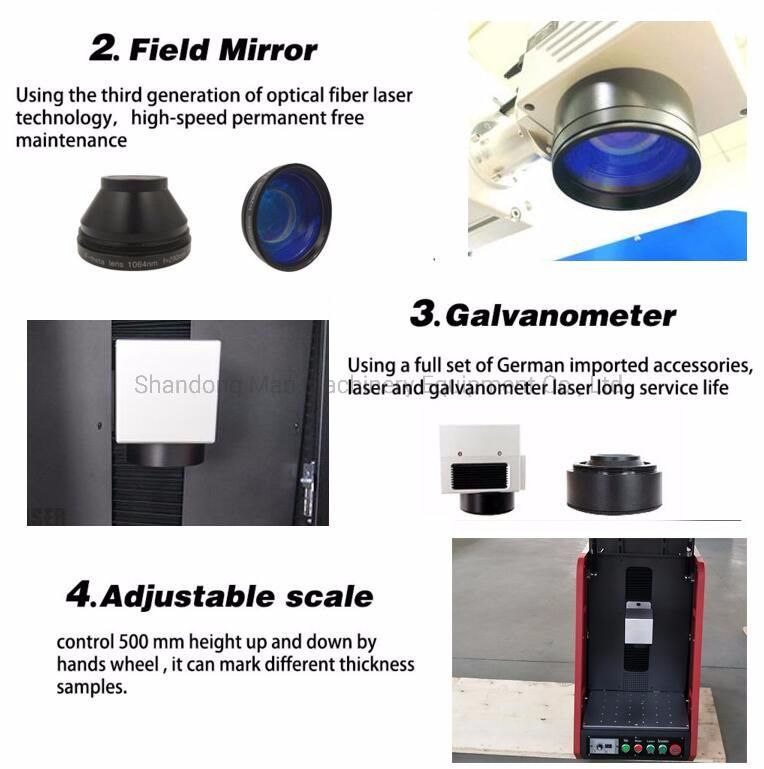

Galvanometer	High performance scanning galvanometer
Working Environment	No dust and no source of vibration

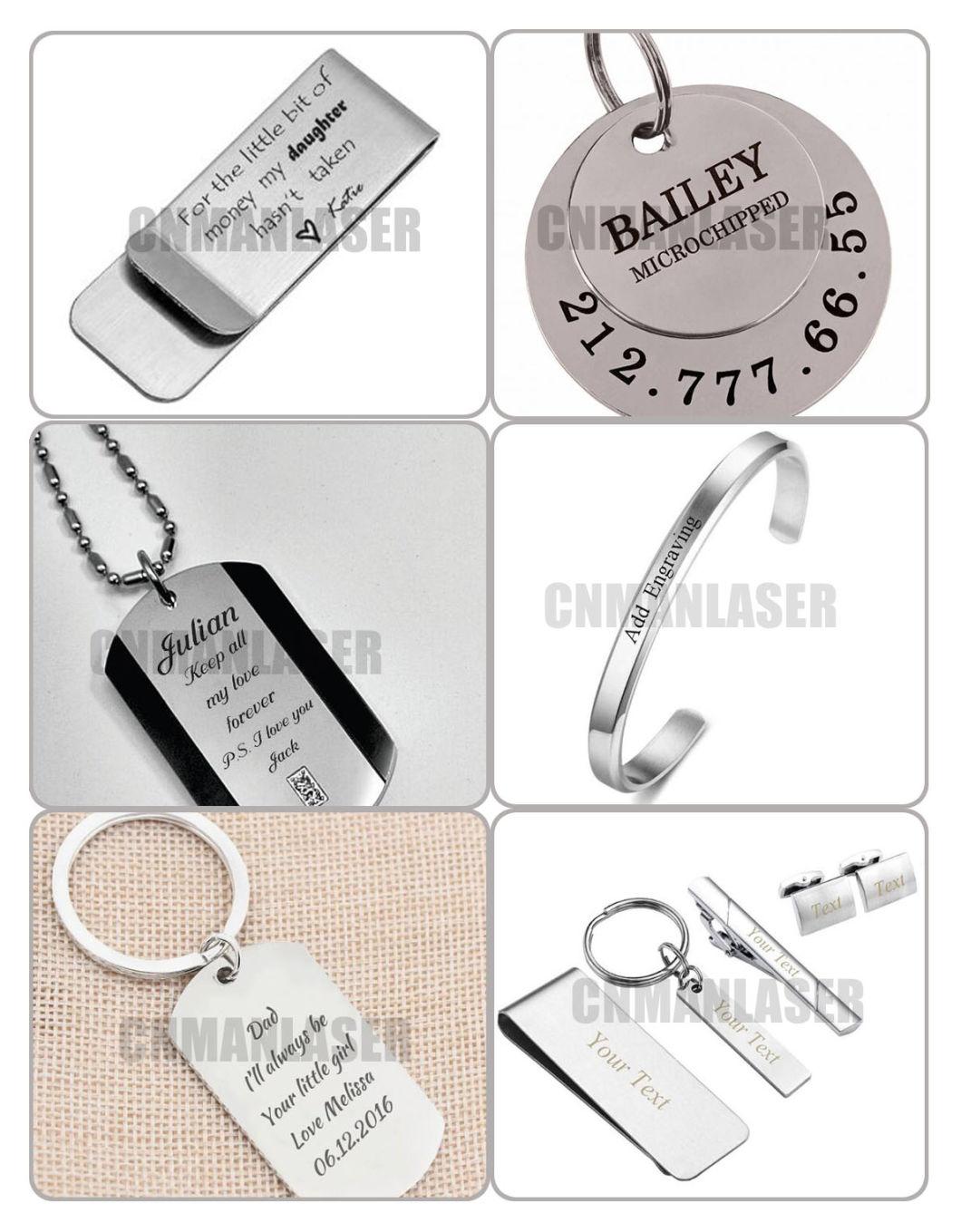

Product Application of Mobile Laser Marking Machine:

1. Replace ink and paint: labels of cellphone battery, panels, cellphone keys, small accessories, etc..
2. Ceramic and EP materials: electronic components package, IC, etc..
3. Plastic products: numerical order and LOGO of electrical enclosures and electronic products.
4. Metal surface: stainless steel, copper, aluminum, oxidation, phosphatization and electrocladding. It's commonly used in hardware, daily necessities, electrical enclosures, cell phone cases, etc..
