Multifunction Crawler Type 30m Deep DTH Drilling Machine

Kunshan Hexin Precise Machinery Co., Ltd.

Base Info

Description

Main technical specifications

Power

Yuchai YC6J220 162 kW

Hole Depth

20m

Drill Pile Sizes

60 mmX3000 mm

Hole Dia

80-115mm

DTH Hammer

3.5"

Rotation Torque (Max.)

1650N.m

Rotation Speed

0-110 rpm

Working Pressure

14.5 bar

F.A.D

12 m3/min

Tramming Speed (Max.)

2/3 km/h Dual Speed

Gradient

30°

Track Frame Oscilation

±10°

Total Weight

6,800 kg

Transportation Dimensions

6,000X2,800X2,750 mm

Dry Dust Collector

Standard

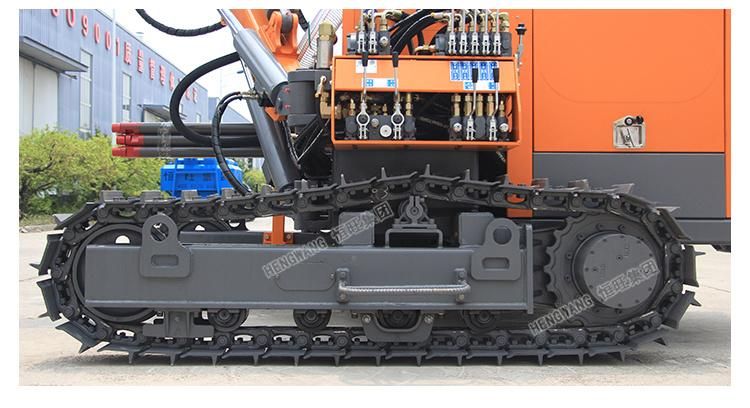

Dual Speed Walking Motor

Standard

Multifunction Crawler Type 30m Deep DTH Drilling Machine
