MCR05 Hydraulic Drive Wheel Motor
Yiwu Tina Craft Co., Ltd.- Certification：ISO9001
- Excitation Mode：Hydraulic Motor
- Power Rating：Hydraulic Motor
- Casing Protection：Hydraulic Motor
- Number of Poles：Hydraulic Motor
- Speed：Low Speed
Base Info
- Model NO.：MCR05
- Type：Hydraulic Motor
- Series：MCR05 Hydraulic Drive Wheel Motor
- Hydraulic Fluid：Synthetic Hydraulic Oil
- Hydraulic Motor：Piston Hydraulic Motor
- Hydraulic Power Units：Piston Pump
- Transport Package：Standard Export Wooden Case.
- Specification：CE, SGS
- Trademark：Helm Tower
- Origin：Ningbo, China
- HS Code：8412291000
- Production Capacity：500PCS,Month
Description
Basic Info.
Model NO. MCR05 Type Hydraulic Motor Series MCR05 Hydraulic Drive Wheel Motor Hydraulic Fluid Synthetic Hydraulic Oil Hydraulic Motor Piston Hydraulic Motor Hydraulic Power Units Piston Pump Transport Package Standard Export Wooden Case. Specification CE, SGS Trademark Helm Tower Origin Ningbo, China HS Code 8412291000 Production Capacity 500PCS/MonthProduct Description
Product Features:

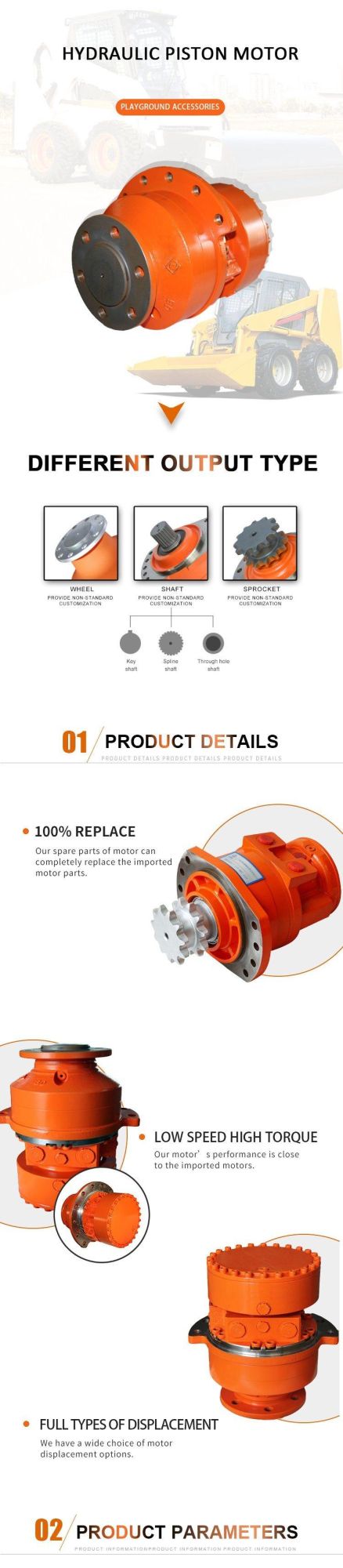

MCR05 Hydraulic Piston Motor:
1) Incurve radial piston type.
2) Designed in control modules, combine freely.
3) High efficiency, High pressure, low noise.
4) Radial piston, Low speed, High torque.
5) With 10 years' manufacturing experience, our products can completely replace the original Poclain MS series hydraulic motors well.
| Type | MCR05-380 | MCR05-470 | MCR05-520 | MCR05-565 | MCR05-680 | MCR05-750 |
Displacement(ml/r) | 380 | 470 | 520 | 565 | 680 | 750 |
Continuous output power(kw) | 29 | 29 | 29 | 29 | 35 | 35 |
Differential pressure 10Mpa torque(Nm) | 604 | 748 | 827 | 899 | 1082 | 1194 |
Rated torque(Nm) | 1419 | 1756 | 1942 | 2111 | 2540 | 2802 |
Pressure rating(Mpa) | 25 | 25 | 25 | 25 | 25 | 25 |
Max. pressure(Mpa) | 40 | 40 | 40 | 40 | 40 | 40 |
Max. speed(rpm) | 220 | 220 | 220 | 220 | 220 | 170 |
