• Model NO.：HJZ-1000-3015
• Laser Technology：Laser Fusion Cutting
• Type for Fold-Bending Machine：CNC Fold-Bend Machine
• Certification：Ce, ISO 9001:2000
• Automation：Automatic
• Condition：New
• Laser Type：Fiber Laser
• Working Area：1500*3000mm
• Supporting Format：Plt, Dxf, BMP, Ai
• Warranty：1 Year
• Transport Package：Standard Plywood Packing for Export
• Specification：1650X1250X1050MM
• Trademark：HZJ
• Origin：Wuhan, China
• HS Code：84561000
• Production Capacity：500sets,Month

Basic Info.

Model NO. HJZ-1000-3015 Laser Technology Laser Fusion Cutting Type for Fold-Bending Machine CNC Fold-Bend Machine Certification Ce, ISO 9001:2000 Automation Automatic Condition New Laser Type Fiber Laser Working Area 1500*3000mm Supporting Format Plt, Dxf, BMP, Ai Warranty 1 Year Transport Package Standard Plywood Packing for Export Specification 1650X1250X1050MM Trademark HZJ Origin Wuhan, China HS Code 84561000 Production Capacity 500sets/Month

Product Description

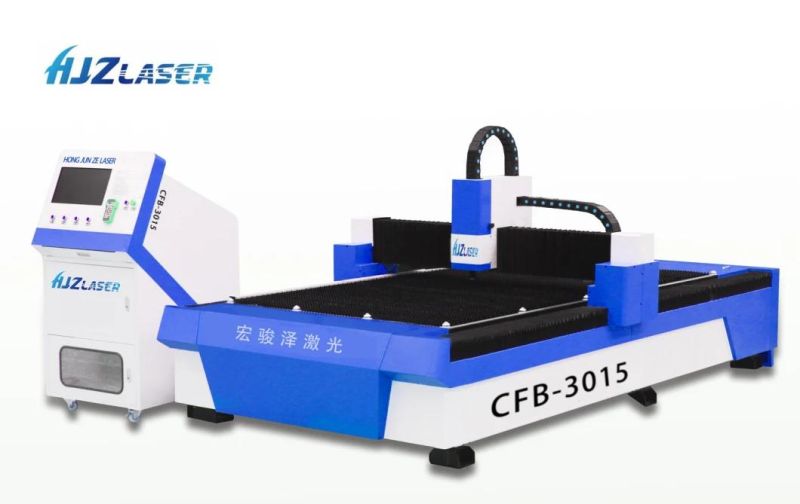

 High power 500W 1000W 1500W 2000W  fast professional iron sheet fiber laser metal cutter
Contact :Susie Xu  0086 -15914255450

 High efficiency: high-speed digital motion control by Germany technology system, especially for high-speed, high-precision laser cutting.

Integrated design: a 10% reduction of the volume of space, easier and cheaper for ocean and inland transportation.

Stable running: adopting gantry structure with synchronous bilateral gear and rack drive, and high-strength aluminum beams enhance its stability.

Low energy consumption: Photoelectric conversion rates as high as 25-30% which can save energy and power. Electric power consumption for this type fiber cutting machine is only about 20%-30% of the traditional Co2 laser cutting machine.

High technology:full application of laser technology, mechanical technology, numerical control technology and other advanced technology.

Low maintenance cost: 500w fiber laser cutting machines doesn't need reflect lens, saving much maintenance cost. The key components lifespan can reach 100,000 hours with stable performance;



Standard Configuration of Fiber laser cutting machine:

1. German IPG Fiber laser source;
2. Japan YASKAWA Servo motor with double ball screw driving sytem
3. Imported World Famous "Lasermech" laser head with auto focusing height follower
4. Automatic Lubrication System for Mechanic
5. Taiwan "Hiwin" Ball Screw Rod
6. Laser Moving Control Card
7. Red Light Pointer
8. US imported Focus Lens
9. Japan SMC Gas system
10. Imported Germany Stowe the Bell / Niu Kate Reducer

Advantage of  Fiber Laser Cutting Machine:
1. Adopted Original German IPG fiber laser source, with long using life up to 150000 hours and high cutting speed up to 18m/min;

2. Japan YASKAWA Servo motor with double ball screw driving system, can make sure the cutting high precision especially comparing with the single driver system.
3. Imported World Famous "Lasermech" laser head with auto focusing height follower, which can ensure the constant same distance between the head and cutting material

4. The cutting slot is very slim, can reach up to 0.05mm. The machine is very suitable for processing precision parts with high efficiency.
5. Convenient Collecting System, which has the special funnel design to make collecting more easy.


CUTTING SAMPLES







Sheet Category	CS, SS, mild steel, brass, aluminum, etc.
Processing Area	3000x1500mm Customer size available
Fiber Laser Power	500W-3000W
Max. Acceleration	1.0G
Max Traveling Speed	100 m/min
Positioning Accuracy	±0.03mm/m
Repositioning Accuracy	±0.05mm
Total Power Consumption	10.9KVA~22.0KVA
Power Supply	380V 50Hz/ 380V 60HZ/ 220V 60HZ
Total Weight	Over 4.0T
Dimension	4640*2360*1860mm

Warranty & Service

Pre-sale service:
1) According to customers demands, provide relevant technical guidance.
2) Assist customers to design and make laser engraving/cutting solutions considering technical feasibility.
3) Provide equipment demonstration for customers to investigate, make samples and do test, etc.

After-sale service:
1) 1 year warranty for laser metal cutting machine;
2) Offer lifelong repair;
3) Engineers available to service machinery overseas.
4) Multi language service;
5) Offer 24 - hour technical support.

Training can be processed in the following ways:
1) Workers of customers can come to our factory in Wuhan, China to get the most professional hand-by-hand training.
2) We can send engineers to customers' country and do training for workers in customers' target factory. However, tickets and daily consumption like food and accommodation should be afforded by customers.
3) Remote training through Internet tools like Team-viewer, Skype and other instant communication software.

Guarantee:
We offer free Two-year warranty and durable maintenance&repair support for the purchased machines. Within the warranty time, we are responsible for the cost-free repair once the equipment fail or the machines break down(except human factor and force majeure causes) and we shall offer the replacement parts for free(except consumed parts). During the non-warranty time, we just charge the flat cost based on actual cost of repair.


FAQ
Q: Are you trading company or manufaurer ?
A: We are factory. And we have been in the laser field for 10 years.
Q: How long is your delivery time?
A: Generally, it will take 3 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q: Do you provide samples? Is it free or extra ?
A: Yes, we could offer the sample for free charge, but customers should pay the courier cost.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.
 WuHan HJZ Laser Technology co. Ltd. Susie Xu / Export Manger Cell Phone : 0086-159-1425-5450
