• Model NO.：UG-UV3W
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Maximum Output Laser Power：3W Ultraviolet Laser
• Life of The UV Laser Source：100, 000 Hours~150000 Hours
• Laser Type/Wave Length：355nm
• Effective Marking Area：110*110mm
• Galvanometer：High Speed Digital Galvanometer(Sino-Galvo)
• Control System：Original Ezcad Controller
• Voltage：AC220V, 50,60Hz, Single Phase
• Support Format：Plt, BMP, Dxf, JPG, TIF, Ai etc
• Transport Package：Plywood Case
• Specification：1000*680*1450mm, 100kgs
• Trademark：UPGOAL
• Origin：China
• HS Code：8456110090
• Production Capacity：300set Per Month

Basic Info.

Model NO. UG-UV3W Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Maximum Output Laser Power 3W Ultraviolet Laser Life of The UV Laser Source 100, 000 Hours~150000 Hours Laser Type/Wave Length 355nm Effective Marking Area 110*110mm Galvanometer High Speed Digital Galvanometer(Sino-Galvo) Control System Original Ezcad Controller Voltage AC220V, 50/60Hz, Single Phase Support Format Plt, BMP, Dxf, JPG, TIF, Ai etc Transport Package Plywood Case Specification 1000*680*1450mm, 100kgs Trademark UPGOAL Origin China HS Code 8456110090 Production Capacity 300set Per Month

Product Description

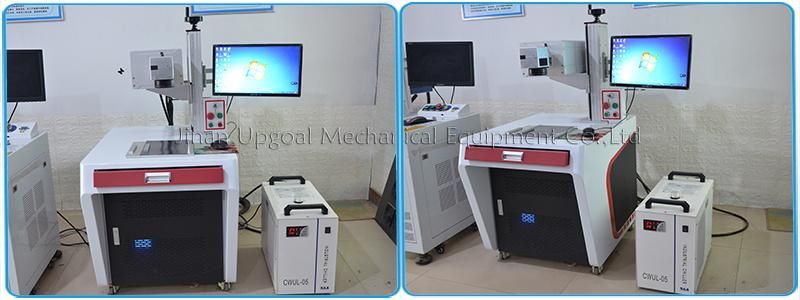

High Precision Ultraviolet Laser Marking Machine for Lens/White Plastic/Sunglasses




Applications

(1) It is widely used in electronic components, battery chargers, electric wire, computer accessories, mobile phone accessories (mobile phone screen, LCD screen) and communication products.

(2) Automobile and motorcycle spare parts, auto glass, instrument appliance, optical device, aerospace, military industry products, hardware machinery, tools, measuring tools, cutting tools, sanitary ware.

(3) Pharmaceutical, food, beverage and cosmetics industry.

(4) Glass, crystal products, arts and crafts of surface and internal thin film etching, ceramic cutting or engraving, clocks and watches and glasses.

(5) It can be marked on polymer material, majority of the metal and non-metallic materials for surface processing and coating film processing, pervious to light polymer materials, plastic, fire prevention materials etc..

Features

UV laser is cold ligh source. UV laser with short wavelength,focus,smaller spot,belongs to cold process with a little heat affecting,good beam quality, it can acachieve hyperfine marking.Most materials can absorb ultraviolet laser,it is widely applied on industrials; with very little heat affecting area, it won't have heat effect,there is no burning problem,pollution-free,non-toxic,high marking speed,high efficiency,the machine performance is stable,low power.

Technical Parameters

UV Laser output power	3W( Brand: RFH, China)
Life of the UV laser source	100,000 hours~150000 hours
Laser type/wave length	355nm
Effective marking area	110×110mm
Beam quality	<1.1
Marking speed	400 characters per second
Repeated accuracy	±0.001mm
Minimum character	0.1mm
Minimum line width	0.015mm
Galvanometer	High speed digital galvanometer (SINO-GALVO, Beijing, China)
Control system	Original EzCad controller
Control interface	Standard USB port
Cooling system	Industrial chiller CWUL-05( Teyu, S&A, China)
Laser repetition frequency	20kHz~80kHz
Focusing	Manual
Machine power	800W
Voltage	AC220V±10%, 50/60Hz, single phase
Computer when supply	Desktop, windows 7/10,32/64bits, industrial computer
Support format	PLT, BMP, DXF, JPG, TIF, AI etc

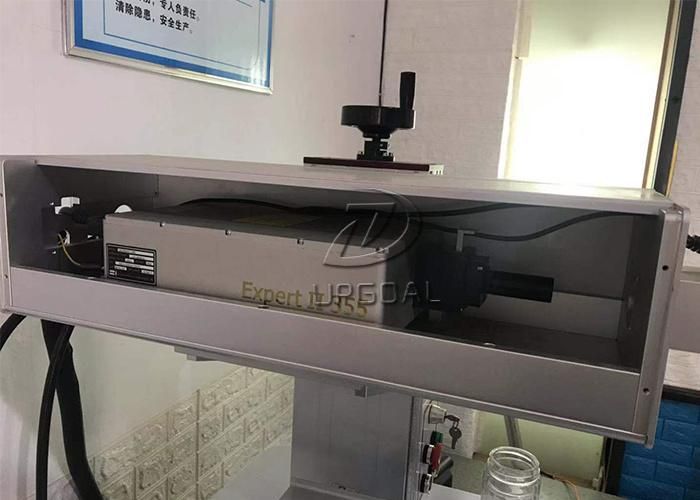

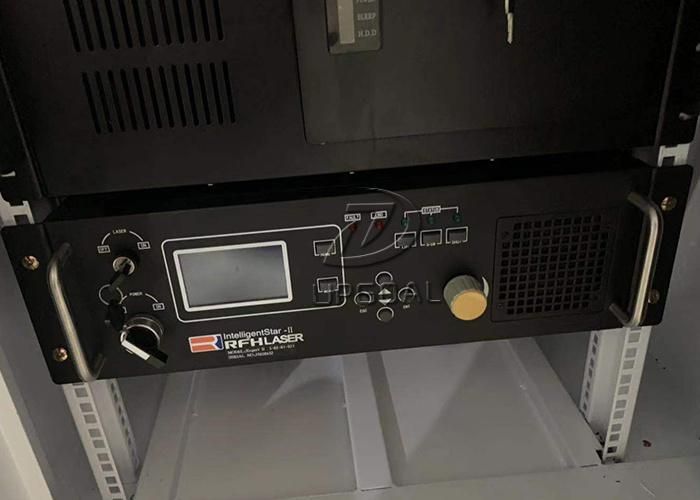

3W ( Brand: RFH, China) Ultraviolet laser source

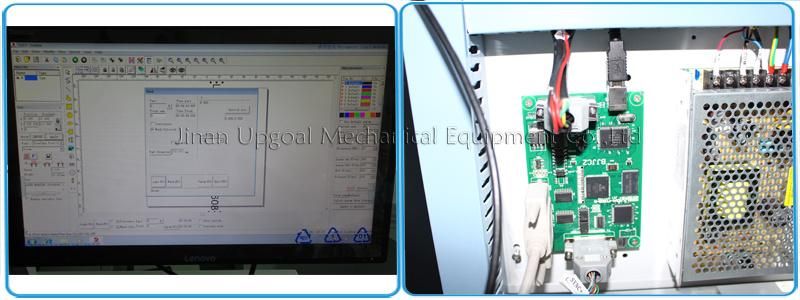

Original EzCad controller

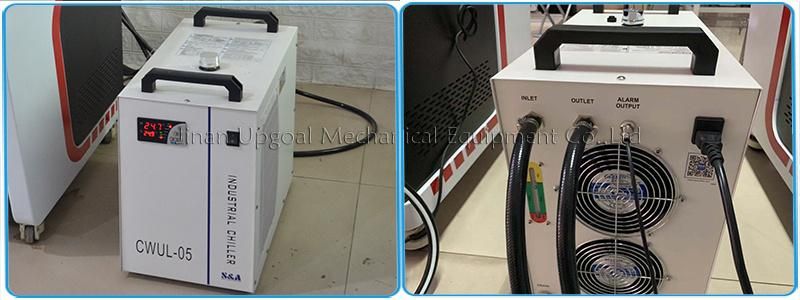

Industrial chiller CWUL-05( Teyu, S&A, China) cooling

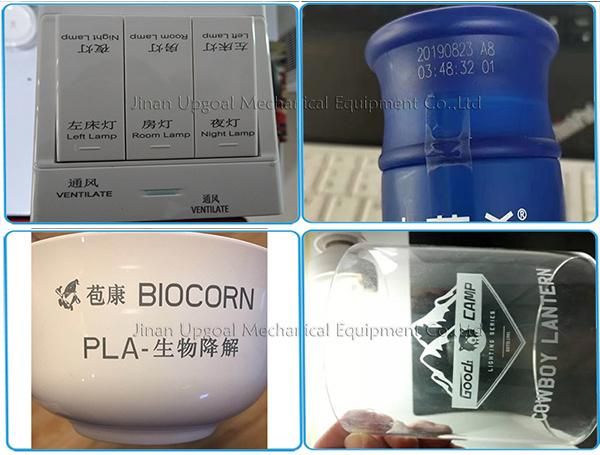

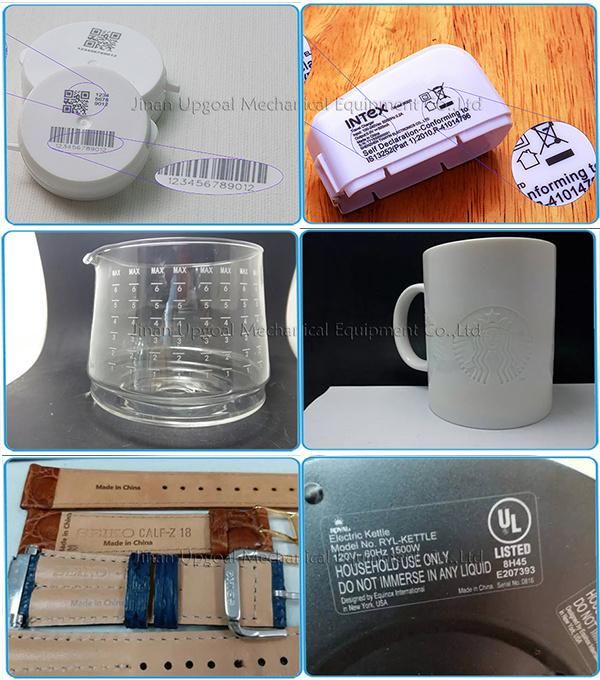

Reference Sample Photos





Reference Working Videos

https://youtu.be/Ex_xVHrjd7I

https://youtu.be/ISMC-Uwf92E

https://youtu.be/oMPl8B-F2-w

 For more information, just feel free to contact us!
