Basic Info.

Model NO. SJ45/33 Condition New Machine Color as Request Raw Material PE Granule Inverter Brand ABB or FUJI Contactor Schneider Compnonents Siemens Screw Material 38crmoaia Cooling Method by Air Operator 2-4 Per Line Oversea Service Available Extruder Type Single Screw Extruder Transport Package Packing in Wooden Case or Container Specification CE, ISO, Trademark Suke Origin Qingdao HS Code 84775900 Production Capacity 50 Sets Per Year

Product Description

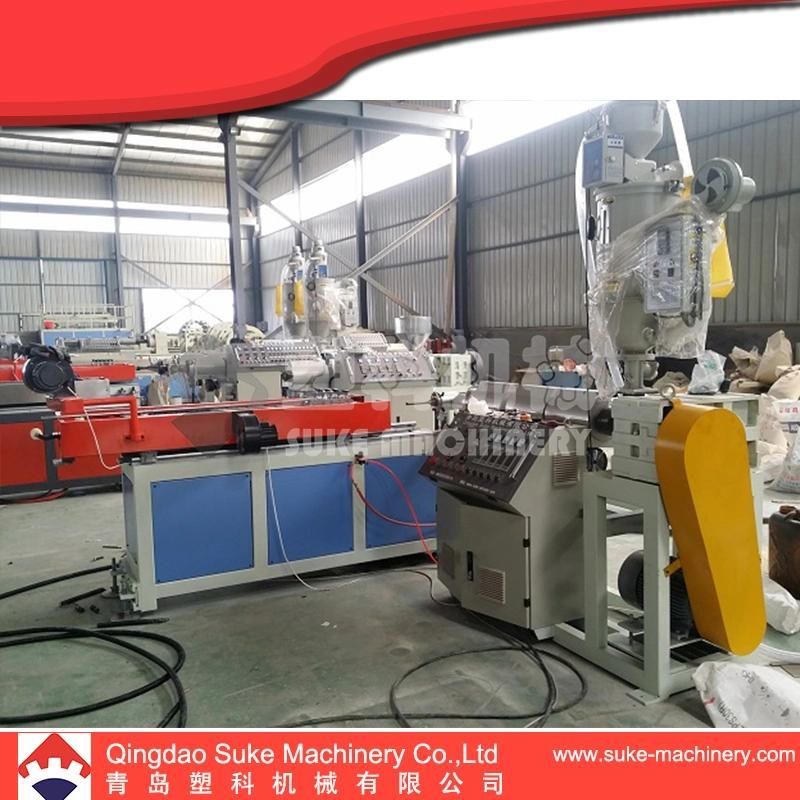

PE Single Wall Corrugated Pipe Machine (SJ45X33)



Description:

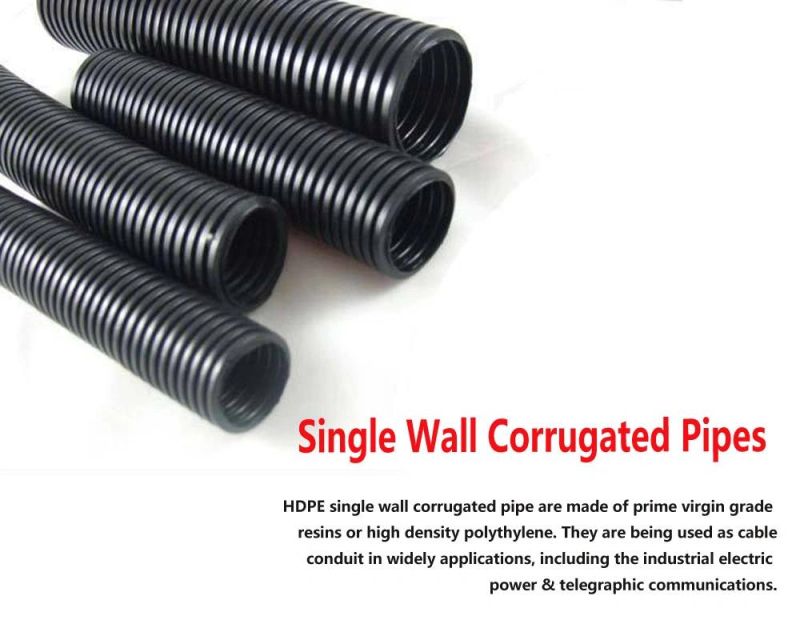

This line is used to produce pe single corrugated pipe by single screw extruder.
The raw material is pe granule.
The type of extruder depends on the specifciation of final products.

Equipment List

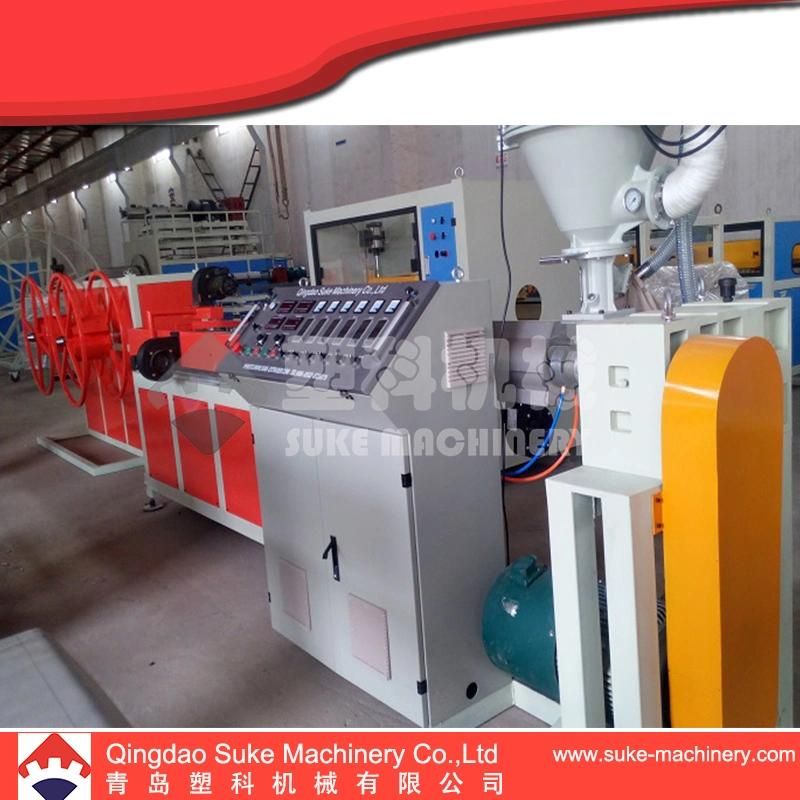

1. Single Screw Extruder
2. Extrusion Mould

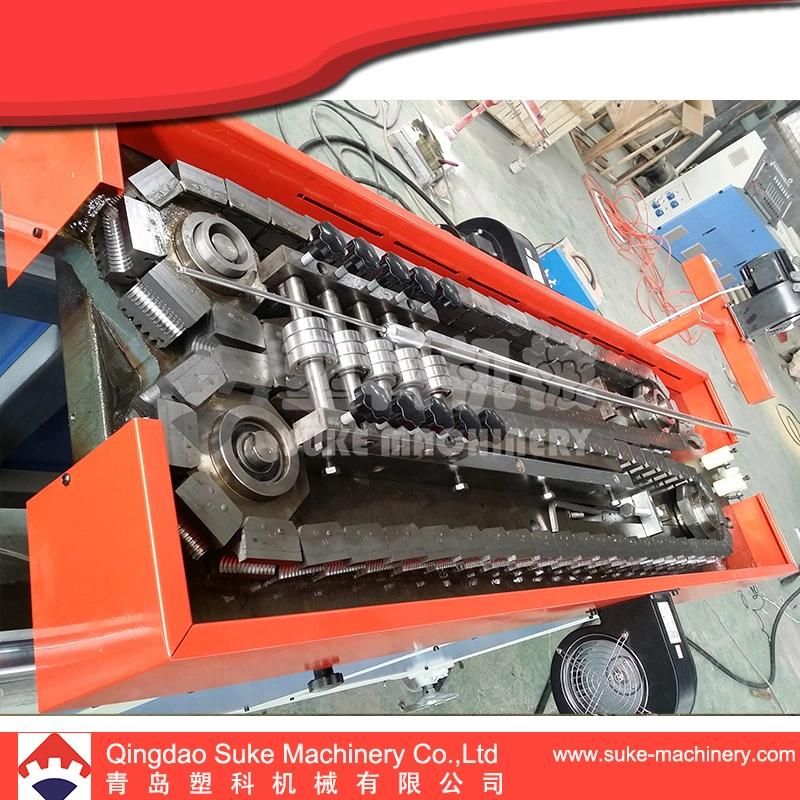

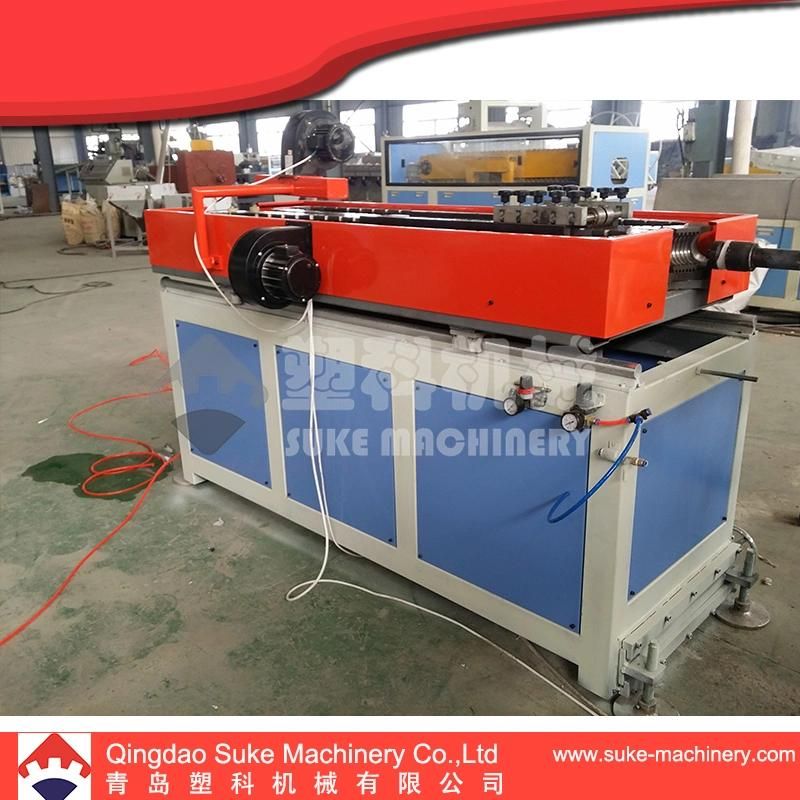

3. Shaping Machine
4. Shaping Module
5. Haul-off Machine


Extruder	SJ-65/25	SJ-90/25	SJ-120/25
Range of Pipe Diameter(mm)	16-25	65-115	115-175
Water Consumption (L/H)	2000	4000	5000
Water Pressure    (Mpa)	0.4-0.6	0.4-0.6	0.4-0.6
Number of Mold Blocks (Pairs)	40	50	60
Total Length of Mold Blocks (mm)	2400	5180	6216
Speed of Mold Blocks (m/min)	1-8	1-12	1-8
Dimensions(LxWxH)(Approx) (M)	10x1.25x1.5	18x1.35x1.7	21x1.55x2.5
Total Weight(Approx)   (Ton)	2	6	9.5
