Raw materialPVC, wood powder, CaCo3, ChemicalsProduct width1220mmProduct thickness3-45mmMachine size30m*3m*4m (length*width*height)Installation power200-250kwWater requiredchilled water less than 18 degree

Main technique parameter:ModelSJMSB-80/156SJMSB-80/173SHMSB-92/188Board thickness5-18mm3-30mm20-40mmBoard width 1220mm1220mm1220mmMax extrusion capacity350-380kg/h420-450kg/h500-550kg/hMotor power 75kw90kw110kwThis line consists of :

Items	Machine	Quantity	Notes
1.1	SJMS80/173 Conical double screw extruder	1 set	With auto feeder
1.2	Mold and calibrators for 1220mm width , and 18-35mm thickness	1 set	With 5 lips
1.3	WPC board calibrating device	1 set	5 calibrators
1.4	Cooling bracket, it can equip online embossing and online hot transferring or laminating machine.	1 set	5 meters length
1.5	Protection film coating device	1 set	Double face type
1.6	Haul-off machine	1 set	10 groups of rollers
1.7	Width(Edge) cutting machine	1 set	Two sides cutting
1.8	Length Cutting machine	1 set	Fixed length auto cutting
1.9	Dust suction machine	1 set	collecting cutting dust
1.10	Product stacker	1 set	3 meters
1.11	Siemens PLC Electric control system	1 set	High quality world famous

Mahcine detailed pictures

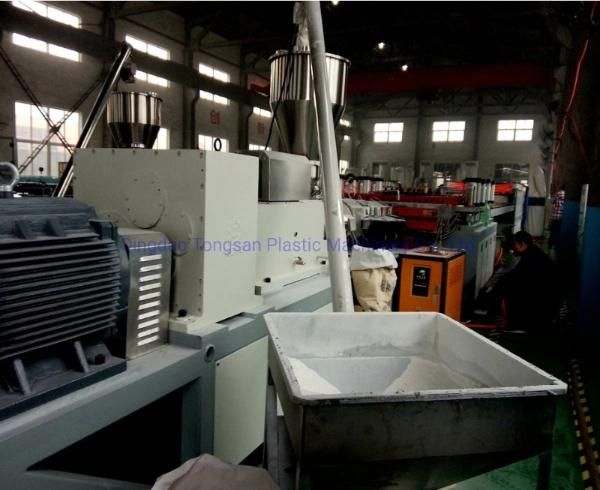

(1)Twin conical screw extruder
According to different thickness of products, equip different model extruder
Siemens motor
ABB inverter
Omron temperature controller

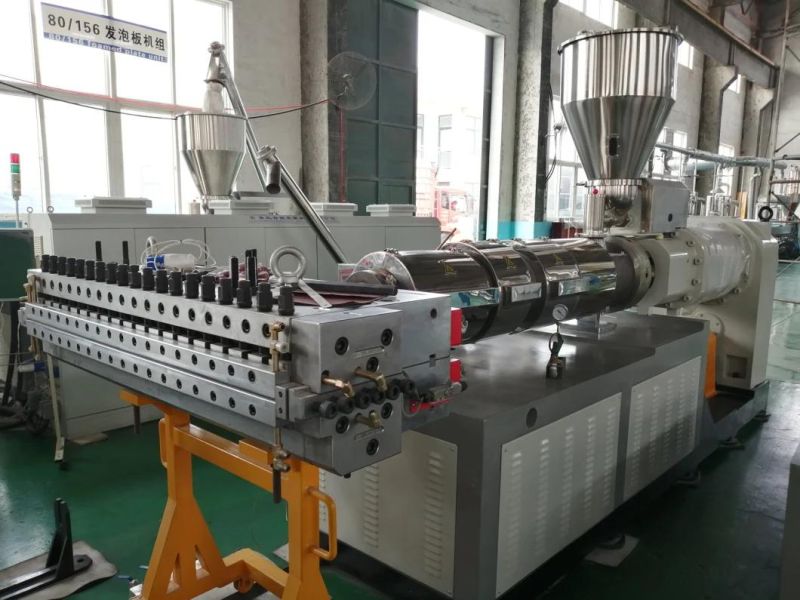

(2)T-die mould
China famous brand mould,which special for foam board

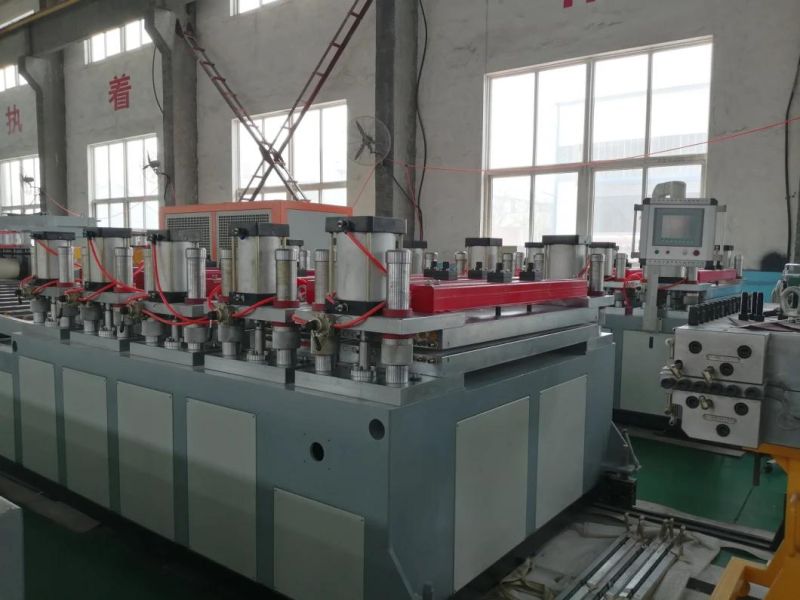

(3)Calibrator

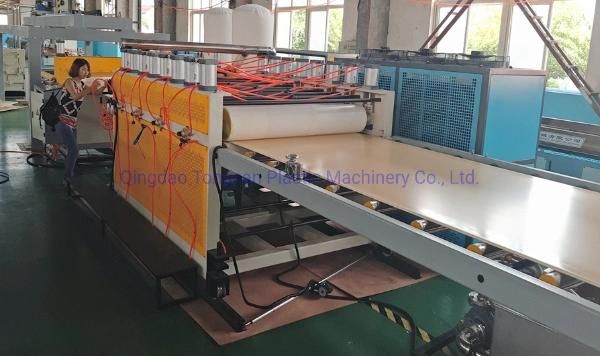

(4)Cooling frame
the cooling stacker is used for cooling the WPC foam board to ensure the flatness of the board.

(5)Hual off machine
WPC foam board requires very strong haul off force,so that we equip 8-10 pairs rubber rollers for haul off.

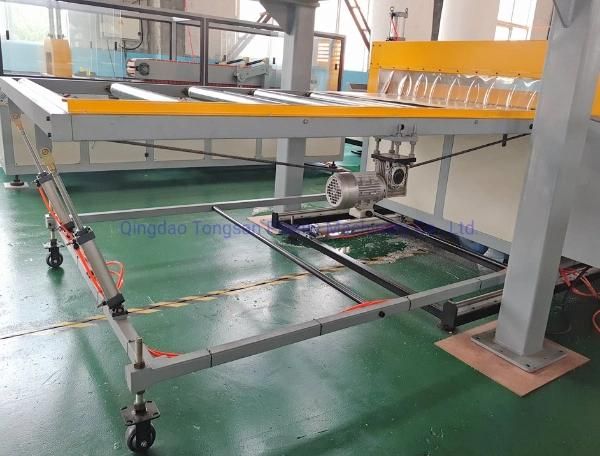

(6)Cutting machine
WPC foam board automatic length cutting machine
