Basic Info.

Model NO. WD50m Drilling Way Rotary Diesel Engine Power 5.7kw/2200rpm Spindle Rotary Speed 70-650rpm Spindle Stroke 600mm Heaviest Part of Machine 70kg Crawler Chassis Optional Drilling Equipments Drilling Tools, Drilling Rods, Pumps, Drill Mast Reverse Speed 50-130rpm Skid Sliding Distance 200mm Transport Package Sea Worthy Packing Specification 1400mmx600mmx1600mm Trademark Bohwa Origin China HS Code 84304900 Production Capacity 20 Sets/Month

Product Description

50M Portable SPT Drill rig
I. Technical Specification


	WD-50M
Drill Rod Dia.	42mm
Max. Drill Depth	50m
Hole Dia.	75mm
Spindle Speed	70-650rpm
Reverse Speed	50-130rpm
Diesel Engine Power	5.7kw
Weight	260kg
Dimension	1400x680x1230mm
Winch Lift Force	500kg
Skid Base Sliding Distance	200mm
Spindle Feeding Stroke	600mm
Kelly bar	Dia.46x51 mm, L=3000mm
Drill Mast	Optional

Note: the drilling depth is only for reference purpose and will vary in different rock formations.

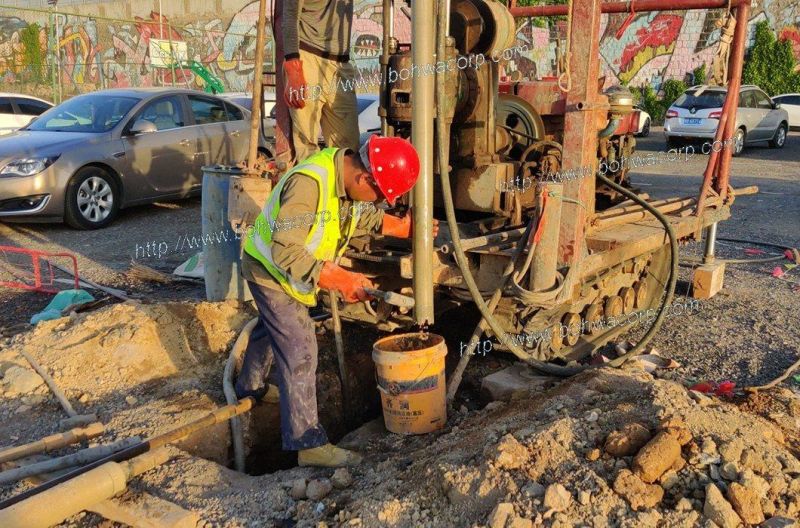

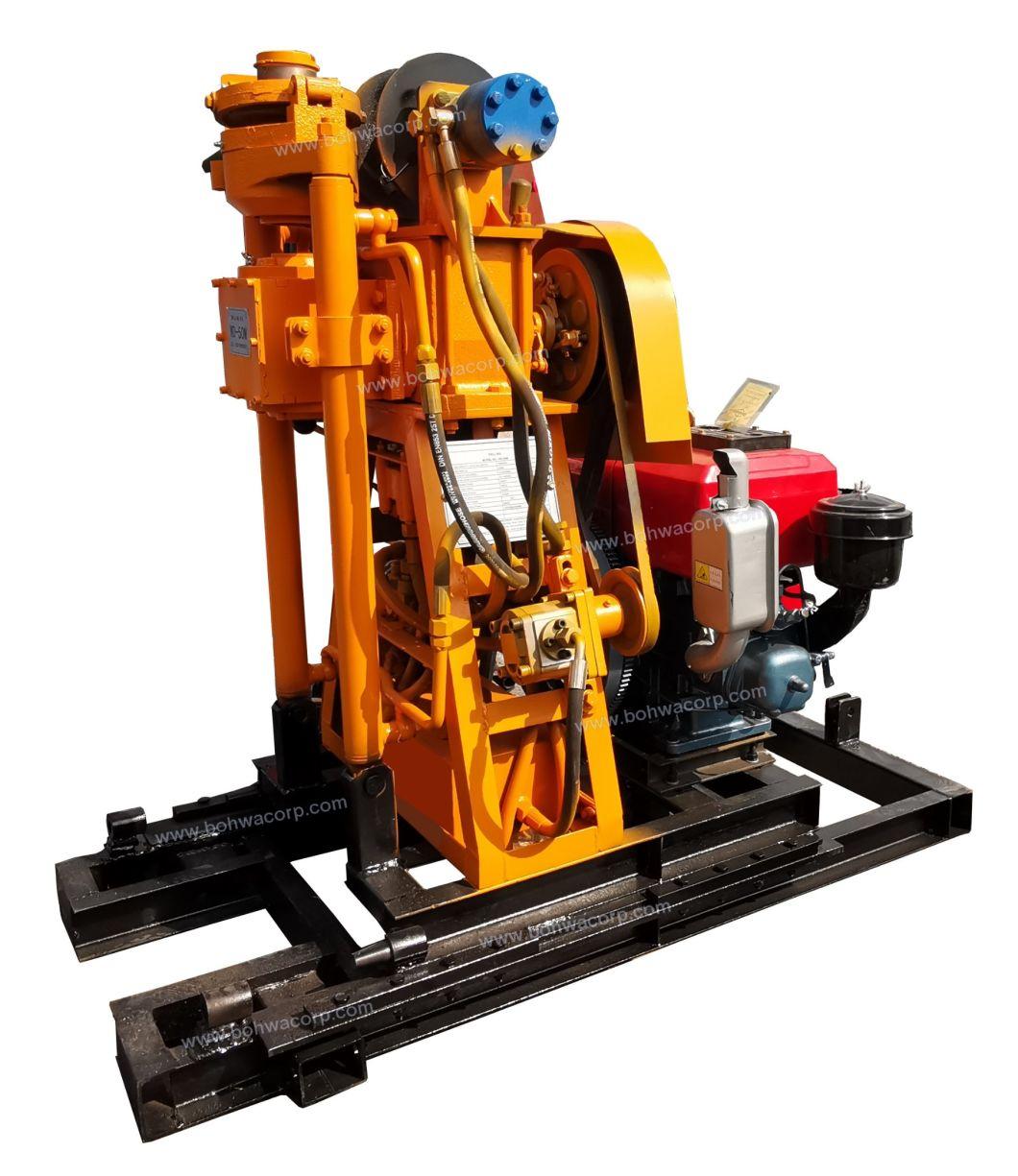

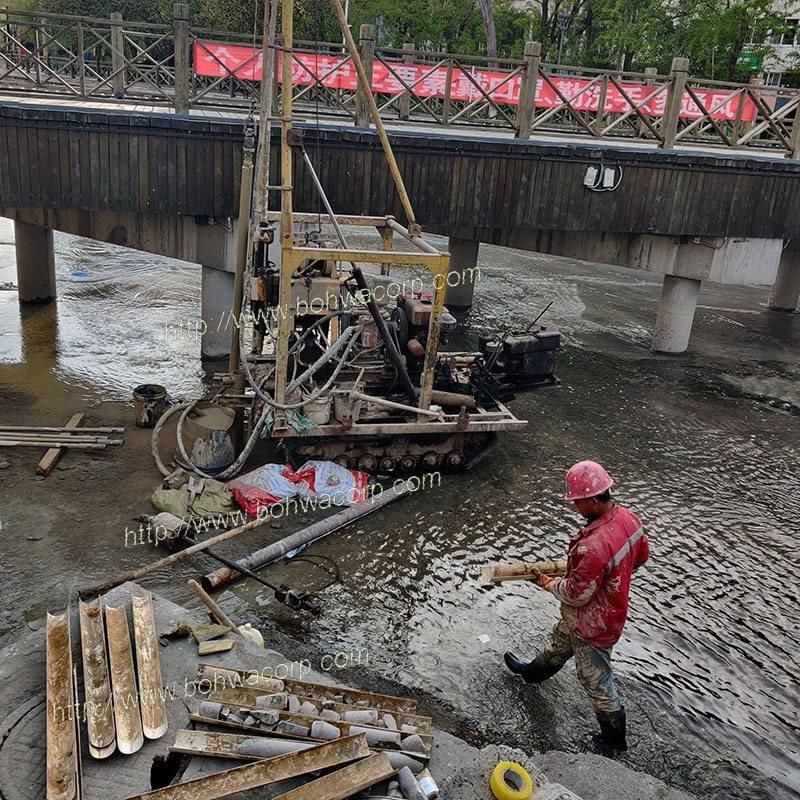

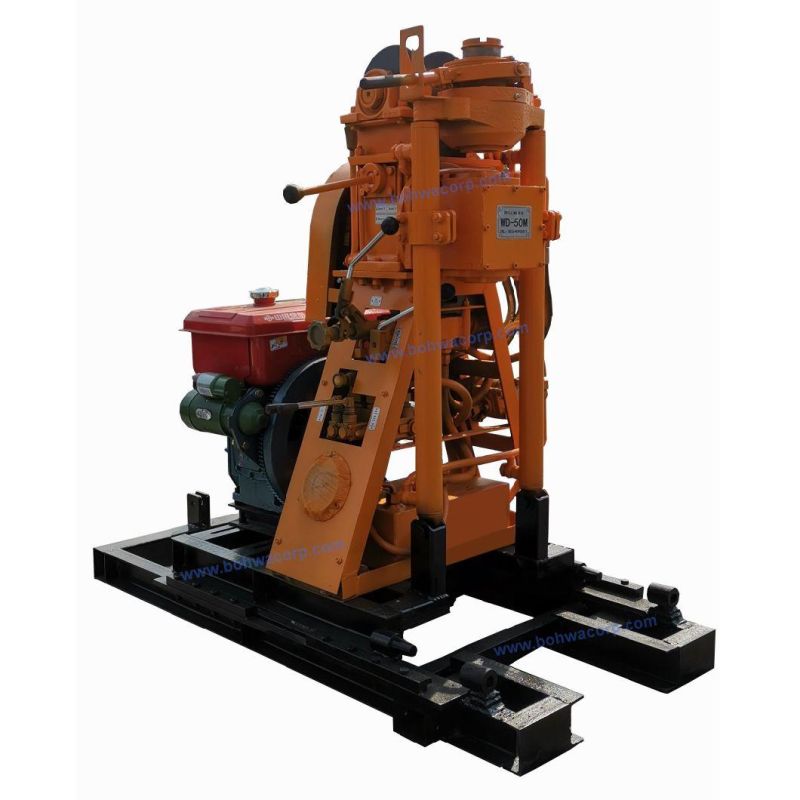

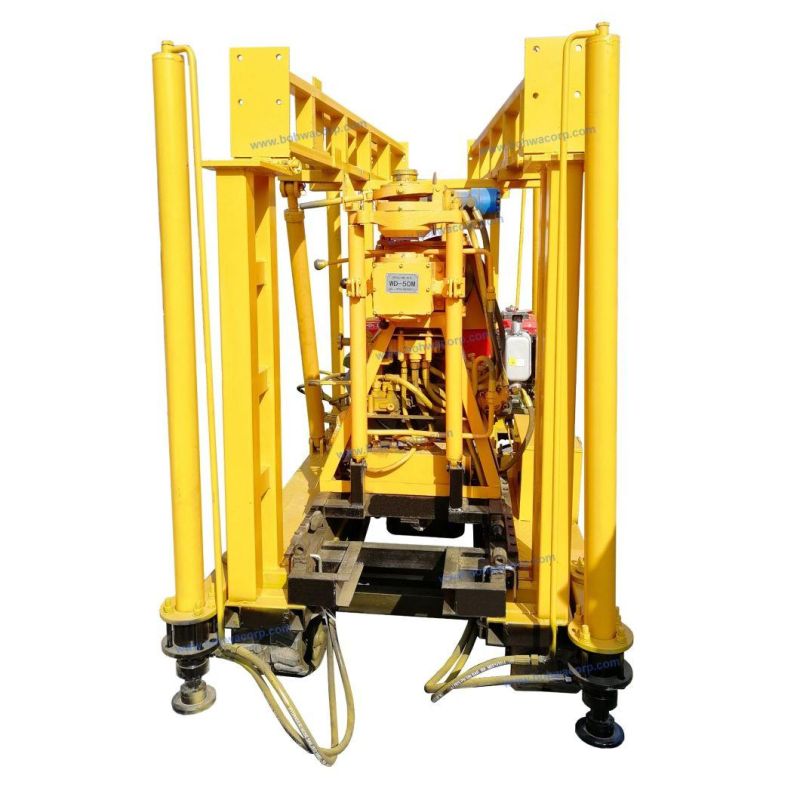

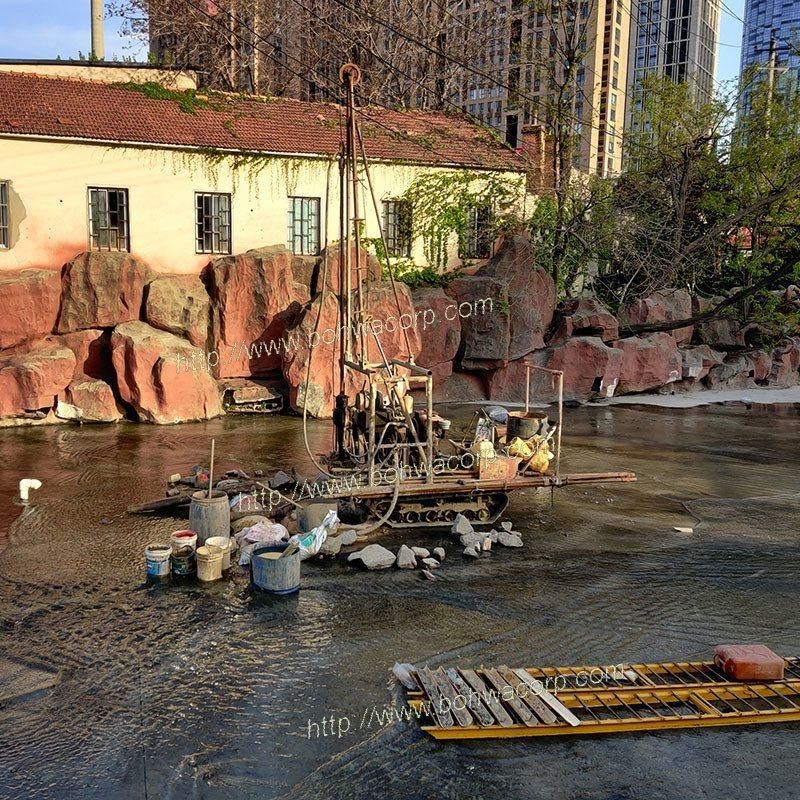

II. Photos
