ABA co-extrusion film stretch extrusion machine
high speed extruding machine for plastic bags

Perfectly used for blowing plastic compound film of materials including LDPE, HDPE and LLDPE and etc recycled materials. This machine is widely used for liquid packaging, producing basic materials of printing, products packaging and industrial packaging.

Details

Air blowe(no noise) 5.5kw    Auto   rewinder               Alloy high speed screw 50*2      Taiwan PLC 30

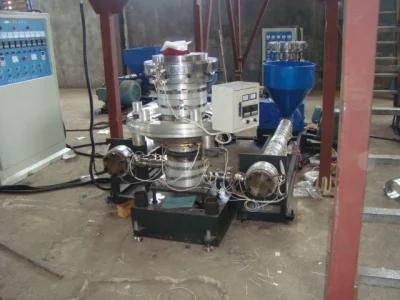

Taiwan mini blown film machine QS-MN 45

91.8% Response Rate

RQL heat cutting side sealing Eco Friendly bag making machine

91.8% Response Rate

Agricultural plastic film PE blow extruder machine

91.8% Response Rate

Detailed Images

Single auto rewinder

Banana roller:  900mm

Air shaft: 900mmxΦ74

Winding Station: Single Side one Station

Control system: Controlled by computer, Taiwan PLC 30 7.4 Inch

Winding Roller: 270*900mm

Magnetic Valve: Made in Taiwan

Winding Speed (M/min): 10-100

Die head

Air Ring:  800 double lip air ring
Die Head Diameter: 80mm (HDPE)

Heating Ring Material: Stainless steel

Screen Changer: Fast Changer net

Machine Region: Ruian, Wenzhou, China

Quality: high quality, low speed

Take-up Unit

Take-up Unit: 1 Units
Roller Width(mm): 270Ф 900mm Roller oxidized
Film bubble setting: 1set
Corona treator: 1 set 2kw

Take-up Motor(kw): 1.5

Take-up Speed(M/min): 10-100

Main Engines

Gear Box:  180x2 35# hard tooth surface

Inverter: Delta from Taiwan

Main Motor: 22KW+22KW ,Siemens MOTOR

Low Voltage Electrics: Schneider

Electric Cabinet: 1 set

Temperature controller: Omron from Japan

Static relay: SSR

Auto Weight test: 1pcs Italian system.

QS-ABA Film & Fix ring

Model: QS-ABA800
Suitable Material: HDPE/LDPE/ LLDPE EVA CACO3
Film Wide Range: 300-800mm
Film Thickness: 0.01-0.15mm (Customerzied)
Extrusion Capacity (Max ): 100kg/h
Voltage Support: 380V/50Hz, customerized /3P
Cover Dimension (L*W*H): 5200*2200*4000

Extruder Unit

Screw Diameter: Ф50mmX2

Screw L/D Ratio: 30:1
Auto loader: 100kg/h
Screw Material: ALLOY BIMITERIA
Barrel Material: 38 chromium molyb aluminum nitrogen treatment
Heating Ring&Cover Material: Stainless steel


Electri Cabinet

Switch:  Made in China
Temperature controller: Omron from Japan

Ammeter: China brand

Static relay: SSR

Auto Weight test: 1pcs Italian system. Made in China



Material & Products

Model QS-ABA 800
Suitable Material HDPE/LDPE/ LLDPE EVA CACO3

Function: Perfectly used for blowing plastic compound film of materials including LDPE, HDPE and LLDPE and etc recycled materials. This machine is widely used for liquid packaging, producing basic materials of printing, products packaging and industrial packaging.
