• Model NO.：MAN-20
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Marking Speed：>7000mm,S
• Min.Line Width：0.11mm
• Min.Character Size：0.15mm
• Warranty：3 Years
• Application Material：Metal
• Wavelength：1064nm
• Marking Area：110*110mm,175*175mm,300*300mm
• Transport Package：Wooden Case
• Specification：710*510*710 mm
• Trademark：CNMANLASER
• Origin：Shandong
• HS Code：8456110090
• Production Capacity：5000 Sets,Year

Basic Info.

Model NO. MAN-20 Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Marking Speed >7000mm/S Min.Line Width 0.11mm Min.Character Size 0.15mm Warranty 3 Years Application Material Metal Wavelength 1064nm Marking Area 110*110mm/175*175mm/300*300mm Transport Package Wooden Case Specification 710*510*710 mm Trademark CNMANLASER Origin Shandong HS Code 8456110090 Production Capacity 5000 Sets/Year

Product Description

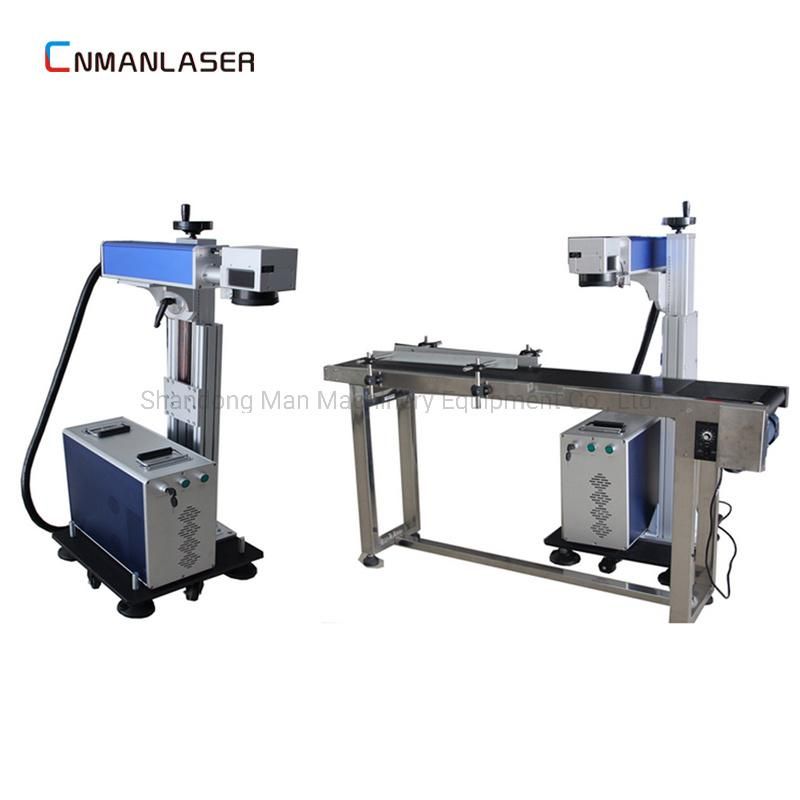

Fly Laser Marking Machine for PVC-U Pipes and food packaging (Model:Man-20)






Fiber Laser Marking Metal Parameter:


Laser power	20W
Laser Wavelength	1064nm
Light beam quality	<2
Repeating precision	±0.002
Marking range	110x110mm 200x200mm 300x300mm(customize)
Marking depth	0.01~1mm
Marking speed	7000mm/s
Minimum character	0.15mm
Minimum line width	0.01mm
Repeating frequency	20KHz~30KHz
Marking content	Graphics, text, bar codes, two-dimensional code, date, batch number, serial number
Graphic format supported	bmp,png,ai,dxf,dst,plt
working voltage	220V±10%/50Hz/4A
Size	70*85*145cm
Gross Weight	135kg
Control interface	Standard USB port
Working environment	Clean and dust free or dust less
Laser module life	100000~200000 hours

1.Can engraving on a variety of metal and nonmetal ,Especially more good at marking on high hardness, high melting point, brittle materials

2.non contact processing, no damage to the product, no tool wear, good marking quality.

3.The laser beam is thin, the material consumption is very small, and the heat affected zone is small.

4.high processing efficiency, computer control system, easy to achieve automation.

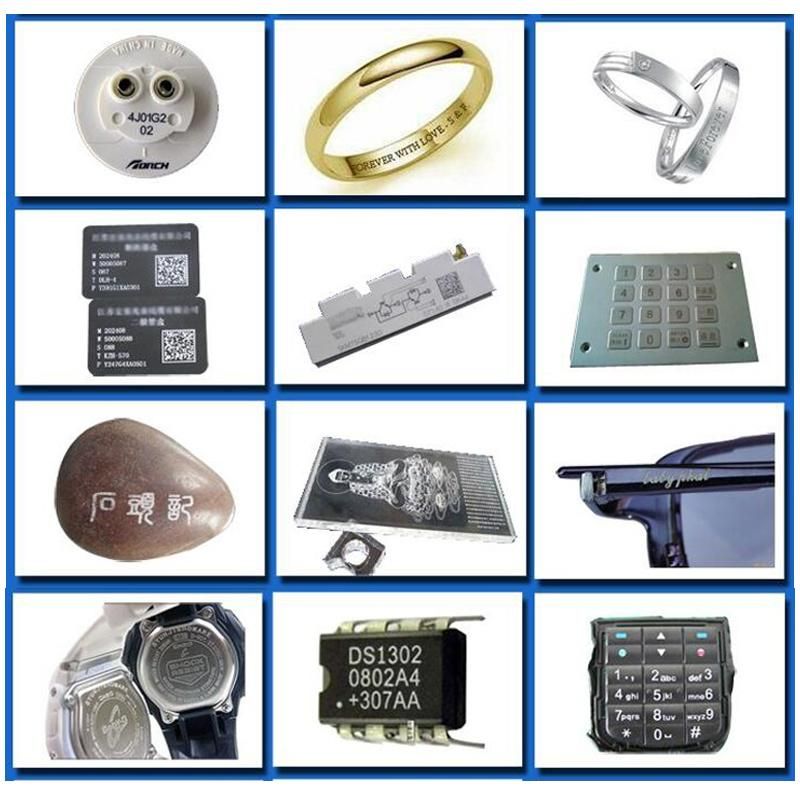

 Application:
Widelyused in many fields,Integrated circuit chipgraphics,computer accessories, industrial bearings,
 watches, electronic and telecommunication products, aerospace devices, auto parts, household
appliances, hardware tools, moulds, wire and cable, food packaging, jewelry, tobacco and
military things, and mass production line.





1) Free Training by VCD:We will supply the machine with <Training VCD> , <User's Manual> and <Instruction Book> in English for installing, operation, maintenance and trouble-shooting, and shall give technical guide by E-mail, fax, telephone, MSN, ICQ and so on, when you meet some problems of installation, using or adjusting.(Recommend)

2) Free Training Factory:You can send operator to laser marker factory for free training. Laser marker will offer professional guide for free.It is direct and effective face-to-face training.Here we have well-assembled equipments, all sorts of tools and testing facility.
Training Time:2-3 days (Recommend)

3) Our engineer can do a door-to-door instruction training service at your local site.We need your help to deal with the visa formality, prepaid traveling expenses and accommodation to us during the business trip and service period before their dispatch.It's better to arrange a translator for both of our engineers during the training period.

Quality Guarantee and After-sales Services:
1)The guarantee period of quality shall be 12 months counting from the date on which the commodity arrives at the port of destination.Except the damage artificially and laser krypton lamp, we are responsible for offering the fittings free of charge during the guarantee period.While user is kindly requested to send the damaged fittings to us by courier with your charge before we send back the alternative fitting parts.After the guarantee of quality period, the parts required repairing or change, if any, shall be reasonable charged.

2)We will give technical guide by email, fax and telephone when user meets some problems on installation, operation, adjusting, maintaining.

3)We offer technical supporting to ensure safety using & maintenance for user:
Operation manual for installation, adjusting, operation, maintaining;
Professional marking software;
Operational marking software backup;
Quick supplement of key componentsUU with reasonable price.
Life-long after-sales service & consulting service to user.
