• Model NO.：KQ
• Name and Description：Fresh Milk Storage Cooling Fermentation Holding Re
• Material：Stainless Steel 304,316
• Compressor：USA Copeland
• Rated Volume：500-10,000liters
• Power Supply：3 Phase 380-420V 50Hz
• Weight：Depending on The Capacity
• Certificate：ISO , Ce
• Brand Name：Kq
• Place of Origin：Shanghai China
• Manhole：300-460mm
• Motor：ABB,Siemens ,China Brand
• Insulation Wall：70mm
• MOQ：1set
• Warranty：One Year
• Packing：Wooden Box
• Transport Package：Wooden Box
• Specification：SANITARY, FOOD GRADE
• Trademark：KQ
• Origin：China
• HS Code：8479820090
• Production Capacity：1000 to 10000L

Basic Info.

Model NO. KQ Name and Description Fresh Milk Storage Cooling Fermentation Holding Re Material Stainless Steel 304/316 Compressor USA Copeland Rated Volume 500-10,000liters Power Supply 3 Phase 380-420V 50Hz Weight Depending on The Capacity Certificate ISO , Ce Brand Name Kq Place of Origin Shanghai China Manhole 300-460mm Motor ABB/Siemens /China Brand Insulation Wall 70mm MOQ 1set Warranty One Year Packing Wooden Box Transport Package Wooden Box Specification SANITARY, FOOD GRADE Trademark KQ Origin China HS Code 8479820090 Production Capacity 1000 to 10000L

Product Description

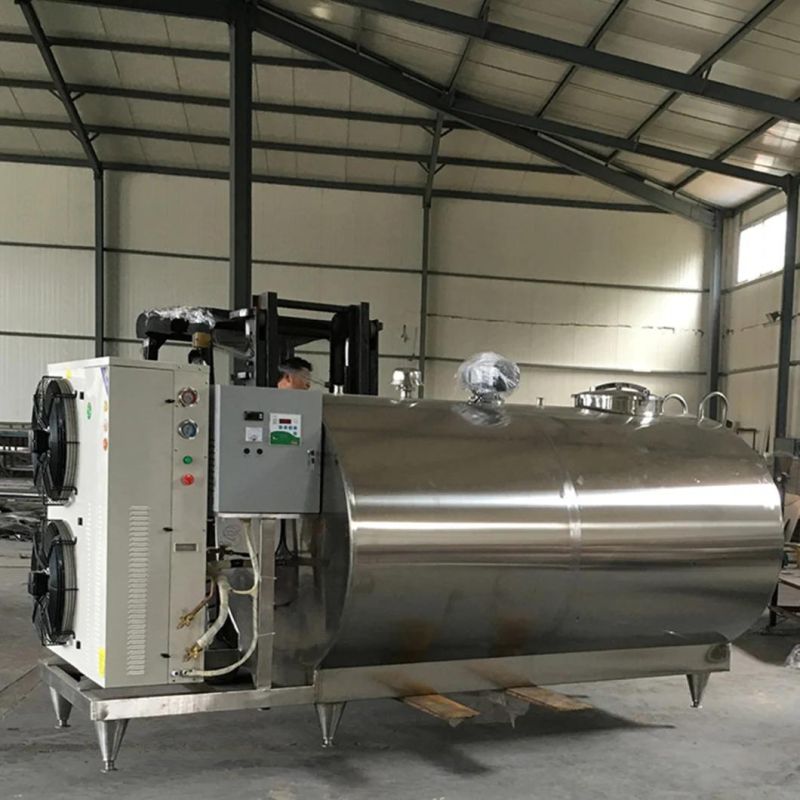

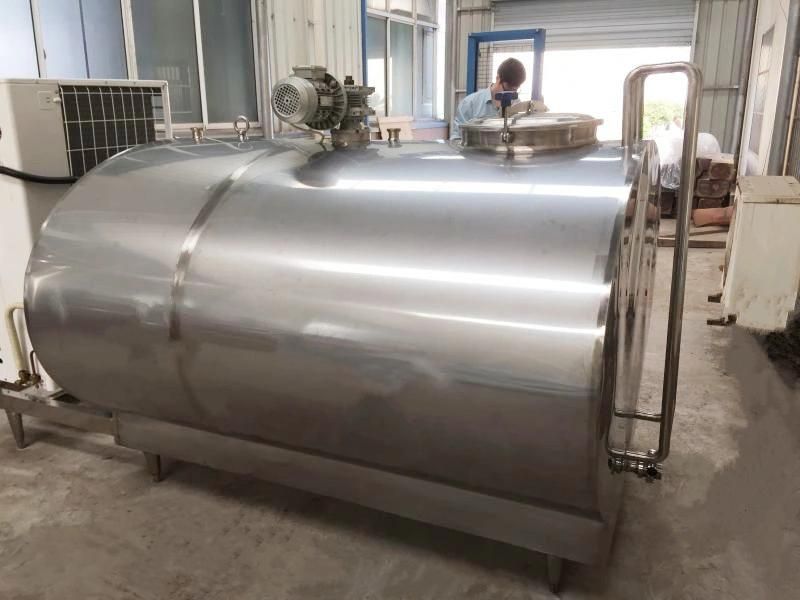

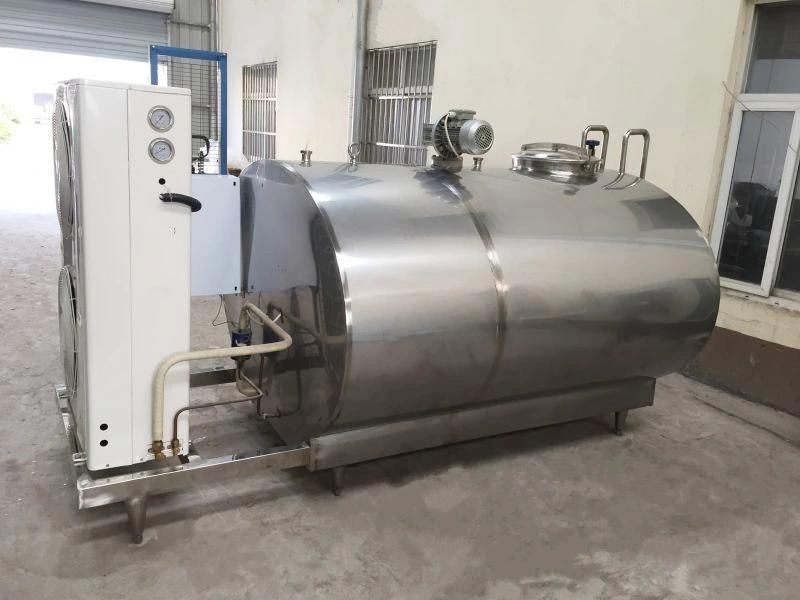

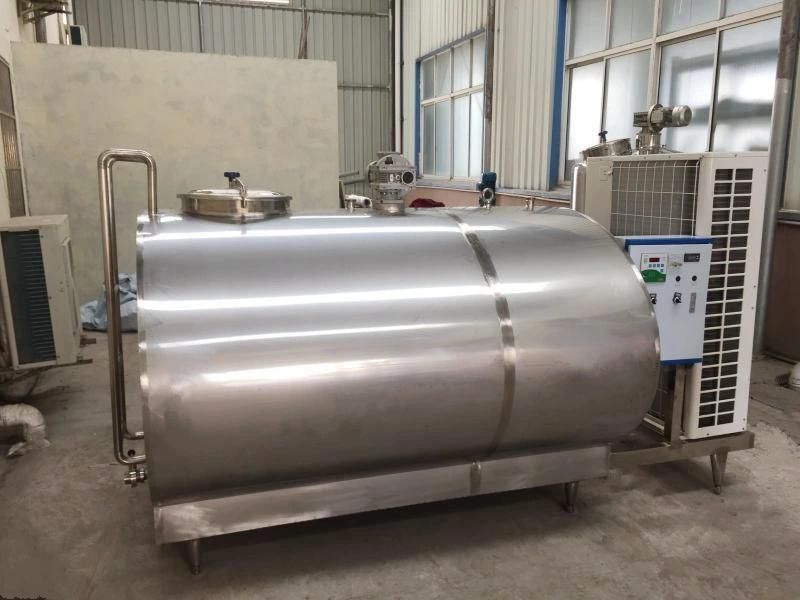

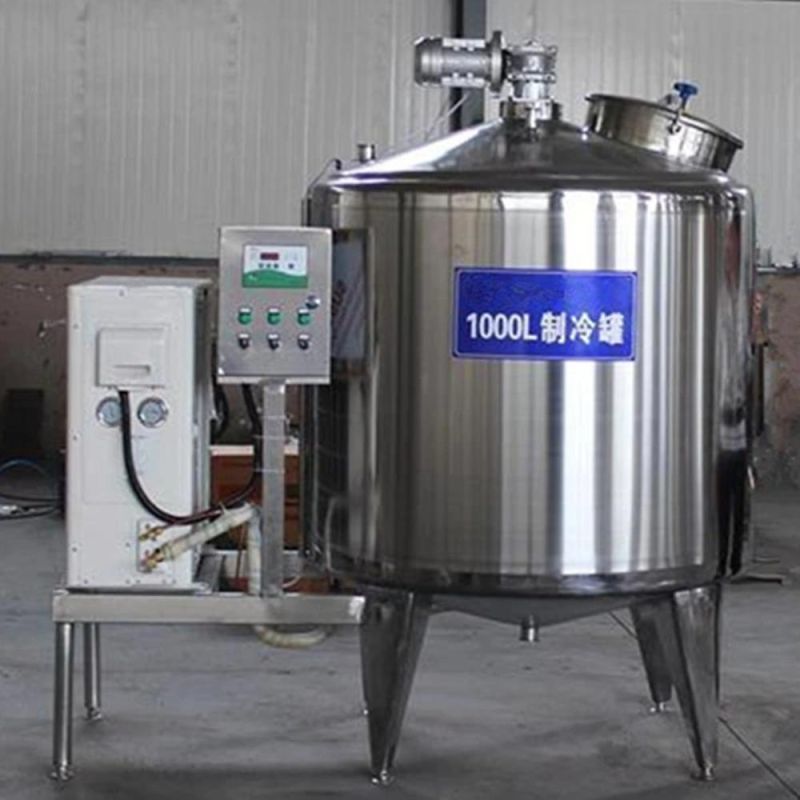

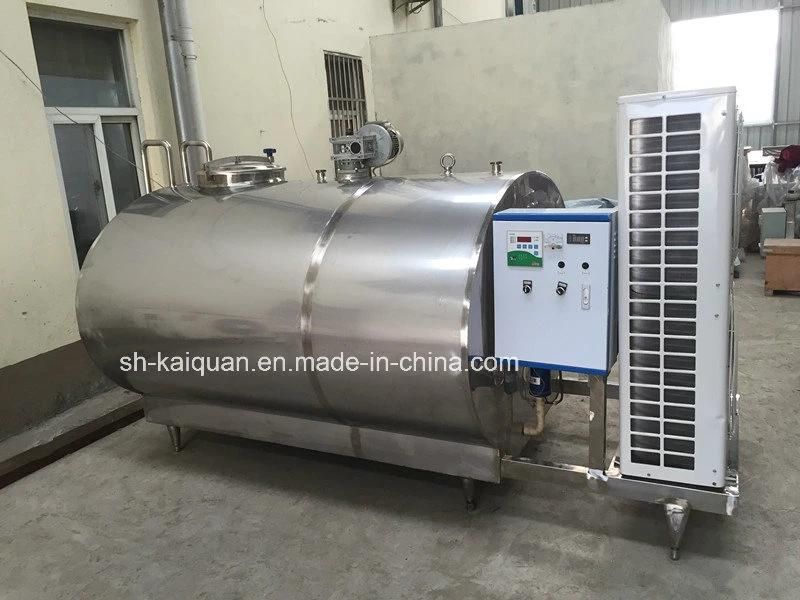

Fresh Milk Storage Cooling Fermentation Holding Receving Tank

Direct-cooling milk tank (hereafter referred to as "cooling tank") applies to storing and

cooling fresh raw milk on farms, as well as fluid in small milk depot, dairy plant, food, feed,

pharmaceutical plants.



 The cooling tank is mainly composed of the body, agitator, cooling unit and electric

control cabinet. The body is made of stainless steel, with precision polish, being difficult

dirt accumulation, corrosion resistance and easy cleaning. Its insulating layer is filled with

rigid polyfoam of lower heat conductivity, being light and with good heat insulation.

Cooling milk tank is mainly used in cooling to storage sweat milk or other liquid .

It absorbs international advanced technology , adopts improving compress machine

and safety and protection system , micro computer monitor , imported advanced technique

and equipment such as polyurethane bubbling , honeycomb board evaporator .

So it is the ideal cooling and storage equipment for pasture , milk station , milk factory ,

and beverage factory and pharmacy industry .

Adopting internationally-advanced technology of the 1900's it cools by circular and vertical wall. The fully automatic control system makes whole process of observation available. The cooled raw milk can reach rapidly needed temperature of 4~5 and keeps constant, which can prevent the generation of bacteria and make raw milk as Agrade cream.

The adopted imported compressor features high performance, energy saving, full seal and protection system that prevents damage due to overload. Also fitted are high / low liquid level control system and automatic cyclespray and agitating device.

Milk cooling tank




Type	KQ-1T Vertical type	KQ-2T Laying type	KQ-3T Laying type	KQ-5T  Laying type	KQ-6T  Laying type	KQ-8T  Laying type	KQ-10T  Laying type
Capacity( L)	1000	2000	3000	5000	6000	8000	10000L
Refrigerating Output (W)	9000	15000	22000	37000	38000	55000	74000
Refrigerating  Fluid(R)	R404/R22	R404/R22	R404/R22	R404/R22	R404/R22	R404/R22	R404/R22
Insulating Property	≤ 1C/4h	≤1C/4h	≤1 C /5h	≤1 C /5h	≤1 C /5h	≤1 C /5h	≤1 C /6h
Agitator Speed	36r/min	36r/min	36r/min	36r/min	36r/min	36r/min	36r/min
Power (Kw)	3.8	5.9	7.5	10.5	11	13	19.2
Voltage	380V/50Hz,3phases	380V/50Hz,3phases	380V/50Hz,3phases	380V/50Hz, 3phases	380V/50Hz, 3phases	380V/50Hz, 3phases	380V/50Hz, 3phases
Dimension(mm)	1800*1200*1500	3400*1550*1750	3600*1700*1900	3900*2050*2150	4500*2050*2150	6300*2050*2250	8000 * 2100 * 2400
Weight(Approximately)	0.6T	0.75T	0.9T	1.1T	1.3T	1.8T

Fresh Milk Storage Cooling Fermentation Holding Receving Tank
