Tyrolit Hilti Quality Laser Arix Concrete Wall Saw 800mm 1200mm 1600mm Concrete Cutting Blade
Hangzhou Tianye Packaging Technology Co., Ltd.- Blade Type：Diamond Blade
- Manufacturing Process：Sintered
- Application：Stone
- Product：12" 14" 16" Granite Marble Concrete Diamond Circul
- Type：Diamond Blade
- Cutting：Stone Cutting Blade, Granite Cutting Blade
Base Info
- Model NO.：BSD
- Transport Package：Carboard Box
- Specification：350mm 400mm 450mm
- Trademark：BEST
- Origin：China
- HS Code：82079010
- Production Capacity：5000
Description
WALL SAW BLADE TEST RESULT
WALL SAW MACHINE POWER:22KW
WALL SAW BLADE DIAMETER:Φ800mm SEGMENT SIZE:20*4.7*12mm TEETH:80PCS
LINE SPEED:1000RPM / 41.8m/s
REINFORCED CONCRETE BLOCK SIZE:100 X 30cm
CUTTING SPEED:34cm²/min,7 MINUTES ( CUT ONE PC 100*30cm,SEGMENT CONSUME 0.25mm) ,
WALL SAW BLADE LIFE:CUT 12m²/EACH BLAE (CONSUME SEG MENT :0.83mm/m²)
| Material | 10-15KW | 15-22KW | 22-32KW | |
| Reinforced concrete with normal aggregates | Cutting speed Tool life | ★★★★★★★★★☆★★★★★★★★★☆ | ★★★★★★★★★★★★★★★★★★☆☆ | ★★★★★★★★★★★★★★★★★☆☆☆ |
| Reinforced concrete with hard aggregates | Cutting speed Tool life | ★★★★★★★★☆☆★★★★★★★★☆☆ | ★★★★★★★★★★★★★★★★★☆☆☆ | ★★★★★★★★★★★★★★★★☆☆☆☆ |
| Reinforced concrete with abrasive aggregates | Cutting speed Tool life | ★★★★★★★★★☆★★★★★★★★☆☆ | ★★★★★★★★★★★★★★★★☆☆☆☆ | ★★★★★★★★★★★★★★★☆☆☆☆☆ |
Center Bore available 60mm, 25.4mm
Mounting hole(Pin hole) available Hilti type, Tyrolit Type

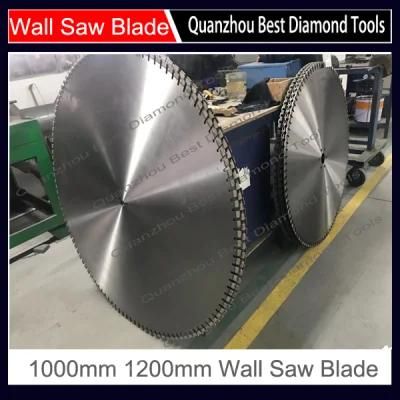

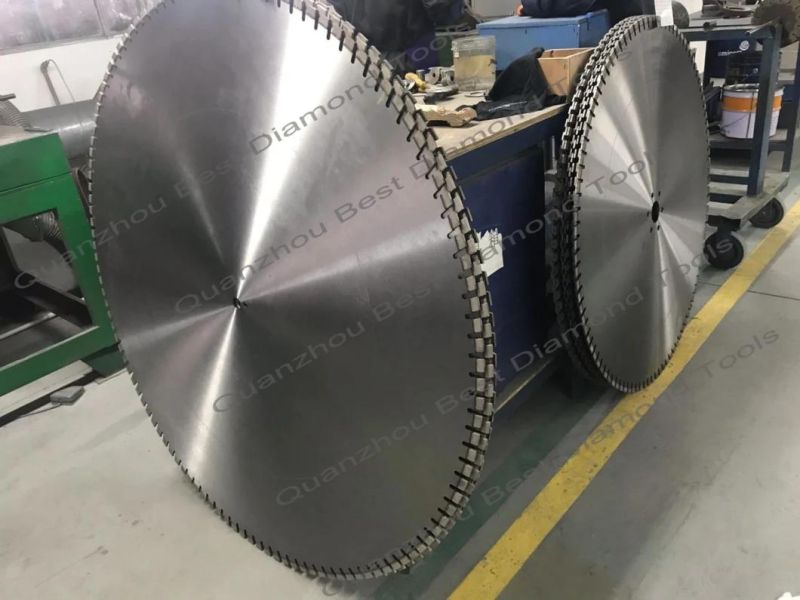

(Above Photo is Size 1200mm and 1000)

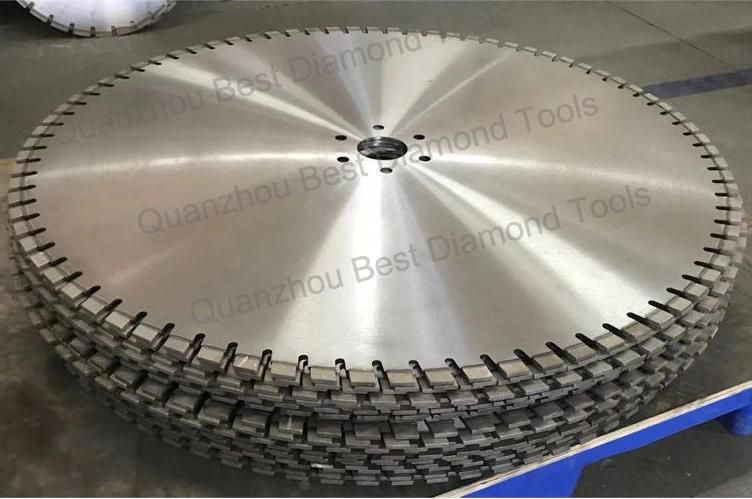

(Above Photo is Size 800mm)
