• Model NO.：KQ Series
• Application：Milk, Yogurt, Milk Powder, Dairy, Milk, Juice, Beverage
• Customized：Customized
• Name：Two Year Warranty Ce Certificate Homogenizer for
• Usage：Milk , Juice, Beverage, Butter, Honey, Cream
• Capacity：500L,H-10000L,H
• Pressure：250 Bar To700bar
• Certificate：Ce,SGS ,ISO
• Performance：0.2um
• Voltage ,Hz,Phase：Make It to Your Order .
• Stage：Two Stage
• Working Life：More Than 10years
• Homogenizer Spare Parts：Provide
• Material：Stainless Steel 304 , 316
• Motor：Siemens ,ABB ,China Brand

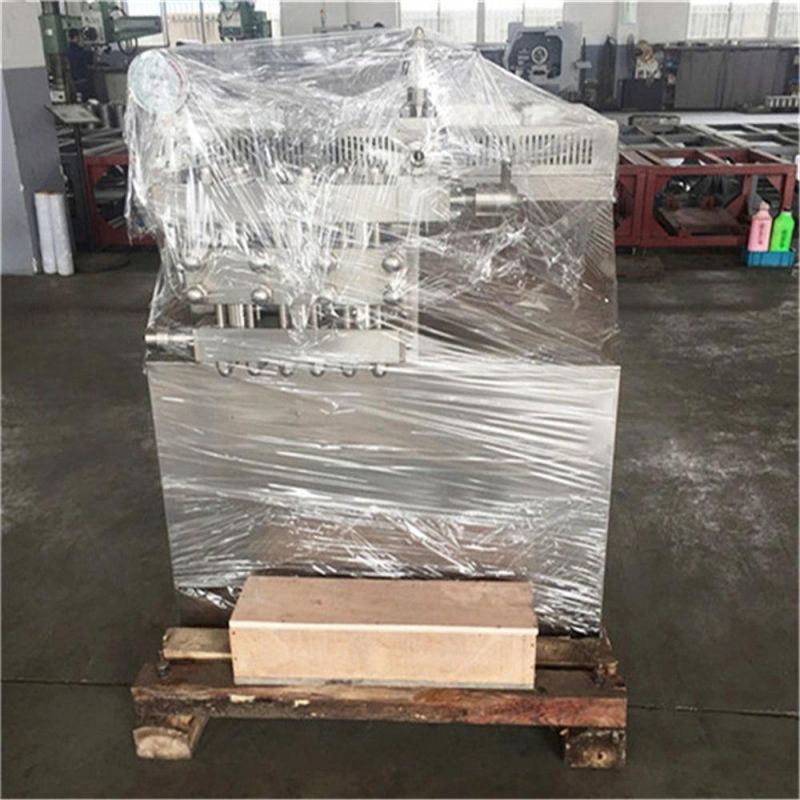

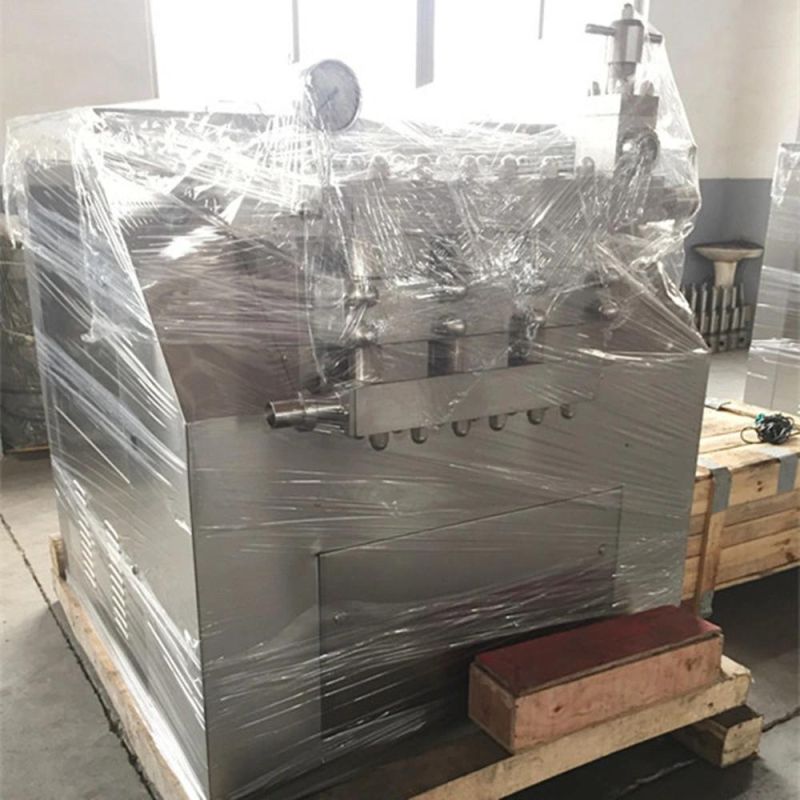

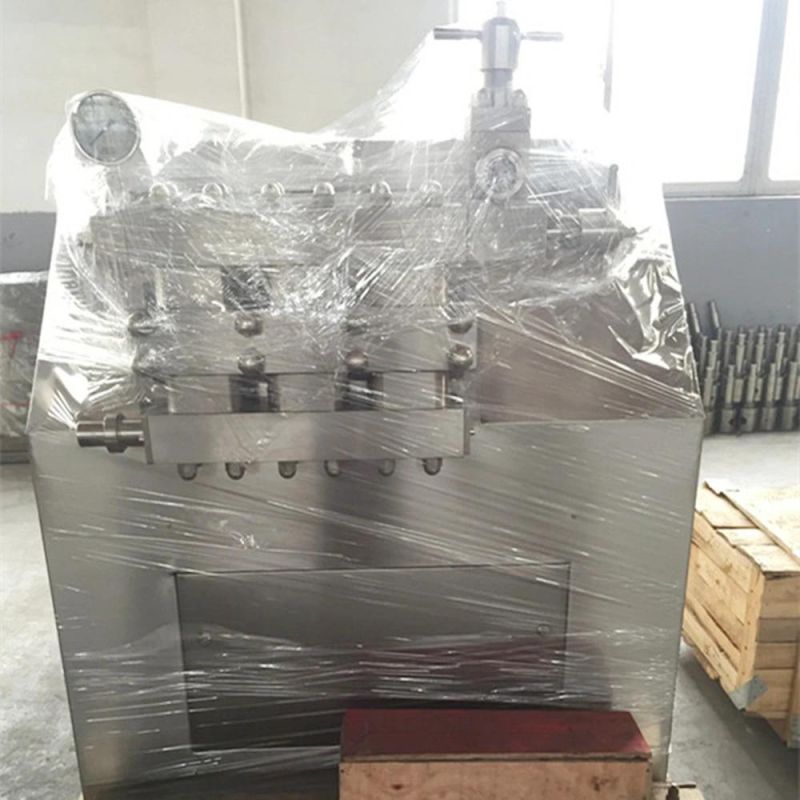

• Packing：Wooden Box
• OEM：Yes
• Spare Parts：Available
• Transport Package：Standard Wooden Box
• Specification：CE
• Trademark：KAIQUAN
• Origin：Shanghai, China
• HS Code：8479820090
• Production Capacity：100 Units,Month

Basic Info.

Model NO. KQ Series Application Milk, Yogurt, Milk Powder, Dairy, Milk, Juice, Beverage Customized Customized Name Two Year Warranty Ce Certificate Homogenizer for Usage Milk , Juice, Beverage, Butter, Honey, Cream Capacity 500L/H-10000L/H Pressure 250 Bar To700bar Certificate Ce,SGS ,ISO Performance 0.2um Voltage ,Hz,Phase Make It to Your Order . Stage Two Stage Working Life More Than 10years Homogenizer Spare Parts Provide Material Stainless Steel 304 / 316 Motor Siemens /ABB /China Brand Packing Wooden Box OEM Yes Spare Parts Available Transport Package Standard Wooden Box Specification CE Trademark KAIQUAN Origin Shanghai, China HS Code 8479820090 Production Capacity 100 Units/Month

Product Description

3000L Milk Homogenizer Yogurt Homogenizer Homogenizer Price Homogenizer Supplier

Two Year Warranty CE Certificate Homogenizer For Ice Cream Factory


CE Certificated Best Price Shanghai High Pressure Homogenizer/Milk Homogenizer

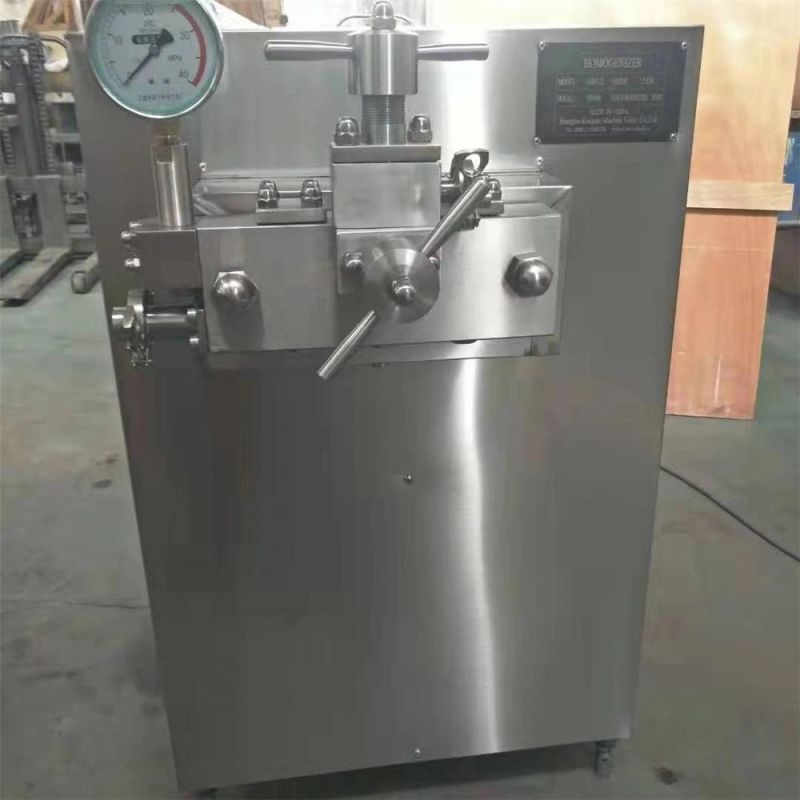

GJB high pressure homogenizer
25 Mpa 250Bar Homogenizer For Milk CE
Milk High Pressure Homogenizer, You Can Buy Various High QualityMilk High Pressure Homogenizer Products from us,  the 250bar milk homogenizer



Model No. Technical parameter	KQ0.5-25	KQ1-25	KQ1.5-25	KQ2-25	KQ2.5-25	GJB3000-25 KQ3-25	KQ5-25
Rated pressure(MPa)	25	25	25	25	25	25	25
Rated flow ( Liters/H )	500	1000	1500	2000	2500	3000	5000
Medium temperature(C)	≤85	≤85	≤85	≤85	≤85	≤85	≤85
Feeding pipe diameter(mm)	25	25	25	25	25	32	40
Discharge pipe diameter(mm)	15	15	20	20	20	20	25
Power of motor(Kw)	5.5	7.5	11	15	18.5	22	45
Volt and Electricity Flow	220V,60HZ,3PH	380V,50HZ	380V,50HZ	380V,50HZ	220V,60HZ,3PH	380V,50HZ	380V,50HZ
Outline dimension (m) Length * width * height	1.16×0.9×1.24	1.16×0.9×1.24	1.16×0.9×1.24	1.4×1.1×1.42	1.4×1.1×1.42	1.4×1.1×1.42	2.2×1.45×1.1
Weight(Tons)	0.4	0.5	1.25	1.25	1.25	1.25	1.7

High pressure homogenization is a standard industrial process for dairy products, to improve their stability and shelf life
series is the kind of equipment which can homogenize the liquid material and make it become high-pressure spray. The high pressure homogenizer pump reciprocates the pump position, high press the liquid, fully mixed and refined the material.

The high pressure homogenizer can use to homogenize the dairy product material in high pressure, refine the fat globule, prevent or decrease the stratifying of the liquid material; Make the product much more nicety, to prove the quality of the product.


The high pressure homogenizer pump also the important equipment of the powder manufacture. (Such as pharmaceutical industry, chemical industry, etc. )
Two Year Warranty CE Certificate Homogenizer For Ice Cream Factory .
