Basic Info.

Model NO. D440+ Drilling Way Impactor Keyword DTH Drill Rig Hole Depth 30-90m Hole Diameter 105-300mm Drill Rod Dia. 76mm or 89mm Dimension(L*W*H) 6900*2300*2400mm Weight 7500kg Angle of Frame up 45 Degree, Down 60 Degree Transport Package Standard Exporing Packing Specification CE Trademark GLORYTEK Origin Beijing, China Production Capacity 30sets/Month

Product Description

hot sale D440+ compressor on board dth blasthole drilling rig



Description

Product Features

• Two-stage air compressor with excellent energy efficiency ratio and 2,800N.m high torque rotary head for high pressure fast drilling, with excellent fuel economy performance, more energy saving and better environment protection

• Lighter weight and compact dimensions convenient to move between work fields and work benches. Great for quarry blast, pre-split, buffer, and ultra deep holes



Technical Parameter

Main Specifications	D440B	D440+	D450A
Diesel Engine	Yuchai 230 kW@2,000rpm	Cummins 194 kW@2,OOOrpm	Cummins 194 kW@2,OOOrpm
DTH Hammer	3.5"/4"	3.5"/4"	4"/5"
SB Hole Range	Φ90-138 mm	Φ90-130 mm	Φ115-138 mm
Drill Pipe Storage	7+1	6+1	6+1
Drill Pipe	Φ68/76 mm*3,000 mm	Φ68/76 mm*4,000 mm	Φ76 mm*4,000 mm
Max. Working Torque	2,800 N.m	2,800 N.m	2,800 N.m
FAD.	16m3/min	16m3/min	18m3/min
Max. Working Pressure	20 bar	20 bar	21 bar
Max Pullup Force	31 kN	31 kN	31 kN
lTramming Speed	3 km/h	3 km/h	3 km/h
Slope Capability	25°	25°	25°
Track Frame Oscillation	±10°	±10°	±10°
VLSI Weight	13,500 kg	15,000 kg	16,000 kg

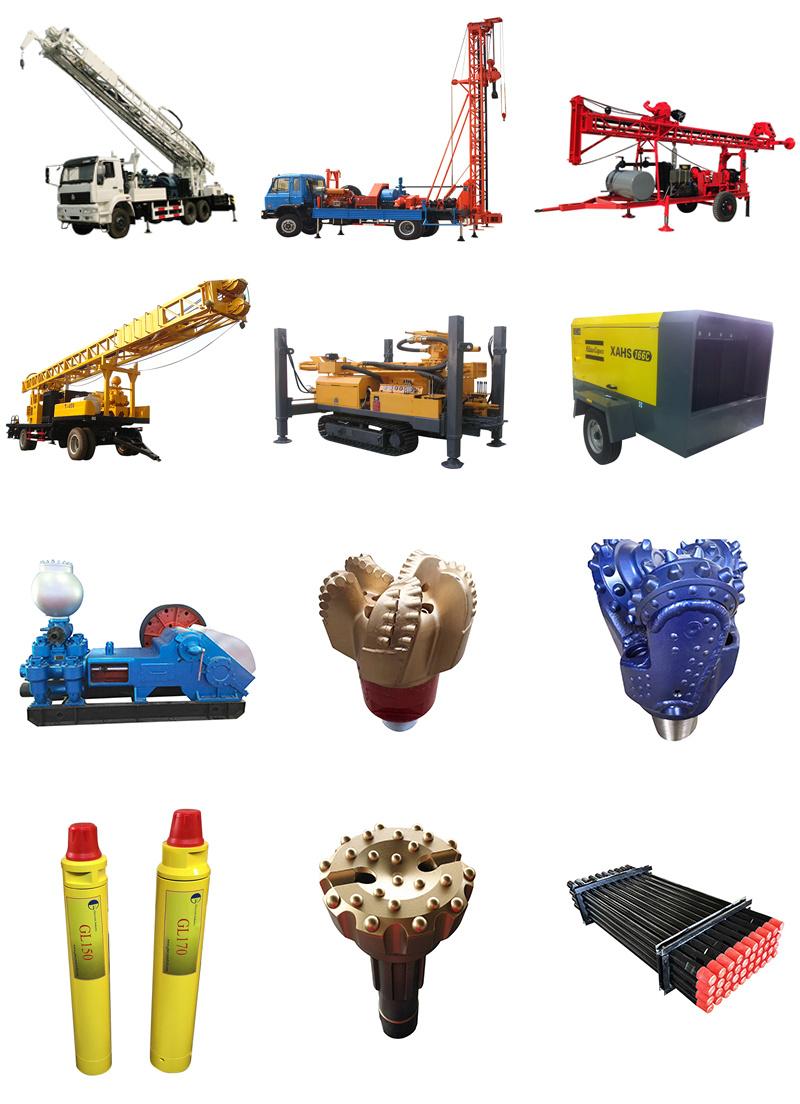

Related Products




Company Profile





Glorytek Industry (Beijing) Co., Ltd. is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for more than 20 years. We are supported and assisted by highly experienced R&D team and enginners that enable us to complete all the assigned projects successfully as per clients' requirements.

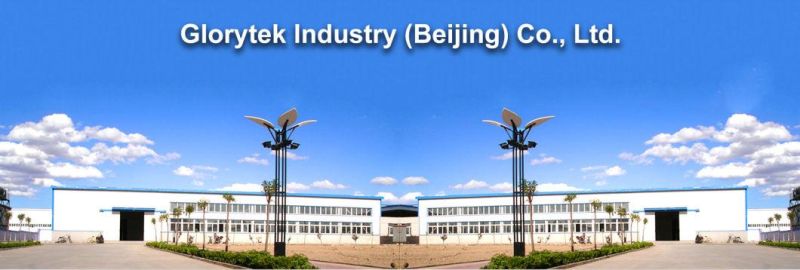

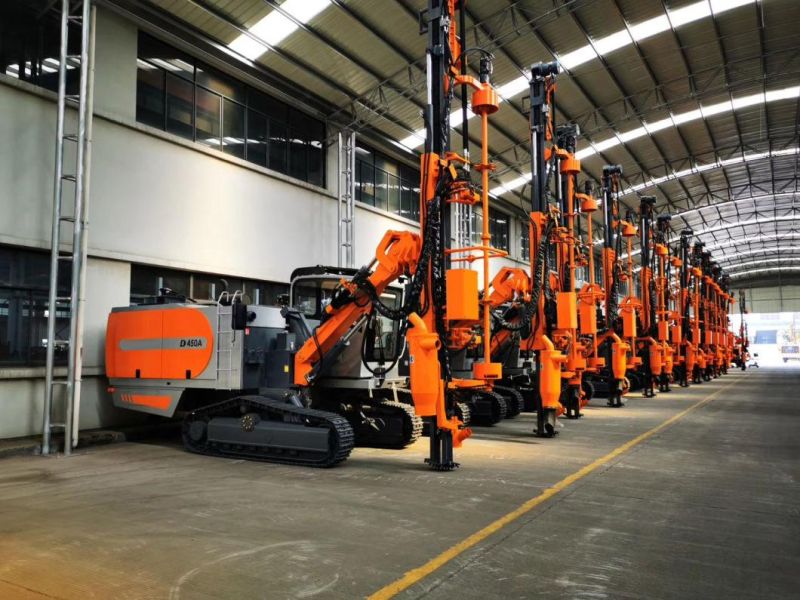

Our factory covers an area of 250,000 square meters, construction area is about 150,000 square meters, having machining machinery, CNC processing center, friction welding machine, testing equipments etc. over 200 sets and more than 600 employees.

Our products have been exported more than 60 countries, including Australia, Russia, Soutn Africa, Zimbabwe, Malaysia, Indonesia, South Korea, France, Sweden, USA, Canada, Haiti etc.







FAQ

Q: How can we choose a suitable blasthole drill rig?
A: We normally recommend a suitable model according to drilling depth, drilling hole dia. etc.


Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing and exporting.

Q: What is your payment terms?
A: We can accept T/T,L/C.

Q:.What is your MOQ? How long is the delivery time?
A: Our MOQ is 1 sets. Normally for drill rig, the delivery time is about 25-30 days after receiving payment, the drilling tools would be about 15 days.

Q:. How long is the warranty?
A: The guarantee period for mainframe is one year (excluding the quick wear parts).

Q: Can we print my Logo on the products?
A: Yes, we can. We support OEM .
