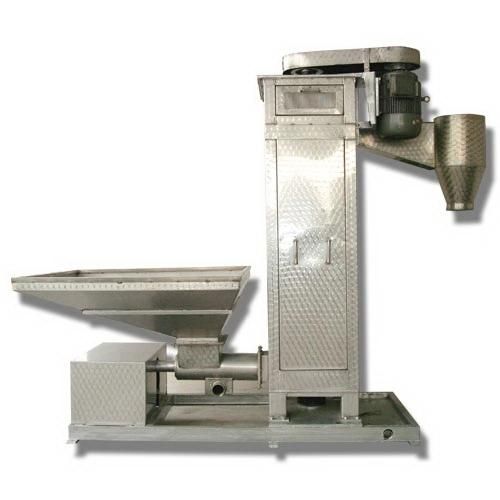

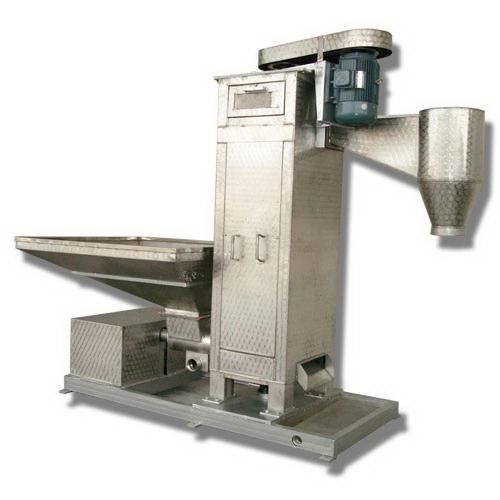

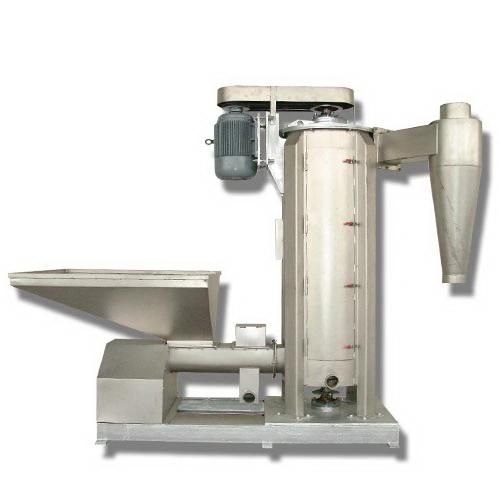

Vertical Plastic Dewatering Machine Plastic Dryer
NANJING IGEELY TOOLS CO., LIMITED.Base Info
Description
ModelRotor size
(mm) Main motor
(KW) Feeding
Motor
(KW) Water supply
(L/Min) Capacity
(KG/H) Dimension
L*W*H (mm) Feeding position (mm) Total weight
(KG) A H H VE-F380 Φ380X1545mm 7.5kw 1.5kw 20-40 L/min 600-1500 3020X1140X2350 860X860 1100 1150 1200kg VE-F420 Φ420X1545mm 11kw 1.5kw 20-50 L/min 800-2000 3020X1140X2350 860X860 1100 1150 1400kg VE-Y380 Φ380X1615mm 7.5kw 1.5kw 20-40 L/min 600-1500 2240X880X2440 660X660 1050 1050 1200kg VE-Y420 Φ420X1615mm 11kw 1.5kw 20-50 L/min 800-2000 2240X960X2440 660X66 1050 1050 1400kg
(mm)
(KW)
Motor
(KW)
(L/Min)
(KG/H)
L*W*H (mm)
(KG)
