• Model NO.：LRG1000
• Working Pressure：0.09 MPa
• Test Pressure：0.15 MPa
• Stirring Speed：36 R,Min 0.75kw
• Heating Method：Steam Heating
• Material：Ss304,316
• Transport Package：Wooden Case
• Specification：1800*1410*2240mm
• Origin：Wenzhou China

Basic Info.

Model NO. LRG1000 Working Pressure 0.09 MPa Test Pressure 0.15 MPa Stirring Speed 36 R/Min 0.75kw Heating Method Steam Heating Material Ss304/316 Transport Package Wooden Case Specification 1800*1410*2240mm Origin Wenzhou China

Product Description

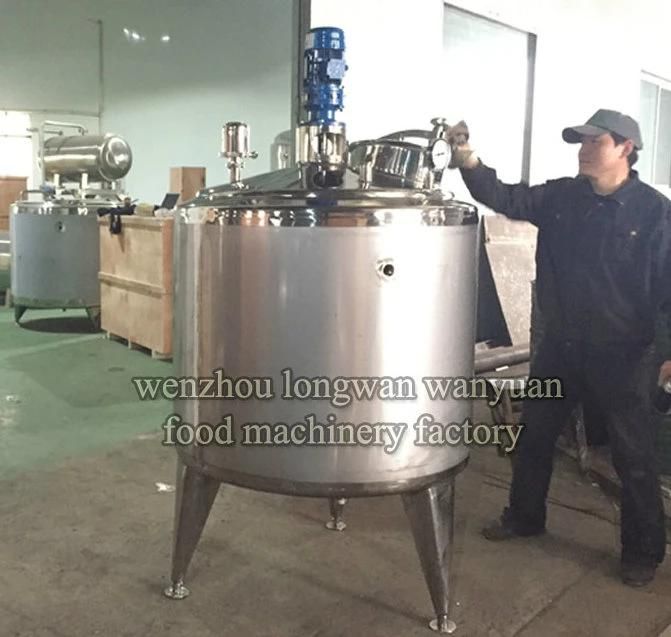

1000L Jacketed Cooling And Heating Tank
Name: Heating and Cooling Tank(with open cover)

Sanitary stainless steel Heating and Cooling Tank

1). SUS316L or SUS304
2). Can mix the liquid, fluid
3). Capaciy: 100L~10000L
4). Application: Food, beverage, pharmaceutical, chemical, etc.

Brief description
This liquid mixing tank with agitator combines the function of mixing, blending, dissolving, heating, cooling, circulation, etc. Suit for mixing and blending various materials.

Application:
The liquid mixing and blending tank is applied to reaction agitating of liquid scrubbing, textile assistant, medicine chemistry, food, beverage, perfume, perfumery compound, etc
Also applied to the products of homogenization, emulsifying, particle dispersion, etc

Feature:
1: Blending system adopts single-direction or double-direction wall scraping blending to satisfy different technological requirement
2: Frequency conversion speed adjustment.
3: Material can be heated or cooled according to tech stand mixer nological requirements
4: Electric heating or steam heating
5: Various forms of blending vanes are suitable for production of different types of products.
6: Made of imported SUS304 or SUS316L stainless steel. The tank body and pipe are subjected to mirror polishing
7: Bottom installation type dispersing head and FLUKO pipeline type emulsifying head are optional to speed up dissolution and emulsification of materials.
8: The stainless steel electric control cabinet can completely supervise the operation of equipment, and display such data as temperature and blending rotation speed, etc
9: High-speed disperse (homogenizer) strongly mixed decentralized thick, solid, liquid.
Cosmetic producing machine; Cosmetic producing machine; Cosmetic producing tank; Daily chemical stirring vessel; Detergent agitator boiler; Detergent agitator pot; Stainless steel blending pot; Stainless steel blending machine; Stainless steel blending tank; Stand mixer; Static mixer

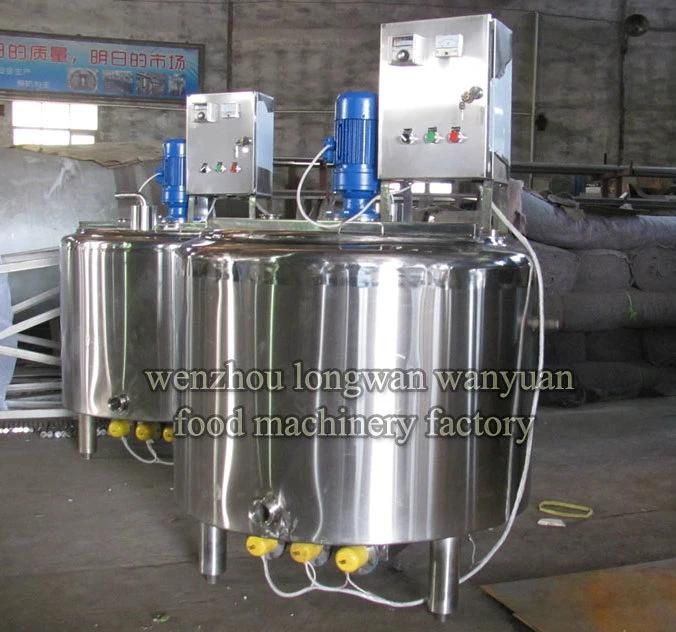

            Electric heating one                                                   Steam heating one

Sanitary stainless steel Heating and Cooling Tank

volume (L)	Dimension (D× h ) (mm)	Total height (mm)	Diameter Of inlet & outlet	Heat preservation layer (mm)
500	840 × 1000	2250	38	60
600	920 × 1000	2300	38	60
700	990 × 1000	2300	38	60
800	950 × 1220	2500	38	60
900	1010 × 1220	2500	38	60
1000	1060 × 1220	2550	51	60
1500	1160 × 1500	2850	51	60
2000	1340 × 1500	2900	51	60
3000	1410 × 2000	3400	51	60
4000	1620 × 2000	3450	51	60
5000	1810 × 2000	3500	51	60
