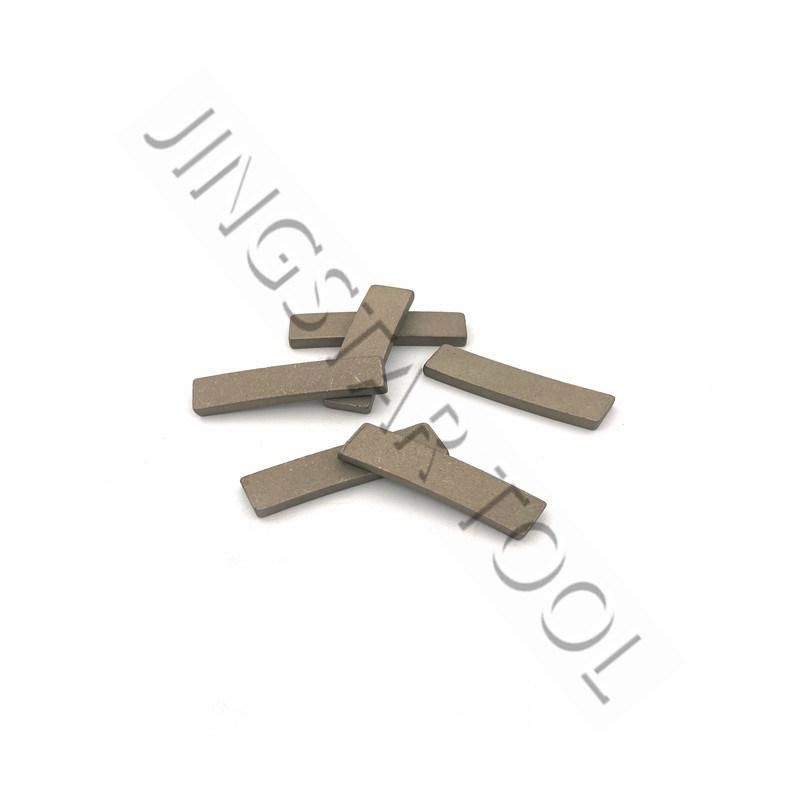

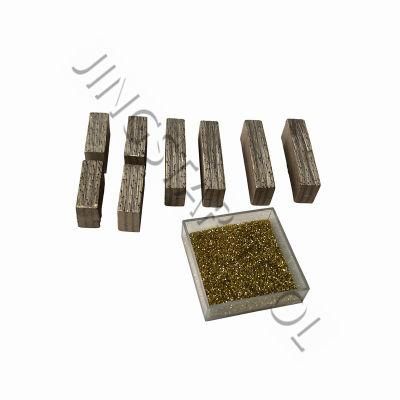

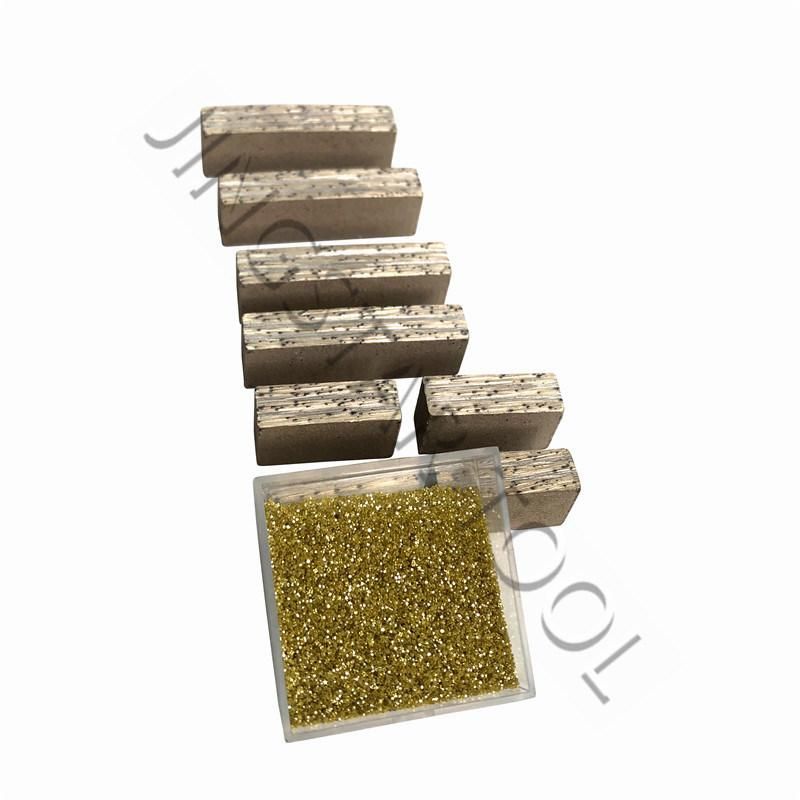

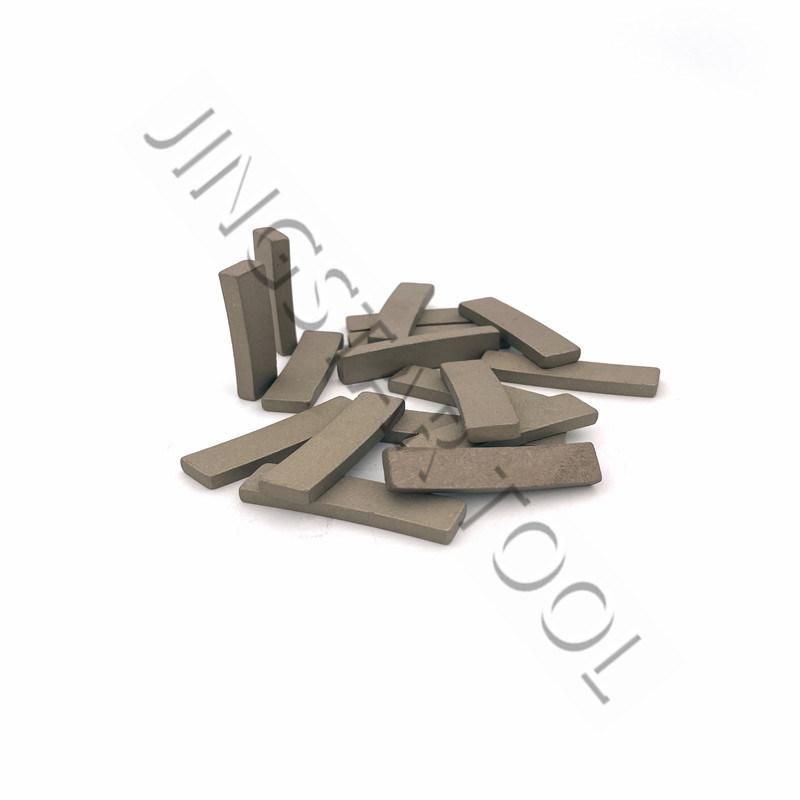

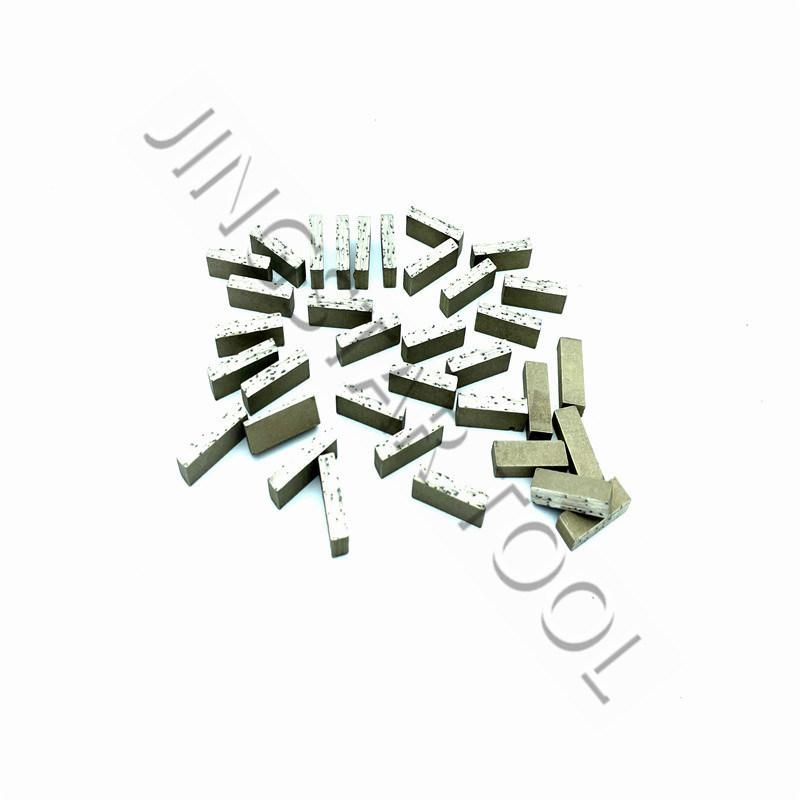

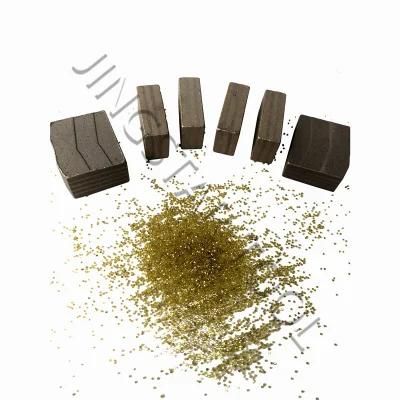

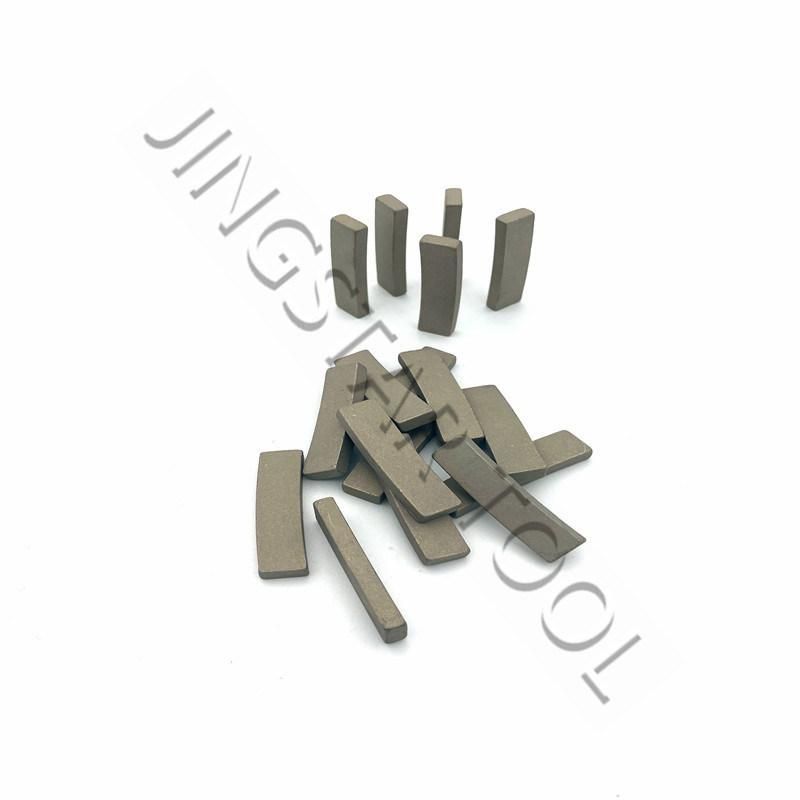

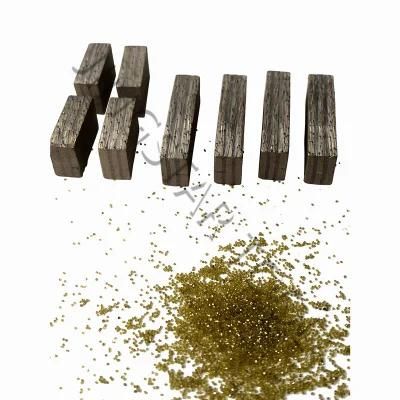

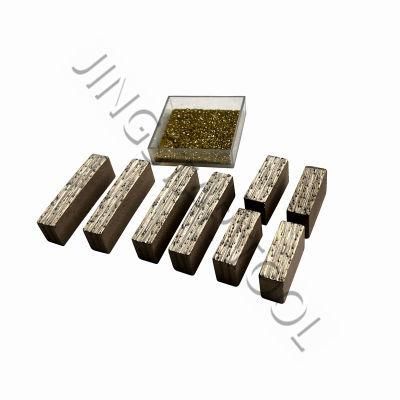

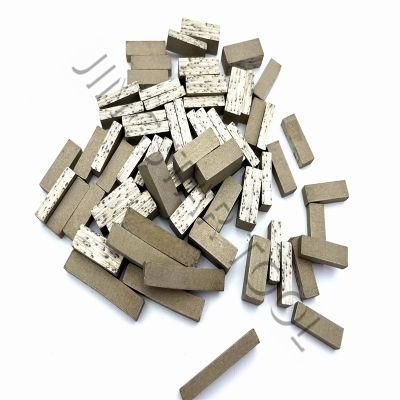

Sharp 800mm Diamond Cutting Segment for Marble
Linqu Jiaxing Plastic Co., Ltd.- Type：Artificial Polvcrystalline Diamond
- Surface Finishing：Ti-coated
- Blade Material：Diamond
- Model No：Jingstar
- Performance：Stable
- Feature：Sharp, Wearable
Base Info
- Model NO.：JINGSTAR
- Testing：Hardness, Dimension Cutting Materialall Kinds of M
- Usage：Stone Cutting
- Kind：Diamond Segment
- Use：Marble, Limstone, Sandstone, Ceramatic, Porcelain
- Blade Size：300-3000mm
- Technology：High Frequency Welding, Laser
- Transport Package：Carton, Wooden Carton, etc
- Specification：24,40MM Length
- Trademark：JINGSTAR
- Origin：Fujian, China
- HS Code：82023990
Description
DiameterSegment Dimension NO. on one blade Segment Length Segment Thickness Segment Height 350 40 3.0/3.2 8/10/12/15/20 24 400 40 3.4/3.6 8/10/12/15/20 28 500 40 4.0/4.2 8/10/12/15/20 36 600 40 4.6/4.8 8/10/12/15/20 42 800 40 5.5/6.0 8/10/12/15/20 57 900 24 6.0/6.8 8/10/12/15/20 64 1000 24 6.5/7.0 8/10/12/15/20 70 1200 24 6.5/6.6/6.8/7.5 8/10/12/15/20 80 1600 24 8.0/8.2/8.4/8.6/9.0/9.2 8/10/12/15/20 108 1800 24 9.0/9.2 8/10/12/15/20 120 2000 24 8.5/8.8/9.5 8/10/12/15/20 128 2500 24 10.5/11.5 8/10/12/15/20 140 3000 24 11.0/11.2/12.5/13.0 20/25/33 160 3500 24 12./12.2/13.5 20/26 180
