Basic Info.

Warranty 1 Year Transport Package Wooden Crate or PE Film Specification CE; ISO9001: 2000 Trademark chenxing Origin Jiangsu, China HS Code 8477800000 Production Capacity 5000 Set/Year

Product Description

Two Cavities Water Pipe Wire Conduct PVC Pipe Plastic MachineDescription:
Two cavities water pipe wire conduct PVC Pipe plastic Machine is developed with the 1990s advanced technology of West Europe by our company.The main machine is SJSZ 51/105 or SJSZ 65/132 conical twin-screw extruder, is equiped with double tube single-control stainless steel spraying shaper to form a production line.It avoids a waste condition when one tubes is adjusts and the other one is effected.The auto single-control souble haul offs and cutting are combined with the front shaping technology to make operation more flexible.

Let you enjoy economic benefit which is brought about by separately control double-tube extruding.The diameter od extruded pipe is from Φ 20-Φ 63.It can make fully use of the extruding capacity of the extruder.Even if it produces small diameter pipe, it can get great output, too.

Parameter:

Max.Output of extruder (kg/h)	150-250
Vacuum tank length (m)	6
Haul-off speed (m/min)	0-15
Max.Diameter of twin pipe (mm)	Φ63
Haul-off force (N)	2000
Drive motor power (kw)	4×2

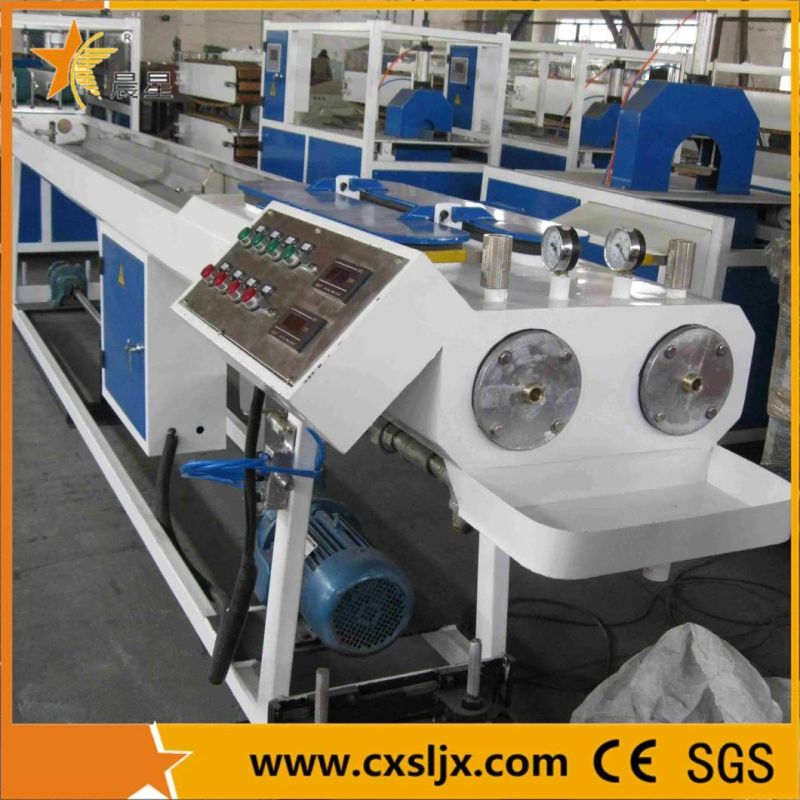

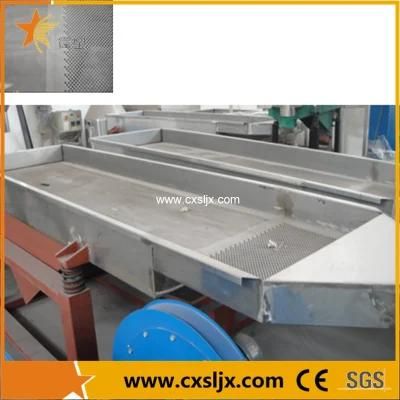

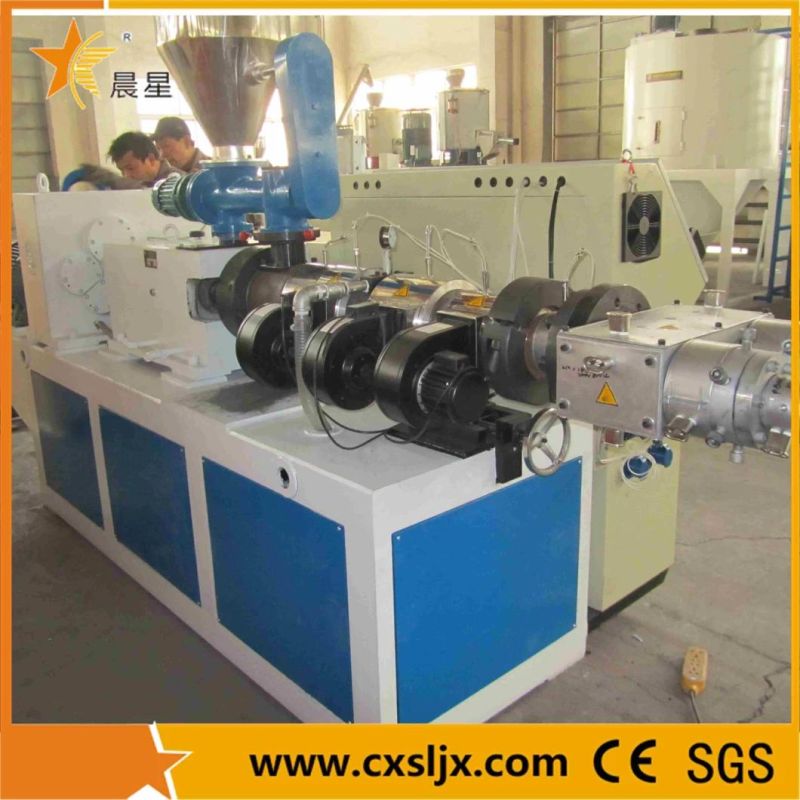

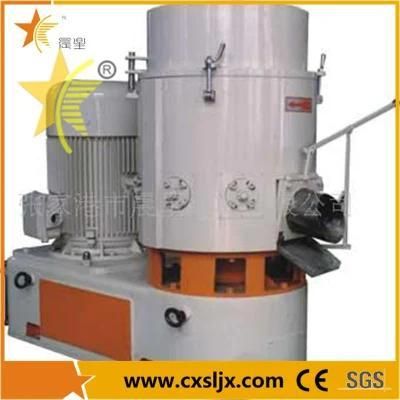

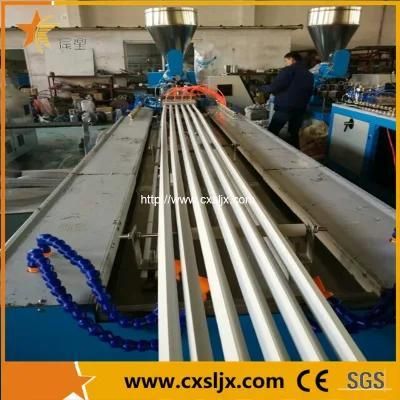

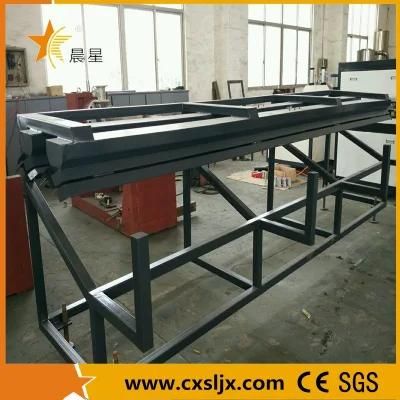

Picture Reference:
