PVC Pipe Production Line / Extrusion Machine / Extruder
Qingdao Kaier Xiang Diamond Tools Co., LtdBase Info
Description
Mode
Pipe range
(mm)
extruders
Max. output
(kg/h)
Max. speed
(m/min)
Total power
(kw)
Line length
(m)
PVC-50x2
16-50
SJSZ51/105
150
6m
60w
20m
PVC-63
16-63
SJSZ45/90
120
10m
45w
20m
PVC-110
50-110
SJSZ51/105
150
6m
60w
24m
PVC-160
63-160
SJSZ65/132
300
5m
100w
24m
PVC-250
110-250
SJSZ80/156
400
3.5m
120w
28m
PVC-315
160-315
SJSZ 80/156
400
3m
160w
28m
PVC-450
250-450
SJSZ 92/188
700
1.5m
200w
36m
PVC-630
315-630
SJSZ92/188
700
0.9
230kw
36m
Products details

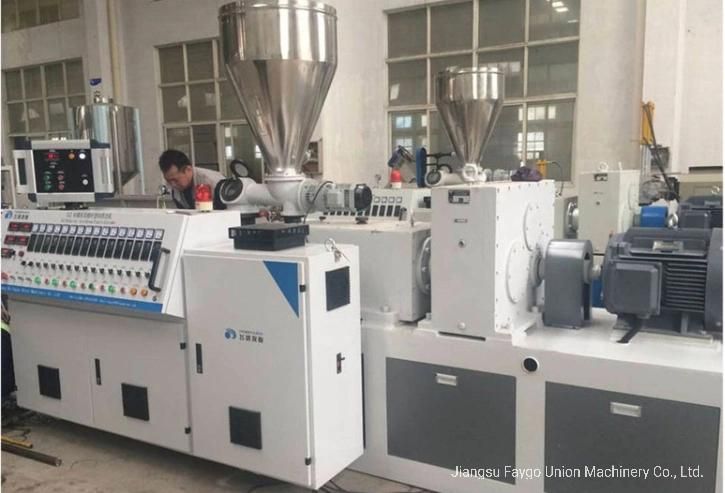

SJZ65/132 conical double-screw extruder
Feeding system: Motor Power: 1.5kw ;Force Feeder Motor Timing:ABB inverter
Screw : Diameter of screw: 92/188mm ; Material of screw: 38CrMoAl
Barrel: Material: 38CrMoAlA; Heating mode: Cast aluminum + stainless steel covering ; Method of cooling: air blow

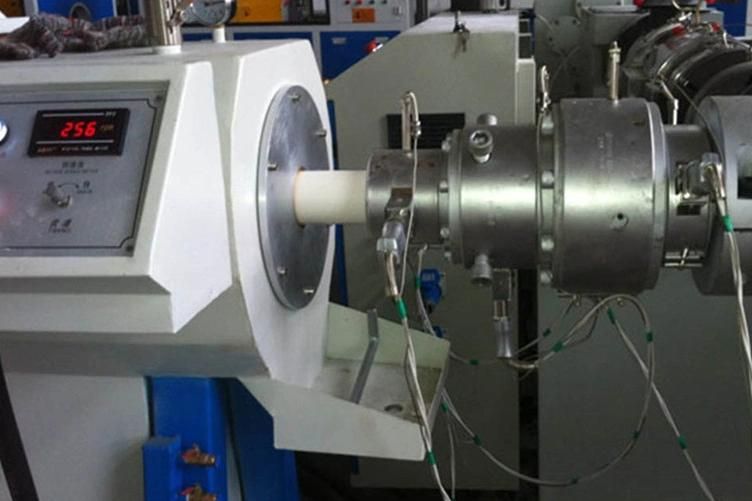

PVC double pipe extrusion mouldMaterial: Made by 40Cr. Inner surface polished
Pipe Thickness Control:With 2 different pipe wall thickness

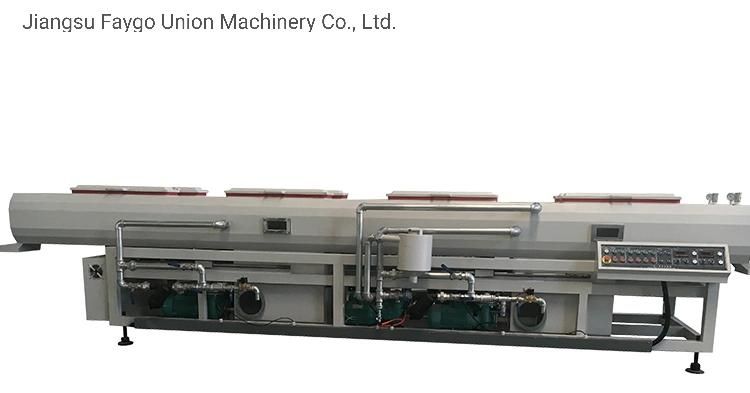

Calibration mould material:Wearable tin bronze ZQSn5-2-5
Dimensions: Length: 4000mm
Vacuum pump:Hydroseal vacuum pump Power: 2.2kw x2
Water pump: Power: 3KW x 2
Tank material: Stainless steel, Limit switch; Electric cabinet with water-proof protection
Double Pipe Haul-off Machines
Haul-off length:1000mm
Haul-off Motor Power:0.55KW×4sets
Haul-off Speed :1.1KW×2sets Inverter
Haul-off Speed: 0.5~12 meters/min

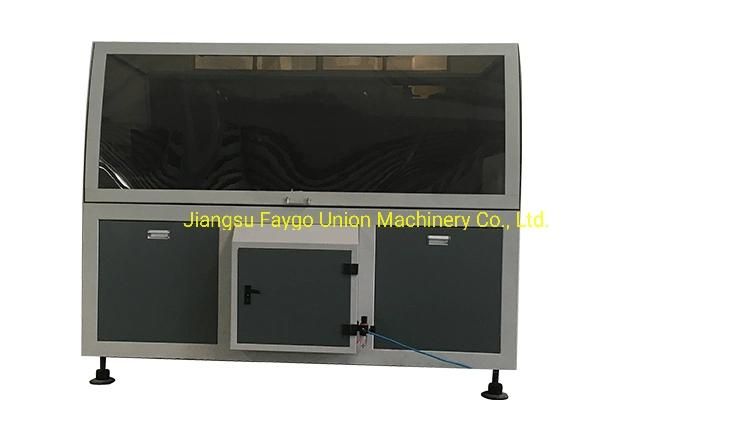

Double Pipe Cutter
Cutting pipe diameter scope: 16~40mm
Saw blade Diameter: 230mm
Cutter motor power:0.75KW×2 sets
Blade Bracket Longitudinal Moving Distance 500mm

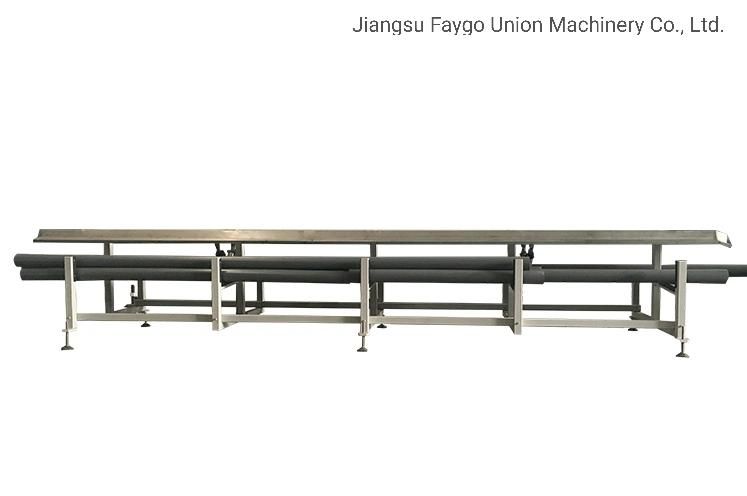

Double Pipe Stacker
The length of stacker: 2 meters
Support-Board:0.8mm stainless steel board
Working Method: pneumatic, with stroke switch soleplate, to provide the fixed length cutting signal

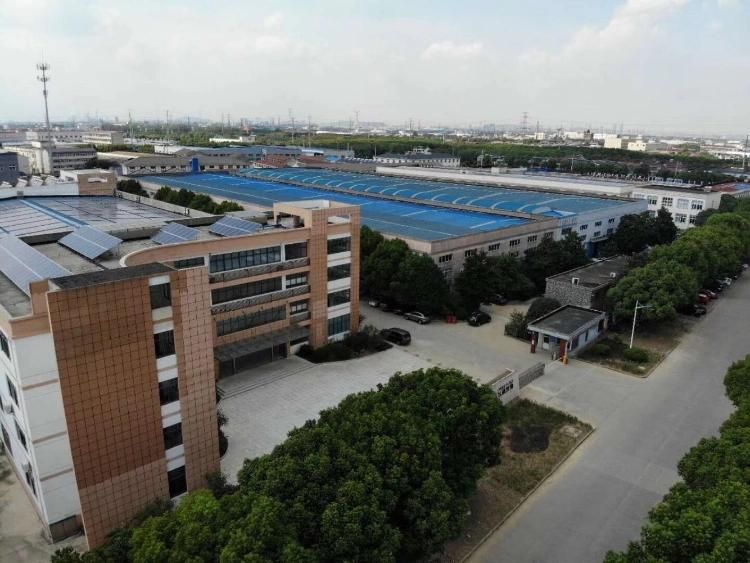

factory picture:
