• Model NO.：6020T
• Structure Type：Gantry Type
• Laser Classification：Fiber
• Laser Technology：Laser Flame Cutting
• Model：Zpg-6020t
• Pipe Section Size：10-500mm
• Beam Quality (Bpp, mm*Mrad)：1.27
• Maximum Movement Speed：120m,Min
• Maximum Speed of Chuck：100r,Min
• Positioning Accuracy：0.03mm,M
• Repeatability：±0.02mm
• Maximum Weight of Single Tube：1000kg
• Maximum Acceleration：1g
• Power Supply Rated Parameters：3pH 380V 50Hz
• Total Power Protection Level：IP54
• Transport Package：Woden Box
• Specification：1000W 2000W 3000W 4000W 6000W
• Trademark：ZPG
• Origin：China
• HS Code：8456110090
• Production Capacity：100 Sets , Month

Basic Info.

Model NO. 6020T Structure Type Gantry Type Laser Classification Fiber Laser Technology Laser Flame Cutting Model Zpg-6020t Pipe Section Size 10-500mm Beam Quality (Bpp, mm*Mrad) 1.27 Maximum Movement Speed 120m/Min Maximum Speed of Chuck 100r/Min Positioning Accuracy 0.03mm/M Repeatability ±0.02mm Maximum Weight of Single Tube 1000kg Maximum Acceleration 1g Power Supply Rated Parameters 3pH 380V 50Hz Total Power Protection Level IP54 Transport Package Woden Box Specification 1000W 2000W 3000W 4000W 6000W Trademark ZPG Origin China HS Code 8456110090 Production Capacity 100 Sets / Month

Product Description

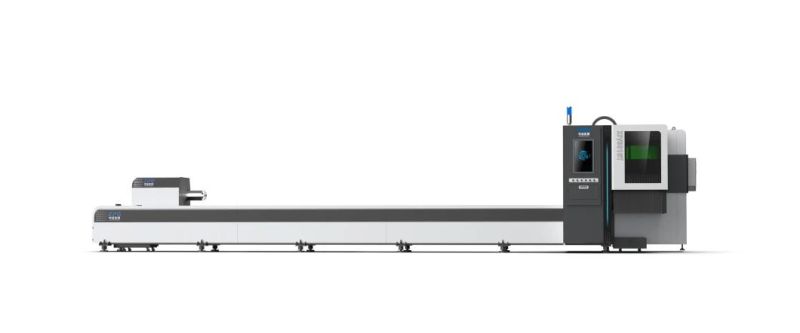

1. Introduction of ZPG-6020T
 ZPG-6020T fiber laser tube cutting machine is a fully automatic laser tube cutting machine. This series of products is the preferred model in metal pipe processing industry.
The bed is made of honeycomb carbon structure after annealing treatment and welded by precision welding process. It has extremely high strength and stability. The running speed of the machine can reach 80 m/min,which is can process round pipes with diameter less than 350 mm and square pipes with side length less than 140 mm.
2. Technical Parameters


Model	ZPG-6020T
Laser type	Fiber laser
Laser working medium	Fiber
Laser wavelength	1060-1080 nm
Rated output power	1000W,1500W,2000W,3000W,4000W,6000W
Beam quality (BPP, mm*mrad)	1.27
Maximum cutting length	6000mm
Pipe section size	10-500mm
Maximum movement speed	120m/min
Maximum speed of chuck	100r/min
positioning accuracy	0.03mm/m
Repeatability	±0.02mm
Maximum weight of single tube	1000kg
Maximum acceleration	1G
Power supply rated parameters	3PH 380V 50Hz
Total power protection level	IP54

3. Main configuration of machine

No.	Name of spare part	Qty.(set/sets)	Origin and manufacturer
01	Fiber laser	1	Max
02	Laser power supply	1	Max
03	Precision chiller	1	Han Li
04	Dedicated laser cutting head	1	Raytools
05	Machine bed	1	Zhongpin Standard
06	High-precision guide rail	3	Taiwan LAPPING
07	Gear rack	3	German ROTALIN
08	Precision servo reducer	3	Japan NAGASAWA
09	Pneumatic Components	1	AIRTAC/SMC
10	Workbench	1	Zhongpin Standard
11	Scrap car	8	Zhongpin Standard
12	Control cabinet	1	Zhongpin Standard
13	Circuit breaker/contactor/relay	1	OMRON
14	Servo motor and driver	4	Delta
15	CNC system (including control software, handheld box, dongle, wireless signal transmitter)	1	CYPTUBE

4. Application & Capability

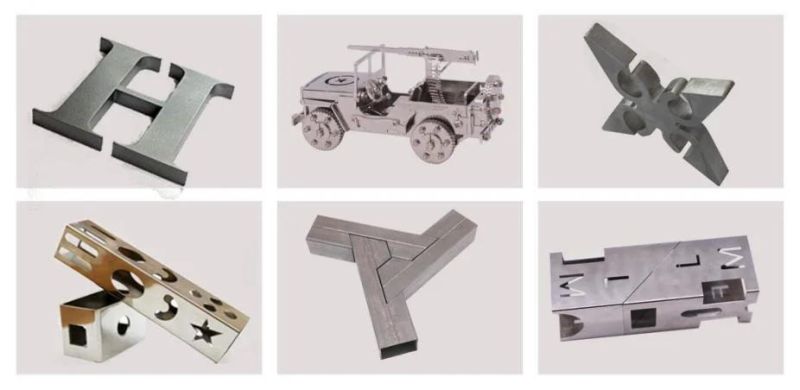

1.Cutting materials: carbon steel, stainless steel, aluminum alloy, brass, copper, galvanized steel, silicon steel plate, electrolytic plate, titanium

2.Applied industries: rail transit, automobile, machinery, electrical manufacturing, elevator manufacturing, household appliances, kitchen and sanitary ware, advertising, and other machinery manufacturing and processing industries.
