• Model NO.：MAN-30
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Power Supply：AC220V±10%, 50Hz
• Minimum Character：0.2mm
• Marking Line Width：0.01 mm -0.1mm
• Making Depth：0.01 mm -0.2mm
• Laser Power：10W ,20W ,30W
• Warranty：3 Years
• Transport Package：Wooden Case
• Specification：710*510*710 mm
• Trademark：CNMANLASER
• Origin：Shandong
• HS Code：8456110090
• Production Capacity：5000 Sets,Year

Basic Info.

Model NO. MAN-30 Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Power Supply AC220V±10%, 50Hz Minimum Character 0.2mm Marking Line Width 0.01 mm -0.1mm Making Depth 0.01 mm -0.2mm Laser Power 10W /20W /30W Warranty 3 Years Transport Package Wooden Case Specification 710*510*710 mm Trademark CNMANLASER Origin Shandong HS Code 8456110090 Production Capacity 5000 Sets/Year

Product Description

Model name	MAN-F30
Laser type	IPG / RAYCUS/ /CAS/MAX/ (optional)
Laser power	20W/30W 50W/(optional)
Supports graphical format	PLT, BMP, JPG, PNG, TIP, PCX, TGA, ICO, DXF
Beam quality	m2 <2
Power stability	(8h) <± 1% rms
Pulse repetition frequency	20-2KHz
Power consumed	<800W
Minimum line width	50μm
Minimum character	0.3mm
Laser Wavelength	1064nm
Galvanometer Size	100 * 100mm (optional)
Cooling way	Air cooling
Operating voltage	110/220V ± 10% /,50/60HZ
Ambient operating temperature	15 ° C - 35 ° C
Guarantee	3 years
Optional parts	Rotary device
Machine color	blue grey ( red white,yellow black etc. for option)

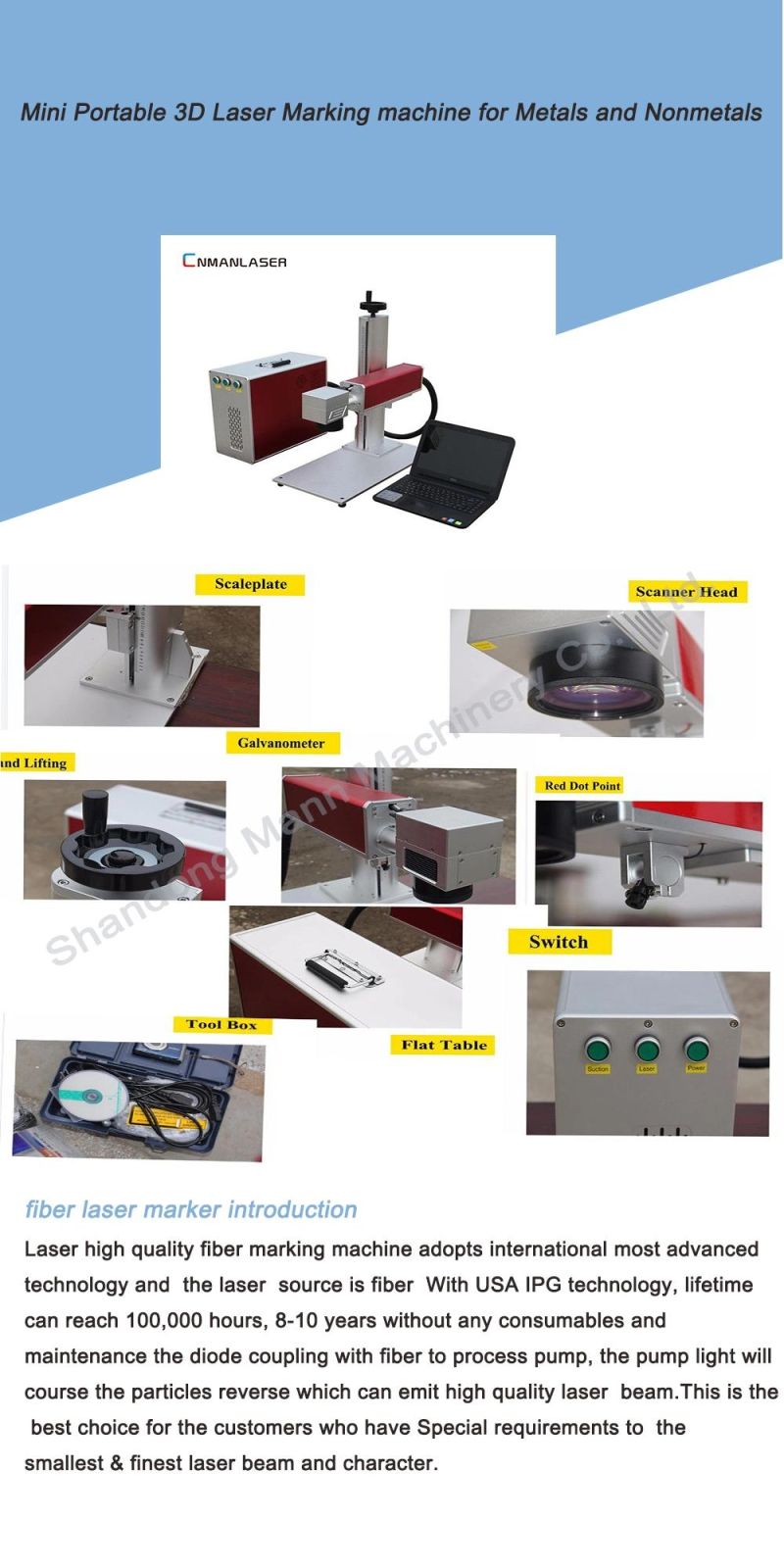

Fiber Laser Marking machine Performance Features:

1. Able to mark all metal materials and some non-metallic materials.
2. Uses Germany IPG Fiber Laser Source. The Complete enclosed laser module design with the optical fiber transmission pump light source and air cooling system, which offers dust-free protection to the laser system. This greatly reduces the failure rate and results in stable laser output. It also provide a trouble and maintanence free laser system with a life span of 50, 000 hours for the laser system.
3. Able to mark a minimum line width of 0.02mm, minimum height of 0.2mm for English characters and depth of up to 1mm.
4. The MAN-20 is currently the best choice for industries seeking deep and fine marking at a fast speed.
5. Ergonomically designed. Can be placed on desktop, taking up a small working space. Low power consumption of 800W. Highly recommended for factories and retail space.
6. Low power consumption of 800W. Highly recommended for factories and retail space.
7. WINDOWS based marking software. Able to read CORELDRAW, AUTOCAD, PHOTOSHOP and other commonly used graphic files, such as AI, PLT, DXF, BMP, JPEG. Support for auto-coding, serial number, batch number, date, bar code and two-dimensional codes.
8. Able to mark 360° Circular objects such as finger rings, bracelets and other cylindrical objects with the included rotating device.

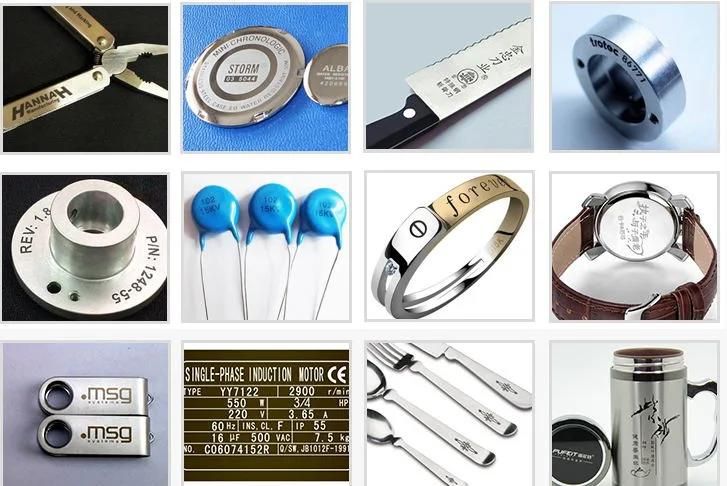

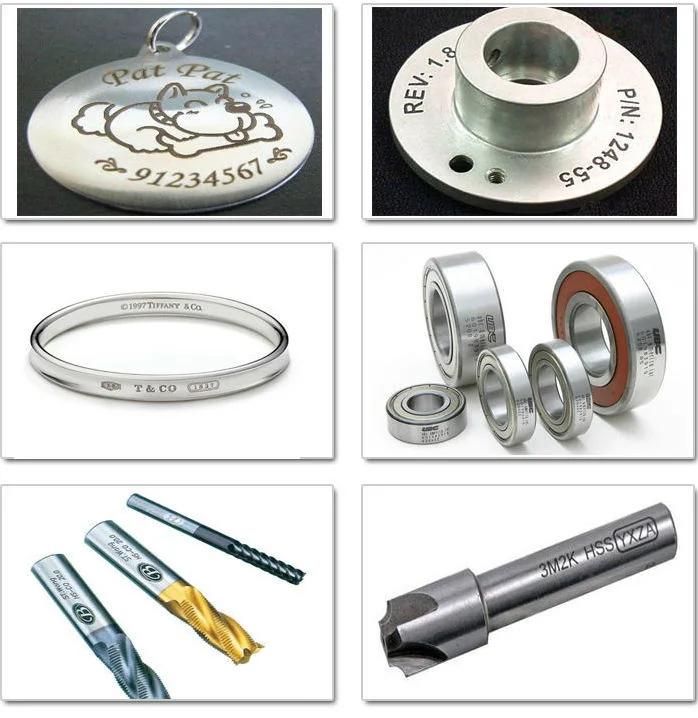

 Product application:

It can carve many kinds of metal materials. Used in garment accessories, medicine packaging, wine packaging, building ceramics, beverage packaging, fabric cutting, rubber products, shell nameplate, craft gifts, electronic components, leather and other industries. It can carve metal and many kinds of non-metallic materials. It is more suitable for processing products with high precision and precision.

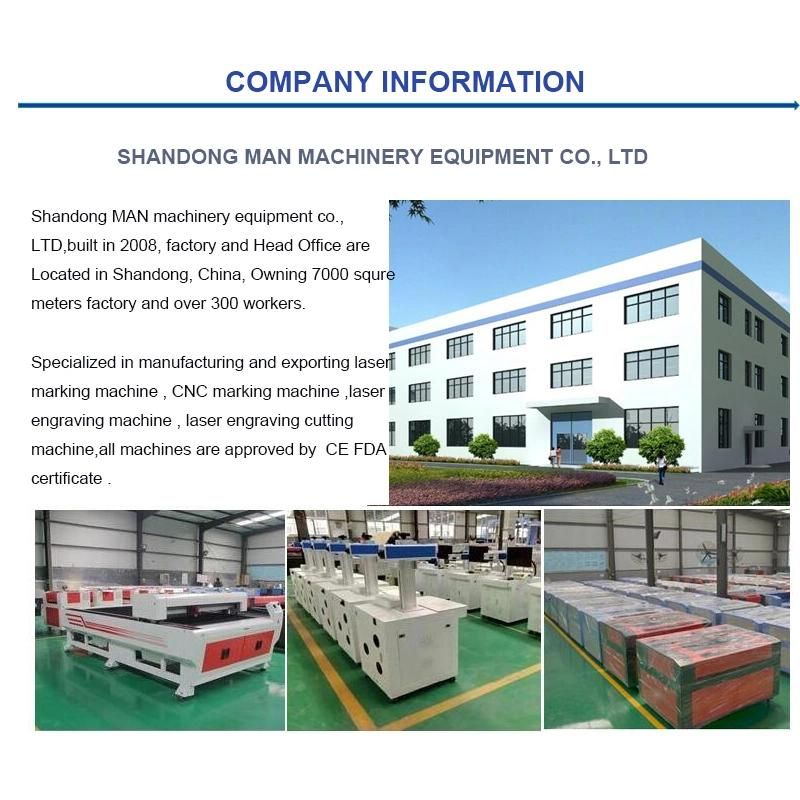

1.Company Information

Shandong Man  Machinery Equipment Co., LTD. mainly engaged in cross-border business for 10 years. At present,

the company operates more than 10000 kinds of products with more than 200 employees.

2.Quality Certification

All the product are pass SGS  . And most of products have CE FDA certification.

 3.Shipping

Most of our product can be shipped within1- 2 business days after payment.

And It will take 7-23 working days to your hand.

Additonally, we are teamed up with Fedex, DHL, DPD,UPS international parcels to offer you fast shipment and the lowest price.

Please inform us if you need common international courier way

 4.Warranty

Directly manufacturer fully gurantee for 3 years .

5.Refund Policy

Returns accepted if product not as described, buyer pays return shipping fee;

or keep the product & agree refund with seller.

6.Pre-sale Service and After-sales Service

10 year-old export experience and professional sales Team.

Online service and technical support within 12 hours per day within warranty time.

Free new spare parts itself instead of broken parts if you receive the product firstly.



Packing&Shipping:
