• Model NO.：101-1858-006
• Max Weight：35kgs
• Minium Wight：7kgs
• Hydraulic Valve：Proportional Control Valve
• Auxiliary Components：Seal
• Hydraulic Fluid：Mineral Oil
• Hydraulic Control Unit：Check Valve
• Hydraulic Motor：Gear-Type Hydraulic Motor
• Hydraulic Actuator：Plunger Hydraulic Cylinder
• Transport Package：in Plywood Case
• Specification：Bm1-50-400
• Trademark：Hyphen
• Origin：China
• HS Code：8412291000
• Production Capacity：50000PCS,Year

Basic Info.

Model NO. 101-1858-006 Max Weight 35kgs Minium Wight 7kgs Hydraulic Valve Proportional Control Valve Auxiliary Components Seal Hydraulic Fluid Mineral Oil Hydraulic Control Unit Check Valve Hydraulic Motor Gear-Type Hydraulic Motor Hydraulic Actuator Plunger Hydraulic Cylinder Transport Package in Plywood Case Specification Bm1-50-400 Trademark Hyphen Origin China HS Code 8412291000 Production Capacity 50000PCS/Year

Product Description

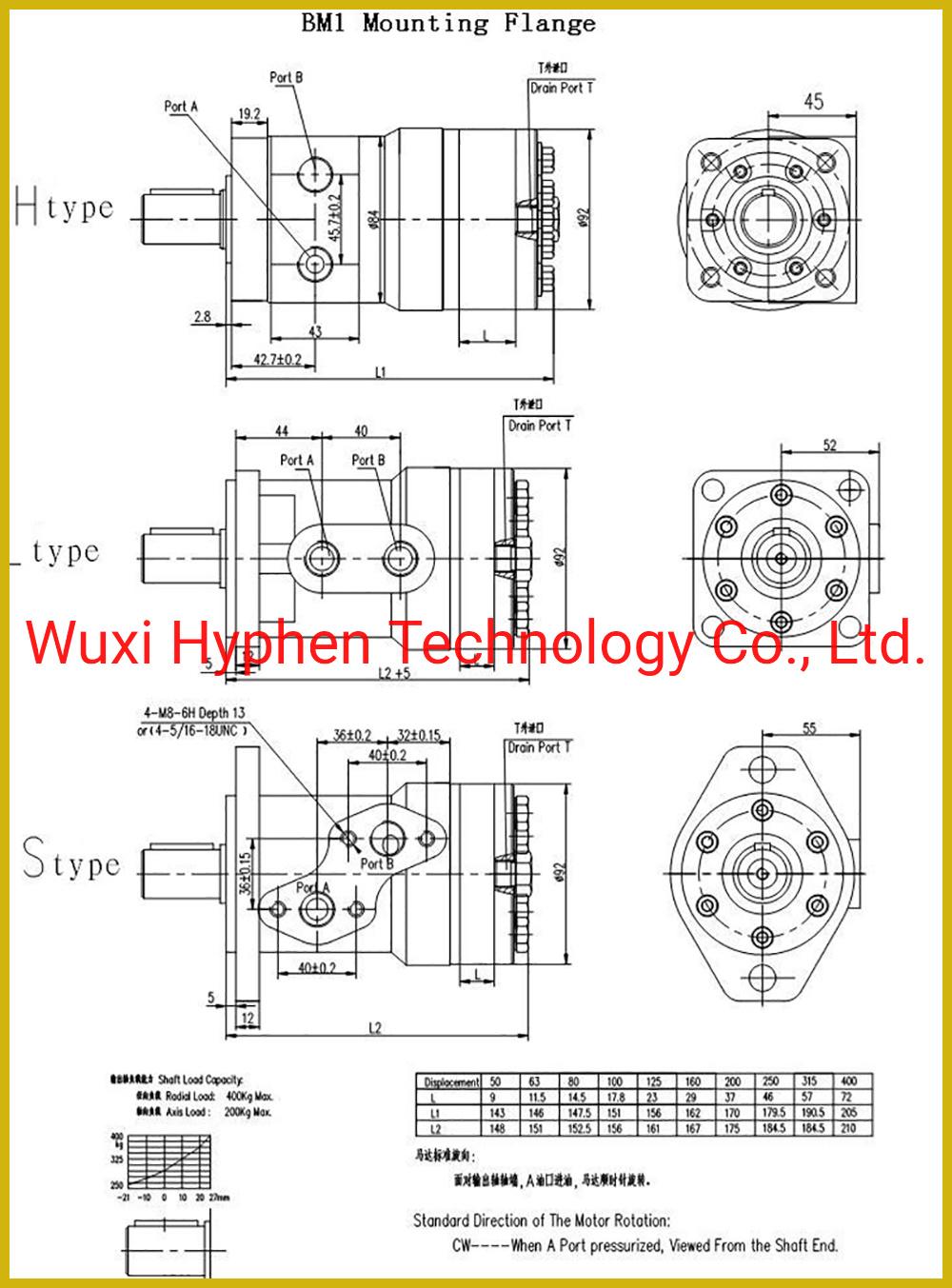

 BM1 series motor is a small volume, spool valve economical  type motor.
Characteristic features:

• Compact design of spool and gear set, which provide small volume, high power and low weight.

• Credible design for shaft seal , which can bear high pressure and be used in parallel or in series.

• Direction of shaft rotation and speed can be controlled easily and smoothly.

Best combination of efficiency and economy in medium loading ,it can replace with  OMP,Parker TE/TG/TH ,Eaton Char-Lynn H/T/S series .

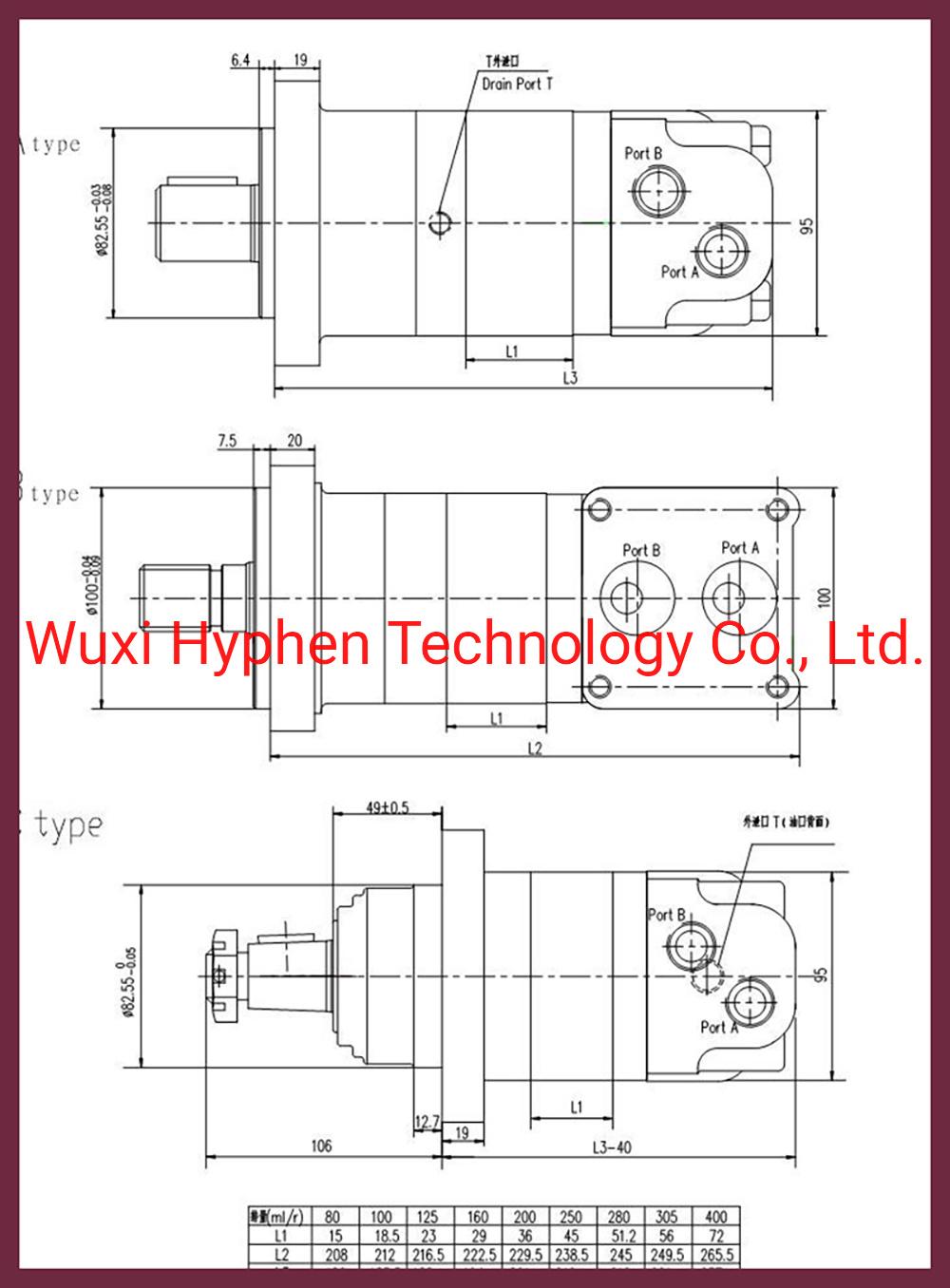

BM2 series motor is a medium, spool valve type motor which can bear higher pressure than BM1.Characteristic features:

• It adapts the gerotor design. Has higher efficiency than BM1 motor.
• Credible design for shaft seal , which can bear high pressure and be used in parallel or in series.
• Direction of shaft speed can be controlled easily and smoothly.
• Best efficiency and economy in medium load applications.

BM2 motor can replace with  OMR series ,White RE series(505/506 etc),Parker TE/TF series ,Eaton Char-Lynn H/S/T Series

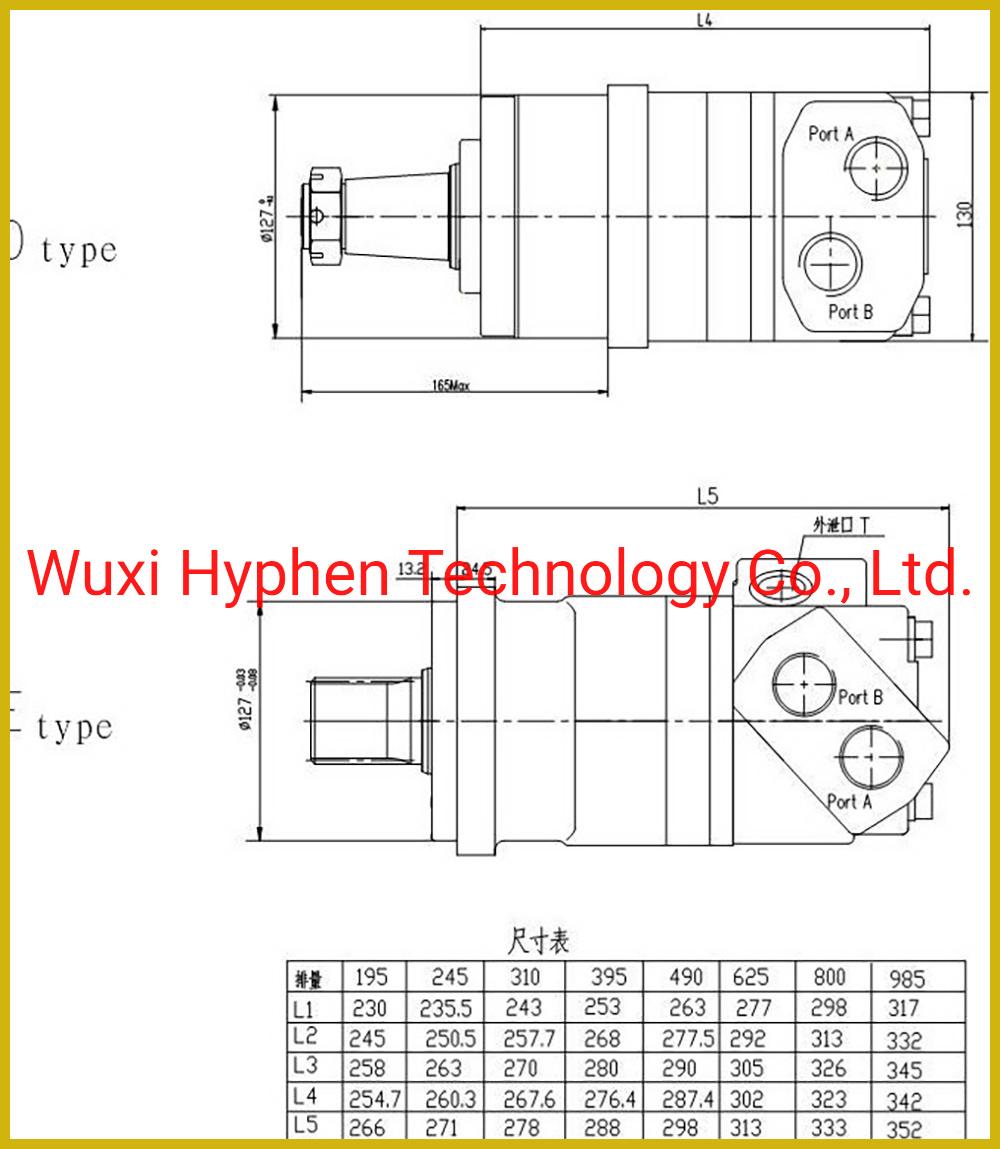

BM5 is a large volume Disc.valve ,high pressure motor with ralial ball-bearings design, and can bear greater load.it can replace with  OMS series and Eaton Char-Lynn 2K/2000 series ,like the part number following 104-1028-006,105-1078-006,106-1008-006.
Characteristic features:

• Advanced design in disc distribution flow, which can provide better performance at low speed.
• The valve can automatically compensate for the wear, so the volumetric efficiency is high .
• Double taper roller bearings permit high radial loads. The motors can be used on heavier vehicles in traction drive applications.

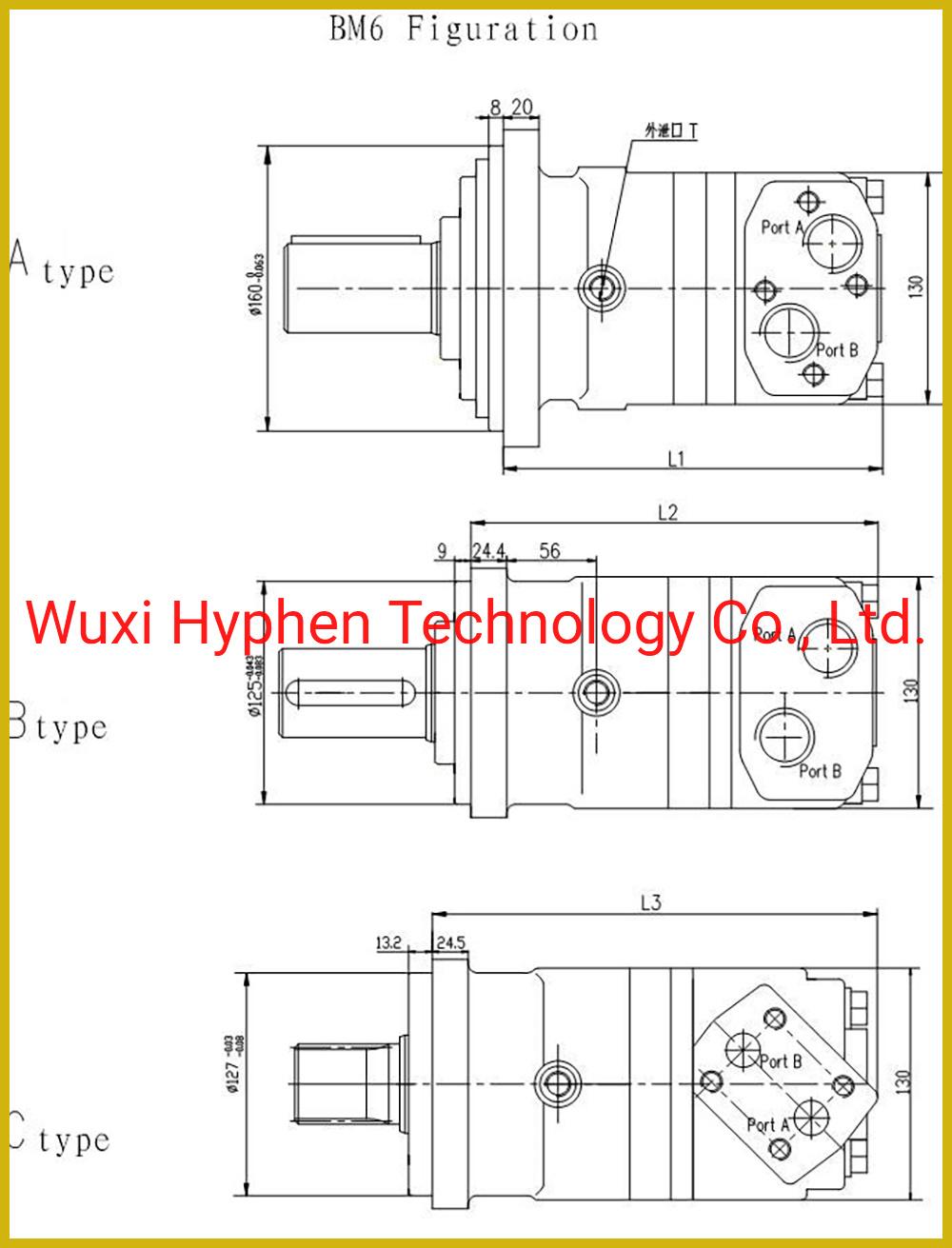

BM6 is a large volume,discvalve ,high pressure motor, with ralial ball-bearings design, and can bear greater load,and has higher torque than BM5.
Characteristic features:

• The motor can be used in high pressure, so it's max. torqueis higher than BM5 motor.
• Advanced design in disc distribution flow, which can provide improved performance at low speed.
• The valve can automatically compensate for the wear, so the volumetric efficiency is high .

Our BM6 series can replace with Eaton Char-Lynn 6K/6000 Series ,OMT etc .Example the model number :112-1088-006 for standard one ,113-1086-006 for  wheel motor ,114-1048-006 for Bearingless motor
