Basic Info.

Model NO. injection machine 380 Computerized Computerized Certification CE Product Capacity 380ton Shot Weight 1120PS Motor Servo Payment T/T;LC Delivery 35-45days Application Application Transport Package Plastic Film Specification metal Trademark D-R Origin Taizhouhuangyan HS Code 8477101090 Production Capacity Clamping Stroke 380tons

Product Description

Specification of D-RI380 plastic injection moulding machine

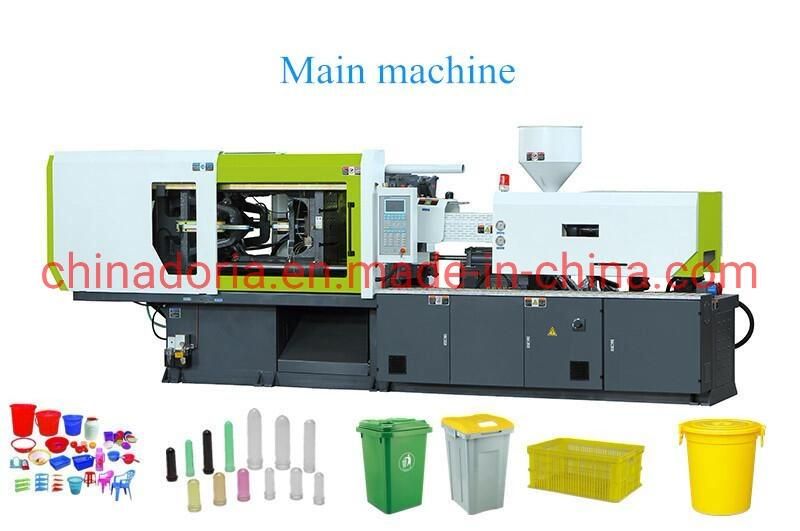

1. Product details:



2. Technical data of D-RI380


Type items	D-RI 380
Screw diameter (mm)	70
Injection pressure (Mpa)	185
Shot weight(PS)	1120
Screw L/D ratio (L/D)	20:1
Screw stroke(mm)	315
Screw speed (r.p.m)	5-200
Injection rate (g/s)	318
Plasticizing capacity	52
Clamping force (KN)	380
Mould clamping stroke (mm)	680
Max daylight opening (mm)	1400
Mould thickness(Min-Max)	250-720
Space between Tie-bars (mm)	710*710
Hydraulic ejection force(tons)	11
Hydraulic Ejector stroke (mm)	200
System pressure	16
Pump motor power (KW)	37
Heat power (KW)	19
Temperature control zones	5+1
Tank capacity(L)	1000
Machine dimension (m)	7.18*1.95*2.6
Machine weight (ton)	11.5

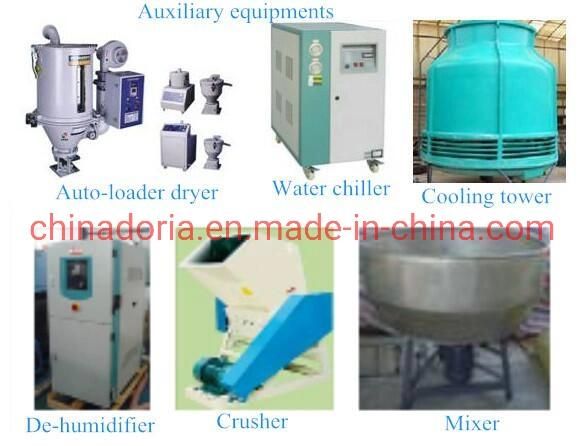

3. Auxiliary equipment for D-RI 380:
3.1 AUTOLOADER HOPPER DRYER
3.1.1. Heating capacity: 300kg/hour.
3.1.2. PLC controlling system, easy to operate.
3.1.3. Automatic alarm for overloading/shortage
3.1.4. Adopting inductive fan, which is durable and anti-noise.3.


3.2 The specification of Water Chiller 12HP (OUBA):
3.2.1, Size of machine: 1200*700*1300mm;
3.2.2, Tank capacity: 200L;
3.2.3, weight: 100KG;
3.2.4, cooling flow rate: 5.1cbm/hr
3.2.5, Cooling water pipe size: 40DN.
3.2.6, water pump power: 0.75KW;
3.2.7, Refrigerants: R22


3.3 cooling tower:


3.4 The specification of Dehumidifier:
3.4.1. Compressor capacity: 6KW;
3.4.2. pump capacity: 2HP.
3.4.3. Air flow: 130cbm/min
3.4.4. Refrigerant medium: R22.
3.4.5. Cooling water pipe size: 25DN.

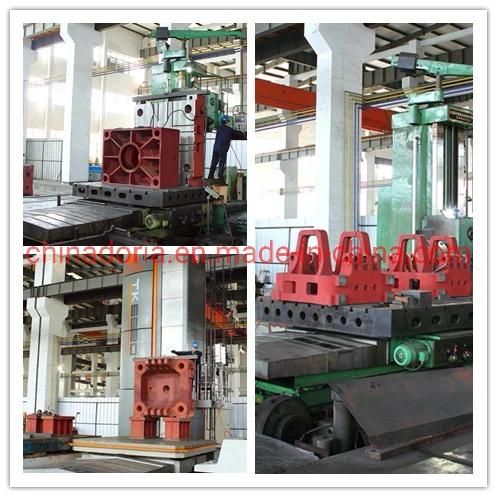

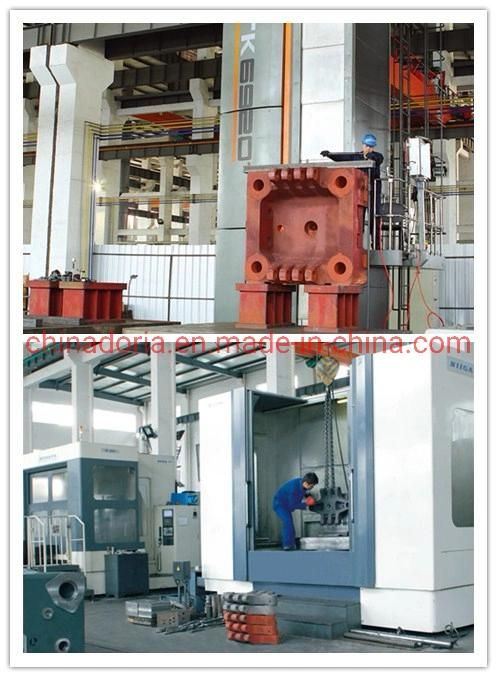

4. Workshop of machine:


5. Warehouse of machine:


5. About us:
Taizhou Doria Plastic Equipment Co., Ltd. is located the town of plastic products and mould in China, which is one manufacturer owns special production teams, advanced production equipments and rich production experience.
The main products are following: Automatic & semi-automatic blow moulding machine, PET preform, plastic injection machine, preform moulds, bottle moulds, commodity moulds and correlative products.
Based on "Quality is first; Honor for the honest", we always continue development and innovation to witness the maturity of industrial chain of products and improve the quality of products continually. Untiring effort makes the products, especially for 5gallon blow moulding machine, 5gallon PET preform and commodity moulds are widely accepted by our customers.
Welcome everyone to visit us, we hope we will have good chance to cooperate!

6. Location:
No.362 Lingxiage Village
Xicheng Street, Huangyan
Taizhou, Zhejiang
China
