Basic Info.

Transport Package Carton Specification 1600*600*1610mm Trademark Kingpack Origin China HS Code 8422303090 Production Capacity 3000 Bottles/Hour

Product Description

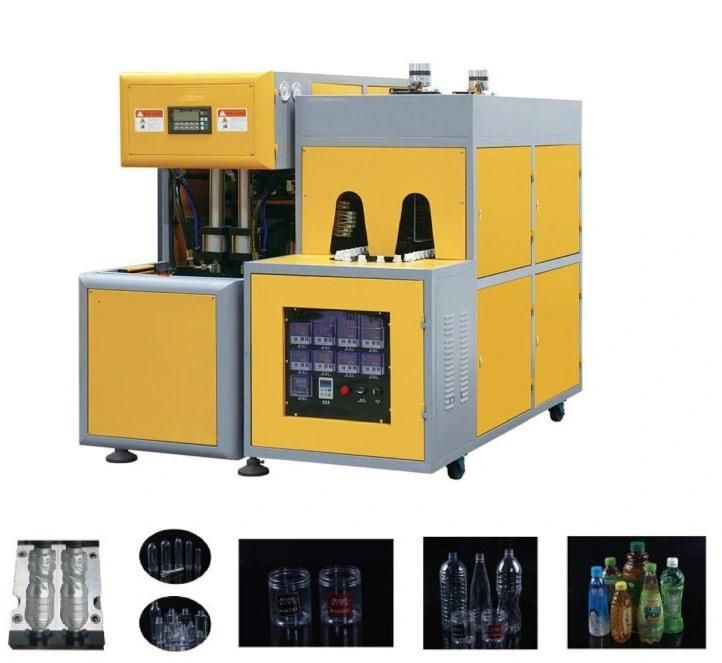

Semiautomatic bottle blow molding machine is suitable for producing PET plastic containers and bottles 10---2000ml.
It is widely used to produce the carbonated bottle ,mineral water,carbonated drink bottle, pesticide bottle oil bottle cosmetics,wide-mouth bottle etc.
1. Adopting double crank to adjust mould, heavy locking mould, stable and fast, Adopt infrared oven to heat the perform, the perform rotated and heated equally.

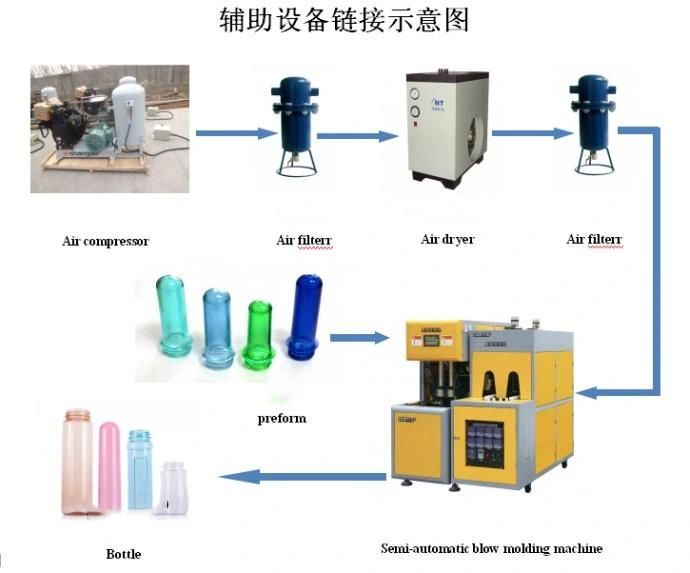

2. The air system has been divided into two parts: Pneumatic action part and bottle blow part to meet the different requirements for the action and blow. It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
3. The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
4. The machine can be operated in the step-by-step mode and the semi-auto mode.
5. The machine is small with low investment, easy and safe to operate.

Product material	PET, PP, PE
Volume	0.1-2L
Output per hour	600-1000B/H (500ML)
Preform length	15-350mm
Preform inner diameter	5-38mm
Max. Mould plate Dimenstion(L x W)	350× 380mm
Max. Mould thickness	180mm
Main machine (L x W x H)	1600*600*1610mm
Main machine weight	500KG
Heater (L x W x H)	1870*630*1450mm
Power	17.5KW
