HDPE LDPE Film Blowing Machine
BEHAPPY CRAFTS (SUZHOU) CO., LTD.Base Info
Description
Basic Info.
Model NO. FB-B Automation Automatic Computerized Computerized Machine Weight 4T Certification CE, ISO9001:2008 PE HDPE/LDPE Screw Quantity 1set Heating Ring Cast Aluminum Winder Type Single Station Screen Changer Manual Type Auto Screen Changer Optional Corona Treater Optional Auto Loading Optional Rotary Die Head Optional Transport Package Wooden Package Specification CE, ISO9001 certificate Trademark HOIN Origin Ruian, Zhejiang, China HS Code 8477309000 Production Capacity 30 Set/MonthProduct Description
Machine Description:The cylinders and the screw stems of the above extruders are made of high-quality alloy steel with optimum hardness and strong corrosion resistance after revision finishing and nitrogen treatment. The auxiliary machine has a platform working table for making peration easy. The coiling unit adopts torque motor to keep proper tension and make rolling even and roll-changing easy.
USAGE:
It is used for blowing the various plastic film of low density polyethylene(LDPE), high density polyethylene (HDPE) and linear low density polyethylene(LLDPE) etc, Which are widely used for packing industrial products, textile, garments and food and for cohering farmland.
Main Technical Parameter:
Model | FB-B600 | FB-B800 | FB-B1000 |
Screw Diameter | 45mm | 55mm | 60mm |
Screw Ratio | L/D28:1 | L/D28:1 | L/D28:1 |
Screw Speed | 10-100r/min | 10-100r/min | 10-100r/min |
Power of Main Motor | 7.5KW | 11KW | 15KW |
Max. Extrude Output | 35kg /h | 50kg /h | 65kg /h |
Max. Folding Width of Film | 600mm | 800mm | 1000mm |
Single-sided Thickness of Film | 0.006 -0.10mm | 0.006 -0.10mm | 0.006 -0.10mm |
Total Power | 18Kw | 22Kw | 28Kw |
Weight of Machine | 2000kg | 2200kg | 2800kg |
Overall Dimensions(L×W×H) | 4200×1800× 3600mm | 4400×2000× 4000mm | 4600×2300× 4200mm |
Model | FB-B1200 | FB-B1500 | FB-B2000 |
Screw Diameter | 65mm | 80mm | 100mm |
Screw Ratio | L/D28:1 | L/D28:1 | L/D28:1 |
Screw Speed | 10-100r/min | 10-100r/min | 10-100r/min |
Power of Main Motor | 18.5KW | 30KW | 55KW |
Max. Extrude Output | 76kg /h | 86kg /h | 160kg /h |
Max. Folding Width of Film | 1200mm | 1500mm | 2000mm |
Single-sided Thickness of Film | 0.006 -0.10mm | 0.01 -0.10mm | 0.02 -0.10mm |
Total Power | 32Kw | 52Kw | 80Kw |
Weight of Machine | 3300kg | 4300kg | 5800kg |
Overall Dimensions(L×W×H) | 4800×2500× 4500mm | 5200×2800× 5000mm | 6800×3300× 8000mm |

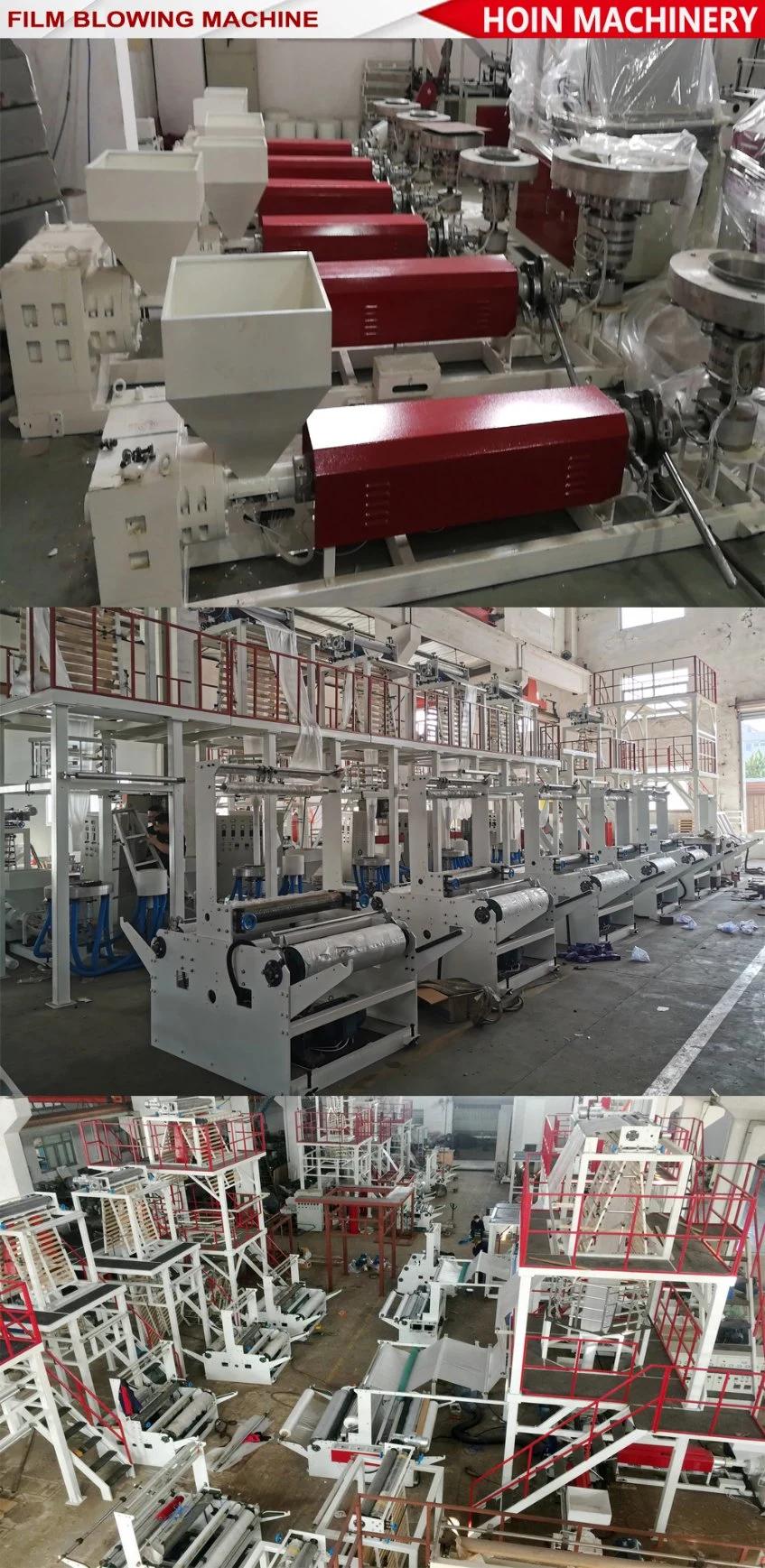

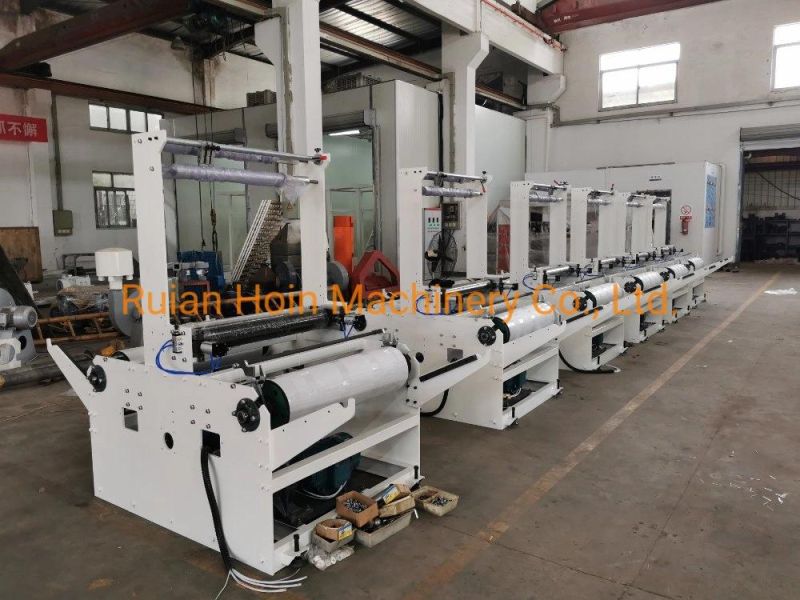

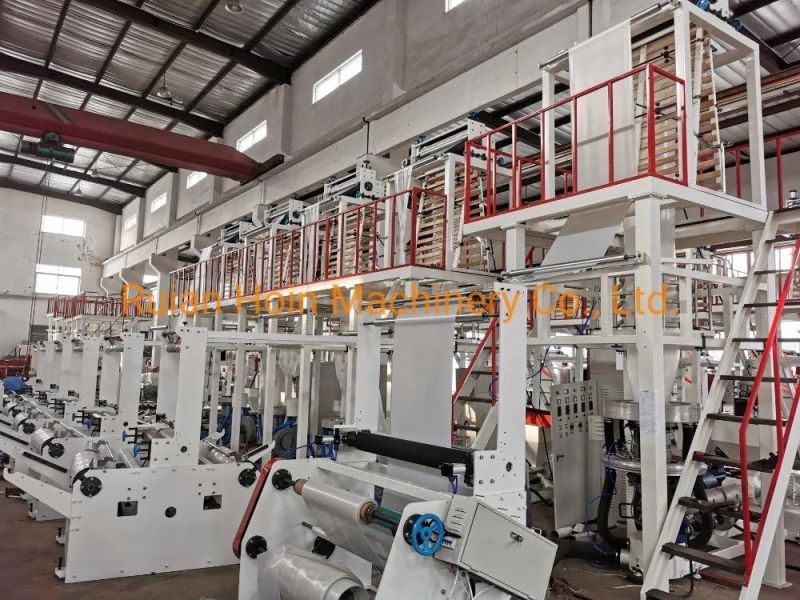

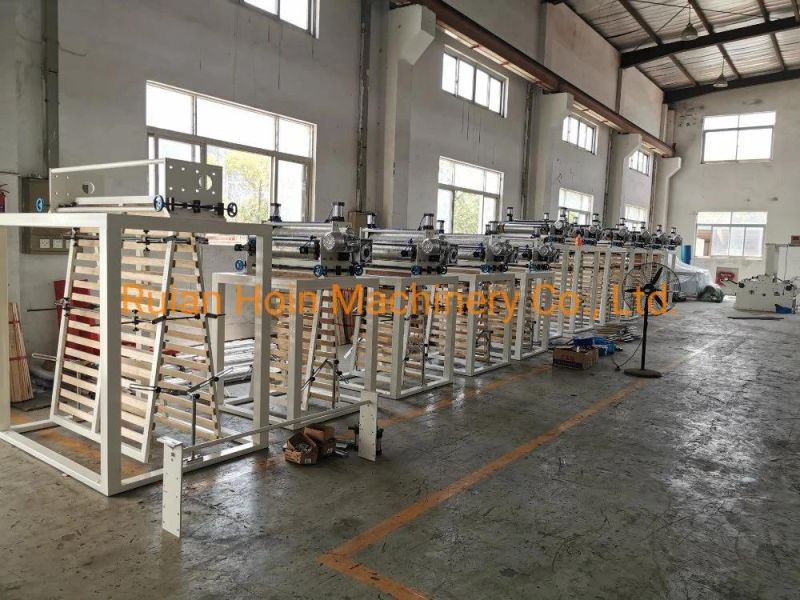

Workshop of HOIN




1. How long will your engineer reach to our factory?
Within one week after machine arrival at your factory.
2. How many days will you finish installing?
We will finish installation and training within 15days.
3. What should we charge for your engineer?
You should charge for the cost of our engineer's visa, air tickets, hotel, food, and also their salary 100USD per day per person.
4. How long of your machine's warranty period?
Our machines have one year guarantee after finishing installation.
5. How could we do after one year warranty period?
We will still offer you our best after service, and need you to afford our technician's cost.
6. Can you find us any engineer in our location?
Of course, we will check and inform you as soon as possible.
Any query please feel freely to contact with us!
