Rotary Die Head PE Film Extrusion Machine
Shandong Saiya Hydraulic Equipment Co., Ltd.Base Info
Description
General features:
Model: MD-HL65
Maximum film width: 1200mm
Output capacity: around 80kg/h for HDPE ,100kg/hr for LDPE
Note: output depends on film width/thickness etc
Power supply: 380V three phase; 50Hz
Raw Material: HDPE/LDPE/LLDPE
Dimension (L×W×H): 5500mm×2800mm×5200mm
Weight: About 2500kg
Extruder unit:
Main motor power:30kw from Siemens Beide controlled by Delta frequency inverter
Screw diameter: ¢65mm from China 38 CRMOALA
Screw L/D ratio of screw: 28:1
Barrel cooling: 370W cooling blower × 2pcs
Film thickness: HD: 0.008-0.08mm LDPE:0.02-0.15mm
Gear Box: model 200
Material of screw: high-quality steel 38CrMoAlA with optimum hardness and strong corrosion resistance after precision finishing and nitrogen treatment
Material of barrel:high-quality steel 38CrMoAlA
Heaters: aluminum heaters
Die:HD¢120
LD¢250
Cooling air blower motor: 3kw
Air ring ¢760 x 1 set
360°Continue Rotary
Equipped with stabilizing balloon basket
Take up unit
Film bubble taking up motor: 1.5kw from China controlled by Delta frequency inverter
Steel roller/rubber roller length: 1300mm
Take up embossing rollers width: 1200mm
Embossing rollers open and close controlled by air cylinder
Guiding roller: 2pcs
Wooden plank bubble supports and A-frame with Gusset device, gusset device made of wood
Tower's height adjusted by motor-rise and fall type
Film taking up speed: 10-60m/min
There are total four rollers in the traction parts: two banana rolls, one metal roll and one embossing roller, one banana roller and the embossing roller controlled by the cylinder, can move up and down.
With Ladder and walking board, ladder height: 500mm

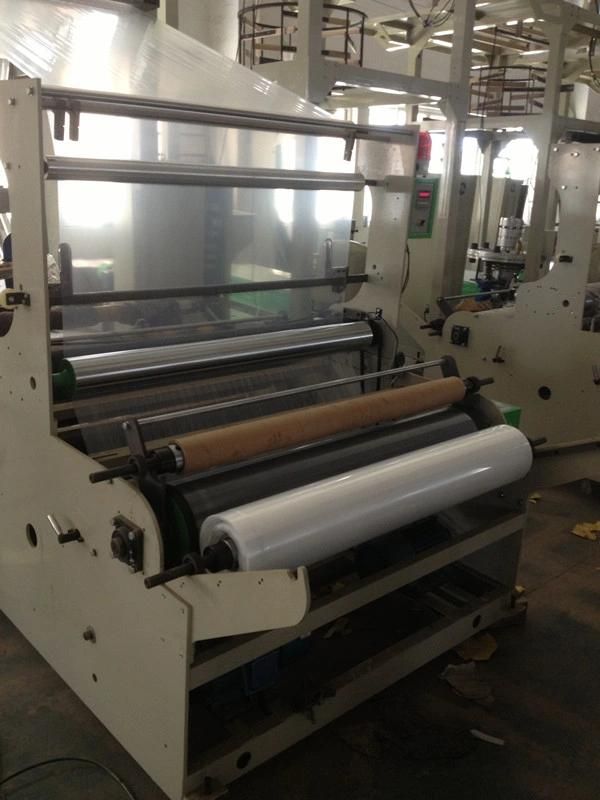

Winding station
Double winder
Winding type: by Surface fraction
Winding motor controlled by torque motor
Maximum winding diameter: 1300mm
