60W 80W 100W 130W 150W CNC Laser Engraving Machine 1390 CO2 Laser Engraver Cutter Machine with Autofocus System for Leather Crystal
Guangzhou Longkang Technology Company- After-sales Service：Online Support
- Warranty：2years
- Application：Leather Industry, Domestic, Carpentry, Printing & Packaging, Construction Industry, Molds & Dies, Crafts Industr, Advertising Industry
- Cooling System：Water Cooling
- Technical Class：Continuous Wave Laser
- Automatic Grade：Automatic
Base Info
- Applicable Material：Nonmetal
- Type：Flat-Plate
- Laser Classification：Gaseous Laser
- Engraving Method：Vector Engraving
- Transport Package：Standard Plywood Case for Export, Moisture Proof
- Specification：209*160*164cm
- Trademark：Laser Max
- Origin：China
- Production Capacity：2400PCS,Year
Description
Model No.
LM1810
Working Table Size
1800mm *1000mm
Laser Tube
Sealed CO2 glass Tube
Laser Head Quantity
One or double
Working Table
Blade platform
Laser Power
130w
Cutting Speed
0-100 mm/s
Engraving Speed
0-600mm/s
Resolution
±0.05mm/1000DPI
Minimum Letter
English 1×1mm (Chinese Characters 2*2mm)
Support Fils
BMP,HPGL,PLT,DST and AI
Laser head
Double laser head
Software
Rdworks
Computer system
Windows XP/win7/ win8/win10
Motor
Stepper Motor
Power Voltage
AC 110 or 220V±10%,50-60Hz
Power cable
European Type/China Type/America Type/UK Type
Working Environment
0-45ºC(temperature) 5-95%(humidity)
Z-Axis Movement
Motor control up and down,
Position system
Red-light pointer
Cooling way
Water cooling and protection system
Packing Size
206*175*132cm
Gross Weight
420KG
Package
Standard plywood case for export
Warranty
All life free tech support, two year warranty, except consumables
Free accessories
Air Compressor/Water Pump/Air Pipe/Water Pipe/Software and Dongle/ English User Manual/USB Cable/Power Cable
Optional parts
Spare Focus lens
Spare Reflecting mirror
Spare Rotary for cylinder materials
Industrial Water Chiller
DETARLS

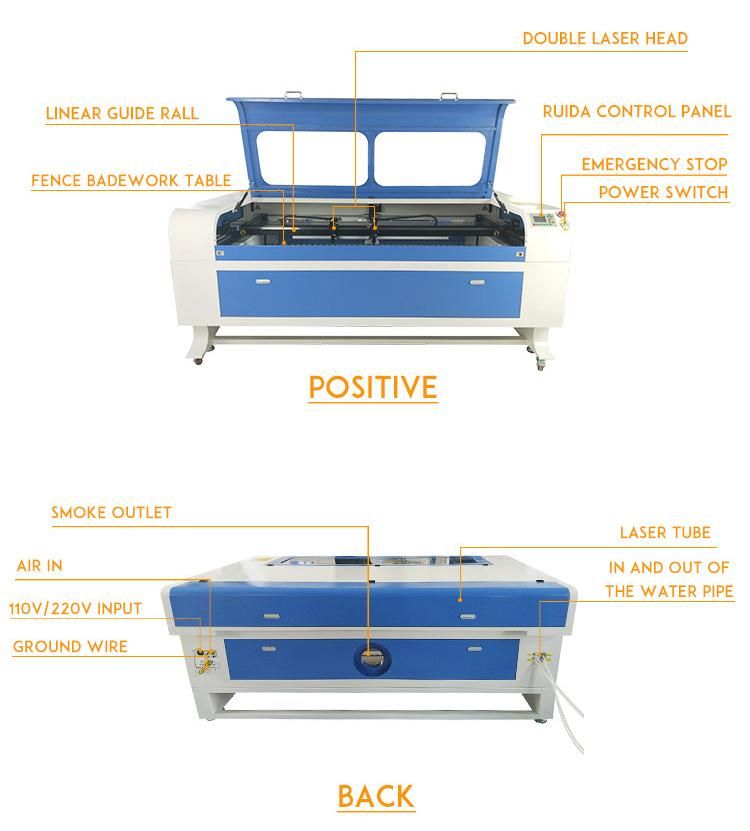

Features:

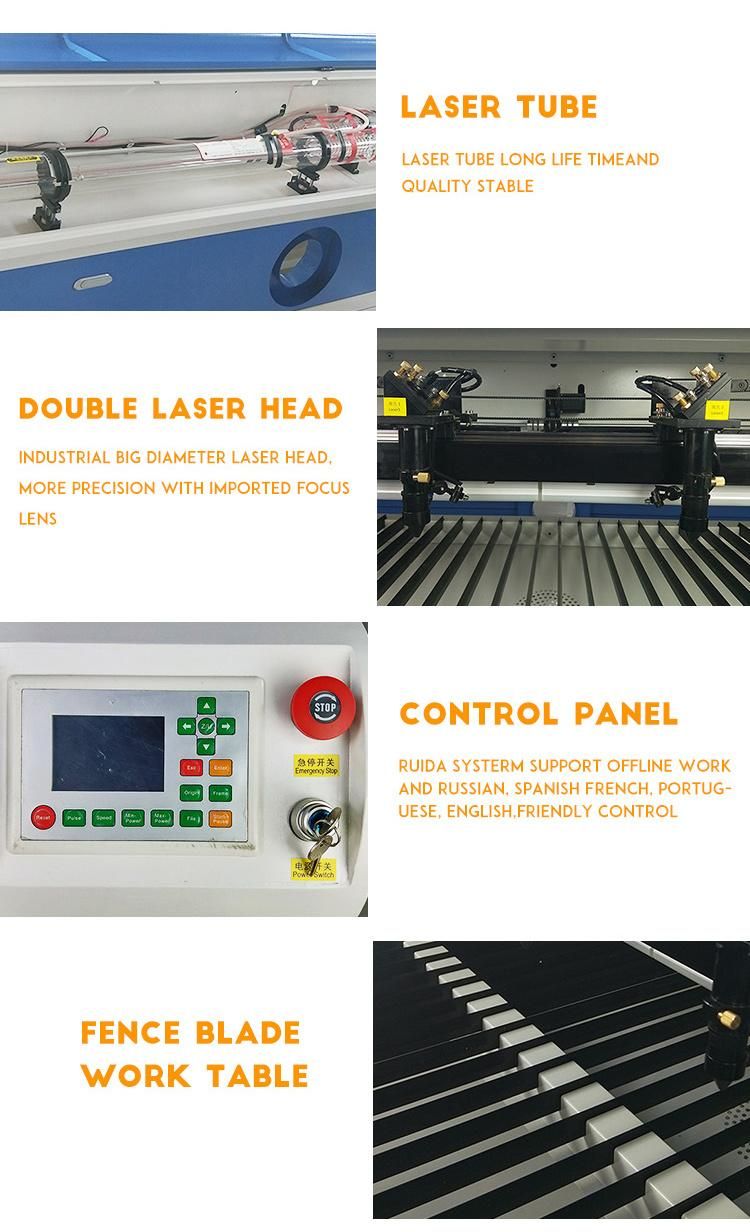

- Professional Ruida 6442S laser control system,precise,stable and fast.
- Brand laser tube,good spot quality,stable output power,good engraving effect.
- Usb2.0 interface,support offline work.
- Color LCD display,support multi-language operation.
- Taiwan PMI linear guide rail makes the optical path run more smoothy and the engraving and cutting effect is much more better.
- The cabinet design is more sturdy and equipped with a waste collection drawer for easy collection of cutting waste.
- Electric UP&Down platform,convenient for customers to place thick materials.
- Optional rotary attachment,convenient for customers to engrave the required materials.
-Large working area,suitable for engraving and cutting large area materials.
Samples show:
Applcation industrial:
Advertising signs,craft gifts,crystal jewelry,paper cutting technology,architectural models,lighting,printing and packaging,electronic appliances,clothing bags,photo frame production and other industries.

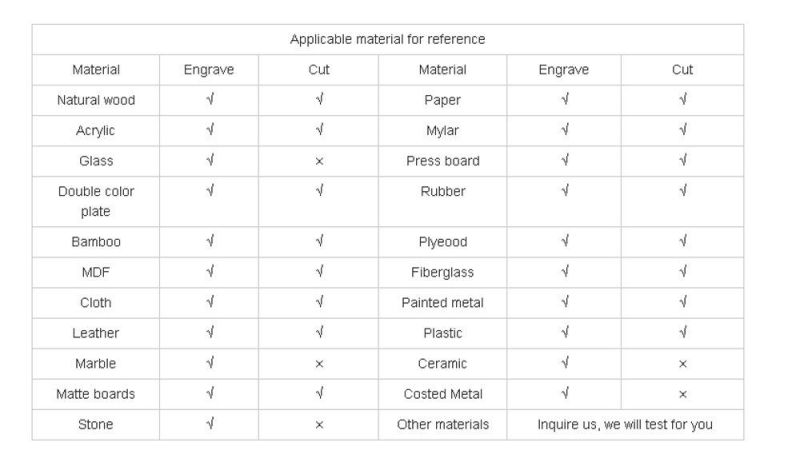

Application Materials:
Woodproducts,Plywood,Acrylic,Plastic,Cloth,Leather,Paper,Rubber,Bamboo,Marble,Double layer plastic,glass,wine bottles etc.
