Jwell Extruder Single Screw, for All Kinds of Plastic Pipe, Sheet, Profile Productional ...
Jiangsu YiCheng Fluid Equipment Co., Ltd.Base Info
Description
SpecificationModel: Classic Type Extrusion Line for HDPE pipe, PP/MPP pipe Type Diameter mm Extruder Capacity
(kg/h) Power(kW) JWG-PVC32(Quadruple) ∅16-32 SJZ65/132 250-300 104 JWG-PVC63 (dual) ∅16-63 SJZ65/132 250-300 105 JWG -PVC110(dual) ∅50-110 SJZ80/173 450-500 165 JWG -PVC160 ∅63-160 SJZ65/132 250-300 100 JWG-PVC250 ∅75-250 SJZ80/156 300-400 110 JWG-PVC315 ∅160-315 SJZ80/156 300-400 180 JWG-PVC450 ∅200-450 SJZ80/173 450-500 245 JWG-PVC630 ∅315-630 SJZ92/188 650-750 350 JWG-PVC800 ∅400-800 SJZ110/220 1000-1300 420 JWG-PVC1000 ∅500-1000 SJZ110/220 1000-1300 460 Note: Contact us for customized sizes, specification, functions.
The PVC pipe machine commonly together with the belling system, adopts the advanced European
Technology used for PVC solid wall pipe and double -wall corrugated pipe. Belling type are rectangular
Type, U type and R type. Automatic control uses the japense mistsubishi PLC program control which
Stable and reliable. Belling die adopts hydraulic drive, main production range is ∅32-800mm
PVC pipe machine commonly together with the mixer
DYHL series mixer adopts PLC control, which combined machine unites mainly used batching, mixing,
Coloring and drying for various resins. This unit has combined the technology of hot mixing and cool
Mixing, which can let the material enter cool mixing after hot mixing automatically so as to cool it and
Removal of residual gas to prevent blocking
Technical date
Applications
PVC is currently used in a wide spectrum of piping applications, all helping to meet modern
Infrastructure needs.
(kg/h)

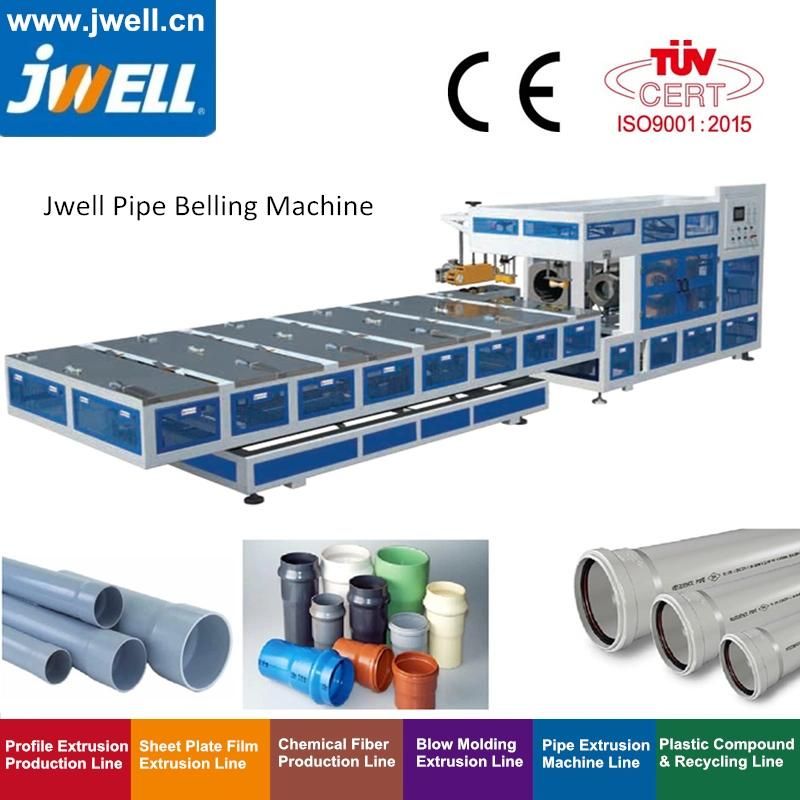

The PVC pipe machine commonly together with the belling system, adopts the advanced European
Technology used for PVC solid wall pipe and double -wall corrugated pipe. Belling type are rectangular
Type, U type and R type. Automatic control uses the japense mistsubishi PLC program control which
Stable and reliable. Belling die adopts hydraulic drive, main production range is ∅32-800mm
| Type | JWGK110 | JWGK250 | JWGK450 | JWGK630 | JWGK800 |
| Dia(mm) | ∅32-110 | ∅63-250 | ∅160-450 | ∅315-630 | ∅400-800 |
| Hydraulic pressure reated(MPa) | 3MPa | 3MPa | 5MPa | 5MPa | 5MPa |
| Compressed air(MPa) | 0.4MPa | 0.4MPa | 0.4MPa | 0.4MPa | 0.4MPa |
| Power(KW) | 10 | 20 | 25 | 40 | 60 |

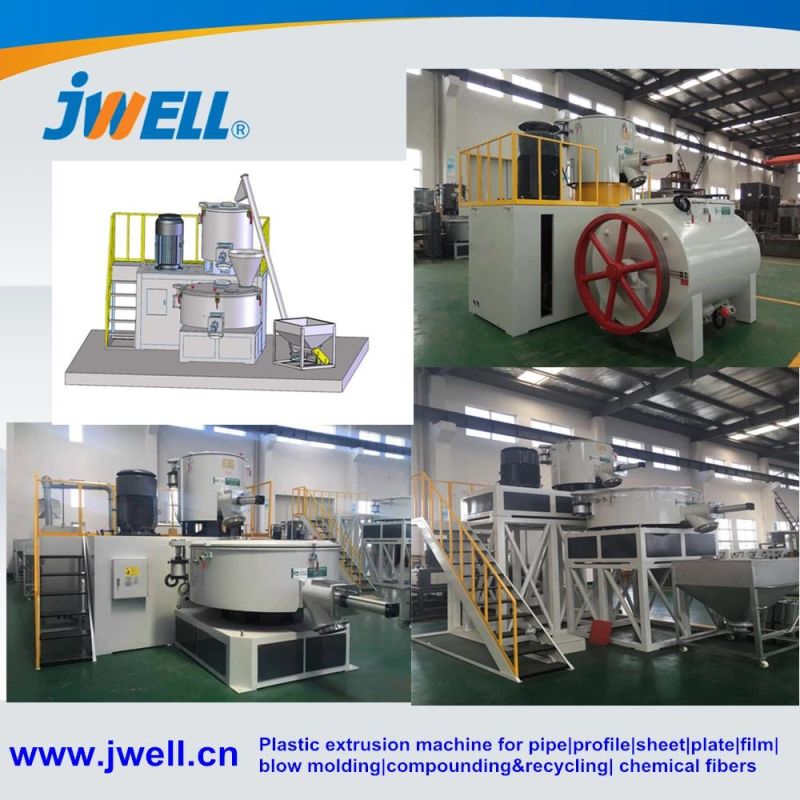

PVC pipe machine commonly together with the mixer
DYHL series mixer adopts PLC control, which combined machine unites mainly used batching, mixing,
Coloring and drying for various resins. This unit has combined the technology of hot mixing and cool
Mixing, which can let the material enter cool mixing after hot mixing automatically so as to cool it and
Removal of residual gas to prevent blocking
Technical date
| Model | SRL100/200 | SRL200/500 | SRL300/600 | SRL500/100 | SRO800/1600 | SR: 800/2500 | SRL1000/3000 |
| Type | Vertical | Vertical | Vertical | Vertical | Vertical | Horizontal | Horizontal |
| Capacity(L) | 100/200 | 200/500 | 300/600 | 500/1000 | 800/1600 | 800/2500 | 1000/3000 |
| Effective capacity(L) | 65/130 | 150/320 | 225/380 | 220/750 | 600/1050 | 600/1500 | 700/2100 |
| Motor(KW) | 14/22/7.5 | 30/42/11 | 40/55/11 | 55/75/15 | 83/110/22 | 83/110/30 | 110/160/30 |
| Output(kg/h) | 165 | 330 | 495 | 825 | 1050 | 1320 | 1650 |
Applications
PVC is currently used in a wide spectrum of piping applications, all helping to meet modern
Infrastructure needs.
