• Model NO.：LINSING
• Usage：Quarrying and Profiling
• Features：High Efficiency,No Breaking
• Transport Package：Strong Carton for Outside Packing
• Specification：Diameter: 8.0mm-11.5mm
• Trademark：LINXING Diamond Tools
• Origin：Shangrao Province, China
• HS Code：3602009090
• Production Capacity：10, 000 Meter,Day

Basic Info.

Model NO. LINSING Usage Quarrying and Profiling Features High Efficiency,No Breaking Transport Package Strong Carton for Outside Packing Specification Diameter: 8.0mm-11.5mm Trademark LINXING Diamond Tools Origin Shangrao Province, China HS Code 3602009090 Production Capacity 10, 000 Meter/Day

Product Description

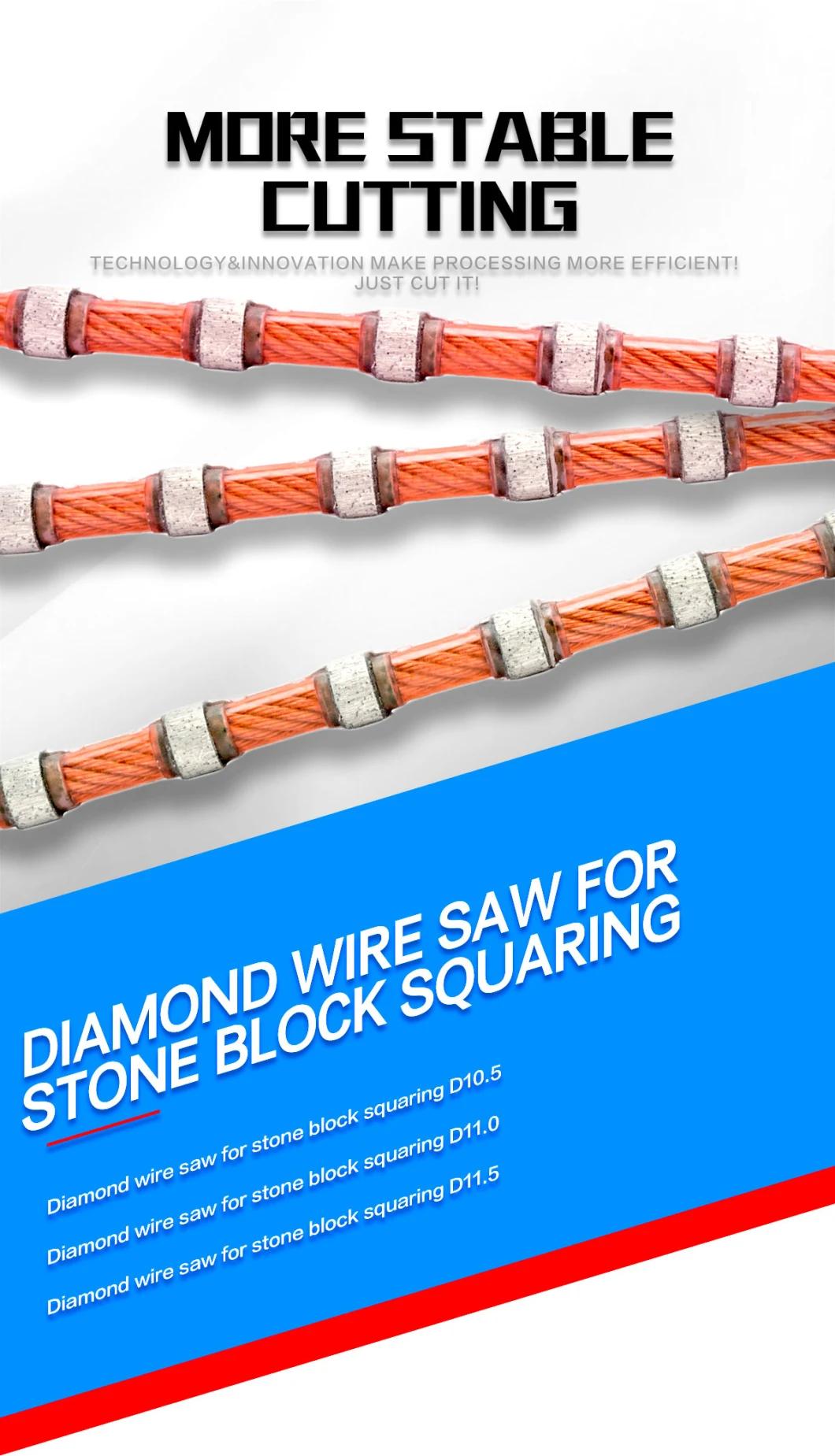

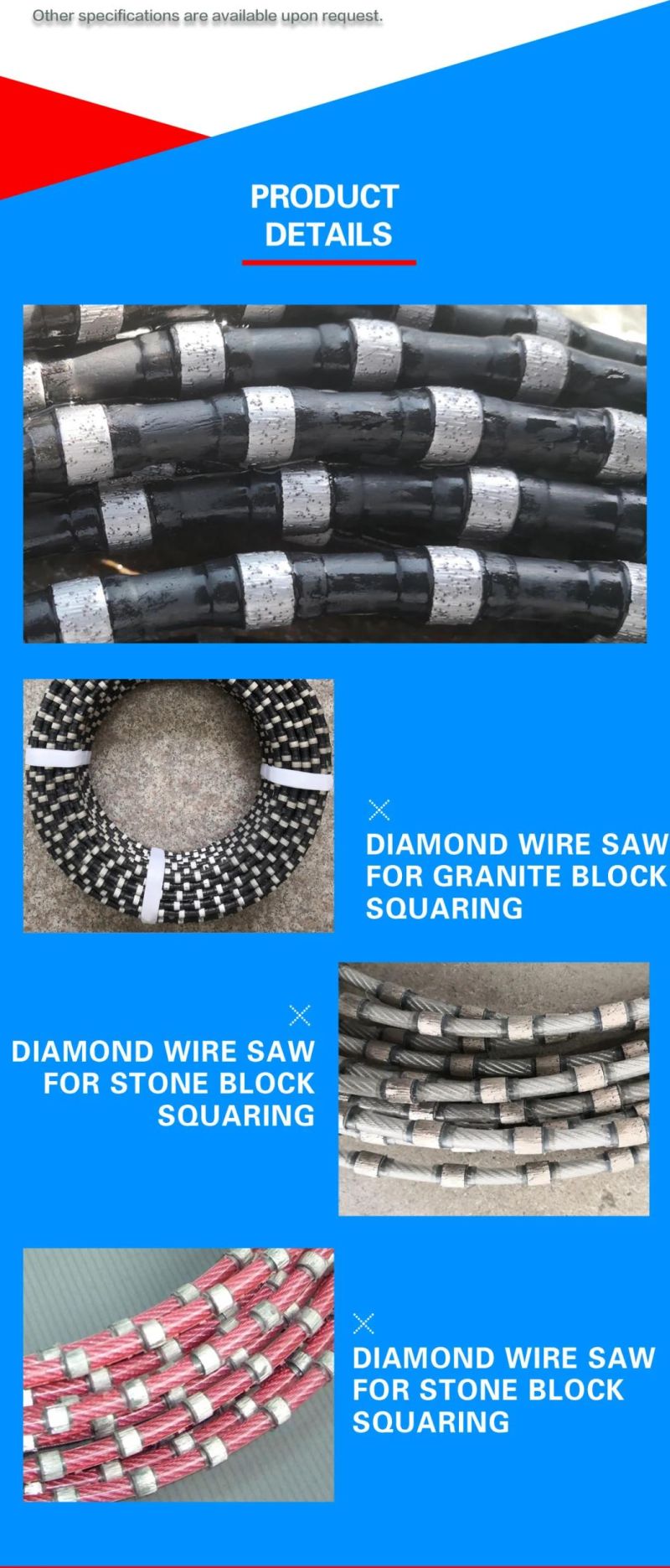

DIAMOND WIRE SAW FOR SQUARING

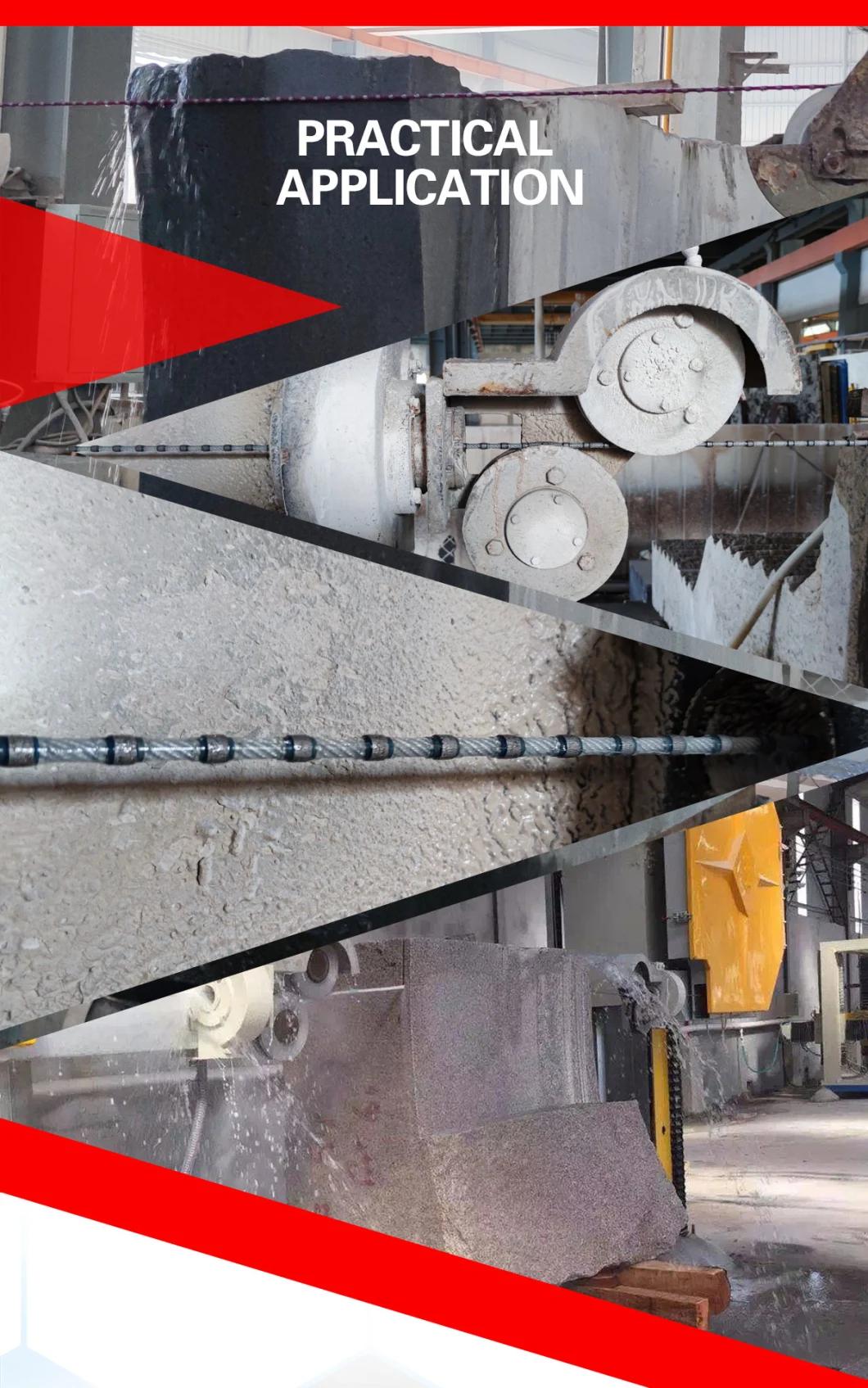

The diamond wire saw is used for special-shaped block processing

Three essential components for diamond wire saw are as followed.

1. Steel cable with diefferent diameter depending on the application
2. Sintered diamond beads.
3. Fixed method: springs, rubber or plastic. Protects the steel cable because of stone abrasive, and also sbsorbs the energy of the cutting friction of the beads against the stone.

Product features

1.The use of diamond wire for stone profilling,with narrow kerf width and high quality cable insure less breakage and good tension,bring beter performance in tough environment.
2. This wire saw works in low noise,safe and eco-friendly.
3. High effection, low cost, low waste
4. Cutting smooth and process accurate
5. Safe and environmental protection.
6. The profile wire saw can process a variety of special-shaped stones, and the cutting angle and orientation can be adjusted arbitrarily.

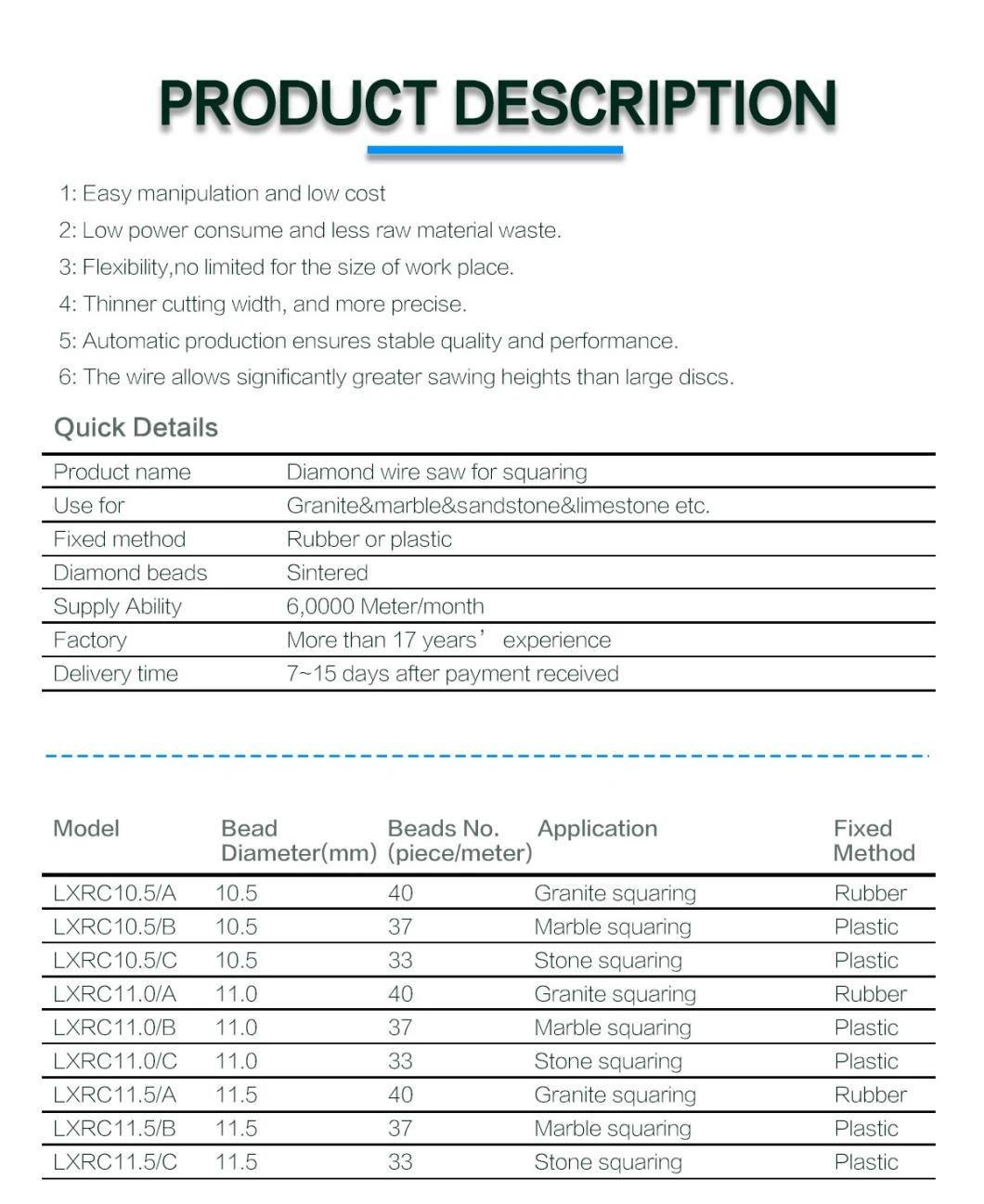

Application	Coating	Diameter(mm)	Beads No.	Hardness	Wire Speed	Cutting	Life
Granite squaring	Plastic	10.5	33	Soft	28-30	1.5-3.0	15-25
Granite squaring	Plastic	11.0	37	Medium	23-26	1.0-2.5	12-15
Granite squaring	Rubber	11.5	40	Hard	20-25	0.5-1.0	8-12
Marble squaring	Plastic	10.5	33	Soft	30-35	3-6	30-40
Marble squaring	Plastic	11.0	37	Medium	25-28	2-4	25-30
Marble squaring	Rubber	11.5	40	Hard	23-25	1-2	20-25

Square wire saw rope size

Reliable cutting and can change the cutting technology according to the stone types.

A large number of exports to Eastern Europe, North America, South America, the Middle East, Australia and other overseas markets, product quality has been recognized by overseas customers.
