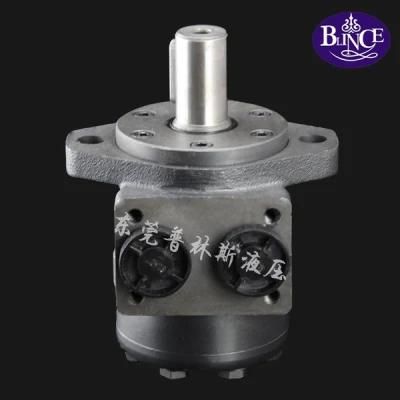

Blince Omm Hydraulic Motor Replace M+S Mlhm Orbital Motor
Guangzhou Cospack Packaging Technology Co., Ltd.- Certification：GS, RoHS, CE, ISO9001
- Excitation Mode：Excited
- Power Rating：3500W
- Casing Protection：Protection Type
- Number of Poles：8
- Speed：High Speed
Base Info
- Model NO.：omm 8cc,12.5cc,20cc,32cc,40cc,50cc orbit motor
- Type：Hydraulic Motor
- Usage：Hydraulic Oil
- Application：Plastic Machine, Agriculture Machine
- Motor Shafts：Straight, Splined and Tapered
- Warranty：One Year
- Motor Flange Shape：Square and Rhombus Flange
- Hydraulic Actuator：Hydraulic Motor
- Motor Material：Cast Iron
- Processing：Forging & Cutting &Phosphating
- Hydraulic Motor：Vane Hydraulic Motor
- Hydraulic Power Units：Vane Pump
- Transport Package：Industrail Plastic Bag+Carton
- Specification：CE, ISO9001
- Trademark：blince
- Origin：Guangdong
- HS Code：8412291000
- Production Capacity：6000
Description
TypeOMM
8 OMM
12.5 OMM
20 OMM
32 OMM
40 OMM
50 Geometric displacement 8.2 12.9 19.9 31.6 39.8 50.3 Max.speed (rpm) cont. 1950 1550 1000 630 500 400 int. 2450 1940 1250 800 630 500 Max.torque(N.m) cont. 11 16 25 40 45 46 int. 15 23 35 57 70 88 Max.output(KW) cont. 1.8 2.4 2.4 2.4 2.2 1.8 Int. 2.6 3.2 3.2 3.2 3.2 3.2 Max.pressure
Drop (Mpa)
cont. 10 10 10 10 9 7 int. 14 14 14 14 14 14 Max.flow(L/min) cont. 16 20 20 20 20 20 int. 20 25 25 25 25 25 Weight(kg) 1.9 2 2.1 2.2 2.3 2.4
