Basic Info.

Model NO. 20-800mm Condition New PVC Pipe 20-63mm Transport Package Film Specification ISO/CE Trademark XJG Origin China HS Code 8477800000 Production Capacity Uncertain

Product Description

Φ 20-Φ 800 Series PVC Pipe Extrusion Line Is Mainly Used In The Manufacture Of Plastic PVC Pipes With Various Diameters And Wall Thickness Used In The Industries Such As Agriculture And Constructional Plumbing, Cable Laying etc.

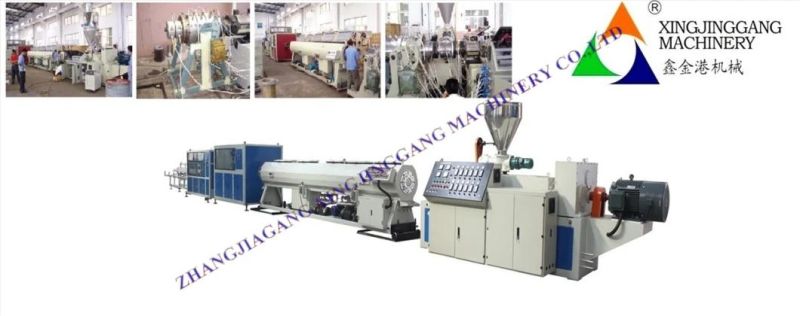

This PVC Pipe Extrusion Line Is Composed Of Conical Twin-Screw Extruder, Vacuum Calibration Tank, Haul-Off, Cutter, Stake And etc. The Extruder And Haul-Off Adopt Imported AC Frequency Speed Controller, Vacuum Pump And Haul-Off Motor All Adopt Superior Products. The Haul-Off Method Has Two-Claw, Three-Claw, Four-Claw, Six-Claw And etc. You May Choose Saw Blade Cutting Type Or Planetary Cutting Type. It Is Additionally Attached With Length Counter And Intensifying Device.
This PVC Pipe Extrusion Line Is Of Reliable Preformance And High Production Efficiency. Our Company Can Also Manufacture Special Pipe Production Lines, E. G. Spiral Silencing Pipe And Core Foaming Pipe According To Your Requirements.





Diameter   scope      (mm)	16-40 Dual	20-63 Dual	20-63	50-160	63-200	160-315	315-630	560-800
Conical extruder	SJZ51/105	SJZ65/132	SJZ51/105	SJZ65/132	SJZ65/132	SJZ80/156	SJZ92/188	SJZ105/216
Extruder Power(KW)	18.5 AC	37 AC	18.5 AC	37 AC	37 AC	55 AC	110 DC	160 DC
Max. capacity (KG)	120	250	120	250	250	350	800	1100
Max. Lineal speed (m/min..)	10	15	15	8	3.5	3	1.2	1.3
