Woven Fabric Bag CO2 Laser Engraving Machine
Zhangpu Guangguang Plastic Products Co., Ltd.- Application：Textile Machinery, Shoemaking Industry, Woodwork Industry, Advertising Industry
- Cooling System：Water Cooling
- Technical Class：Pulse Laser
- Applicable Material：Nonmetal
- Structure Type：Gantry Type
- Laser Classification：Free Electron Laser
Base Info
- Model NO.：PEDK-9060
- Laser Technology：Laser Control Fault Cutting
- Engraving Machine Type：Laser Engraving Machine
- Usage：Plastic
- Certification：SGS, CE, RoHS, ISO 9001
- Laser Type：CO2
- Control：CNC
- Current：AC
- Condition：New
- Controling System：CNC Professional Controlling System
- Supporting Graphics Formats：BMP,Hpgl,JPEG,GIF,Tiff,Pcx,Tag,CDR
- Cooling Mode：Cw-3000 Water Chiller with Protection Function
- Auxiliary Devices：Exhaust Fan & Exhaust Pipe
- Transport Package：Export Sea-Worthy Packing or Air-Worthy Packing
- Specification：ISO 9001 & CE
- Trademark：perfect laser
- Origin：China
- HS Code：8456110090
- Production Capacity：100 Units, Month
Description

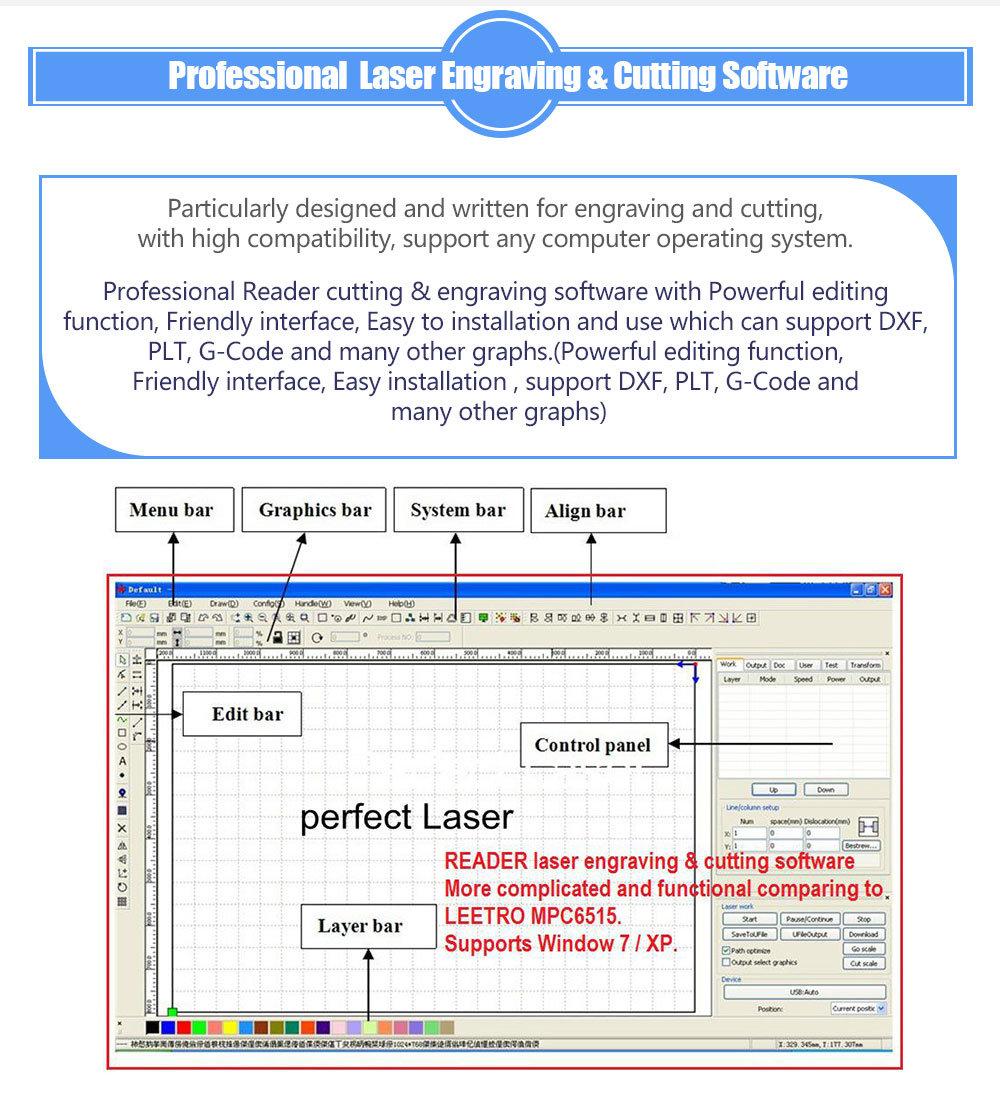

Original Perfect Laser Engraving & Cutting Software
Machine Sample:

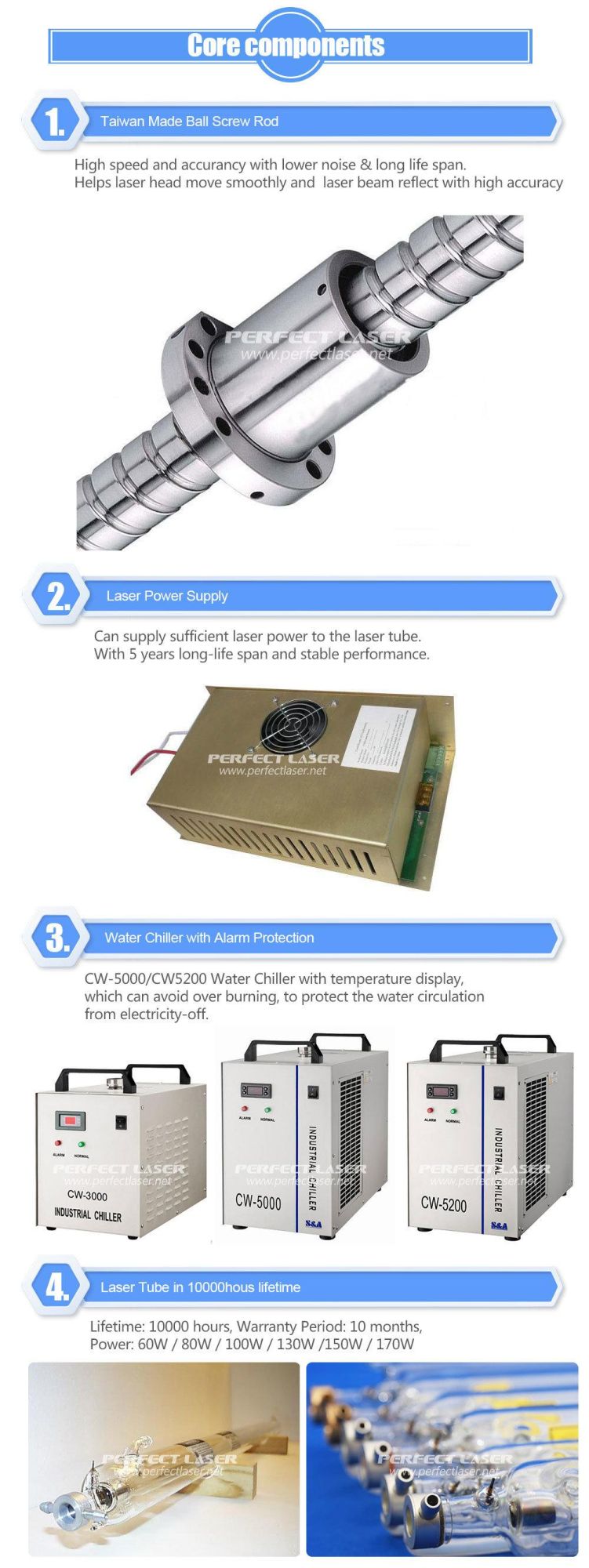

1. The water cooling and alarm protection system adopts the CW-3000 chiller temperature display to avoid over-combustion and protect the power over-water circulation.
2. High cutting accuracy, no focal and yellow edges, the laser cutting and engraving machine isequip with high precision metal rails and stepper motors, and with honeycomb platform, perfect engraving 1X1 mm letters, to meet the needs of highly accurate work.
3. LCD touch screen, CO2 non-metallic laser cutting and engraving machine supports USB interface and DSP offline control system, external USB data cable or U disk, support BMP, HPGL, JPEG, GIF, TIFF, PCX, TAG, CDR, DWG , DXF and other file formats.

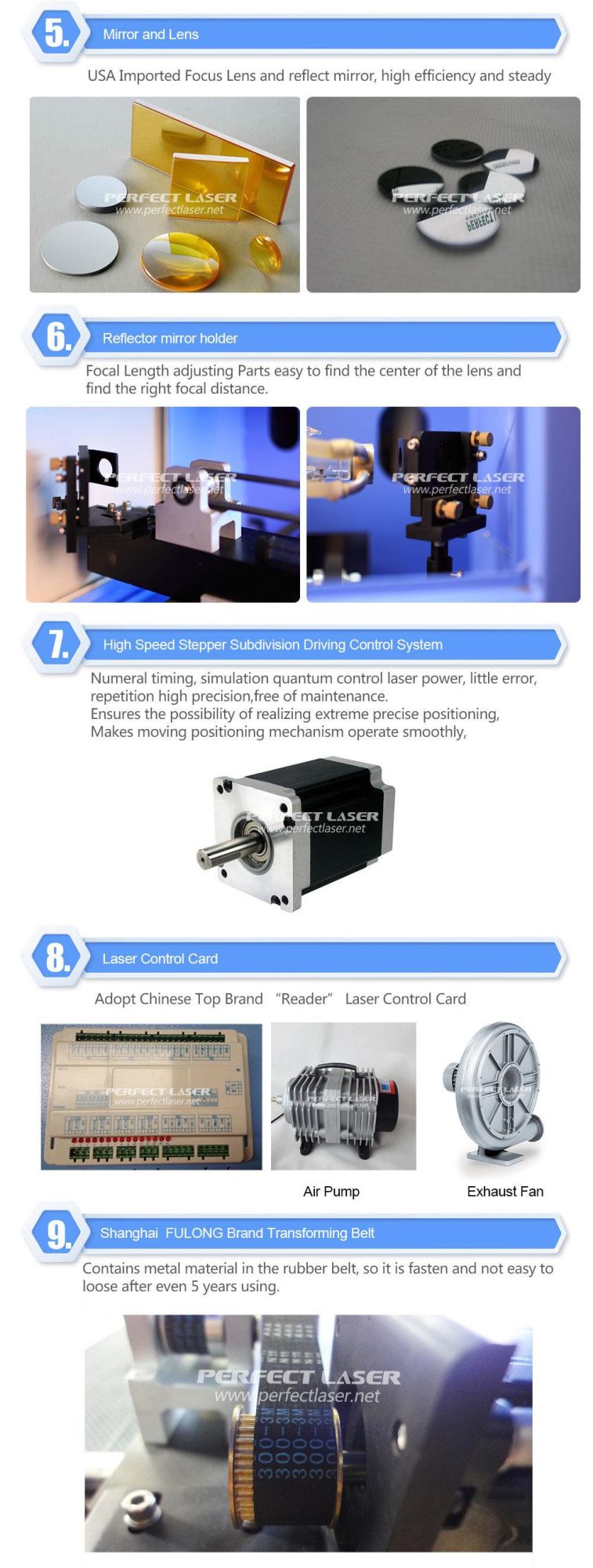

4. CO2 non-metal laser engraving plastic machine can be equipped with American imports of focusing lens and lens, China's Leadshine stepper motor, Japan's imported servo motor, a variety of configuration and diverse, there is always one to meet your needs.
5. The CO2 non-metal laser cutting plexiglass machine independently developed by PerfectLaser can set parameters, enable envelope cutting, set the engraving area, and perform frame cutting.
Technical Data:
FAQ:
Please let us know following informations:
1.What kind of materials you want to engrave?
2.What is the mostly used thickness and what is the maximum thickness?
3. What is the MAX. dimension of your materials ?
4. After engrave, what will be the metal used for? (application)
5. Are you an end user or reseller?
According to your above information,we'll recommend the most suitable machine to you.
Company information:
We, Perfect Laser, As a 21 years history industrial equipment manufacture in laser field, 10 year Golden Supplier in Alibaba, with CE/ISO/FDA, we aim to make high-quality products, and also our products have been exported to more than 180 different countries and areas.
Perfect Laser Co., Ltd. (China)
Contact: Susie / Sales Department
Add: Heng Ruichuangzhi Technology Park, No.13 YangQiaohu Road, Jiangxia District, Optical Village, Hubei, China(430200).
Machine Sample:
1. The water cooling and alarm protection system adopts the CW-3000 chiller temperature display to avoid over-combustion and protect the power over-water circulation.
2. High cutting accuracy, no focal and yellow edges, the laser cutting and engraving machine isequip with high precision metal rails and stepper motors, and with honeycomb platform, perfect engraving 1X1 mm letters, to meet the needs of highly accurate work.
3. LCD touch screen, CO2 non-metallic laser cutting and engraving machine supports USB interface and DSP offline control system, external USB data cable or U disk, support BMP, HPGL, JPEG, GIF, TIFF, PCX, TAG, CDR, DWG , DXF and other file formats.
4. CO2 non-metal laser engraving plastic machine can be equipped with American imports of focusing lens and lens, China's Leadshine stepper motor, Japan's imported servo motor, a variety of configuration and diverse, there is always one to meet your needs.
5. The CO2 non-metal laser cutting plexiglass machine independently developed by PerfectLaser can set parameters, enable envelope cutting, set the engraving area, and perform frame cutting.

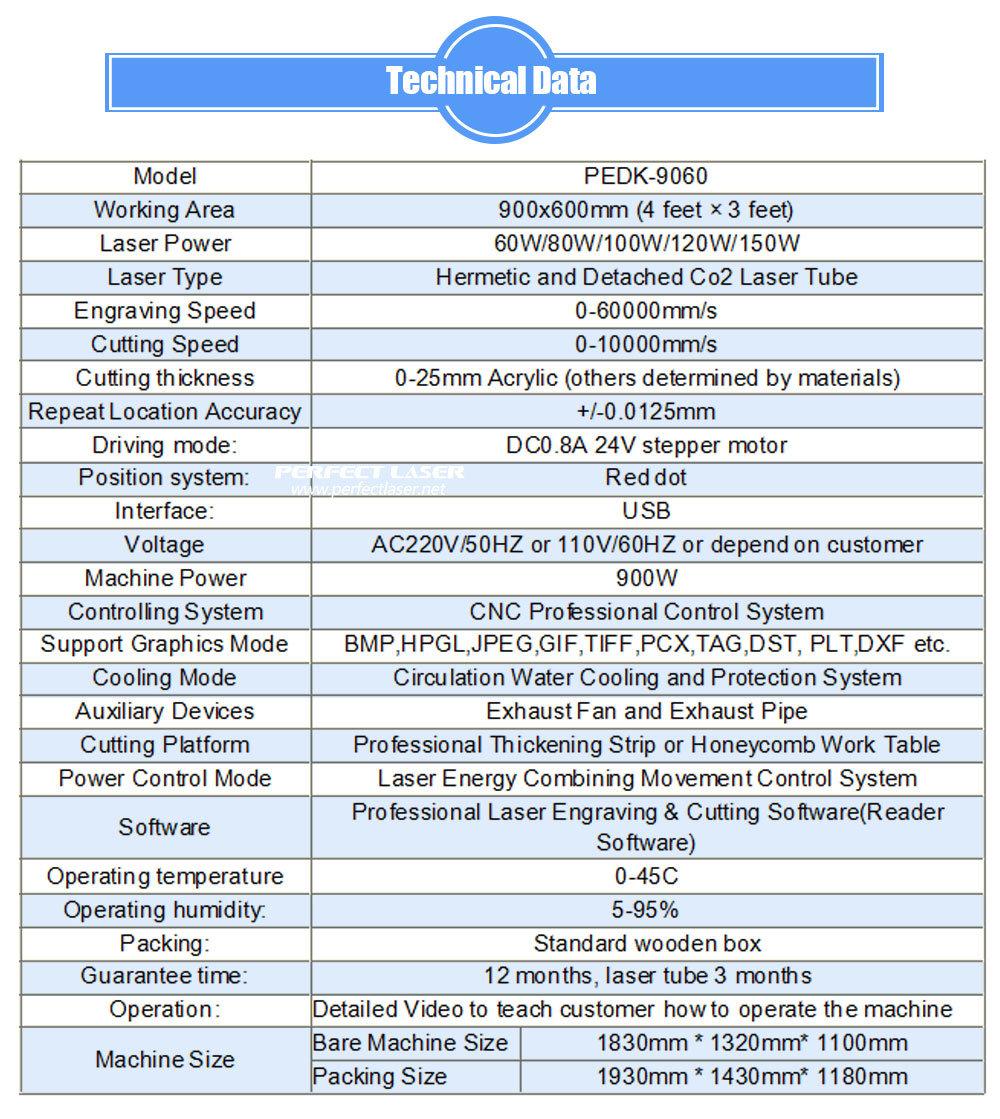

Technical Data:
Model
PEDK-9060 Laser Cutting And Engraving Machine
Laser Power
60w / 80w / 100w / 130w
Engraving Area
900×600mm
Engraving Speed
0-60000mm/s
Cutting Speed
0-10000mm/s
Repeating Location Accuracy
±0.0125mm
Working Voltage
220V ±10% 50HZ
Machine Power
900w
Controling System
CNC professional controlling system
Supporting Graphics Formats
BMP,HPGL,JPEG,GIF,TIFF,PCX,TAG,CDR,DWG,DXF
Cooling Mode
CW-3000 Water Chiller with protection function
Auxiliary Devices
Exhaust fan & exhaust pipe
Cutting Platform
Professional honeycome / strip work table
Power Control Mode
Laser power and moving system cooperate
Control Software
Original Perfect Laser laser engraving and cutting software
Machine Size
1400*960*1150mm
