65ton-650tons Post Tension Steel Strand Prestressing Hollow Hydraulic Jack Cylinder
Dongguan Green Packing Products Co., Ltd.- Certification：GS, RoHS, CE, ISO9001
- Pressure：Low Pressure
- Work Temperature：Normal Temperature
- Acting Way：Double Acting
- Working Method：Straight Trip
- Adjusted Form：Regulated Type
Base Info
- Model NO.：YDC650
- Structure：Piston Type
- Material：Stainless Steel
- Nominal Tension Force：650kn
- Stroke(mm)：200
- Central Diameter：60mm
- Rated Oil Pressure：52MPa
- Number Max.Tension Strands：3
- Weight(Kg)：58
- Transport Package：Wooden Case
- Specification：190*345mm
- Trademark：Match
- Origin：Shandong, China
- Production Capacity：1000PCS,Day
Description

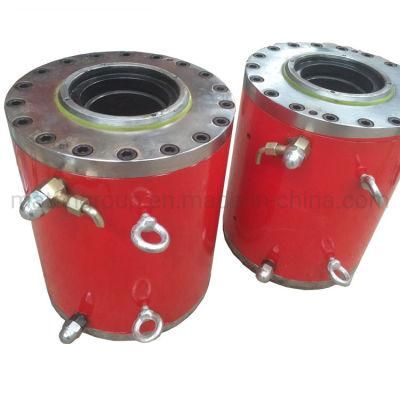

Features of YDC series of light weight hydraulic jack
Small dimension and light weight.
High strength, good sealing performance, safe, reliable.
The jack matched with different accessories, it can be used for different anchors in the pre-tension or post tension prestressed project.
In some certain circumstance it can be used in the working of pushing, jacking and transforming and so on.
Easy to use with reasonable price.
Parameter of Prestressing Jack
Tension
force
KN
Stroke
mm
Central diametr
mm
Dimension
mm
Weight
kg
Tension area
mm2
Rated oil
pressure
Mpa
Number max.Tension
strands
