• Model NO.：KQ Series
• Name：Sanitary Stainless Steel Food Grade Fruit Juice P
• Capacity：100L to 30000L
• Material：Sanitary Stainless Steel 304,316
• Certification：ISO9001: 2000
• Heating：Steam ,Electric ,Gas ,LPG,LNG
• Motor Brand：Siemens ,ABB ,China Brand
• Application：Milk ,Yoghurt ,Fruit Juice .Chemistry ,Pharmacy
• Agitator：Stirrer ,Stirrer with Paddle ,Stirrer with Scraper
• Tank Wall：Single Wall ,Double Wall ,Three Lyred Wall
• Agaitator Speed：36rpm,45rpm ,2900rpm
• Delivery：10 Days
• Packing：Wooden Box
• Warranty：One Year
• MOQ：1set
• Insulation Wall：Polyurethane Foam
• Transport Package：Wooden Box
• Specification：Follow your request
• Trademark：KAIQUAN
• Origin：Shanghai China
• HS Code：8479820090
• Production Capacity：50000 Set Per Year

Basic Info.

Model NO. KQ Series Name Sanitary Stainless Steel Food Grade Fruit Juice P Capacity 100L to 30000L Material Sanitary Stainless Steel 304/316 Certification ISO9001: 2000 Heating Steam /Electric /Gas /LPG/LNG Motor Brand Siemens /ABB /China Brand Application Milk ,Yoghurt ,Fruit Juice .Chemistry ,Pharmacy Agitator Stirrer ,Stirrer with Paddle ,Stirrer with Scraper Tank Wall Single Wall /Double Wall /Three Lyred Wall Agaitator Speed 36rpm,45rpm ,2900rpm Delivery 10 Days Packing Wooden Box Warranty One Year MOQ 1set Insulation Wall Polyurethane Foam Transport Package Wooden Box Specification Follow your request Trademark KAIQUAN Origin Shanghai China HS Code 8479820090 Production Capacity 50000 Set Per Year

Product Description

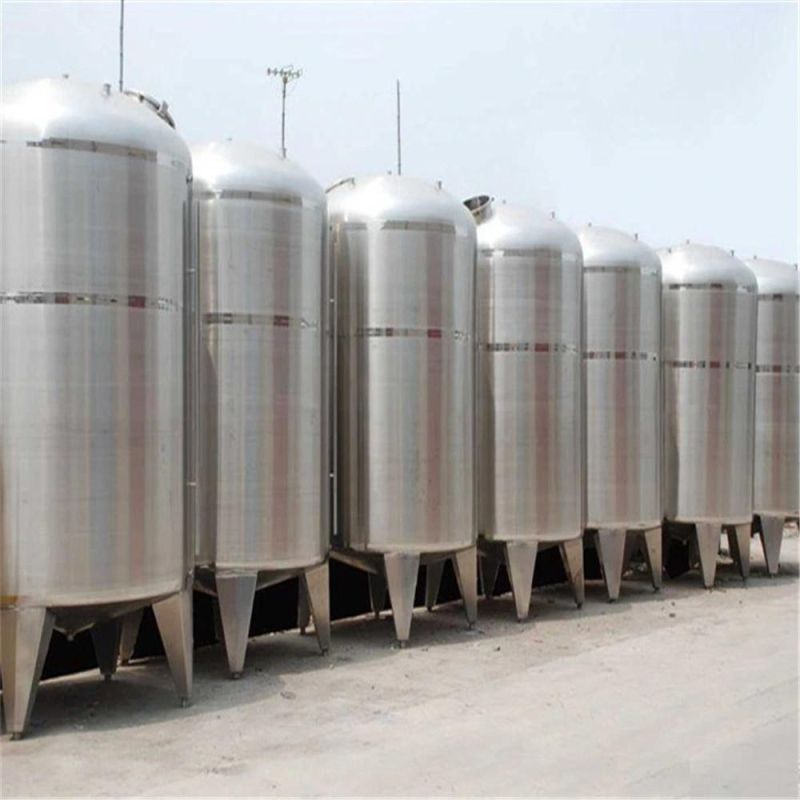

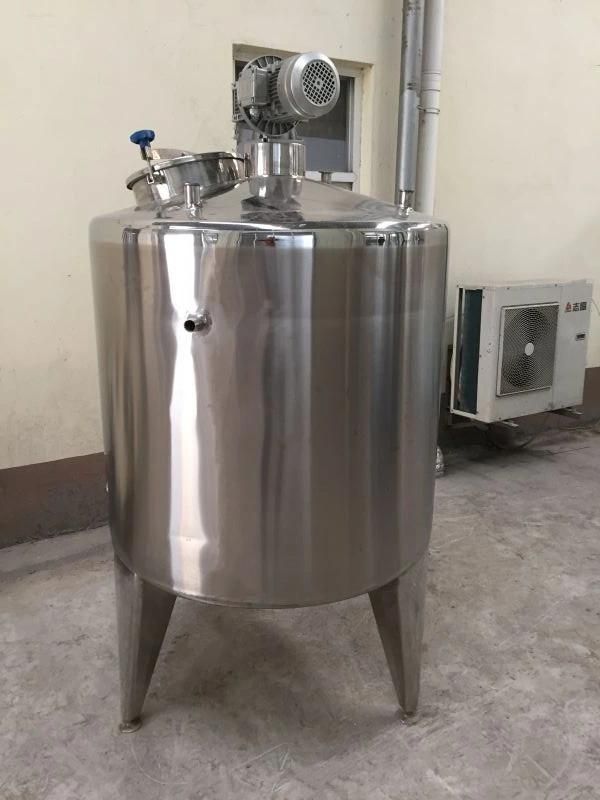

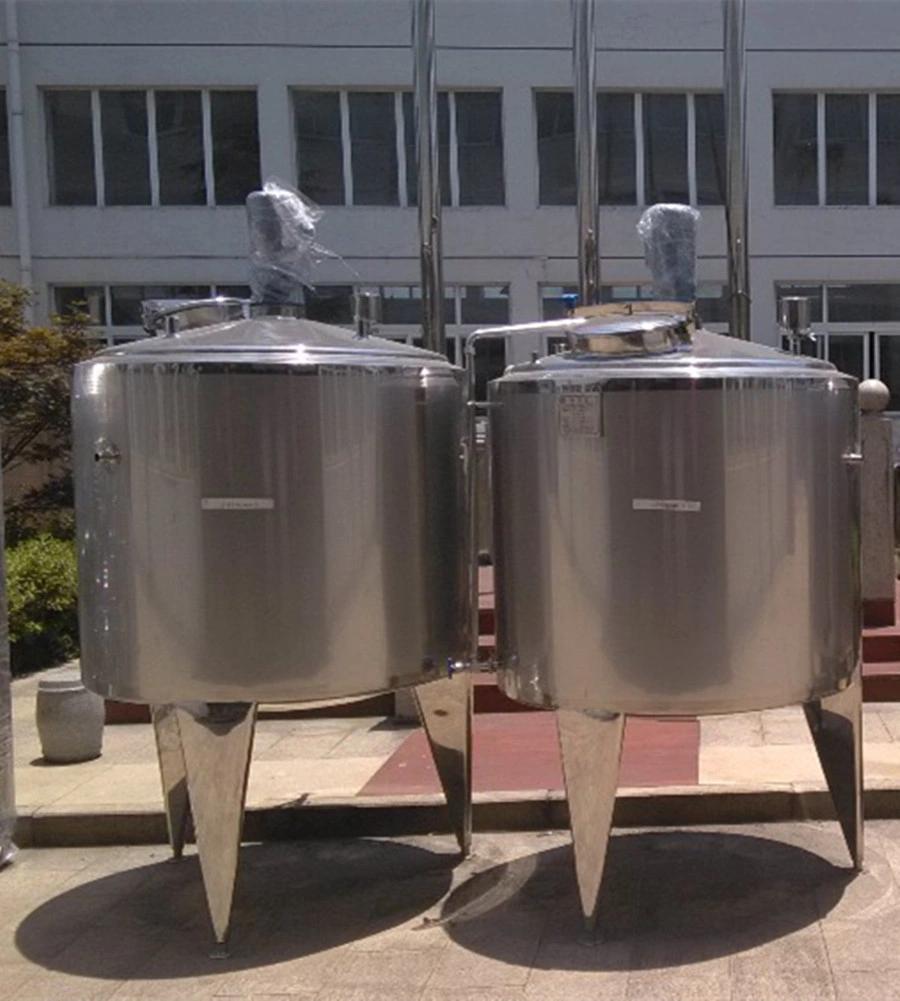

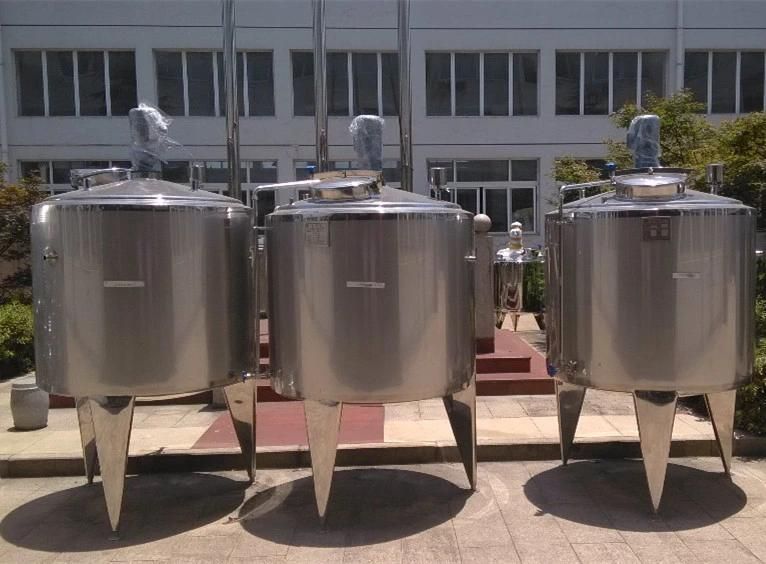

Sanitary Stainless Steel Food Grade Fruit Juice Processing Tank Price

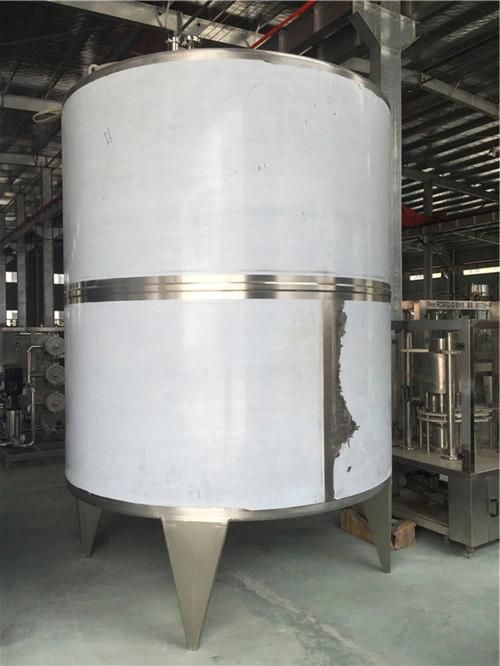

The follow is the tank we made for UK
(1)  Stainless Steel Steam Tank is Widely used for process such as formulating, dissolving, heating, cooling, warm-keeping, cultivating, disinfecting and storage.
(2) Mixing speed reducer should be installed on the top or bottom of the tank according to requirement. Mixing type: Mechanical, magnetic and air mixing systems. Mixing vane type: Anchor type, pusher type, spiral type.
(3) Quick-open manhole of the mixing tank integrated visual mirror and lamp thermometer liquid level gauge interface air breather interface cleaning interface feed liquid inlet and outlet, backup port steam inlet and outlet condensed water inlet and outlet.

Effective volume	Dimension of tank	Total height	Diameter of inlet&outlet
(L)	(mm)	(mm)	(mm)
500	840*1000	2250	38
600	920*1000	2300	38
700	990*1000	2300	38
800	950*1220	2500	38
900	1010*1220	2500	38
1000	1060*1500	2850	51
1500	1160*1500	2850	51
2000	1340*1500	2900	51
3000	1410*2000	3400	51
4000	1620*2000	3450	51
5000	1810*2000	3500	51
6000	1980*2000	3550	51
7000	1930*2440	4000	51
8000	2060*2440	4000	51
9000	2180*2440	4050	51
10000	2300*2440	4050	51
12000	2270*3000	4600	51
15000	2530*3000	4700	51
20000	2640*3660	5400	51

Sanitary Stainless Steel Food Grade Fruit Juice Processing Tank Price
