Basic Info.

Model NO. RCSJ RCDJ Computerized Customized Certification ISO9001:2008, CE Color Could Be Customized After-Sale Service Eers Available to Service Machinery Overseas Material of Recycling Machines Stainless Steel Electric Grid 3p 220~440V 50 or 60Hz Transport Package Wrap Film Specification TSWL300~3000 Trademark RETECH Origin China HS Code 8477800000 Production Capacity 300~3000kg/H

Product Description

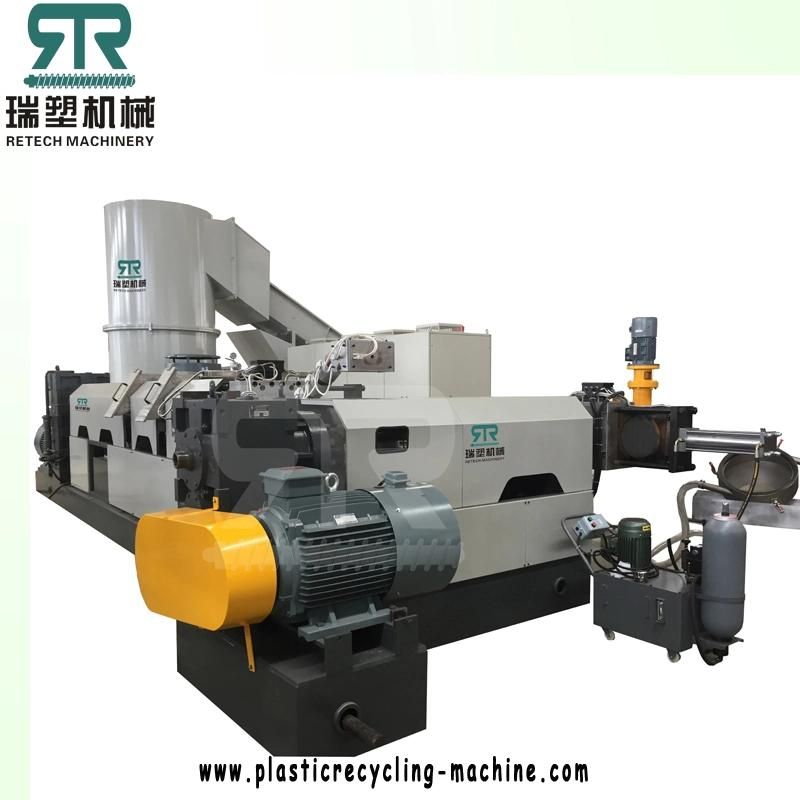

Advanced Design Agglomerating Pelletizing Machine for PE film PP Woven/Nonwoven Bags

Application:
Model:RCDJ Series
Plastic: PP PE Film recycling line
Capacity:150kg/h-1200kg/hFeatures:
RCDJ Advanced Design Agglomerating Pelletizing Machine for PE film PP Woven/Nonwoven Bags is working to process all kinds of LDPE/HDPE film,such as leftover material,useless shopping bag film,logistic packaging film,etc.

Due to the character of HDPE film,it is high-density polyethylene,so it is with better stretchability compared to LDPE film.When recycling/pelletizing the HDPE film/bag,it is thought and recommended to use bigger motor for drive because of the low flow performance.

Models:

Model	Screw Dia	Power Consumption	Labor needed	Capacity(PE)
RC85	85mm	90kw/h	1-2	200-260KG/H
RC100	100mm	135kw/h	1-2	250-320KG/H
RC130	130mm	190kw/h	2-3	450-550KG/H
RC160	160mm	270kw/h	2-3	600-750KG/H
RC180	180mm	420kw/h	3-4	800-1000KG/H

Machine Main Parts:

1.Feeding belt conveyor
Usually the HDPE film is collected in bale or loosen shape,it needs an operator to feeding the film into compactor unit. A metal detector device is optional here for checking the metals inside of film, it will detecting and alarming while finding the metals and stop the belt immedietely.
This design is to protect the blades in compactor and protect the screw damage.

2.Compactor

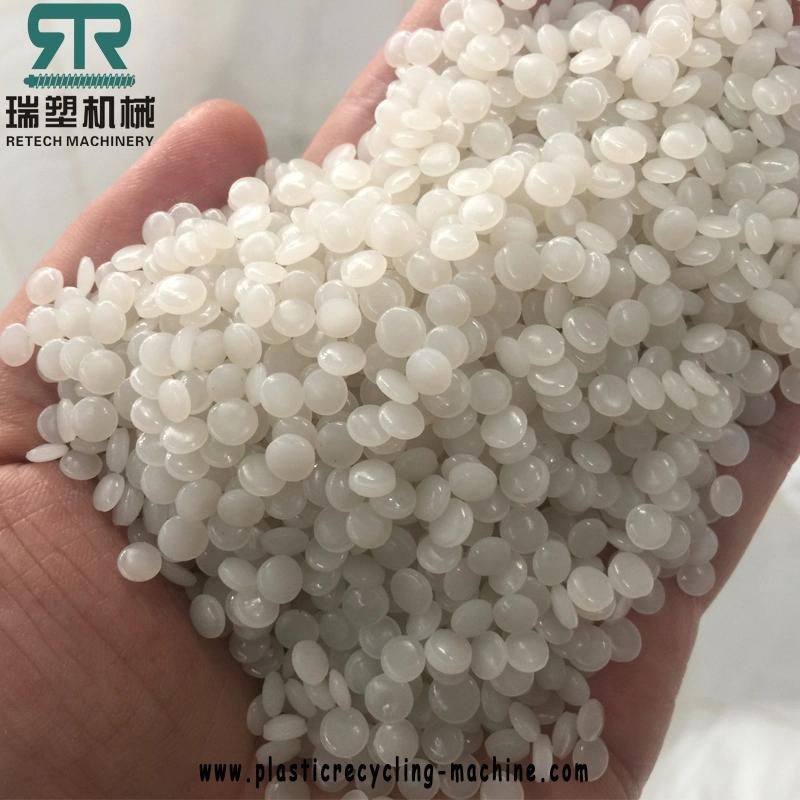

With rotation/stationary blades to cutting inside, the compactor will grind the big film into very small thin film. Cutting create heating and make theHDPE film half-plastifing into granules shape.
3.Extrusion/Film MeltHDPE film after cut and agglomeration will be feeded into screw extruder in a short time.The electric heated screw in a special designed structure will melting the film. A powerful degassing station must be included here if the foil material is printed.
In the end of screw,we put a sensor the feel the pressure in the screen changing net.If the current here is overload,it will keep alarming and warn the operator to change the nets.
4.Water ring die face cutting systemHorizontal water ring cutting system is more easy operate.Cold water will cooling the hot granules immedietely.A inclined stainless steel flume will bring the cooled granules into dryer.
5.Granules Dewatering DryerWe have 2 options here for drying the wet cooled granules. One is vibrating screen,another is centrifuge force dryer.
