• Model NO.：HZ-SB
• Welding Technology：Silver,High Frequency Welding
• Feature：Smooth Cutting
• Application：Granite, Ceramic, Tile, etc.
• Supplier Type：Manufacturer
• Thickness：2.6mm
• Shape：Round
• Kind：Diamond Wheel
• Manufacturing Arts：Sinter
• Usage：Stone Cutting
• Brand：Huazuan, or OEM
• Saw Blade External Diameter：180mm
• Specification：7", 180mmx8mmx22.23mm
• Customized：Customized
• Transport Package：Carton, or Wooden Case
• Trademark：HUAZUAN, OR OEM
• Origin：Quanzhou, Fujian, China
• HS Code：82023910
• Production Capacity：5000PCS Per Month

Product description

Product name

hot press sintered diamond continuous rim cutter for stone ceramic tile,  7" granite saw blade

Brand:

Huazuan or OEM



Specification:





1.Size:4"-9"(105mm-230mm)

2.Segment height:8/10/12mm

3.Inner hole: 22.23mm/20mm/25.4mm/16mm





Features:



Dry cut; Multi-application saw blades suitable for fast, free and smooth cutting.





Application:



Tile,bricks,brick blocks,concrete,marble,granite,stone, etc.







Machinery:



Angle grinder,circular saw,table saw, etc.



Technology:

Hot pressed sintered





Quality Control:



1. Strict Raw material inspection

2. Professional formula

3. Production process control(PDCA+7S Principle)

4. Do some cutting testing to sure the using function

5. Products pass SGS inspection



MOQ:

100PCS for each size

Payment term:

TT,western union,PAYPAL etc

Package:

Plastic bag/paper bag+wooden bag or custom made

Delivery:

7-12 working days after receiving payment.

Certification

ISO9001 and SGS product quality control

Main market:

Germany, Spain, Poland, Russia, USA, Brazil, Egypt etc.

Diameter

Bore

Segment

Segment

mm

inch

Size(mm/inch)

Thickness(mm)

Height(mm)

105

4"

20/0.787"

1.8

8/10/12

110

4.3"

20/0.787"

1.8

8/10/12

115

4.5"

22.23/0.875"

1.8

8/10/12

125

5"

22.23/0.875"

2.0

8/10/12

150

6"

22.23/0.875"

2.2

8/10/12

180

7"

22.23/0.875"

2.4

8/10/12

200

8"

22.23/0.875"

2.4

8/10/12

230

9"

22.23/0.875"

2.6

8/10/12

250

10"

22.23/0.875"

2.8

8/10/12

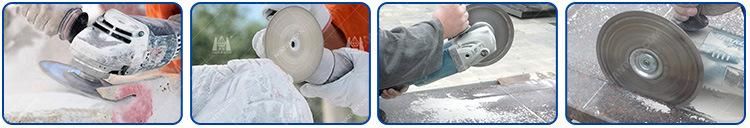

Application:



Packing:


Company Information:

Quanzhou Huazuan Diamond Tools Co., Ltd., established in 1994 and covering an area of more than 10,000 square meters, is an enterprise with more than 20 years' experience in research, development and production. "HUAZUAN" means made in China, as solid and stable as diamond. Driven by diamond saw blade, diamond segment, diamond wire saw and diamond core drill bit as for main products, company produce a serious of high quality diamond grinding and polishing tools.

FAQ:

Q:Are you a factory or trading company?
A:We are factory.



Q:Where is your factory located?How can I visit you?
A:Our factory located in Quanzhou City,Fujian Province,China.You can fly to Xiamen International Air Port or Jinjiang Air Port,and we will you pick you up.Welcome you to visit our factory.



Q. How is your quality?
A. We have a very seriously control system(ISO 9001 and SGS product quality control) and 100% quality inspection Before Shipment.



Q.What we should do if the diamond core drill bit you order can not run well?

A:Please don't worry we will solve this problem with yourside.

Give us detailed report.Analyze the reason.Try to find a way to solve the problem.

If it's our problem and not possible to solve then will give replacement.



Q. Do you have different quality for different kind of stone?
A. Yes, according hardness of stone and stone's feature, we have different typology respectively.



Q. If we need technical support of diamond core drill bit, can you offer us?
A. Yes, we have an experienced team, offering our customers additional benefits with specific advice, by our product managerment staff, engineers and technicians.
