• Model NO.：M type segment diamond core bit
• Transport Package：Color Box,White Paper Box, Brown Paper Box
• Specification：Dia 25mm-108mm
• Trademark：BSP TOOLS
• Origin：China
• HS Code：8207191000
• Production Capacity：50000,Year

Basic Info.

Model NO. M type segment diamond core bit Transport Package Color Box/White Paper Box/ Brown Paper Box Specification Dia 25mm-108mm Trademark BSP TOOLS Origin China HS Code 8207191000 Production Capacity 50000/Year

Product Description

BSP tools manufacture supply Straight segment wet core drill bit with 1 year warranty. We devoted ourselves to diamond tools many years, covering most of Europe and Australia market. We are expecting become your long term partner in china.

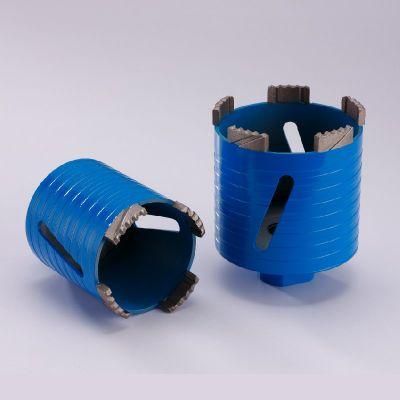

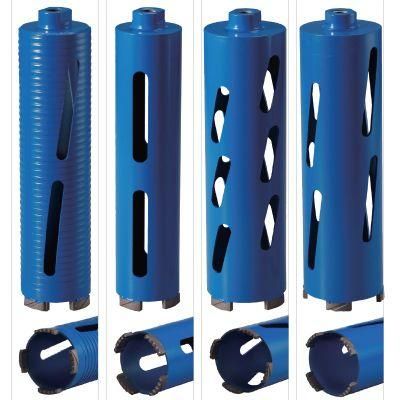

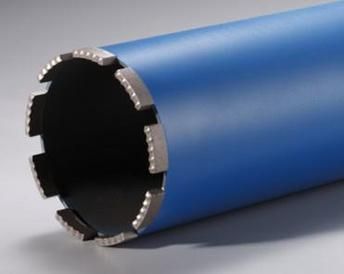

M type segment diamond core bit

1.Product Introduction of the M type segment diamond core bit
Our diamond core drill bit segment fit on a high-speed drilling machine. It provides the best drilling performance and can drill through the toughest reinforced concrete or concrete wall with water.

2.Product Parameter (Specification) of the M type segment diamond core bit

DIAMETER(mm)	SEGMENT NO.	SEG. SIZE (mm)	DIAMETER(mm)	SEGMENT NO.	SEG. SIZE (mm)
25	3	15X4.0X10	114	10	24X4.0X10
27	3	15X4.0X10	122	10	24X4.0X10
32	4	15X4.0X10	127	11	24X4.0X10
36	5	15X4.0X10	132	11	24X4.0X10
38	4	20X3.5X10	142	11	24X4.0X10
42	4	20X3.5X10	152	12	24X4.0X10
46	5	20X3.5X10	160	12	24X4.0X10
52	5	24X3.5X10	165	12	24X4.0X10
56	5	24X3.5X10	172	14	24X4.0X10
63	6	24X3.5X10	180	14	24X4.0X10
67	6	24X3.5X10	200	14	24X4.5X10
72	7	24X3.5X10	215	15	24X4.5X10
76	7	24X3.5X10	230	15	24X4.5X10
83	7	24X3.5X10	250	16	24X4.5X10
89	8	24X3.5X10	254	16	24X4.5X10
92	8	24X3.5X10	305	17	24X5.0X10
102	9	24X4.0X10	355	18	24X5.0X10
108	10	24X4.0X10

3.Product Feature And Application of the M type segment diamond core bit
High frequency/Brazed available;Idea for drilling the faucet mounting holes in concrete wall or reinforced concrete floor;Special bond provides long life and aggressive drilling speed;Use wet drilling for concrete or reinforced concrete.


4.Product Details of the M type segment diamond core bit
BSP tools manufacture provide diameter range of M type segment diamond core bit is from 25--355mm for construction market.

5.Product Qualification of the M type segment diamond core bit
Our M type segment diamond core bit has ISO:9001 quality certificate

6.Deliver,Shipping And Serving of the M type segment diamond core bit
The M type segment diamond core bit samples can be sent within one week and bulk order can be finished within 40 days . Shipping by air or sea all is ok. We provide customer minimum 1 year warranty.

7.FAQ

Do you have MOQ?
OEM is 100pcs MOQ .ODM 200PCS MOQ

What is the package

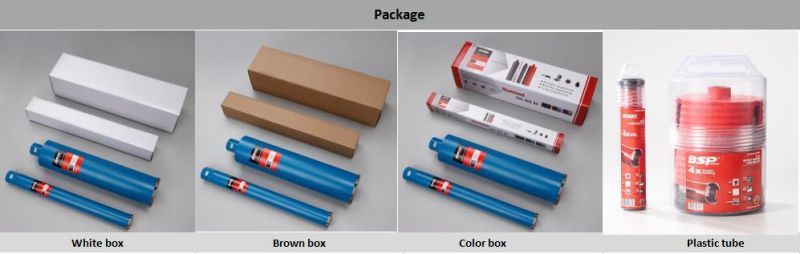

BSP TOOLS offer wooden case ,color box ,white box and brown box for the package for bigger size .

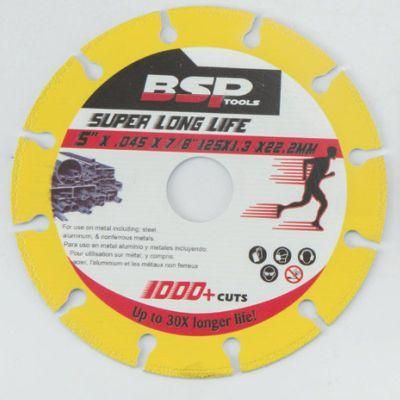

BSP TOOLS offer color box ,single blister package and double package for small size diamond blades.

What information you need to provide the price?
Better tell us the power and  RPM of your machine, if you have specific cutting request .
