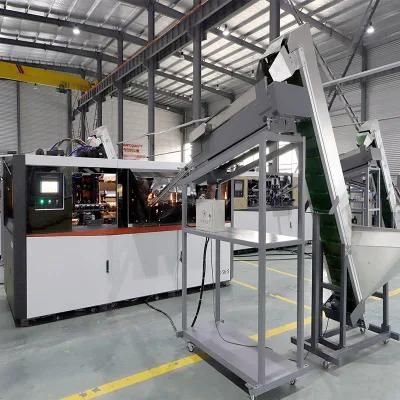

9 Cavity Water Bottle Pet Bottle High Speed Bottle Blowing Machine
Ningbo Riset Import And Export Co., Ltd.Base Info
Description
ITEMUNIT BX-S9 CONTAINER Max.container volume L 0.6 Max.neck outer diameter mm 38 Max.container diameter mm 68 Max.container height mm 240 Number of cavity pcs 9 Theoretical output bph 10000 ELECTRICAL Max.heating power kw 65 Installed power kw 68 COMPRESSED AIR Operating pressure Mpa 0.7 Low pressure air consuming L/min 3000 Blowing pressure Mpa <3.5 High pressure air consuming L/min 7000-8000 CHILLER WATER Pressure Mpa 0.3-0.5 Temperature degree 10-12 Flow rate L/min 30 MACHINE DIMENSION Size(L*W*H) m 5.4×2.05×2.4 Weight kg 7000
