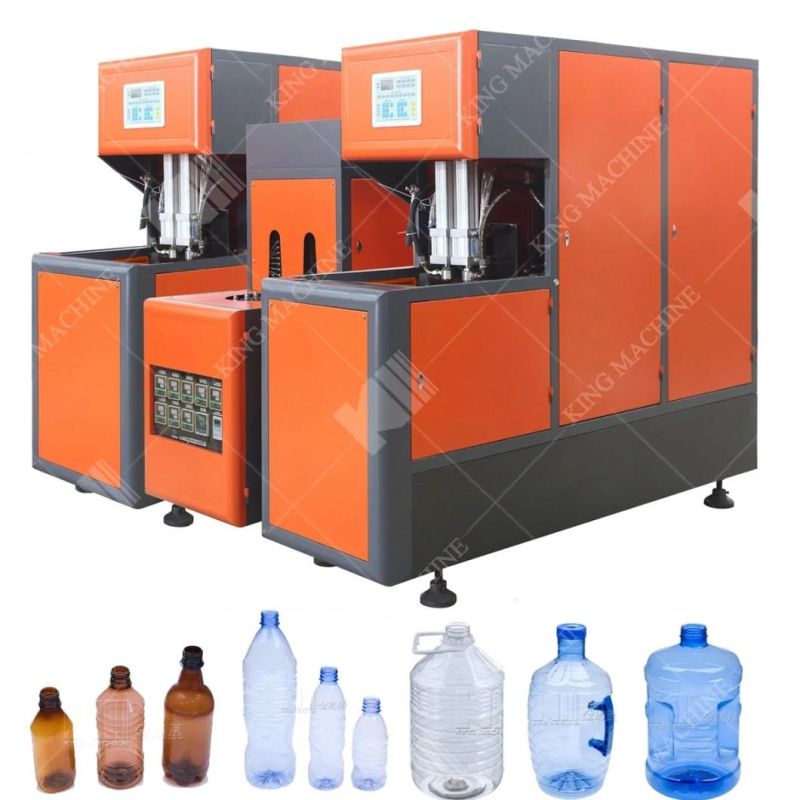

1LTR 6liter and 19 Litre One Machine All in One Semi-Automatic Pet Bottle Blowing Machine
Xiangtan Huaxing Material Co., Ltd.Base Info
Description
Blow Molding MachineDimension mm 1600*600*1610mm Weight kg 500 Bottle volume (max) ml 2000 Bottle volume (min) ml 50 Bottle Neck Diameter (max) mm 40 Bottle Neck Diameter (min) mm 18 Body Diameter (max) mm 125 Body Height( max) mm 420 Number of Cavities mold 2 Production output pcs/h 1200-1600BPH Clamping force T 5.7(56KN) Mold thickness mm 200(max) Mold width mm 360x390 Space between Tie-bars mm 120-220 Diameter of Tie-bars mm 63 Scope of Tie-bars mm 405 Mold stroke mm 160 Stretching stroke (max) mm 420 Working pressure Mpa 0.8-1.0Mpa Blowing pressure Mpa 2.0-3.0Mpa Voltage/Power V/KW 220V/1KW Weight Kg 500 Pre-heater
Dimension mm 1870*630*1450mm Weight kg 260 Voltage/Power V/KW 380V/14KW
