Basic Info.

Model NO. SJZ65 Main Motor Siemens Beide Inverter ABB Main Electrics Siemens or Schneider Temperature Control Omron Machine Color White, Grey or According to Requirement Transport Package Wooden Case, Film Packing Specification 300mm, 600mm, 800mm Trademark Sunrise Machinery Origin China HS Code 84778000 Production Capacity 100 Set /Year

Product Description

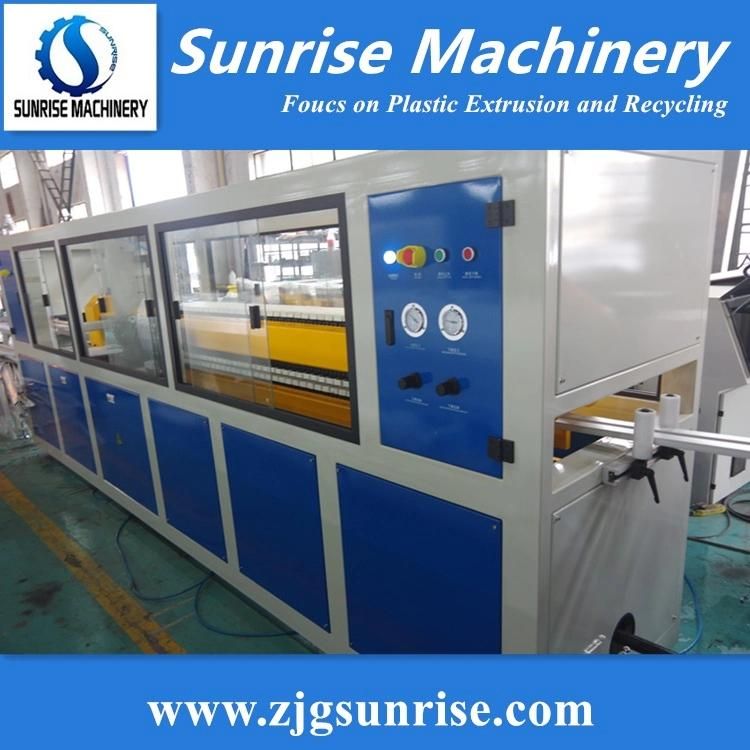

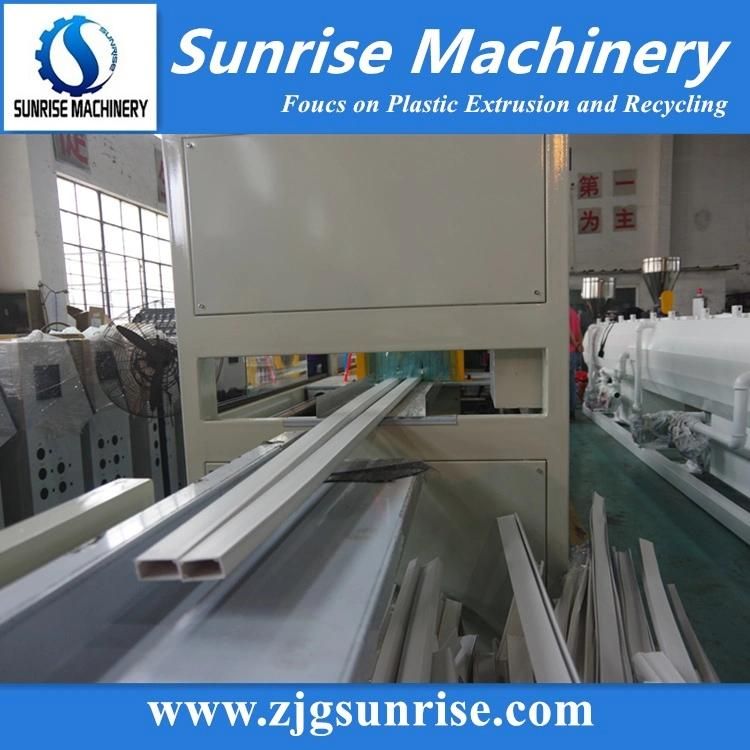

PVC Trunking Profile Making Machine

 The PVC profile extrusion line could produce PVC window profile, door frame, wall panel, trunking, board, ceiling, etc. This machine also could produce wood plastic profile ( WPC).

 High quality, good price and reliable performance. Please don't be hesitate to contact us for more details. And we also warmly welcome you to visit our factory.

 The PVC Profile production line includes the below machines;
 1. Conical Twin Screw Extruder
2. Extrusion Mold ( The buyer shall prepare the drawing to make the mold)

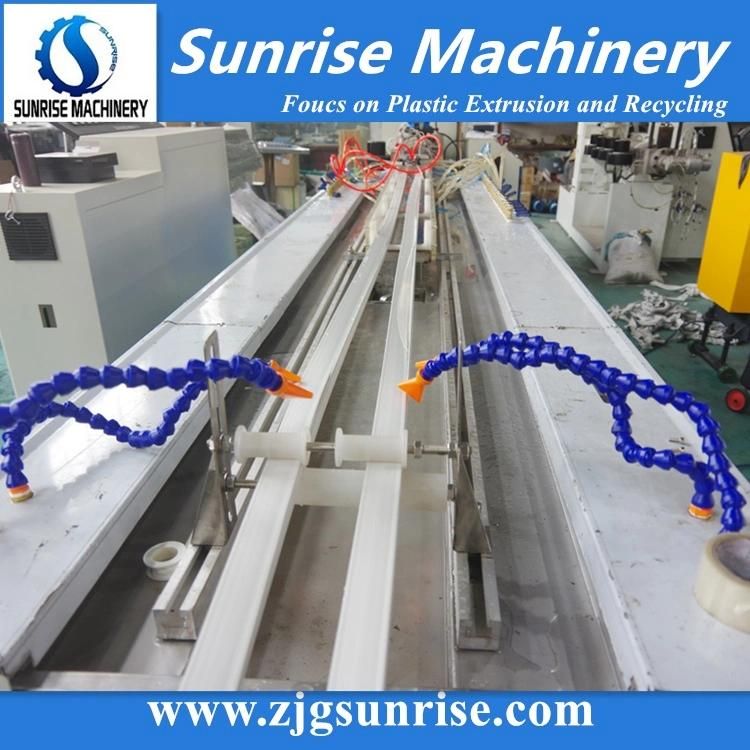

3. Vacuum Calibration Table

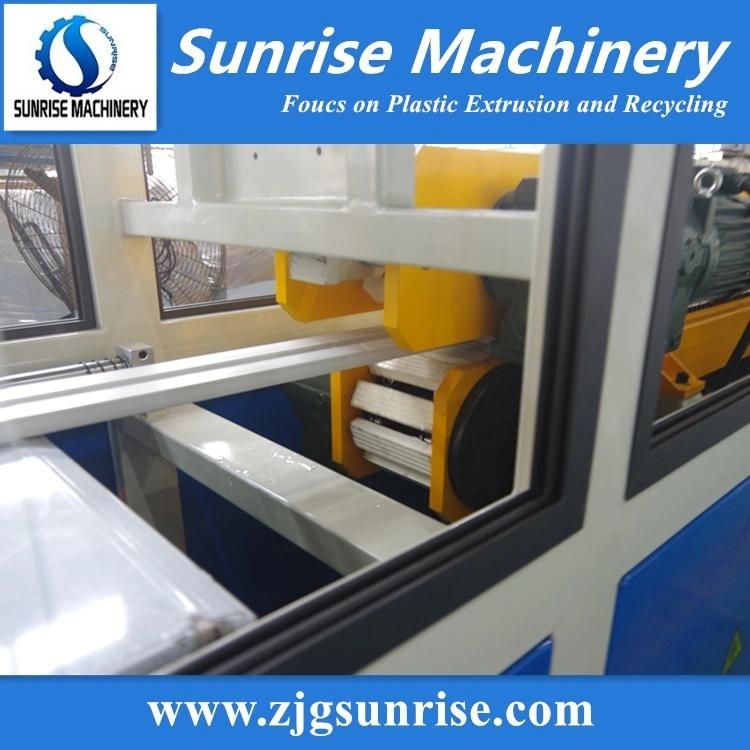

4. Haul Off and Cutter
5. Stacker
6. PVC Mixer ( for raw material preparation)
7. Crusher and Milling Machine ( for recycle the waste and could reuse for profile production)

Our conical twin screw extruders are made of Siemens Beide main motor, ABB inverter, Omron temperature controller, and Chinese famous brand gearbox, etc. The screw and barrel is under nitriding process for longer using life.



Model	SJZ51/105	SJZ55/100	SJZ65/132	SJZ80/156	SJZ92/188
Screw diameter(mm)	51/105	55/100	65/132	80/156	92/188
Quantity of screw	2	2	2	2	2
Max. rotation speed of screw(r/min)	40	38	38	37	36
Effective length of screw(mm)	1200	1200	1440	1800	2500
Main motor power(kw)	18.5	22	37	55	110
Productuion capacity(kg/h)	100	150	250	400	750
Center height(mm)	1000	1000	1000	1100	1200
