• Model NO.：KQ Series
• Voltage：380V
• Customized：Customized
• Function：Electric Steam Heating Mixing Jacket Bucket with M
• Agitator Speed：36rpm, 48rpm, 960rpm, Adjustable Mixer
• Stainless Steel Degree：SS304,SS316
• Heating and Mixing Tank：for Heating and Mixing Liquid, Liquid and Powder
• Jacket Tank：Double Jackets Mixing Tank
• Mixing Tank Capacity：100L to 40000litres
• Tank design：Customized
• CIP Cleaning Ball：Included
• Tank Function：Heating, Cooling , Mixing ,Pasteurizing Holding
• Tank Type：Double Jacket
• Motor Brand：Siemens ,ABB ,China Brand
• Level Meter：Yes
• Thermometer：Yes
• Pressure Gauge：Yes
• MOQ：1set
• Transport Package：Standard Export Wooden Box
• Specification：ISO
• Trademark：KQ
• Origin：Shanghai China
• HS Code：8479820090
• Production Capacity：200L To30000L

Basic Info.

Model NO. KQ Series Voltage 380V Customized Customized Function Electric Steam Heating Mixing Jacket Bucket with M Agitator Speed 36rpm, 48rpm, 960rpm, Adjustable Mixer Stainless Steel Degree SS304,SS316 Heating and Mixing Tank for Heating and Mixing Liquid, Liquid and Powder Jacket Tank Double Jackets Mixing Tank Mixing Tank Capacity 100L to 40000litres Tank design Customized CIP Cleaning Ball Included Tank Function Heating, Cooling , Mixing ,Pasteurizing Holding Tank Type Double Jacket Motor Brand Siemens /ABB /China Brand Level Meter Yes Thermometer Yes Pressure Gauge Yes MOQ 1set Transport Package Standard Export Wooden Box Specification ISO Trademark KQ Origin Shanghai China HS Code 8479820090 Production Capacity 200L To30000L

Product Description

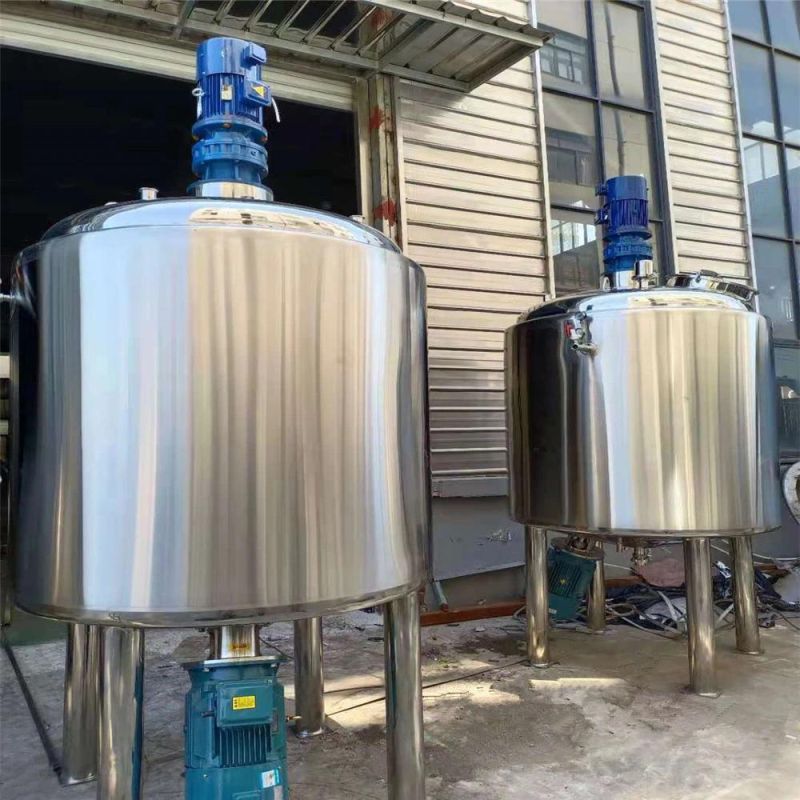

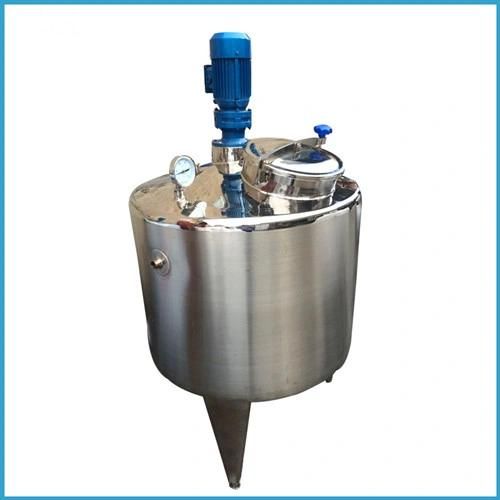

Electric Steam Heating Mixing Jacket Bucket with Mixing Agitator

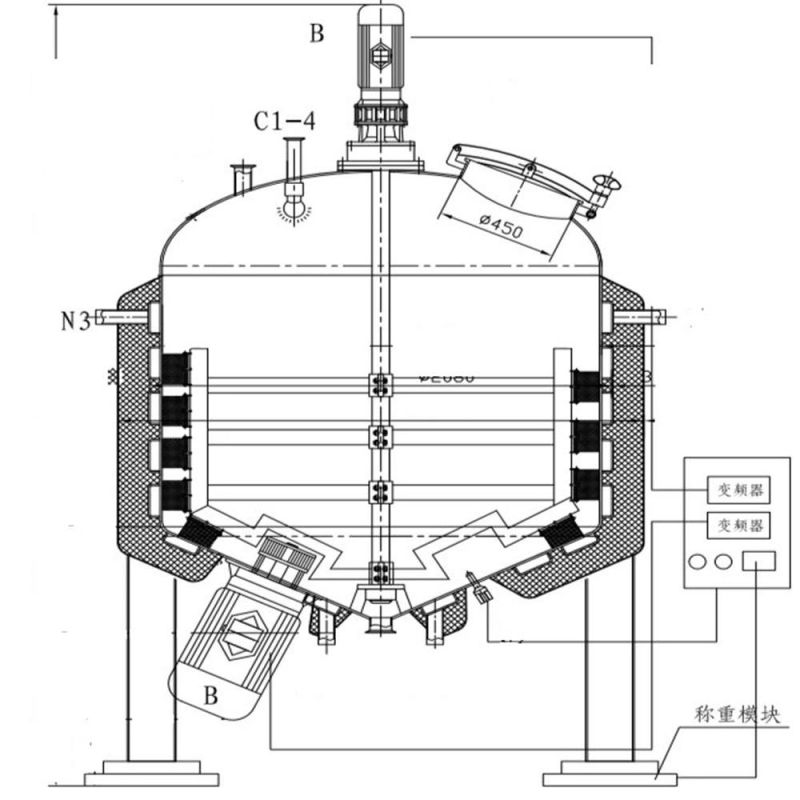

Steam heating JACKETED TANK with mixing agitator
Three-layered cooling and heating tank is mainly used for storing, mixing and heating liquid. It's the ideal mixing, heating and cooling equipment for chemical, food and beverage factory and pharmacy industry.

Material: Ss304
* Type: With Jacket and insulation
* Internal shell thickness: 3 mm
* Jacket thickness: 3 mm
*PU INSULATION WALL:50MM
* Outer shell thickness: 1.5 mm
* Appearance: Ellipsoidal head top and down manhole and pipe will be as the picture you sent to us
* Accessories:
(1) Manhole covers
(2) Charging/discharging hole at the bottom,
(3) CIP Cleaning ball
(4) Steam heating tube
(5) Rack & blender etc.
 (6) the electric motor

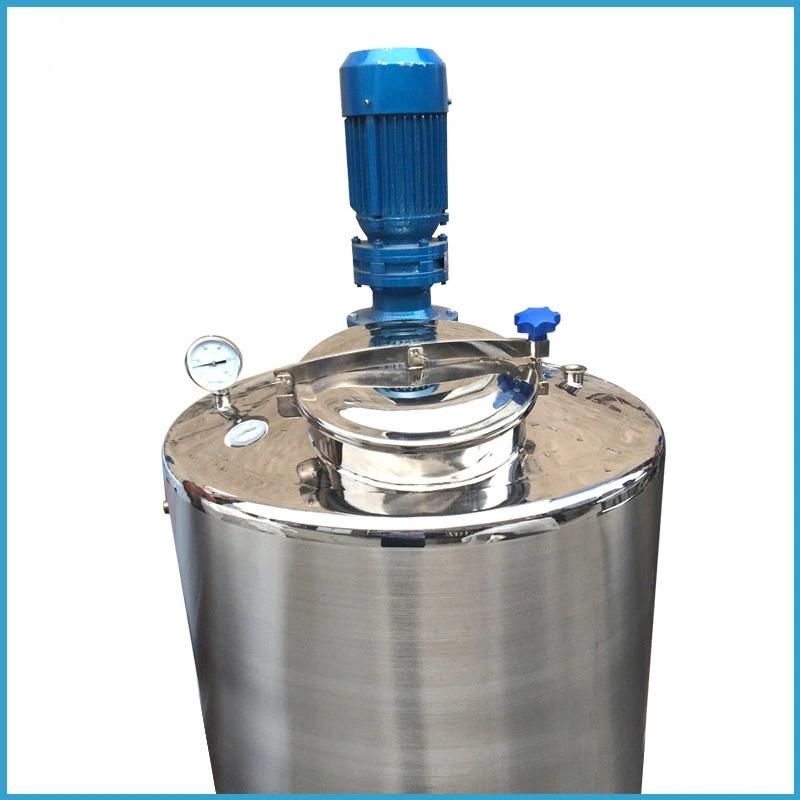

agitator blending tank
1. more than 10 years experience
2.capacity: 100-5000L
3.Manufacturer
4.Custom-made solution

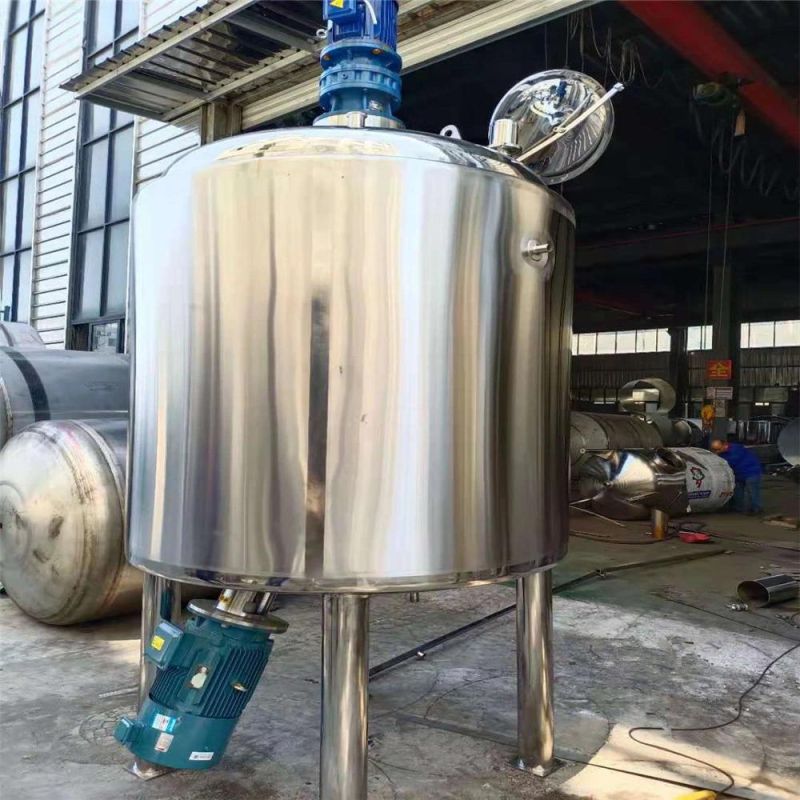

Steam heating chemical agitator tank blending tank

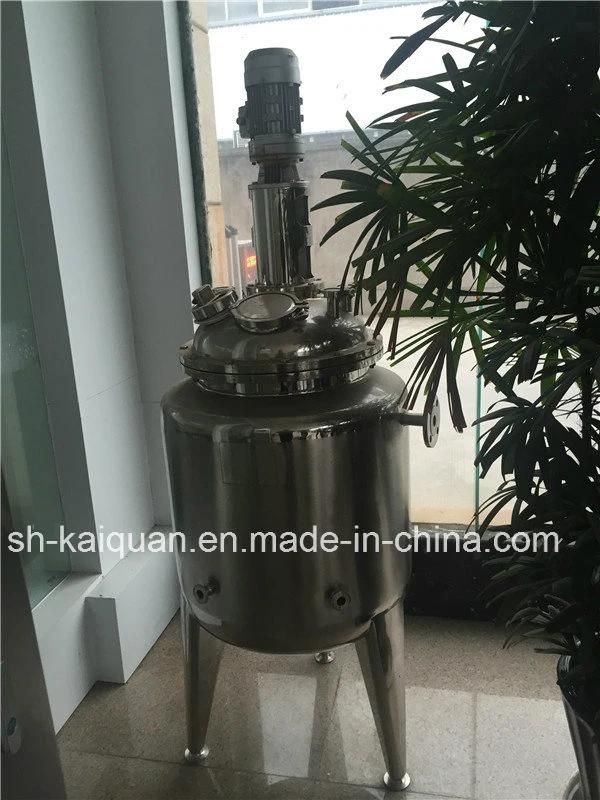

PME Multi-function Blending Reactive Mixer/ vacuum homogenizer mixer

High speed disperser, might mixing and disperse viscously. Solid and liquid raw material can dissolve material which is hard to dissolve such as AESAESALSA during liquid production which can save energy consumption and shorten production period.

Main blender adopts stepless speed variator device and under low temperature and high viscosity condition, less air bubble will be formed;

it is suitable to produce liquid washing products;

it can give out material directly or matched with screw pump.

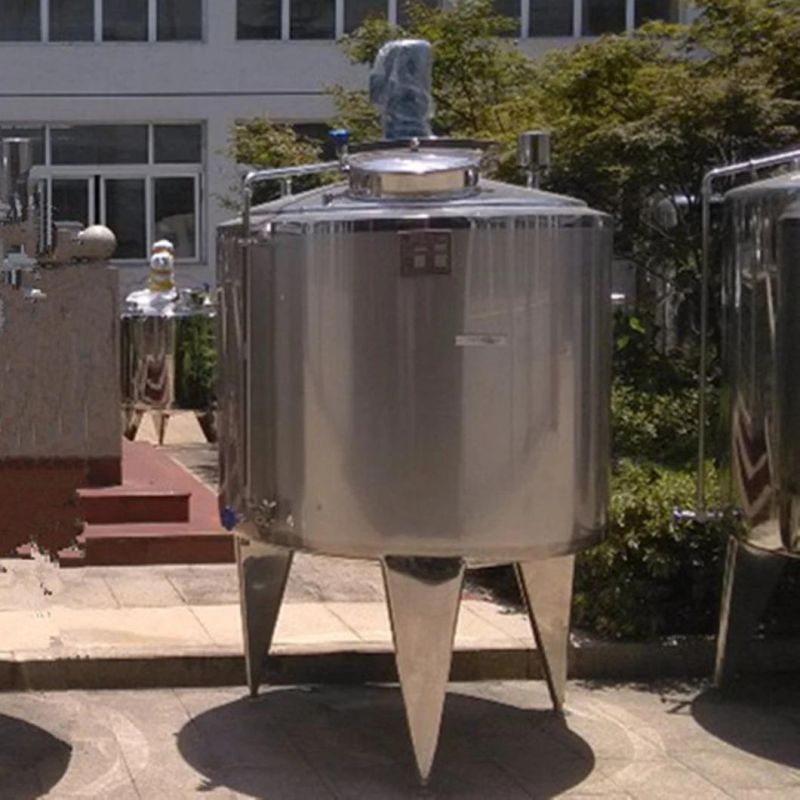

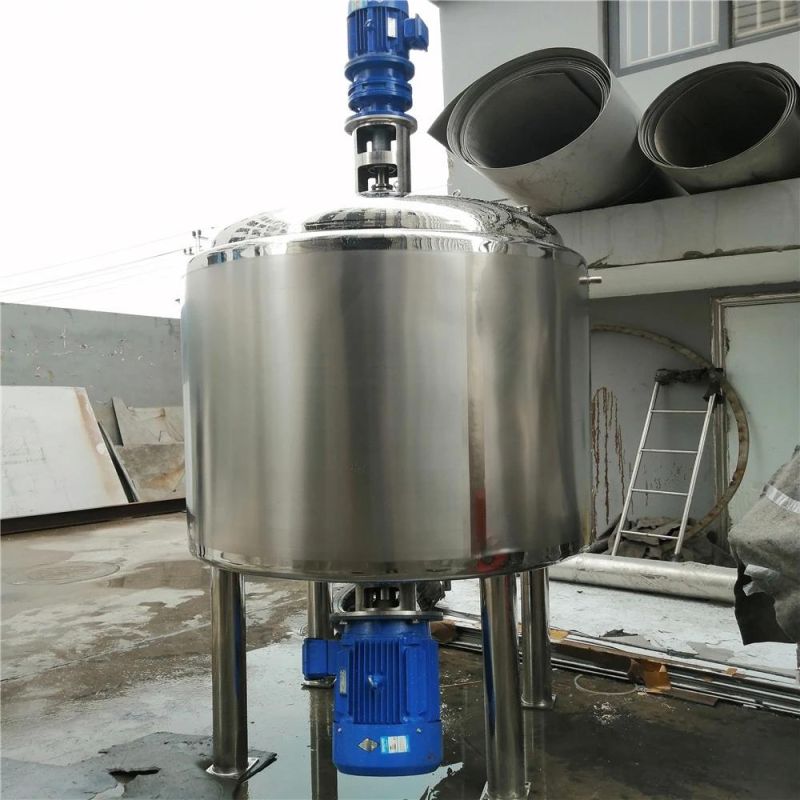

Double wall steam heating tank

le-layer tanks are widely applied in the beverage ,food,dairy,pharmaceutical,chemical and process indusries used as blender tank,buffer tank,and storage tank,which cleanable to sanitary standards.

Doublewall steam heating tank configuration:

• manhole
• CIP cleaner
• adjustable trangle bracket
• ladder
• the rmometer
• liquid lever meter and controller
• eddy-proof board
• dismountable inlet assembly
• sanitary breathing cover

Specifications

we can supplies single-layer,dual-layer,and three-layer stainless tanks with or with out agitation to blend product.


Specifications

product name: Blending tank / Mixing tank
MOQ: 1 set
MOC: Stainless steel grade 304/306L
OEM experience: 30yea

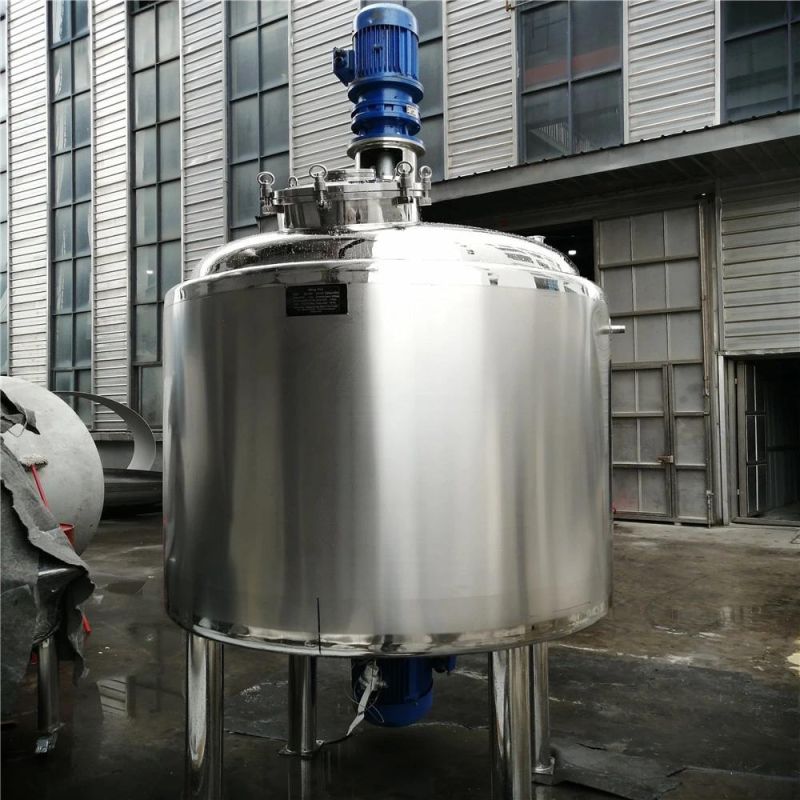

Product Name

Vertical mixer, Blending tank, Mixing vessel

Applicable range:
1. Used as liquid storage tank, liquid composing tank, temporary storage tank and liquid blending tank etc.

2. Ideal in fields such as foods, dairy products, fruit juice beverages, pharmacy, chemical industry and biological engineering etc.

Structure characteristics
1. Adopt structure of internal tank and external package, with heat preservation materials inside.
2. Materials are all sanitary stainless steel.
3. Humanized structure design and easy to operate.
4. Transition area of interior wall on tank adopts arc for transition to ensure no dead comer of sanitation.

Configuration of tank
1. Quick open manhole.
2. Various types of CIP cleaners.
3. Fly and insect resistant sanitary breathing cover.
4. Adjustable triangular bracket.
5. Dismountable materials input pipe assembly.
6. Thermometer (According to customer requirements ).
7. Ladder (According to customer requirements).
8. Side blender.
9. Liquid level meter and lever controller (According to customer requirements).
10. Eddy-proof board.

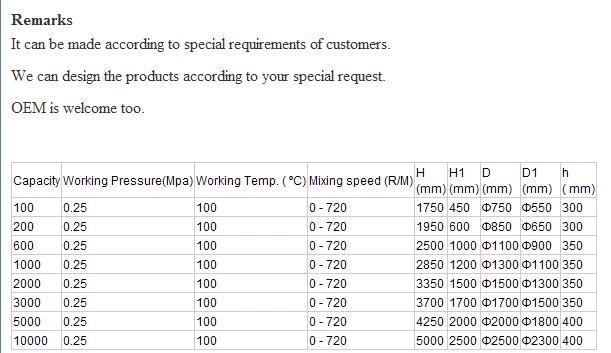

Remarks
It can be made according to special requirements of customers.

We can design the products according to your special request.

OEM is welcome too.




1

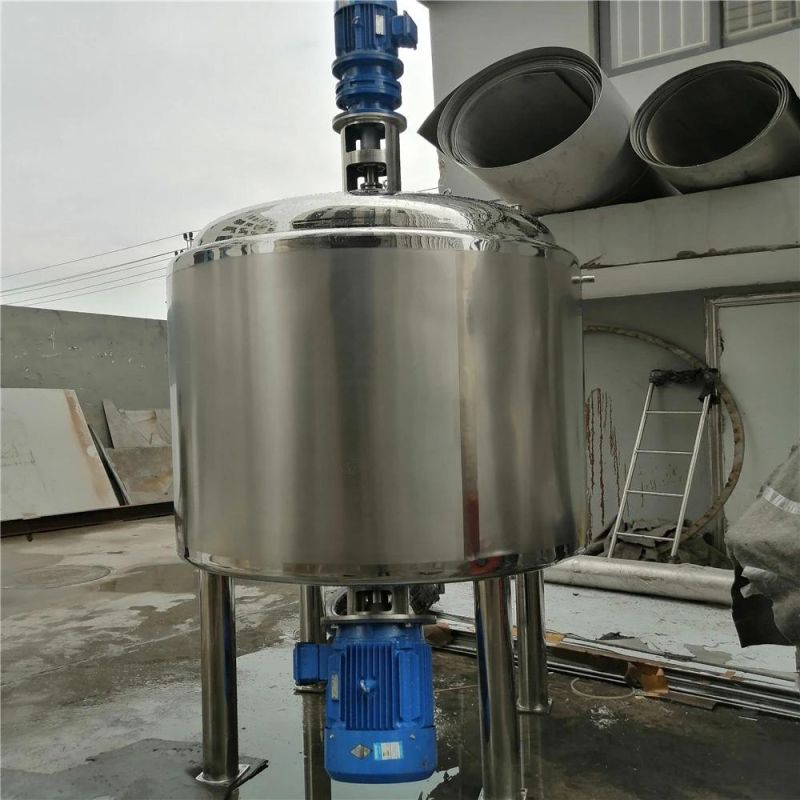

sugar mixing tank

TankCapacity(L)	200, SS304	300, SS304	500, SS304	1000,SS304
REV	36r/min	36r/min	36r/min	36r/min
Electric motor of the agitator	0.55KW,380v,50hz	0.75KW,380v,50hz	0.75KW,380v,50hz	1.1KW,380v,50hz
Heating Area(M2)	0.9	1.1	1.9	4.5
Material Input/output(DN MM)	38	38	38	50
OUTSIDE DEMENSION(L*W*H)MM	900*900*1600	1000*1000*1500	1100*1100*1700	1400*1400*1750
GROSS WEIGHT(KGS)	150	200	300	450

Electric Steam Heating Mixing Jacket Bucket with Mixing Agitator
