1-3 Tons Uht Sterilizer Tube in Tube Sterilizer Tubular Sterilizer Tube Sterilizer ...
Nanjing Lipack Import and Export Co., Ltd.- After-sales Service：Field Installation, Commissioning & Training
- Warranty：One Year
- Certification：CE, ISO9001
- Power Source：Electric
- Process：Manufacture
- Automatic Grade：Automatic
Base Info
- Model NO.：JP-LRY
- Application：Manufacture
- Customized：Customized
- Raw Material：SUS304,SUS316,Titanium
- Product Type (Brix)：4%|8%|16%|20%|24%|28%|30%|32%|36%|38%|40%|56%|72%
- Products Package Type：Can, Bottle, Pouch, Aseptic Bag etc.
- Degree of Automation：High or to Be Customized
- Compatibility & Expandability：Excellent
- Transport Package：Accroding to Your Requirements
- Specification：125kg-125tons per hour
- Trademark：SHJUMP
- Origin：China
- HS Code：84388000
- Production Capacity：1000
Description
Basic Info.
Model NO. JP-LRY Application Manufacture Customized Customized Raw Material SUS304/SUS316/Titanium Product Type (Brix) 4%|8%|16%|20%|24%|28%|30%|32%|36%|38%|40%|56%|72% Products Package Type Can, Bottle, Pouch, Aseptic Bag etc. Degree of Automation High or to Be Customized Compatibility & Expandability Excellent Transport Package Accroding to Your Requirements Specification 125kg-125tons per hour Trademark SHJUMP Origin China HS Code 84388000 Production Capacity 1000Product Description

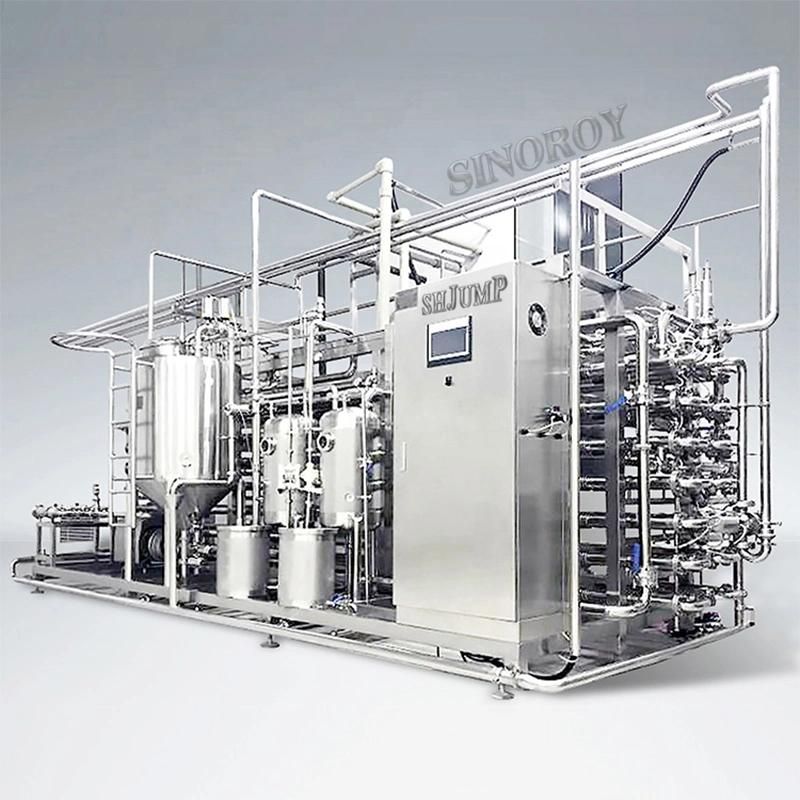

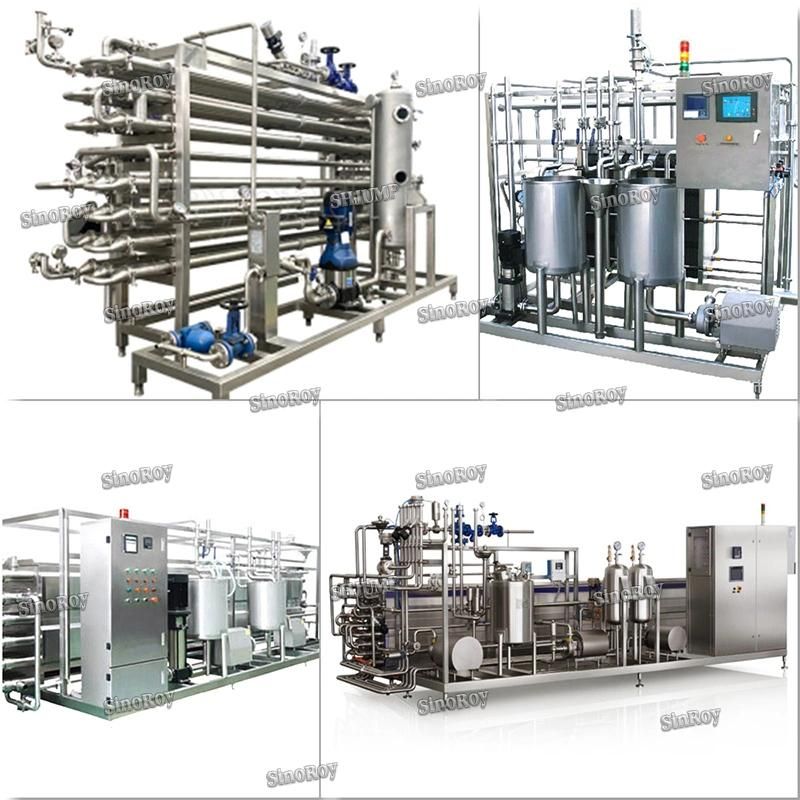

Tubular U.H.T Sterilizer
Technology
1) 5ºC→65ºC(homogenizer)→137ºC(3-5S)→20ºC-25ºC, for aseptic filling.
2) 5ºC→65ºC(homogenizer)→115ºC/125ºC(5-15S)→88ºC-90ºC, for hot filling.
3) 5ºC→65ºC(homogenizer)→115ºC/125ºC(5-15S)→75ºC-78ºC, for middle temperature filling.
Detailed description
Mainly used for aseptic filling packing types products, such as Tetra paper brick, Tetra paper Pillow, aseptic soft plastic bag, aseptic PET bottles, especially used for liquid milk and juice.
Tubular sterilizer performs the hot processing on the liquid foods and beverage. Compared to the other model, it has the following characteristics:
>> High heat efficiency, 90% of heat can be reused after the product be processed.
>> Temperature difference between the product and the heating medium is small, so the heating is gentle.
>> It is of high degree automatic, can automatically control the CIP cleaning, self sterilizing, and the whole procedures steps,
all the procedures are recorded and controllable.
>> It is of precise and reliable sterilizing temperature control; all the affecting factors such as steam pressure, steam flow rate, product flow rate are all controllable.
>> The inside of the tubular adopts advanced polish procedure, all tubes can perform fully cleaning, self sterilizing ensures the system at aseptic state;
>> The system is strong safety, the fittings all adopts reliable materials;
>> The system is of high reliable, main parts such as product pump, hot water pump, all kinds of valves, elements of the electrics are all of world known brands.
>> With self CIP.
