• Model NO.：KQ1.5-25
• Name：1500L Two Stage Small Cream Milk Juice High Pressu
• Capacity：500L,H--10000L,H
• Pressure：250- 700bar

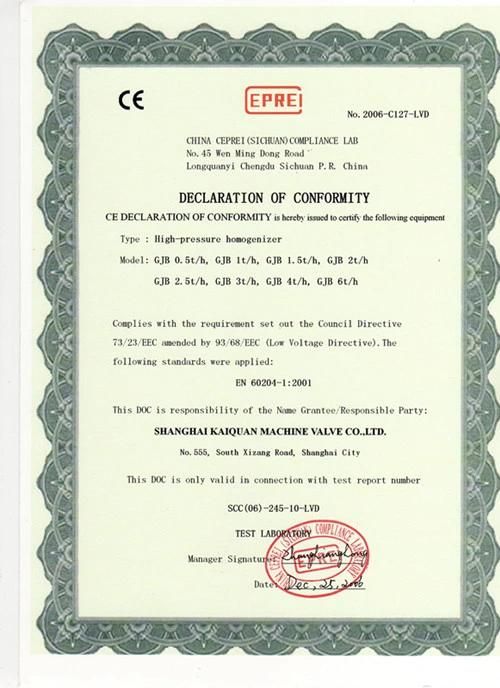

• Certificate：Ce
• Material of Main Body：Stainless Steel 304 ,316
• Appication：Milk , Juice, Beverage, Butter, Honey, Cream
• Motor Brand：ABB ,Siemens , China Brand
• Spare Part：Always Available
• Working Life：10 Years
• Packing：Wooden Box
• Transport Package：Standard Wooden Box
• Specification：CE
• Trademark：KAIQUAN
• Origin：Shanghai, China
• HS Code：8479820090
• Production Capacity：100 Units,Month

Basic Info.

Model NO. KQ1.5-25 Name 1500L Two Stage Small Cream Milk Juice High Pressu Capacity 500L/H--10000L/H Pressure 250- 700bar Certificate Ce Material of Main Body Stainless Steel 304 /316 Appication Milk , Juice, Beverage, Butter, Honey, Cream Motor Brand ABB /Siemens / China Brand Spare Part Always Available Working Life 10 Years Packing Wooden Box Transport Package Standard Wooden Box Specification CE Trademark KAIQUAN Origin Shanghai, China HS Code 8479820090 Production Capacity 100 Units/Month

Product Description

1500L Two Stage Small Cream Milk Juice High Pressure Homogenizer





series is the kind of equipment which can homogenize the liquid material and make it become high-pressure spray. The high pressure homogenizer pump reciprocates the pump position, high press the liquid, fully mixed and refined the material.


Model No. Technical parameter	KQ0.5-25	KQ1-25	KQ1.5-25	KQ2-25	KQ2.5-25	GJB3000-25 KQ3-25	KQ5-25
Rated pressure(MPa)	25	25	25	25	25	25	25
Rated flow ( Liters/H )	500	1000	1500	2000	2500	3000	5000
Medium temperature(C)	≤85	≤85	≤85	≤85	≤85	≤85	≤85
Feeding pipe diameter(mm)	25	25	25	25	25	32	40
Discharge pipe diameter(mm)	15	15	20	20	20	20	25
Power of motor(Kw)	5.5	7.5	11	15	18.5	22	45
Volt and Electricity Flow	220V,60HZ,3PH	380V,50HZ	380V,50HZ	380V,50HZ	220V,60HZ,3PH	380V,50HZ	380V,50HZ
Outline dimension (m) Length * width * height	1.16×0.9×1.24	1.16×0.9×1.24	1.16×0.9×1.24	1.4×1.1×1.42	1.4×1.1×1.42	1.4×1.1×1.42	2.2×1.45×1.1
Weight(Tons)	0.4	0.5	1.25	1.25	1.25	1.25	1.7

The high pressure homogenizer can use to homogenize the dairy product material in high pressure, refine the fat globule, prevent or decrease the stratifying of the liquid material; Make the product much more nicety, to prove the quality of the product.

The high pressure homogenizer pump also the important equipment of the powder manufacture. (Such as pharmaceutical industry, chemical industry, etc. )



1500L Two Stage Small Cream Milk Juice High Pressure Homogenizer
