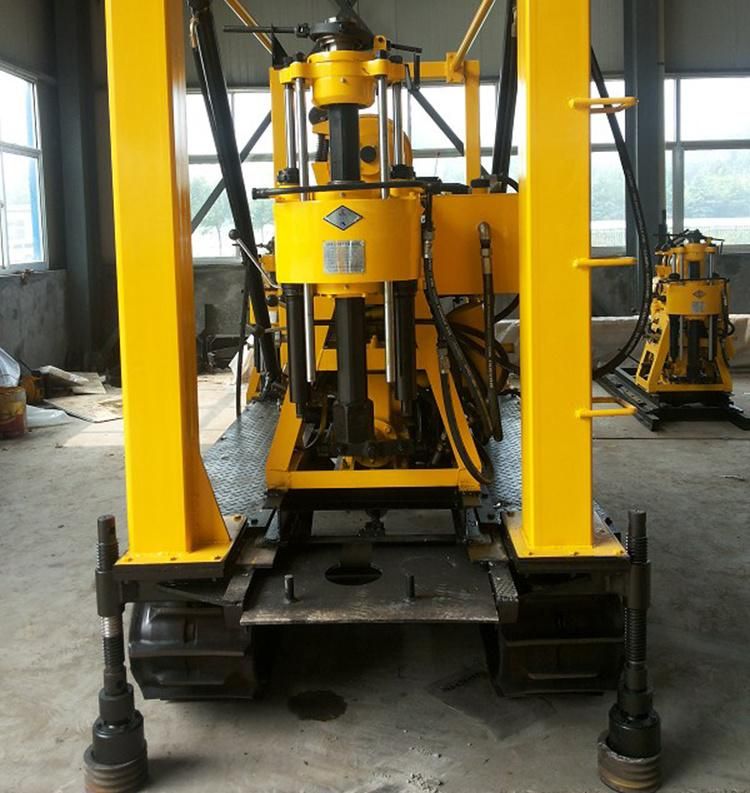

Core Drill Rig for Geolog Survey
YANCHENG LONGTERM MACHINERY CO., LTD.Base Info
Description
The whole machine parameters
Model
YGD-130
YGD-180
YGD-200
Drill hole depth
130m
180m
200m
Maximum opening diameter
Φ75-Φ220mm
Φ75-Φ220mm
Φ75-Φ325mm
Final hole diameter
Φ75mm
Φ75mm
Φ75mm
Drill pipe diameter
Φ42-60mm
Φ42-60mm
Φ42-60mm
Borehole inclination
90°- 75°
90°- 75°
90°- 75°
Power(diesel engine)
13.2/2200kw/r/min
13.2/2200kw/r/min
15/2200kw/r/min
Size
3.8*1.95*2.7m
3.8*1.95*2.7m
3.8*1.95*2.7m
Vertical shaft
Vertical spindle speed
142,285,570r/min
130,480,730,1045r/min
64,28,287,557r/min
Vertical stroke
450mm
450mm
450mm

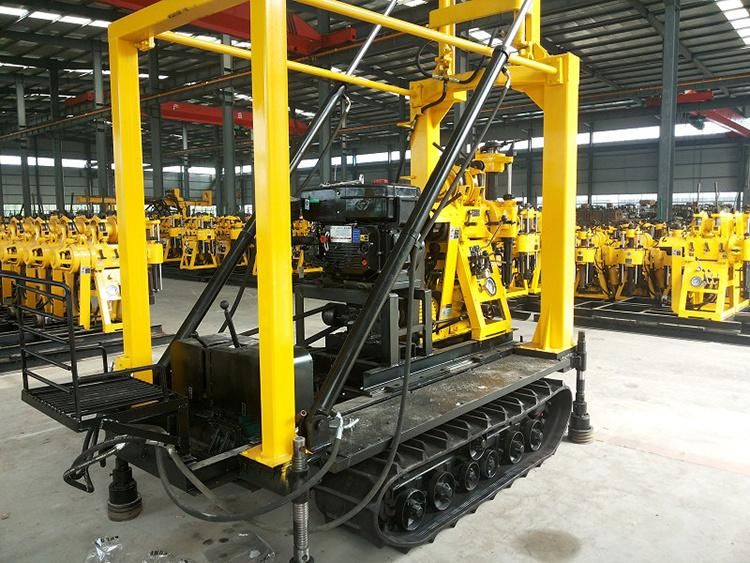

Crawler chassis
Crawler size/piece
350*90*48mm
350*90*48mm
350*90*48mm
Climbing angle
20°
20°
20°
Moving speed
10km/h
10km/h
10km/h
Hydraulic landing leg valid height
1300mm
1300mm
1300mm
Mud pump
Model
BW160
BW160
BW160
Flow
160L/min
160L/min
160L/min
Maximum pressure
1.3Mpa
1.3Mpa
1.3Mpa
Reciprocating frequency
165times/min
165times/min
165times/min
Inlet hose diameter
Φ51mm
Φ51mm
Φ51mm
Outlet hose diameter
Φ32mm
Φ32mm
Φ32mm
Feature:
1.Hydraulic control drill mast,save time and worker labor.
2.Four hydraulic jacks with max. height 1.3m,the machine can be loaded on to and unloaded from truck.
3.Rubber track is with lighter weight,and does not hurt urban road.
4.Electric-start diesel engine reduces the operator's labor intensity.
5.Mud pump:BW160 mud pump,with bigger flow displacement and pressure,easy maintenance.
6.Optional installation of hydraulic twist tube machine(75-168mm),improve work efficiency and reduce labor costs.

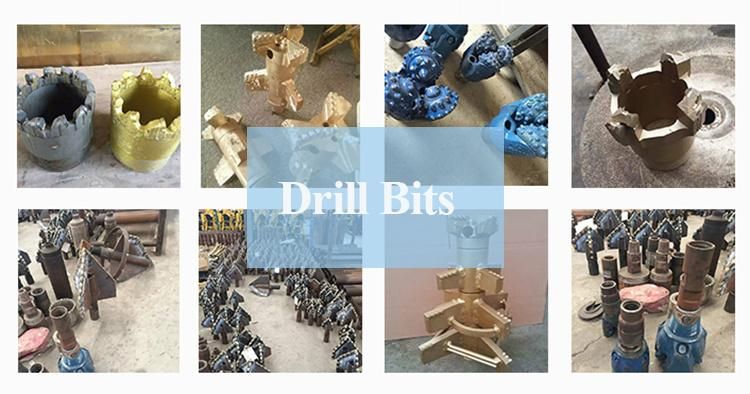

Drill Bits:

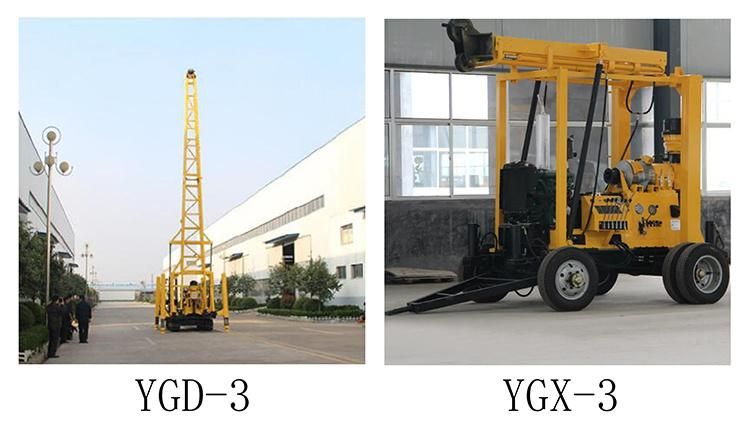

Working Site:
Hydraulic drilling rig is equipped with wheeled walking mechanism and hydraulic cylinder support, which is convenient for the whole machine to be relocated and easy to adjust the level of the drilling rig.Using holding mechanism to replace chuck, can implement non-stop down rod,convenient operation,safe and reliable.With oil pressure feeding mechanism to improve drilling efficiency.The pressure gauge is provided with the pressure gauge of the bottom of the hole, so it is easy to master the hole in the hole.The lifting and falling tower is hydraulic operation, which is convenient and reliable.The diesel engine uses electric start to reduce the labor intensity of the workers.
Drill hole depth(m)
Feature:
1.The series drilling rig mounted on a rigid tricycle facilitate easy transportation and relocation, economical and affordable.
2.Drilling rig is equipped with a hydraulic lift tower and four hydraulic legs, convenient and safe operation, reducing labor time and intensity.
3.The rig is also installed BW mud pump, with large flow and high pressure.
4.Electric start diesel engine, reduce labor intensity.
5.It can be equipped with three-wing drill bit and diamond bits for soil, sand, rocks, etc.
Working Site:

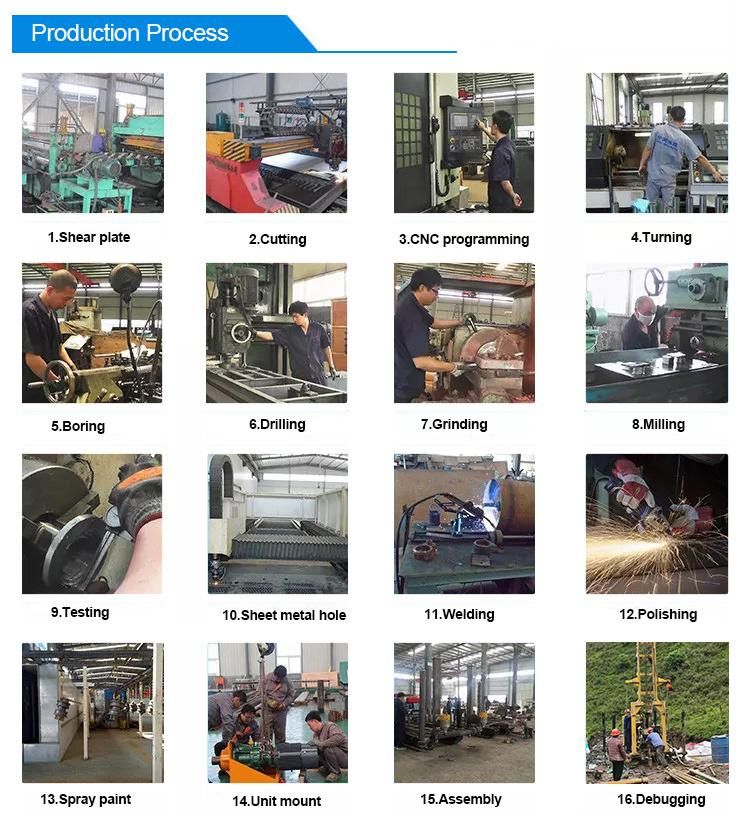

Production Process
Company Information
Henan Yugong Machinery Co., Ltd. is a large machinery manufacturing enterprise which focuses on research and development, production and sales of mining, tunnel construction, sandblasting equipment, road and bridge construction equipments and so on.
We believes that good quality can give us survival, thus we only provide you top products. All the products with high quality meet international standards and are highly estimated by all clients at home and abroad.
All the staff in our company are professionally trained, so we can recommend you the most appropriate equipment. Every machine will be strictly examined before delivery. Any question about the machine will be replied within 24 hours. Welcome you to be our new client!
1.We have more than15 years manufacture and export experience.
2.Exporting to all over the world,win high reputation among customers.
3.CE, ISO 9001 and Strict Production Guideline to guarantee the high quality of our products.
4.Near the Qingdao port convenient for exporting.
5.Customer service staff 24 hours online,offer free technical support.
6.Factory and Competitive Price we offer.
7.Strong Research & Development technical team.
8.Various machinery to meet all your needs at our factory.
9.Engineers are available to guide the installation and take care of other problems.
10.We offer OEM&ODM service to meet all your requirements.
Packaging & Shipping
1. Packaging:
1)Wrapped by protective film;
2)Packed by standard import & export wooden cases or carton boxes.
2. Shipping:
By logistics; by automobile; by train; by shipping; by air etc.
